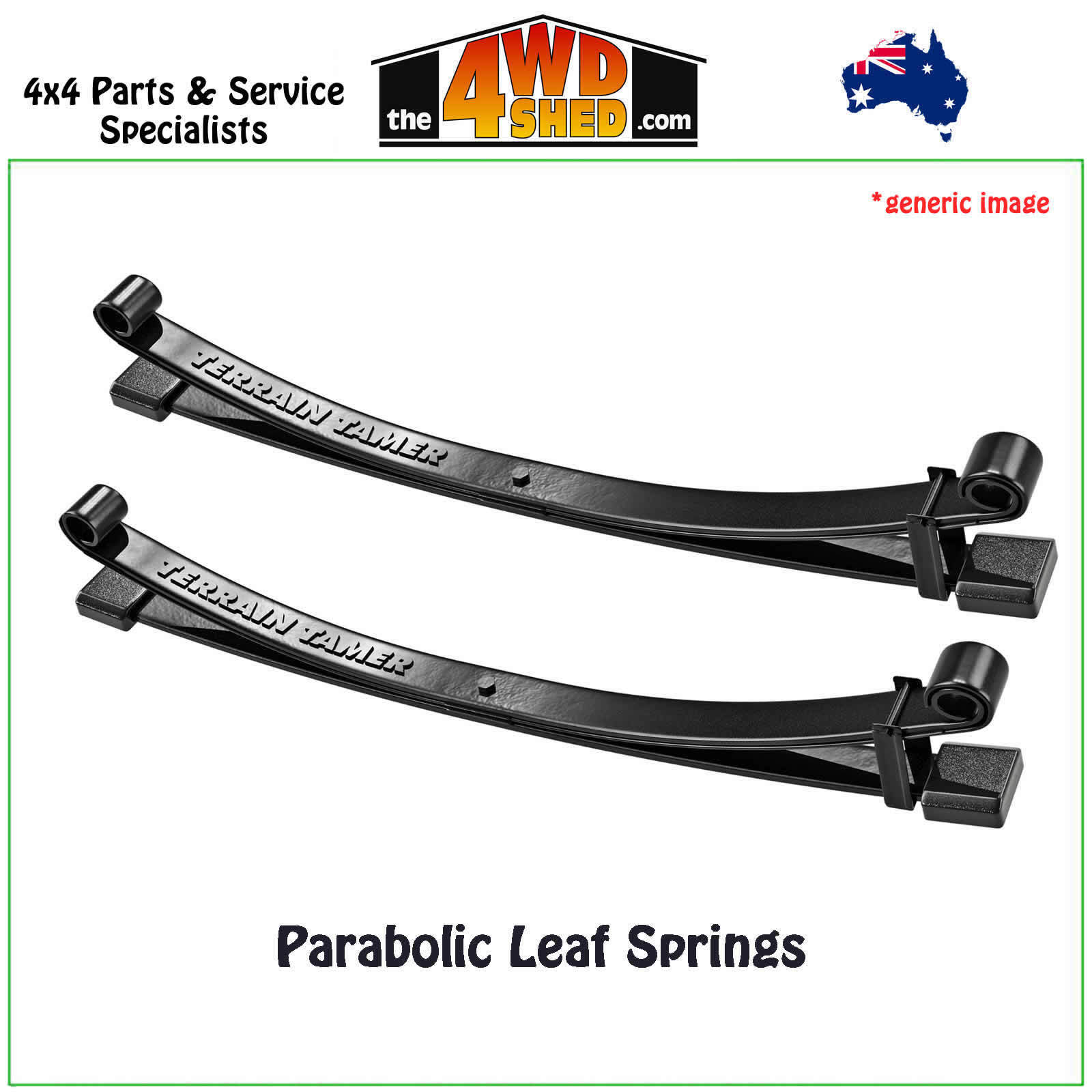

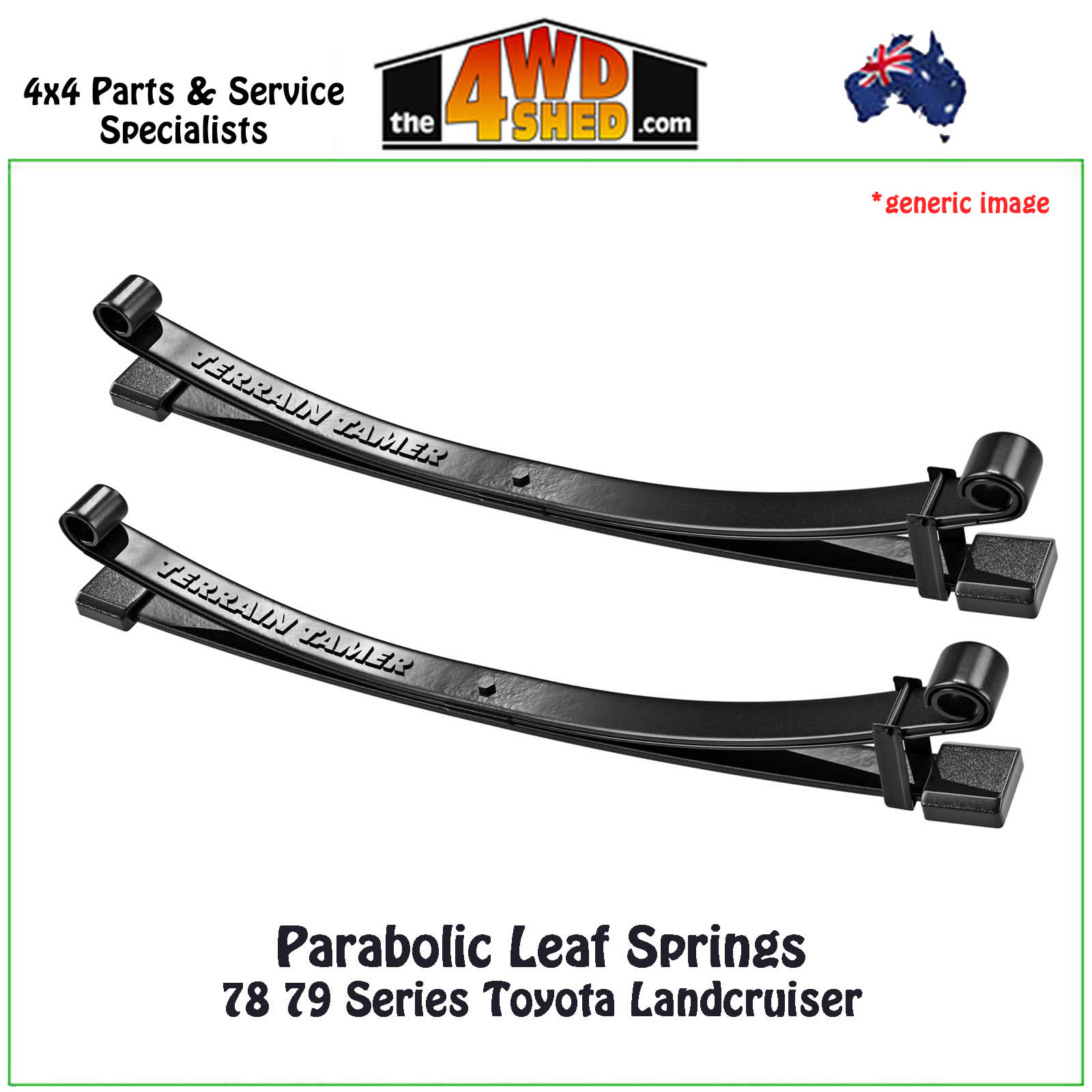

Parabolic Leaf Springs 78 79 Series Toyota Landcruiser

Terrain Tamer Rear Parabolic Leaf Springs are designed for the ultimate ride quality.

Parabolic leaf springs are a replacement for the conventional multi leaf spring with ride comfort and articulation being their major advantage. A parabolic spring pack has a minimal number of leafs with the leaf material being tapered. Utilising a new design on an old technology, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

After more than three years of extensive research and development, combined with the latest in steel technology, Terrain Tamer have launched an innovative product with a significant advantage over standard multi-leaf springs. Parabolic springs feature a parabolic taper, which means they are thicker in the centre and become thinner toward each end. This allows each leaf to work independently for enhanced flex, without sacrificing load capacity. The result is a quieter, more comfortable ride under a wide range of conditions.

Vehicle Fitment

• 78 Series Toyota Landcruiser FZJ78 8/1999-Onwards
• 78 Series Toyota Landcruiser GRJ78 7/2009-Onwards
• 78 Series Toyota Landcruiser HDJ78 8/1999-Onwards
• 78 Series Toyota Landcruiser HZJ78 8/1999-Onwards
• 78 Series Toyota Landcruiser VDJ78 1/2007-Onwards
• 79 Series Toyota Landcruiser FZJ78 8/1999-Onwards
• 79 Series Toyota Landcruiser GRJ79 7/2009-Onwards
• 79 Series Toyota Landcruiser HDJ79 8/1999-Onwards
• 79 Series Toyota Landcruiser HZJ79 8/1999-Onwards
• 79 Series Toyota Landcruiser VDJ79 1/2007-Onwards

Estimated Lift

• 50mm

Load Rating Options

• 0-400KG Suitable for Single Cab Only
• 400-700KG (TLC016EHDP)
• 700kg+ (TLC016AP)

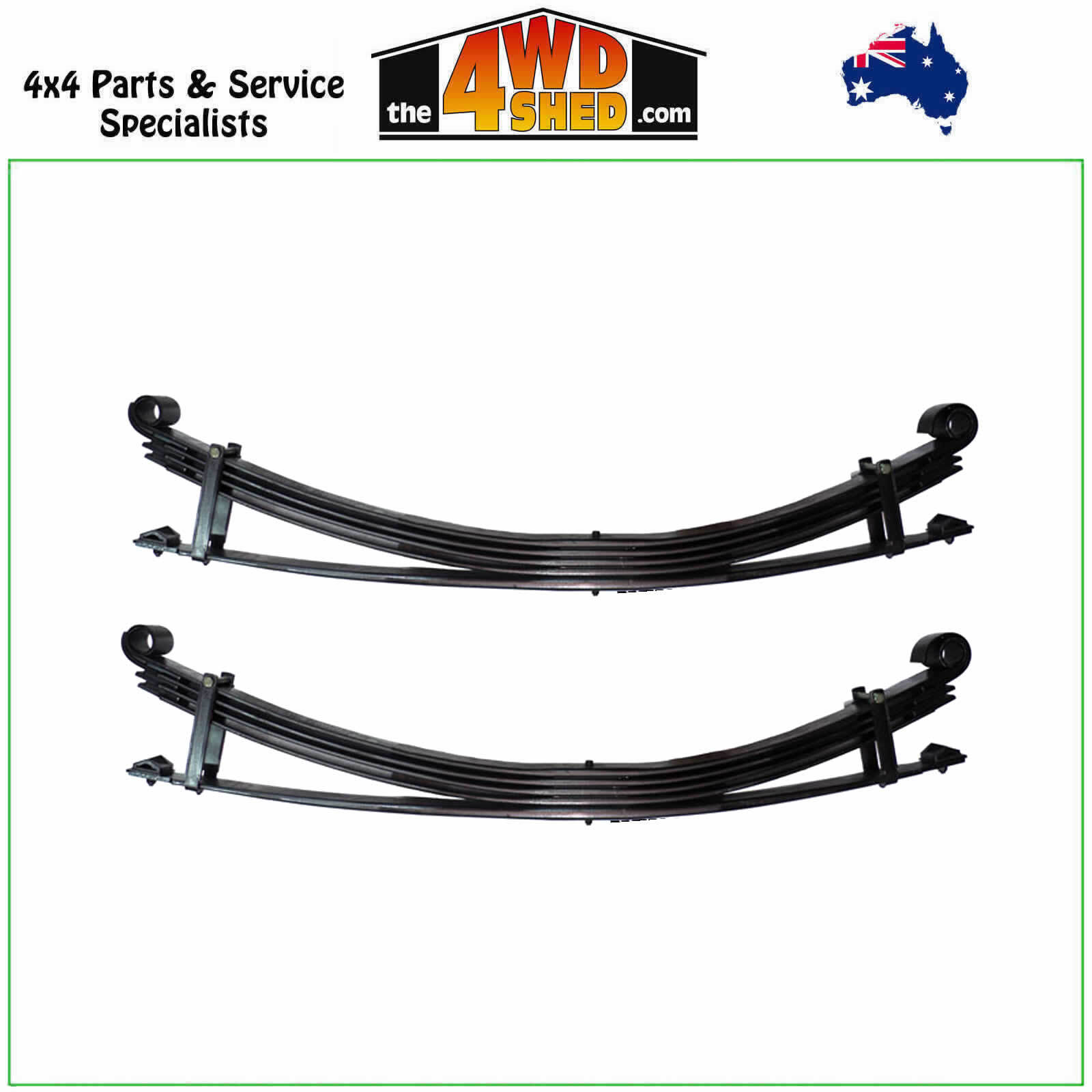

Please Note: The 700Kg+ Fortified Parabolics are a 5 leaf spring.

Features

• Lighter – Less unsprung weight
• Less Shock – Less shock load on the differential gears
• Quieter – The leafs do not touch each other
• Comfort – With Better articulation
• Better Ride Quality - Both Loaded & Unloaded

Sold as a PAIR.

This is for the Leaf Springs only.

This is for the Parabolic Springs only, also available as a suspension kit SK007 if you have a 700kg+ Constant Load please contact us to discuss. Check the constant load rating to suit your needs before purchase.

Shipping Note: All Springs are Pick Up from our Bayswater Vic store. If you require shipping you will need to contact us for a personalised freight quote due to the size & weight of these springs.
