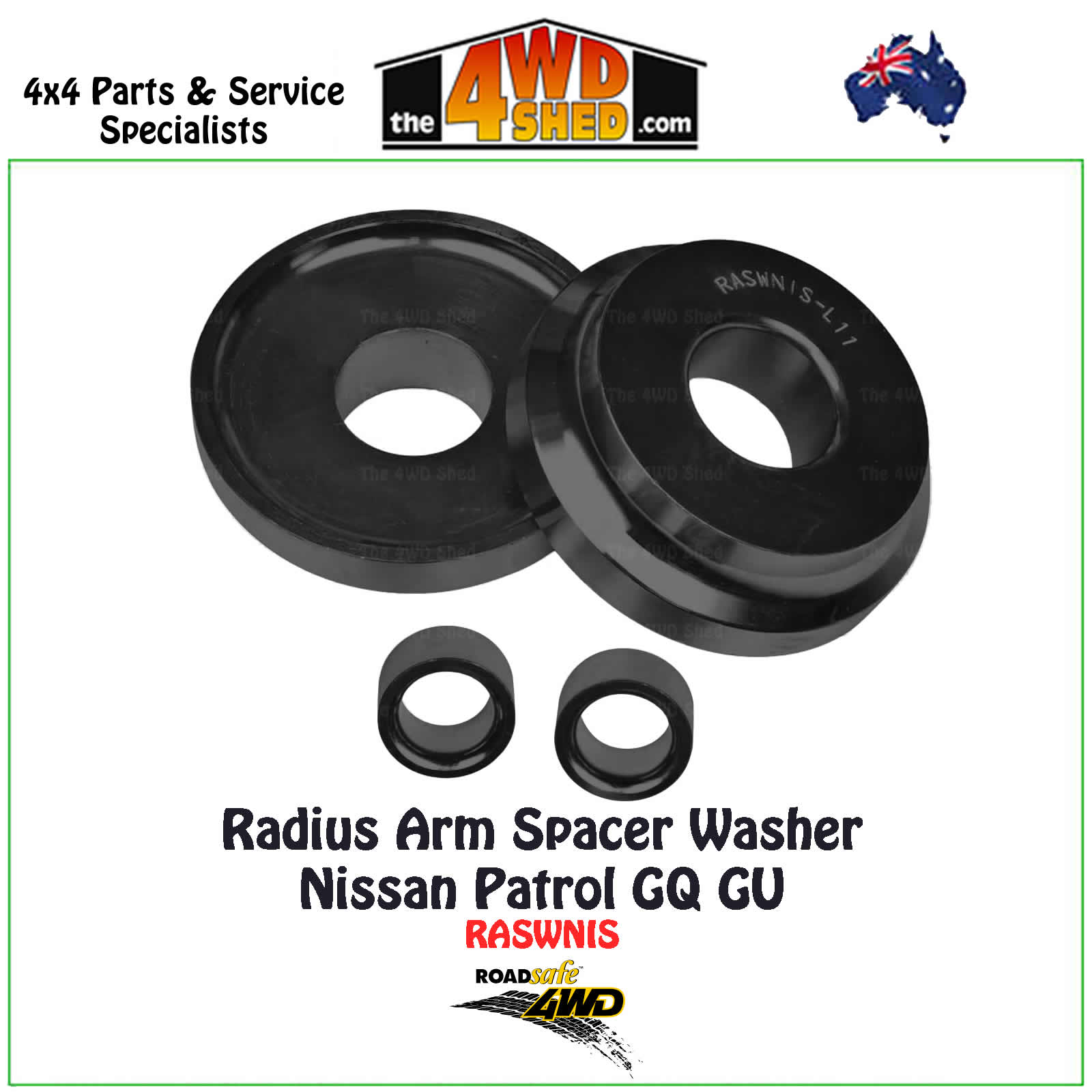

Radius Arm Spacer Washer Nissan Patrol - RASWNIS

Roadsafe 4WD Radius Arm Spacer Washer Nissan Patrol

Compatible with GQ & GU Patrols with Coil Front, the Roadsafe Radius Arm Spacer Kit is primarily used to push the front diff forward (approx 15mm) to give better clearance for larger tyres so they don't hit mud flaps & guards.

Another common issue with the Patrols is for the standard radius arm washers to bend following excessive impacts, which can result in premature failure of the arm. Bigger tyres also generally means bigger shocks with longer travel. This increase in travel can put additional stress on the rear radius arm bushings, causing them to distort or become dislodged. The high tensile radius arm spacers being stronger than standard washers, resist bending and aid in radius arm longevity.

The Roadsafe Radius Arm Spacers are also designed in such a way as to cup the rubber bushing, preventing it from being dislodged, resulting in improved bushing longevity.

Three options of the Roadsafe Radius Arm Spacer/Washer are now available.

You will recieve the RASWNIS.

PATRAMBC - The Roadsafe PATRAMBC is basically an upgraded washer, with improved bushing cup. It doesn't provide for any spacing component. Just replace the original washer with the PATRAMBC which is a stronger replacement with longer side walls.

RASWNIS - The Roadsafe RASWNIS is our öriginal radius arm spacer. The washer is stronger, allows for 15mm 'push' of the diff, and has low profile side walls that still offer bush cupping for improved bushing longevity.

RASWNISV2 - The Roadsafe RASWNISV2 is our improved version of the original. Still offering 15mm 'push' of the diff, and an overall stronger washer, the side walls are increased substantially to provide for better cupping of the bushing and further improved bushing longevity.

It is recommended that you check the clearance from your diff to your panhard rod, at full compression, before and after fitting the radius arm spacers. The panhard rod and diff pumpkin run very close on some GU Patrols depending upon other suspension work that has been done on the vehicle. Pushing the diff forward with the spacers can result in the panhard rod making contact with the diff or the front of the radius arm, affecting the articulation of the panhard rod, which can place additional stress on the panhard welds and brackets, leading to premature failure.

The 4WD Shed is an Authorized Stockist for Roadsafe 4WD.
