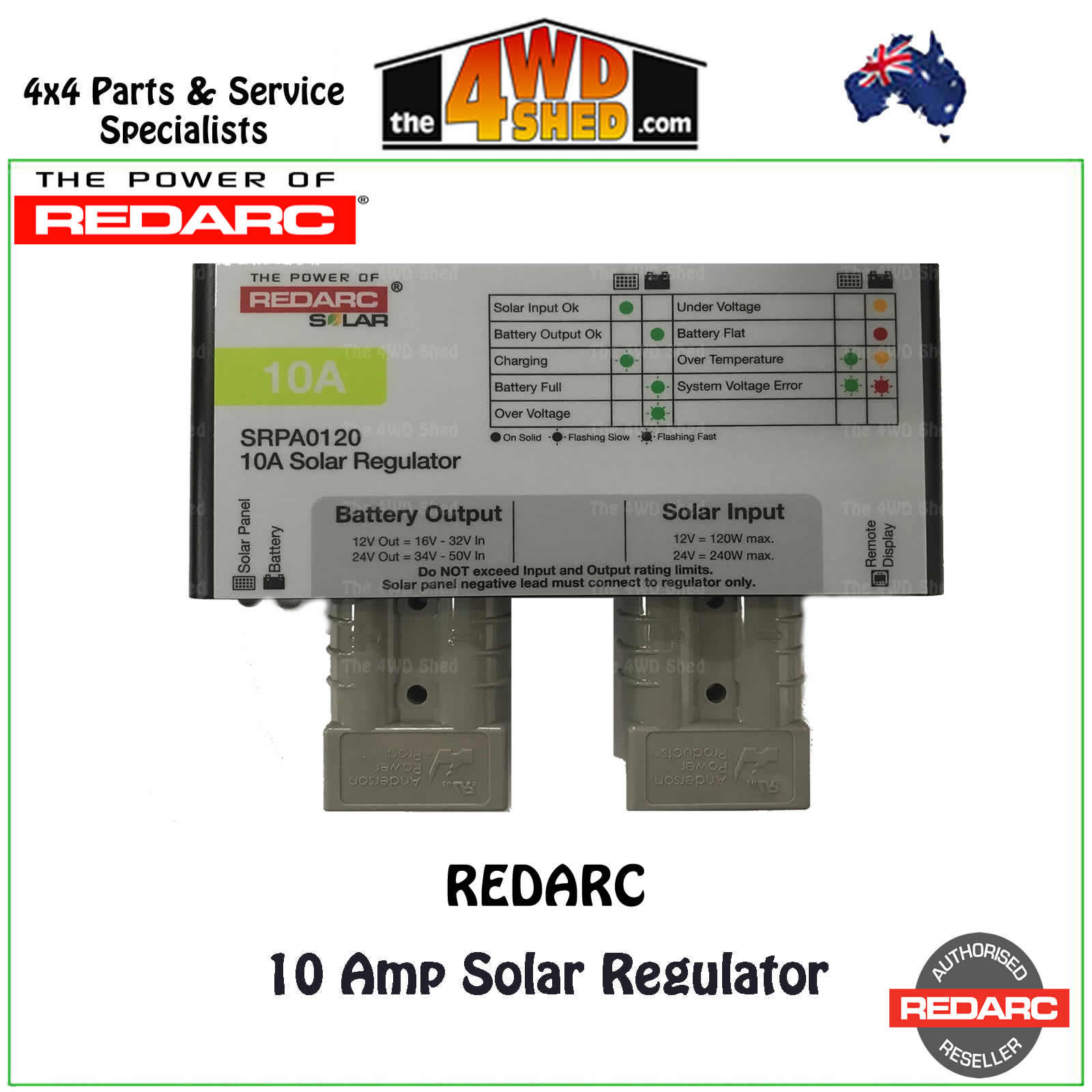

10 Amp Solar Regulator
More infoThe REDARC 10A Solar Regulator ensures the correct charge is supplied safely and efficiently to charge an auxiliary battery. Available with Anderson™ SB™50 connectors.
REDARC’S newly designed 10 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works with the 115 watt SunPower® and the 112 watt Amorphous cell blanket. REDARC’s 10 Amp Solar Regulator acts as the go between to transfer power generated from the panels to the battery.
Featuring multistage charging; boost, absorption and float, REDARC’s 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.
It will work with multiple chemistry batteries including AGM, Standard and Calcium*, and is ideal for permanent installation or portable systems, and has multiple levels of protection including over temperature, over charge and reverse polarity.
*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
Features
- Multi-stage charging- boost, absorption, and float
- Works with multiple battery types (REDARC Solar Remote Monitor required)
- Ideal for permanent installation or portable systems
- Multiple levels of protection – over temperature, over charge, reverse polarity

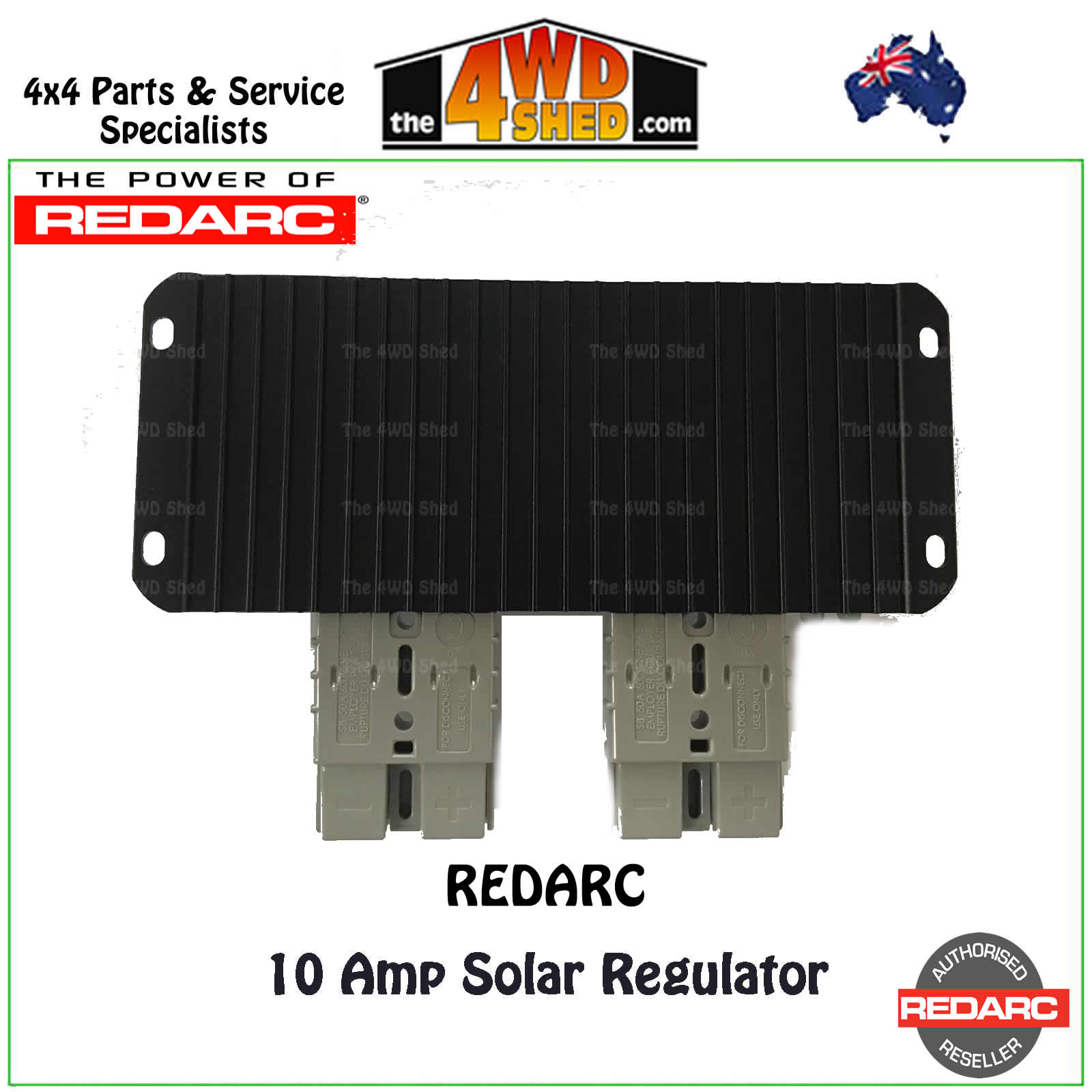

- Genuine Industry Standard Anderson™ SB™50 plug connection
The 4WD Shed is an Authorized Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply

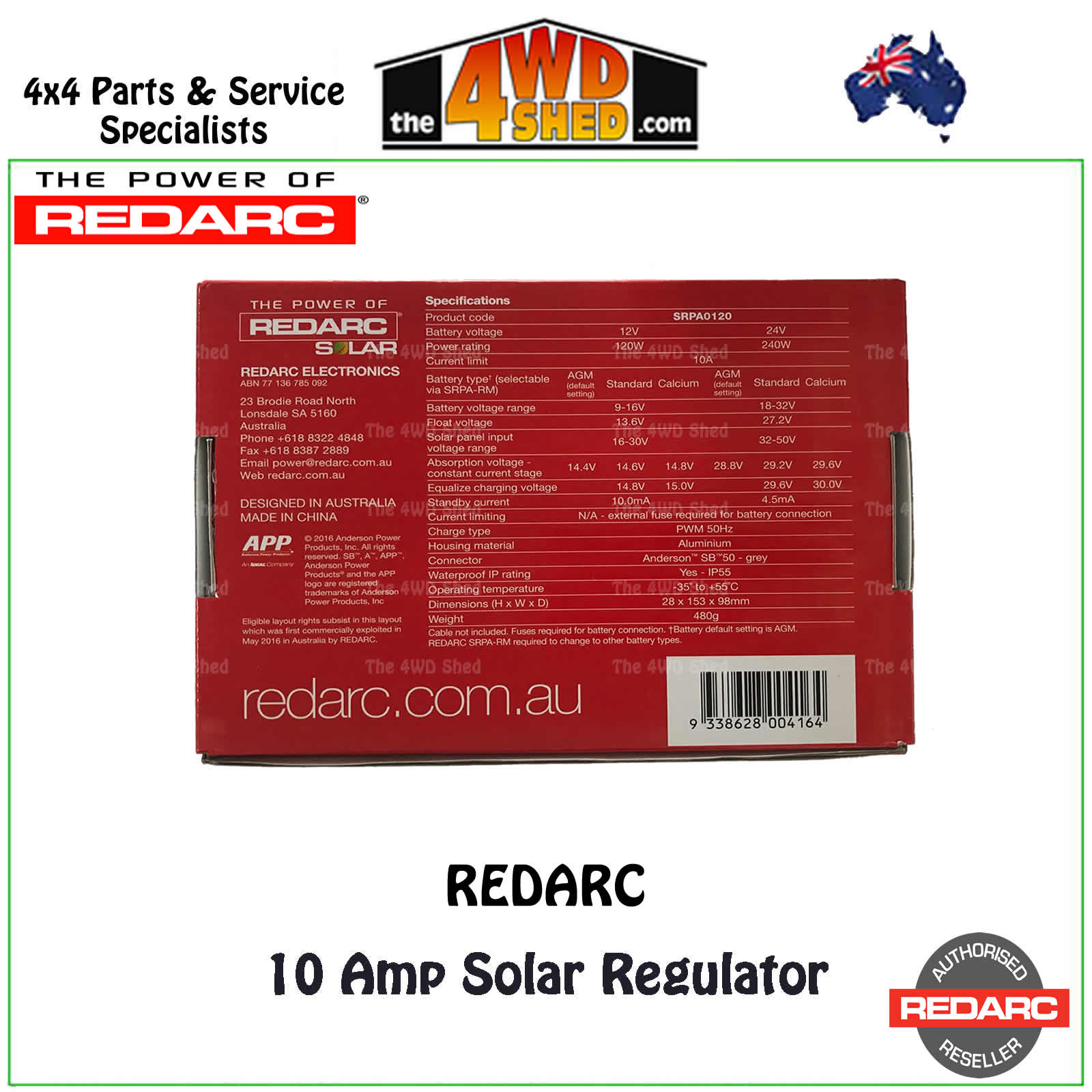

| Input (Operating) Voltage | 12V/24V |
| Maximum Power Rating | 120/240W |
| Output Current Rating (Cont.) | 10A |
| Charge Type | PWM 50Hz |
| Waterproof IP rating | Yes - IP55 |
| Operating Temperature | -35°C to +55°C |
| Height (mm) | 28 |
| Length (mm) | 153 |
| Width (mm) | 98 |
| Weight (kg) | 0.48 |
| Warranty | 2 Years |
(SRPA0120)
| SKU | SRPA0120 |
| Brand | Redarc |
| Shipping Weight | 0.5000kg |
