12V Powder Coated Control Power Box

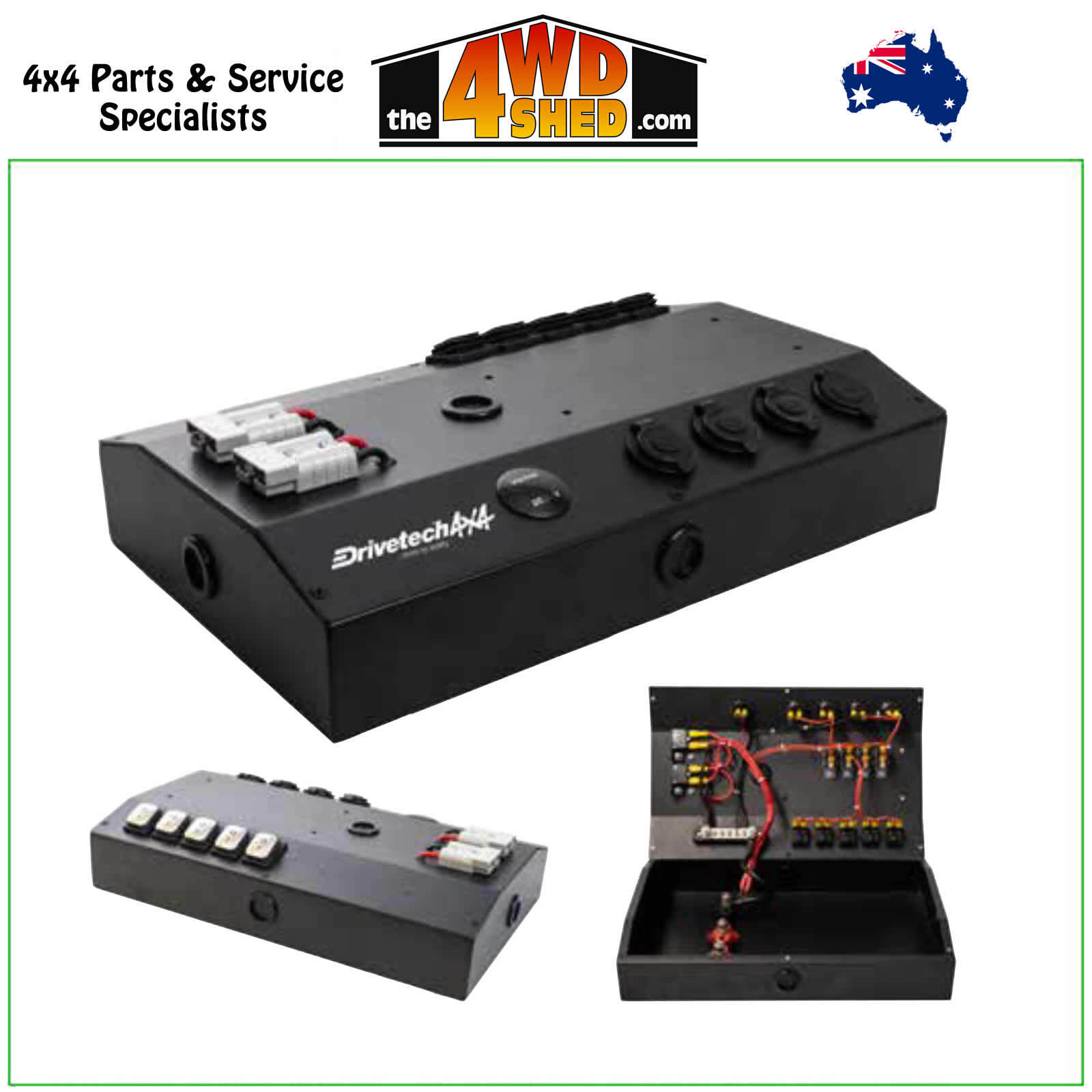

Drivetech 4x4 12V Powder Coated Control Power Box

Complete easy-to-fit wiring solution for 4x4’s, camper trailers and caravans. Includes auto reset circuit breakers to eliminate the need to carry uses, and features multiple positive and negative input/output studs. With easy to follow fitting and wiring instructions, the control box is  compatible with a wide range of DC-DC’s and solar regulators.

Features

• Laser cut powder coated alloy case (2mm top, 1.5mm case)
• 6x Automatic re-settable circuit breakers (2x 25A on Anderson style plugs,
• 4x 15A for switches and power/USB sockets)
• 1x 29mm Round voltmeter
• 3x 29mm Round power sockets (20A maximum)
• 1x 29mm Round dual USB sockets (1x 5V 2.4A, 1x 1A)
• 2x Anderson plugs with circuit breakers
• 5x Switches with sticker kit (10A maximum)
• Mounting points for DC-DC charger
• 1x Negative bus bar
• 2x Positive 8mm studs
• 1x Negative 8mm stud
• 4x 25mm Entry grommets (1 per side)
• Box dimensions 400x250x80mm
• 12-Month warranty
