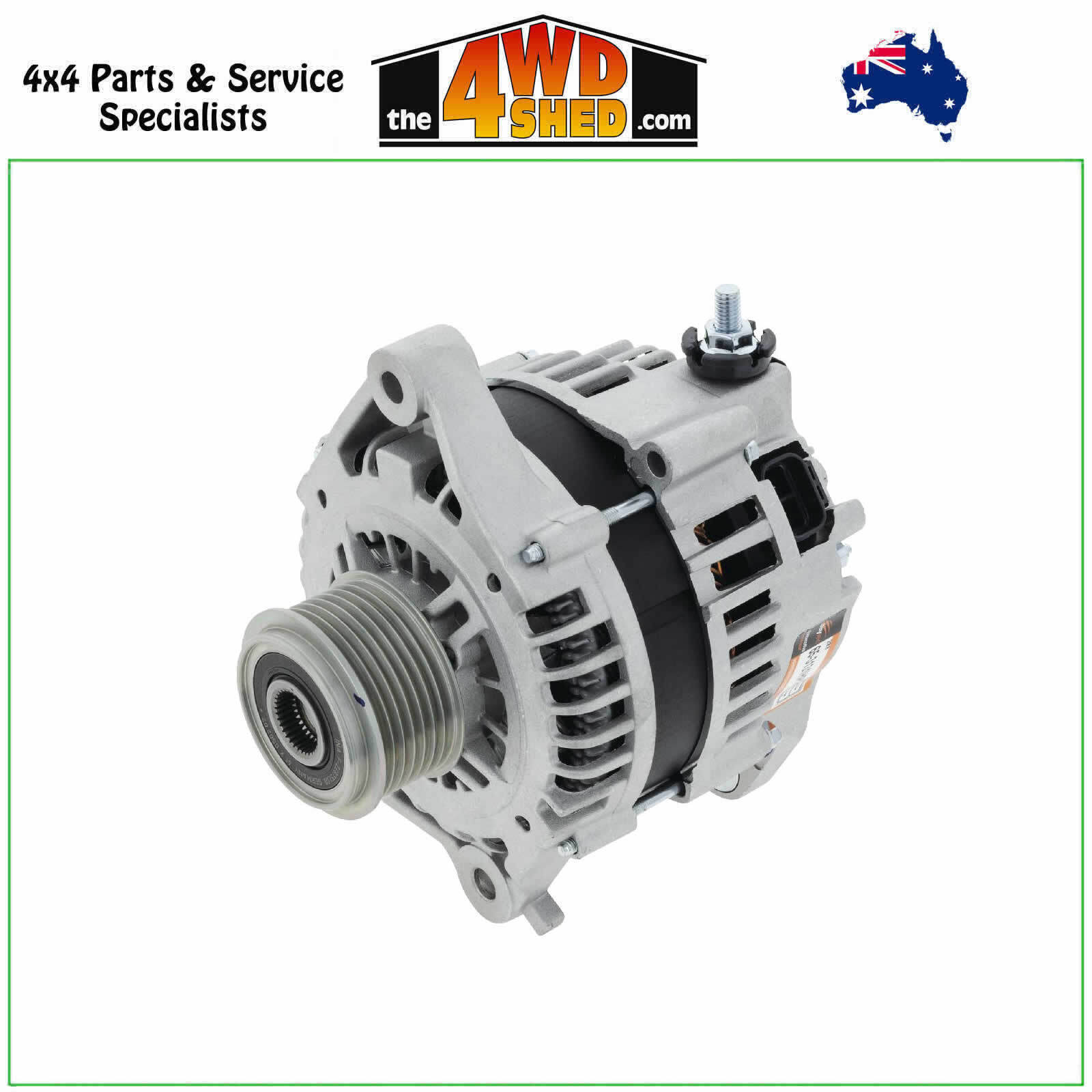

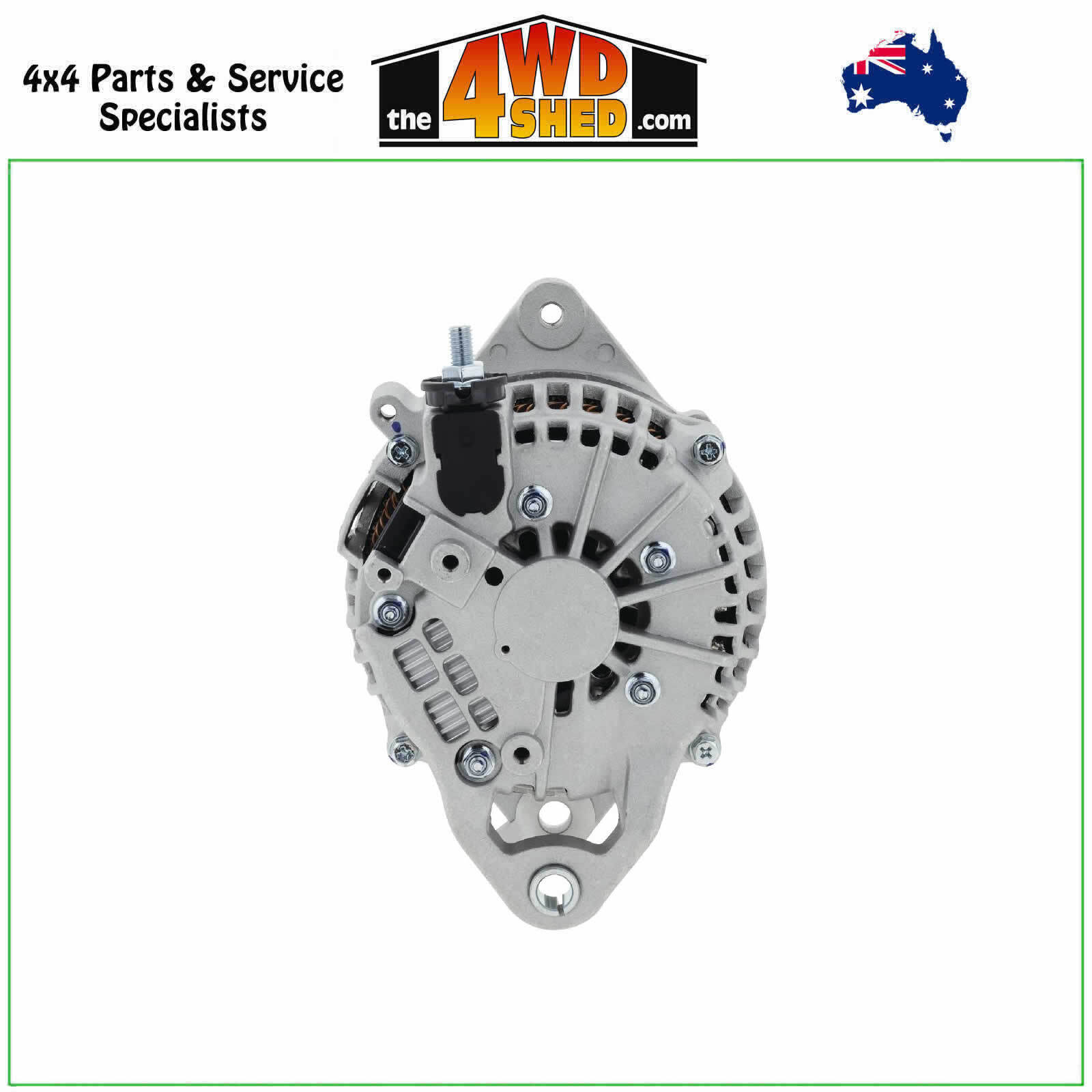

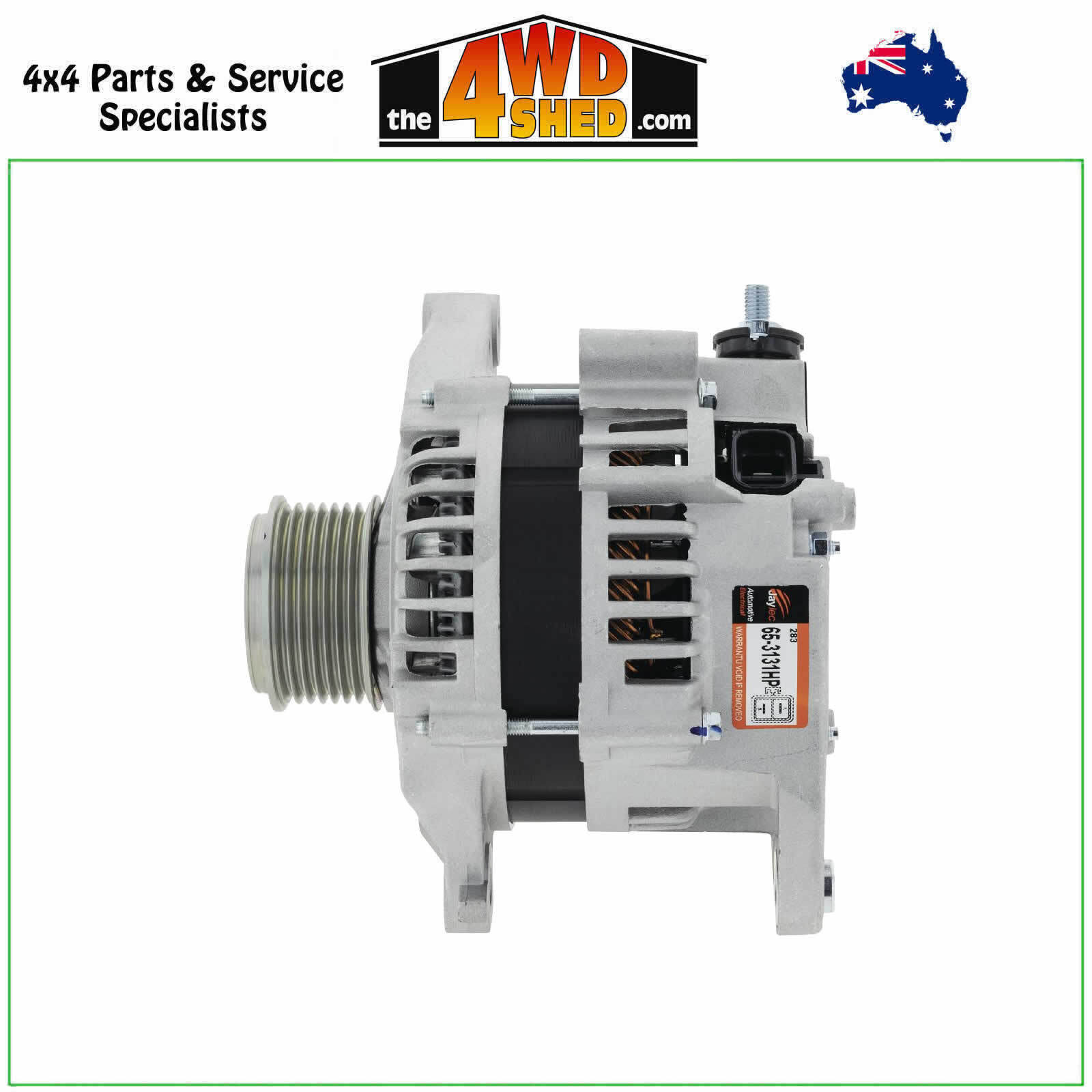

135 Amp Alternator Nissan Patrol GU Navara D22 ZD
More infoAlternator with Clutch Pulley Nissan Patrol GU Y61 ZD30DI 135 Amp
High quality aftermarket part that is a direct replacement for your OEM alternator. Rated to 135 Amp fitted with NSK Bearing & INA Clutch Pulley.
Suit
- Nissan Patrol Y61 GU > 01/2007 ZD30DI
- Nissan Navara D22 ZD30
These are a Heavy Duty & Reliable Alternator option in your ZD Patrol or D22 Navara.
Photos form part of the description, please check the images before purchase.
| Specifications | |
| Voltage | 12V |
| Amperage | 135A |
| Mount Leg ID | 80mm |
| C-C Mounts | 169mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 10mm |
| Shaft Size | 17mm |
| Pulley Type | 7PV, CLUTCH |
| Pulley Grooves | 7 |
| Pulley Diameter | 64mm |
| Regulator Type | INTERNAL |
| Connections Plug # | EP39 |
| Terminals | B+, S,. L |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
| Weight (Kg) | 7.4kg |
(65-3131HP)
| SKU | 65-3131HP |
| Brand | Jaylec |
| Shipping Weight | 7.4000kg |
