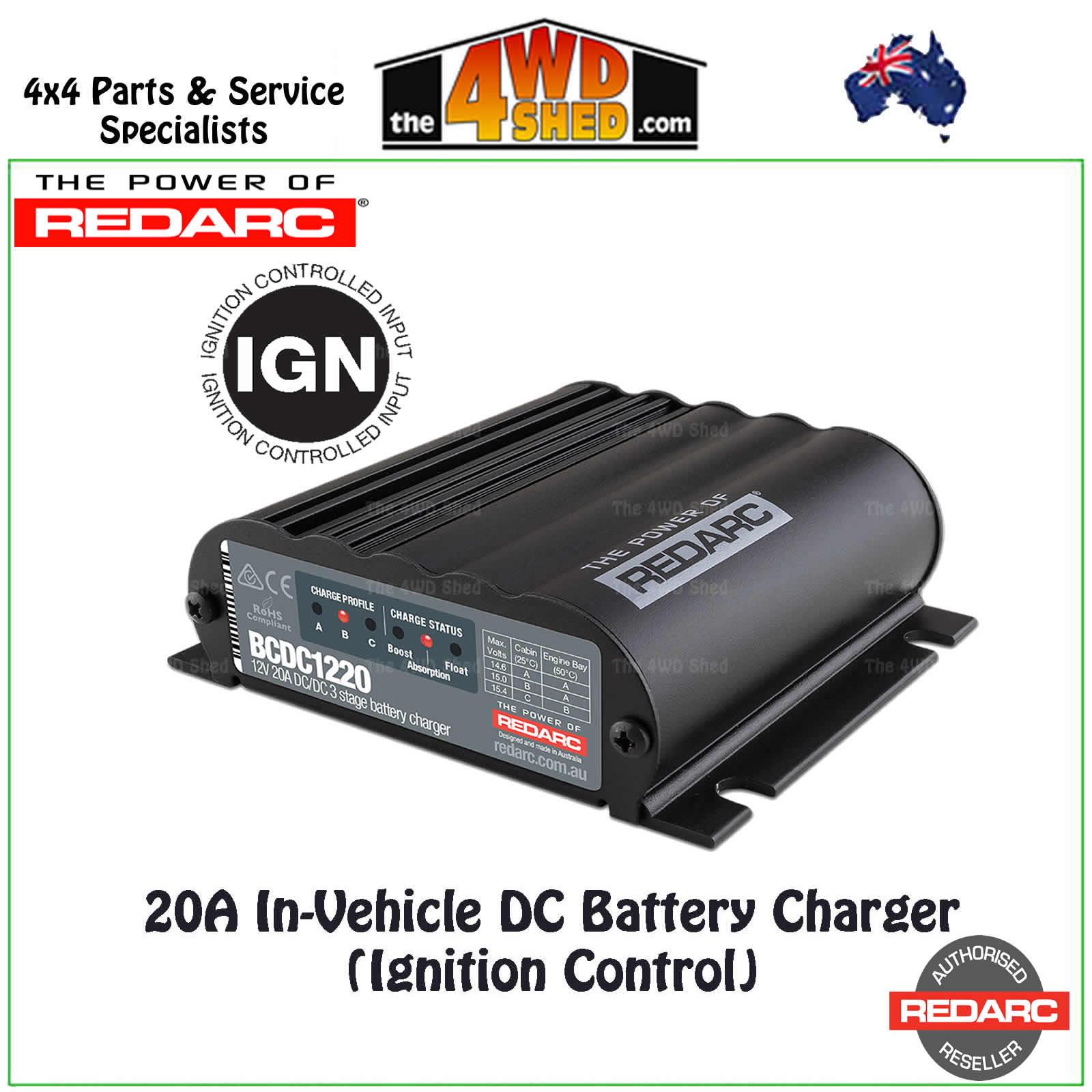

20A In-Vehicle DC Battery Charger (Ignition Control)
More infoREDARC 20A In-Vehicle DC Battery Charger (Ignition Control)
The REDARC BCDC1220-IGN is a 12V 20A In-vehicle DC to DC charger suitable for vehicles fitted with an ECU-controlled variable voltage alternator
The REDARC BCDC1220-IGN is a 12 Volt 20 Amp In-vehicle DC DC charger featuring technology designed to fully charge a lead acid auxiliary battery. It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator.
The BCDC1220-IGN features a lower voltage setting so it can continue to operate with a low input voltage from the alternator.
The BCDC dual battery charger will work from a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems.
By providing a unique charging profile to each specific battery type, the BCDC charger is able to achieve and maintain an optimal charge in auxiliary batteries whilst on the move. It will allow you to charge an auxiliary battery that is a different characteristic to the start battery.
The unit will act as a dual battery isolator and protect the start battery, should the voltage get too low.
Proven and Tested
Compact in size, easy to install and fully sealed - water, dust and vibration are no match for the in-vehicle DC smart charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever increasing number of electrical accessories and devices being used when travelling around Australia, along with more complex vehicle electrical systems than seen in years gone by, having the right battery charging solution has never been more important.
Designed, built and tested in Australia for our unique conditions, the BCDC in-vehicle DC to DC charger won’t let you down.
Features
- Multi Stage DC to DC Battery Charger
- Start Battery Isolator
- Fully sealed
- No fan for super quiet operation
- Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
- Works with Variable Voltage Alternators
The 4WD Shed is an Authorized Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
| Input (Operating) Voltage | 9 - 32VDC |
| Maximum Charging Voltage | 15.4V |
| Output System Voltage | 12VDC |
| Input Current (Max.) | 20A |
| Output Fuse Rating | 40A |
| Standby Current Draw | <100mA |
| Output Current Rating (Cont.) | 20A |
| Input Fuse Rating | 40A |
| Output Power | 300W |
| Length (mm) | 120 |
| Warranty | 2 Years |
| Width (mm) | 100 |
| Height (mm) | 37 |
| Weight (kg) | 0.485 |
| Type Approval | CE |
(BCDC1220-IGN)
| SKU | BCDC1220-IGN |
| Barcode # | 9338628003112 |
| Brand | Redarc |
| Shipping Weight | 1.0000kg |
