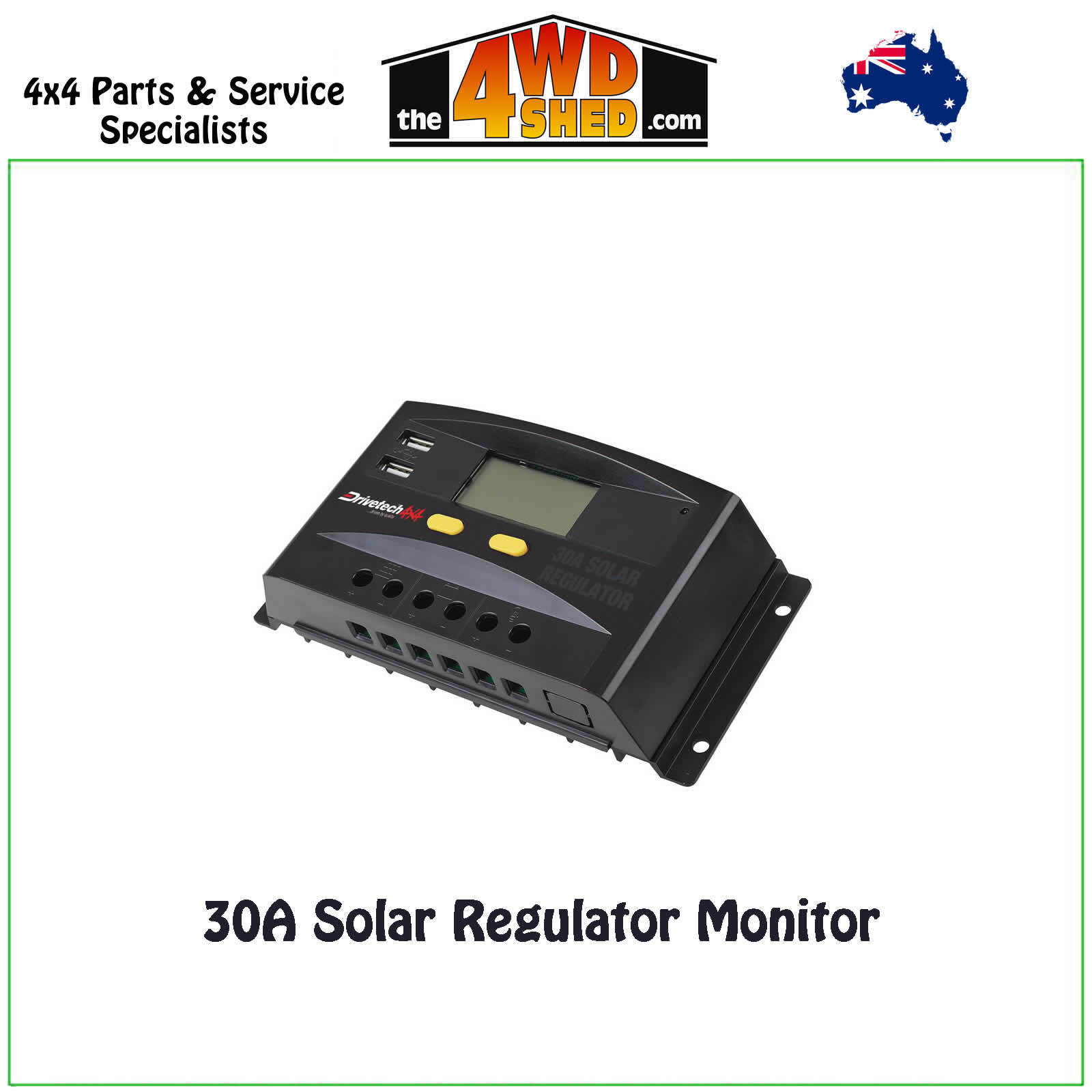

Drivetech 4x4 30A Solar Regulator & Monitor
Regulate the current flowing from the solar panel into the battery bank to avoid overcharging your batteries
Features
- 12V 24V Automatic detection for output
- LCD Display
- Load control timer system can automatically turn loads on & off
- PWM three stage charging
- Overvoltage, short circuit, overload, overcharge, over discharge protection functions
- Accurate temperature compensation, correct charging & discharging voltage
- Input terminal positive & negative extreme reverse connection protection
- 50V open circuit panel voltage
Specifications
- Amperage 30A
- USB Output 5V 1A
- System Voltage 12/24V
- Solar Open Circuit Voltage 50V
- Standby Current <13mA
- Low Voltage Disconnect (LVD) 10.7V (10-13.8V), 21.4V (20-27.6V)
- Low Voltage Reconnect (LVR) 12.6V (10.2-14V), 25.2V (20.4-28V)
- Floating Voltages 13.8V (13-15V), 27.6V (26-30V)
- Battery Overcurrent Protection 15V/30V
- Reverse Polarity Protection Yes
- Charge Style Pulse Width Modulation (PWM)
- Temperature Compensation 24mv/°C, -48mv/°C. Relative to 12/24V systems
- Operating Temperature 20-55°C
- Input Terminal Size 28-10AWG
- Environmental Rating IP32
- Product Size 187x90x47mm
- Weight 320g
The 4WD Shed is an Authorised Stockist of Drivetech 4x4
(DTSR30)
SKU | DTSR30 |
Brand | Drivetech 4x4 |
Shipping Weight | 0.5000kg |
