8 Switch Slimline Panel Control System
With the function to switch multiple lights and accessories on/off this is must for any 4x4.
Includes a high-beam input function, not seen on others, allowing you to select two channels that only work if your high-beam is on. This means that your driving lights will turn off when you flick off your high-beam, a legal requirement when installing forward facing lights.
With our simplified wiring, only one cable passes through your firewall. Any additional item you want to add can be done with a simple two core wire from under your bonnet directly to the item. No additional switches, fuses, relays or wiring required.
Features

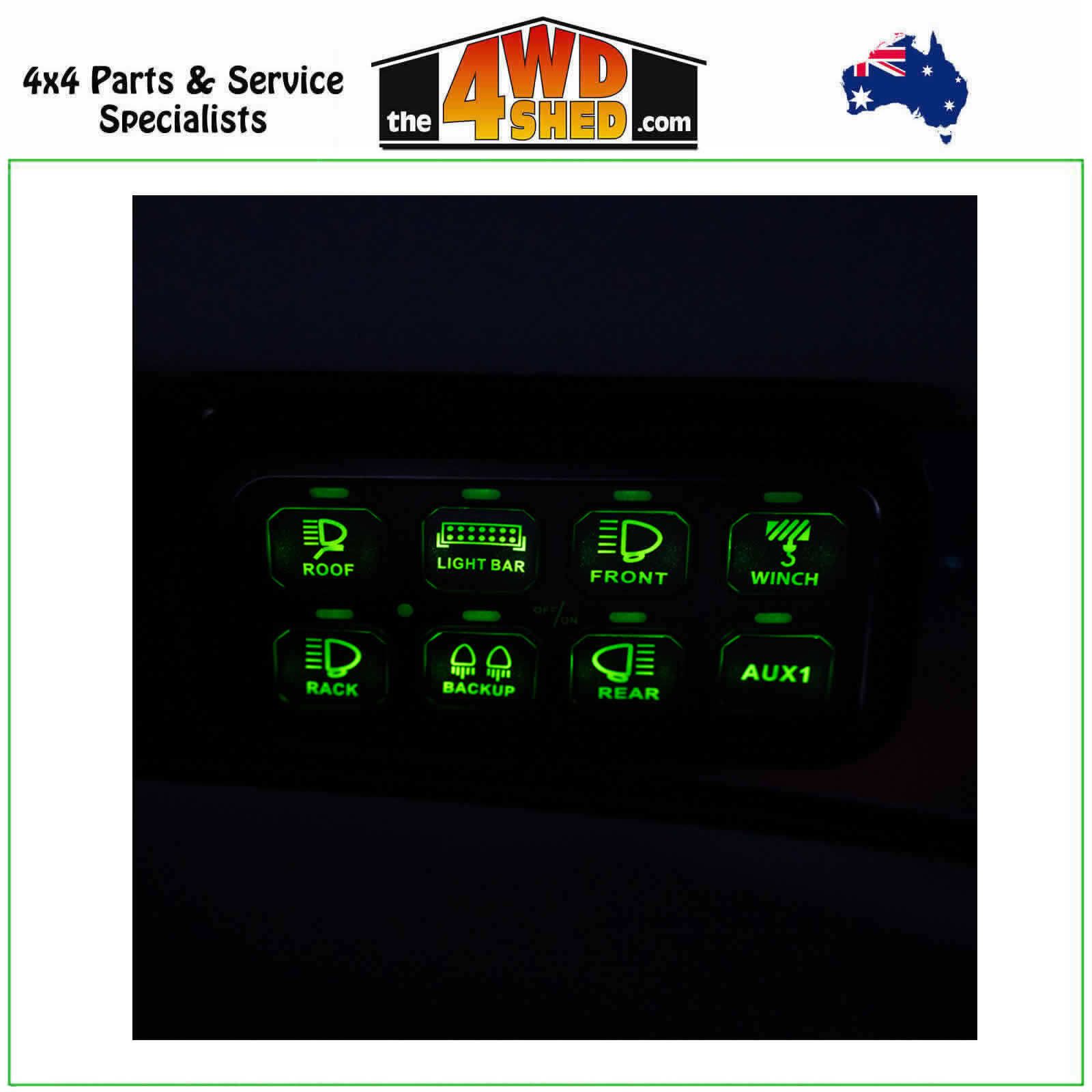

- 8 gang switch panel
- High beam input
- Ambient sensing back-lit display

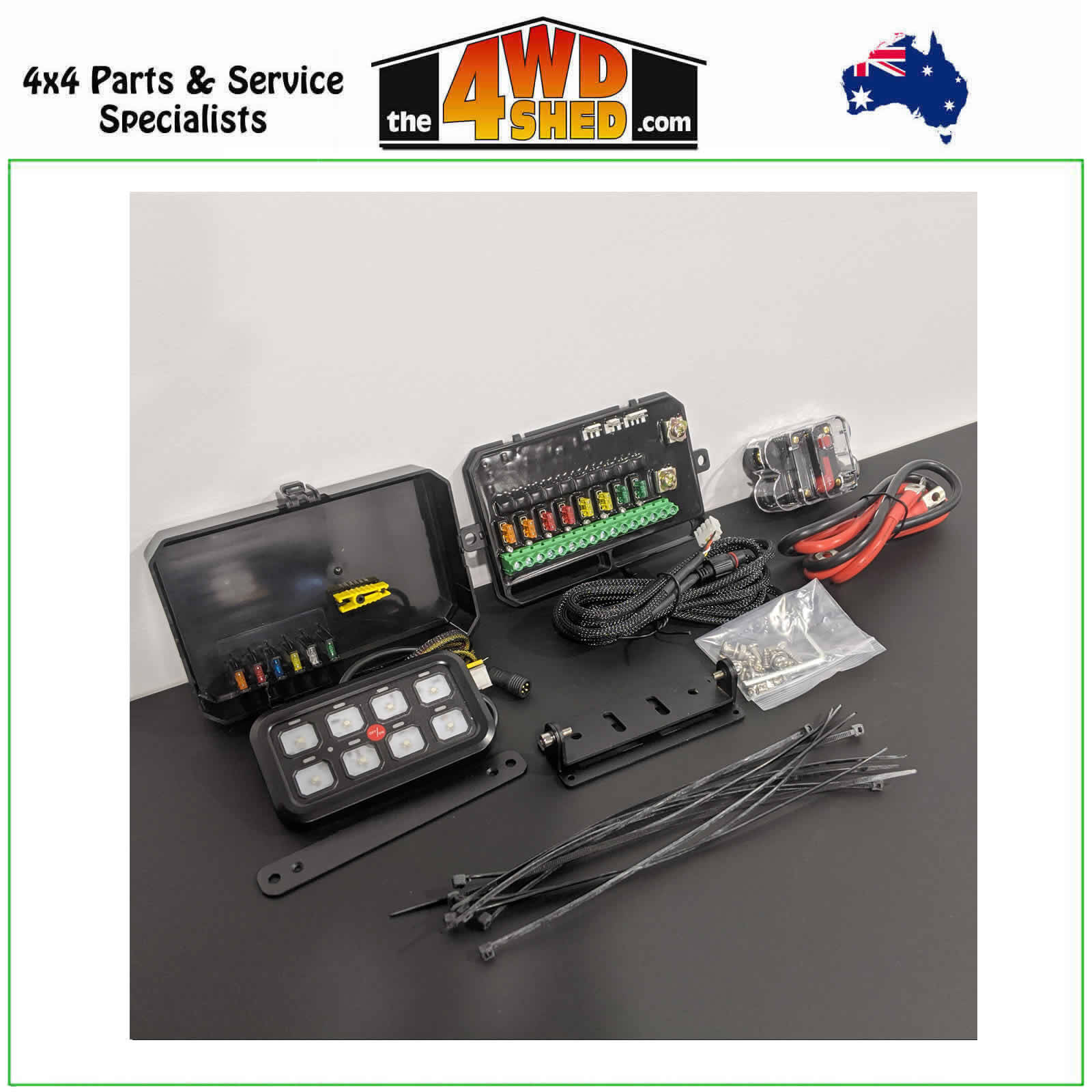

- Plug and play harness for install
- Solid state relays
- In-built fuses
- Spares fuses included in lid
- Die cast alloy base
- Up to 30A output per channel
- Switch Panel size (mm): 115 x 65 x 12
- Included; 60A circuit breaker

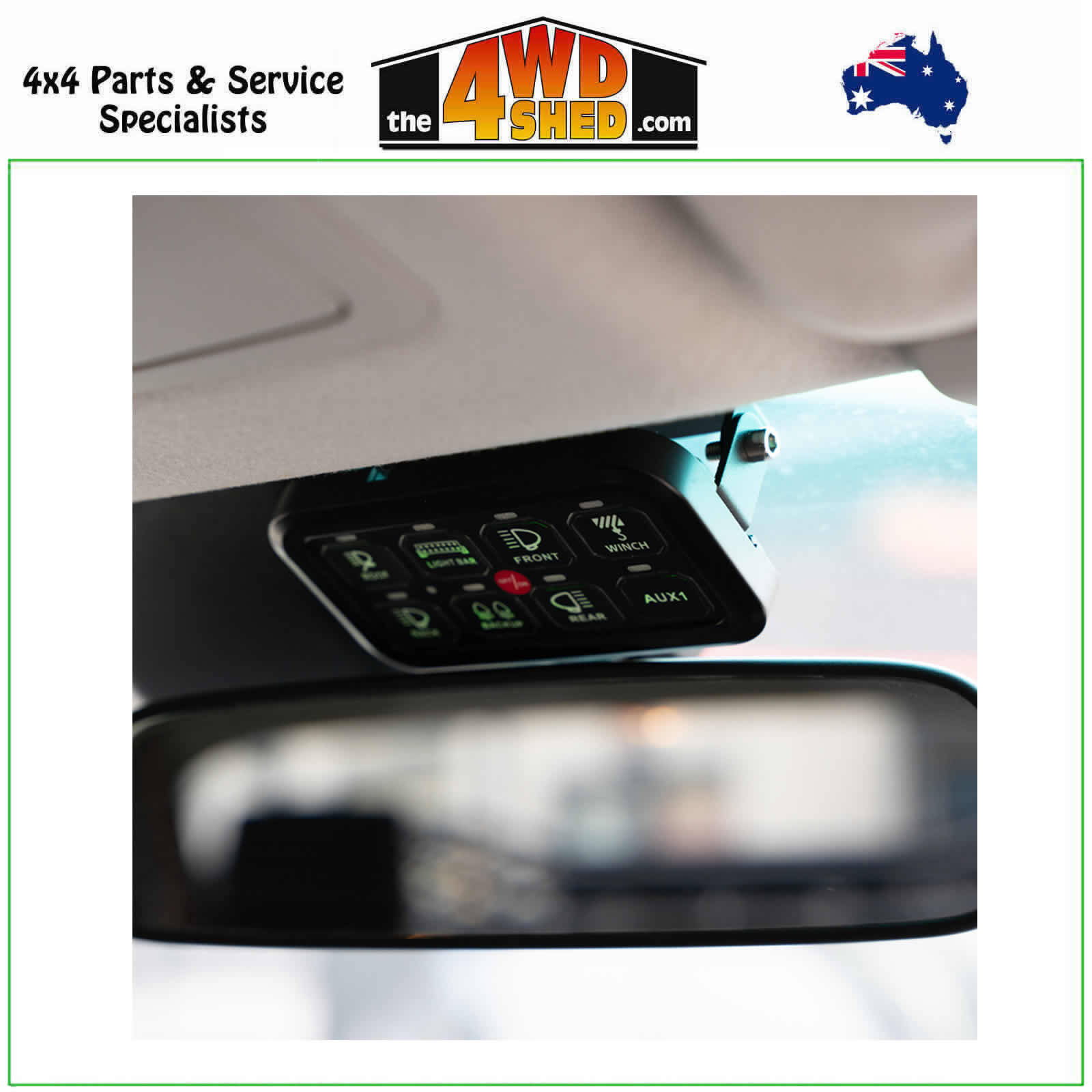

- Included; Adjustable angle and flush mount brackets
- Included; Decal sheet
Fitting is available in our Bayswater workshop by our qualified fitters. Give the team a call on (03) 9720 8783 to book in your next mod!
(102487)
SKU | 102487 |
Model # | 103824 |
Brand | TrailMax |
Shipping Weight | 2.0000kg |
