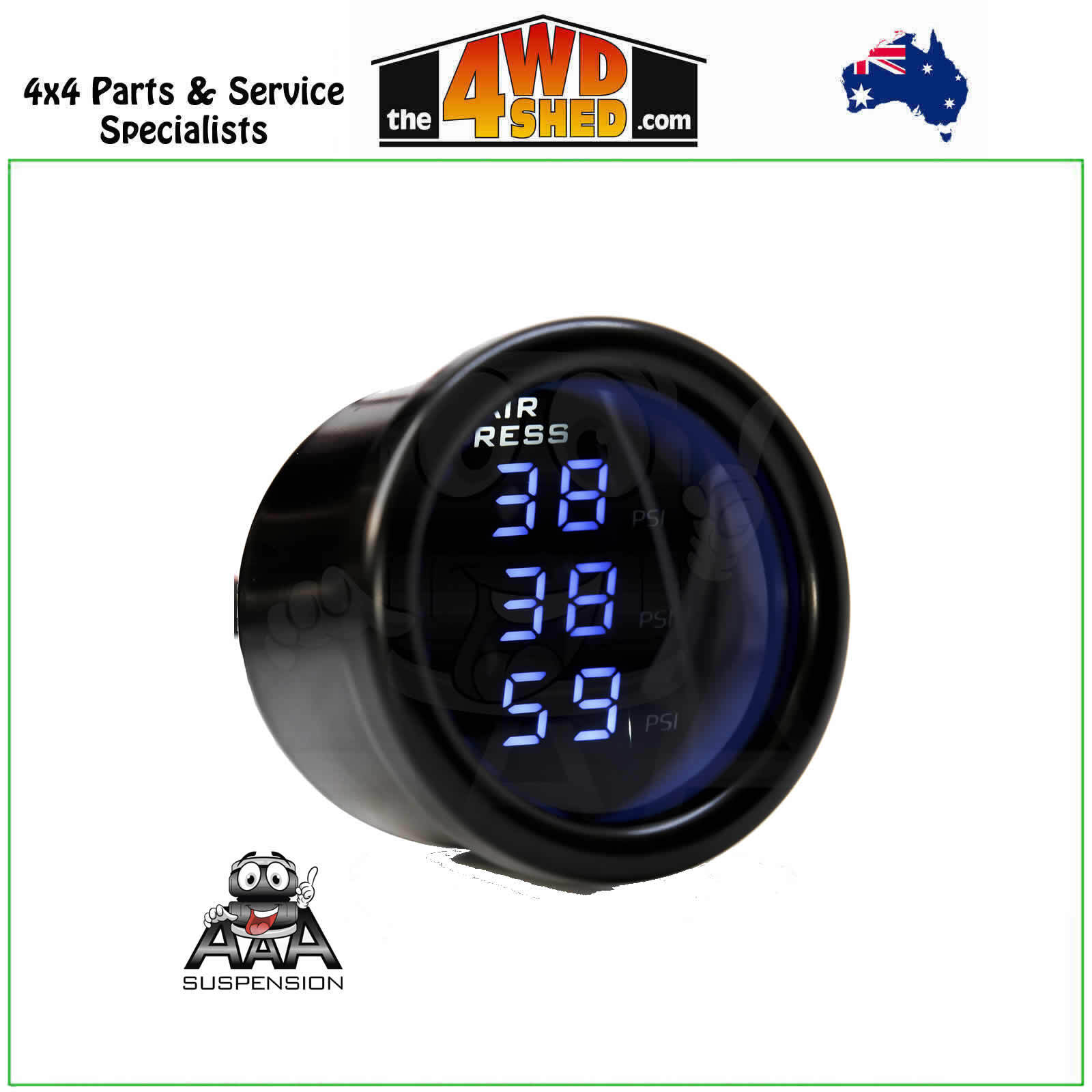

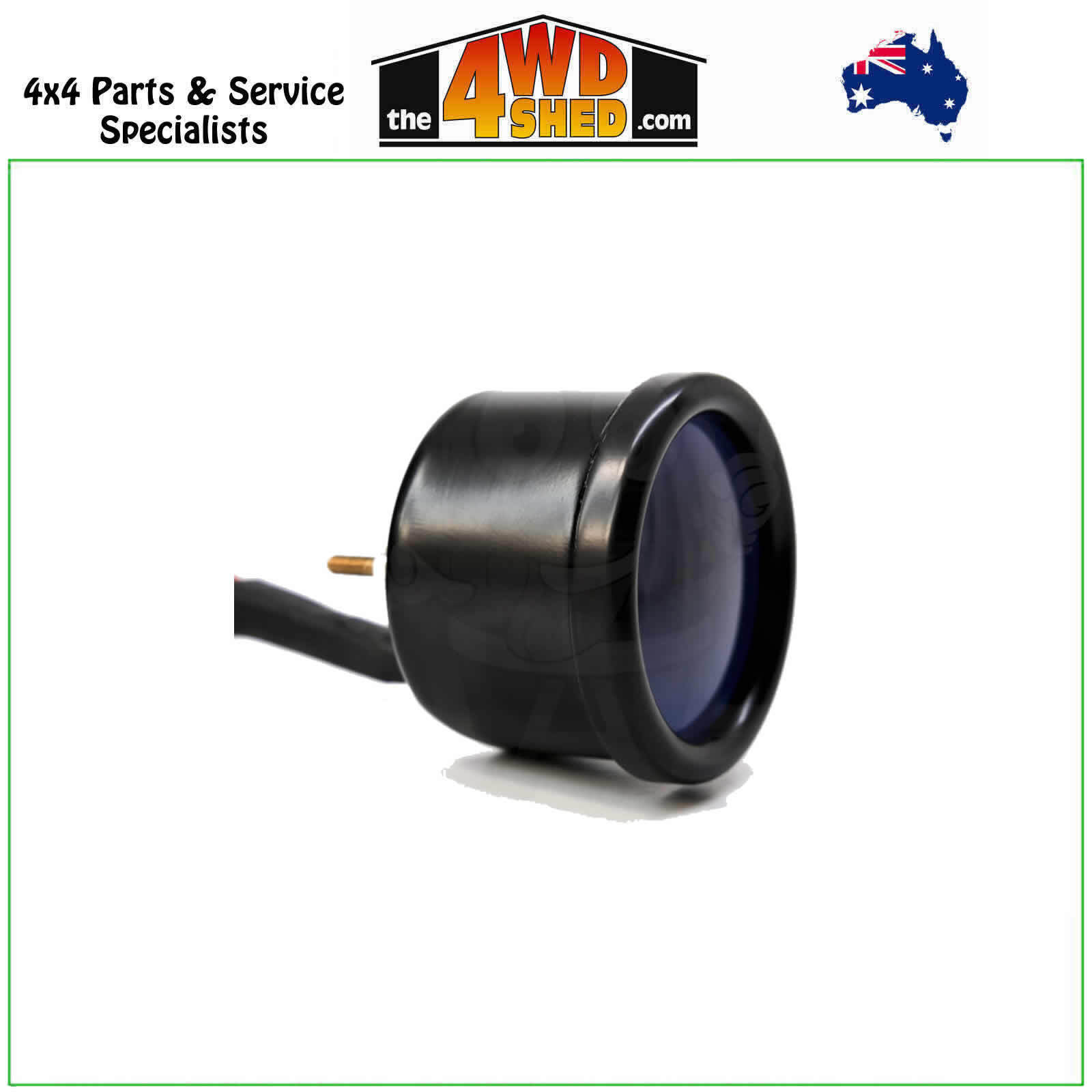

More infoThis is a Triple Digital LED Gauge. This gauge has 3 x readouts so typically 1 per bag plus another for a tank. See what’s in the tank and know that your compressor has done its job and you are ready to pump tires etc.
This is good for 0-220 psi and it runs on 12V & readout is in PSI. The screen is blacked out unless turned on and the readout is Blue.
The gauge comes with 3 x electronic senders. These would be plumbed into the air system and measure the pressures. The senders have T-pieces that easily slot into 6mm poly air line. (1/4″ air line fittings available upon request) Then it’s just 2 wires per sender that run to the gauge and that’s a lot easier and friendlier than running air lines into the car. Also means a lot less chances for air leaks now and down the track.
The wires in this kit from sender to gauge are 5m long. Essentially this is plug and play & is a very cool addition to your air system.

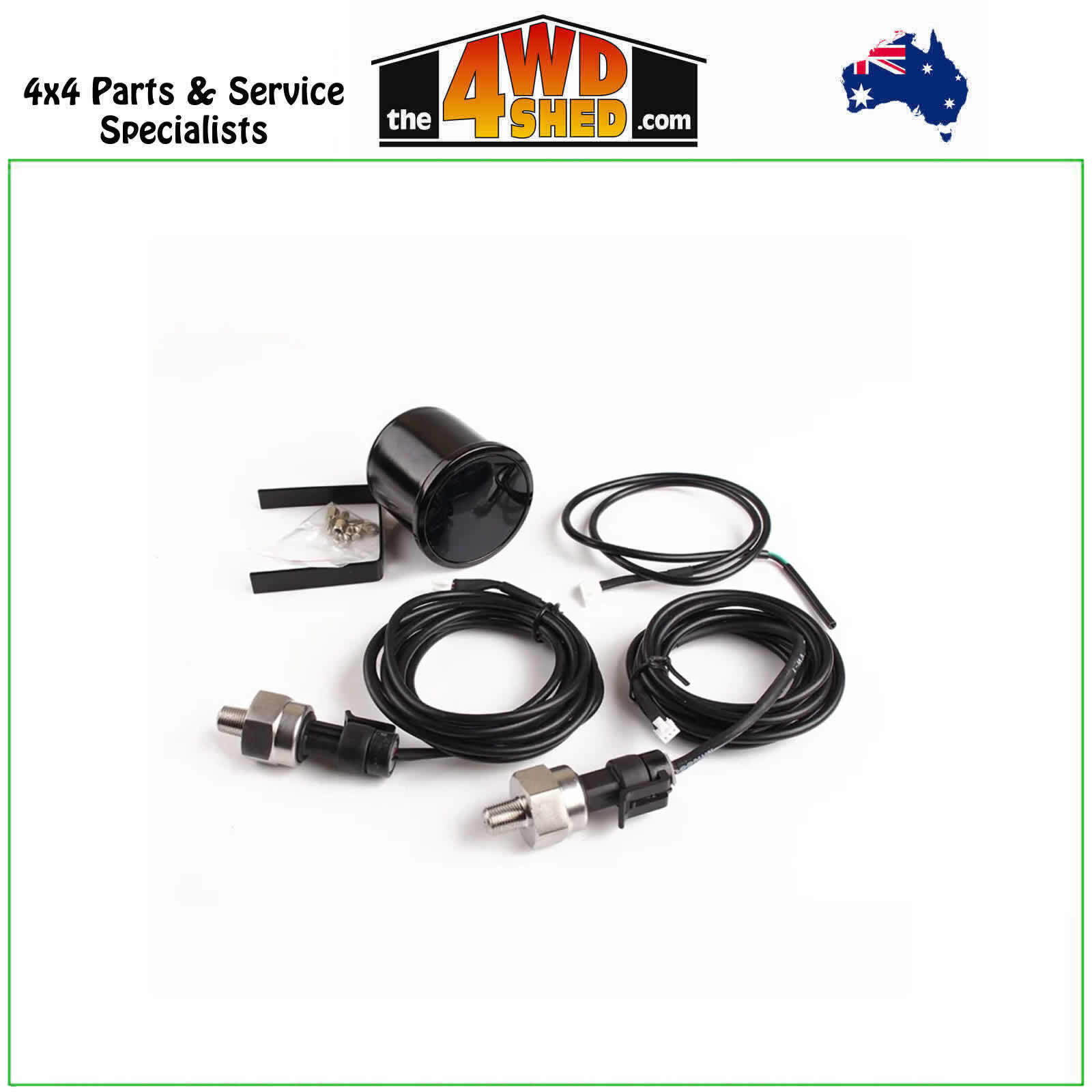

Comes with mounting panel, senders, t-pieces for senders to connect to poly lines and the gauge itself.
