AIR COMPRESSOR Horizontal Switch Toyota 100 76 78 79 Series Landcruiser FJ Hilux Prado 120 Series BLUE
More infoAIR COMPRESSOR Horizontal Switch Toyota 100 76 78 79 Series Landcruiser FJ Hilux Prado 120 Series BLUE

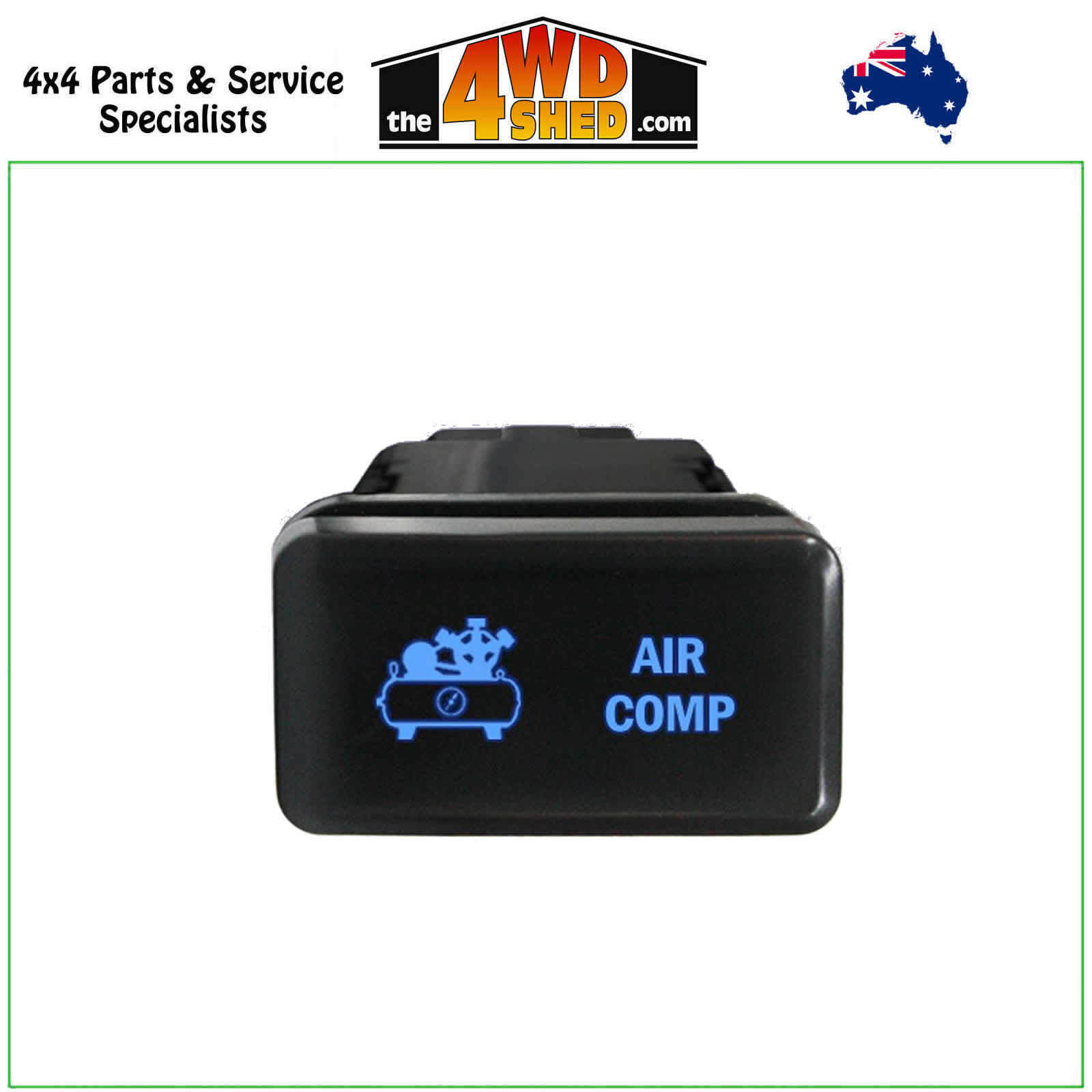

12V 3A Laser etched ON-OFF Toyota OEM Replacement Horizontal Push Switch 801SB with dual LED lights in blue and AIR COMP legend. 12 Volt 3amp ON-OFF HORIZONTAL TOYOTA PUSH Switch Twin LED Lights.
This 12 volt push switch from AOB is a single pole single throw ON-OFF switch designed to operate your 12 volt accessories. It has a face surface size of 39 mm x 21 mm and uses the original mounting hole of the vehicle.
This switch is an aftermarket switch that locks into your existing panel, super easy to install in less than 10 mins.
This Switch Suits the following models:
- 4Runner 2003 - 2009
- FJ Cruiser 2007 - 2018
- Fortuner 2005 - 2014
- HiAce 2005 - 2013
- Hilux KUN26R, GGN15R, GGN25R 2005 - Early 2015
- Kluger 2001 - 2007
- Landcruiser 76 / 78 / 79 Series - Plastic Dash
- Landcruiser 100 Series 1998 - 2007
- Prado 120 Series 2003 - 2009
- Tundra (Centre console if exists) 2005 - 2006
However it is best to check your particular hole size if unsure.
- Single Pole Single Throw ON-OFF PUSH switch
- Black hard surface
- Laser etched Legend
- Single LEFT L.E.D light in BLUE
- Single RIGHT L.E.D light in BLUE
- LEFT light is ON when the switch is pressed IN
- RIGHT light can be wired to separate dash light circuit
- Rated at 3Amp 12V
- Wire Plug and wiring diagram supplied with switch
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is an electronic switch rated at 3amps, therefore in all cases the accessory must be wired through a fused relay.
(SW801SB)
| SKU | SW801SB |
| Brand | AOB |
| Shipping Weight | 0.0500kg |
