AISIN Free Wheel Hubs 78 79 105 Series Landcruiser Single Hub
PCD IS 90.0MM X 30T SPLINE

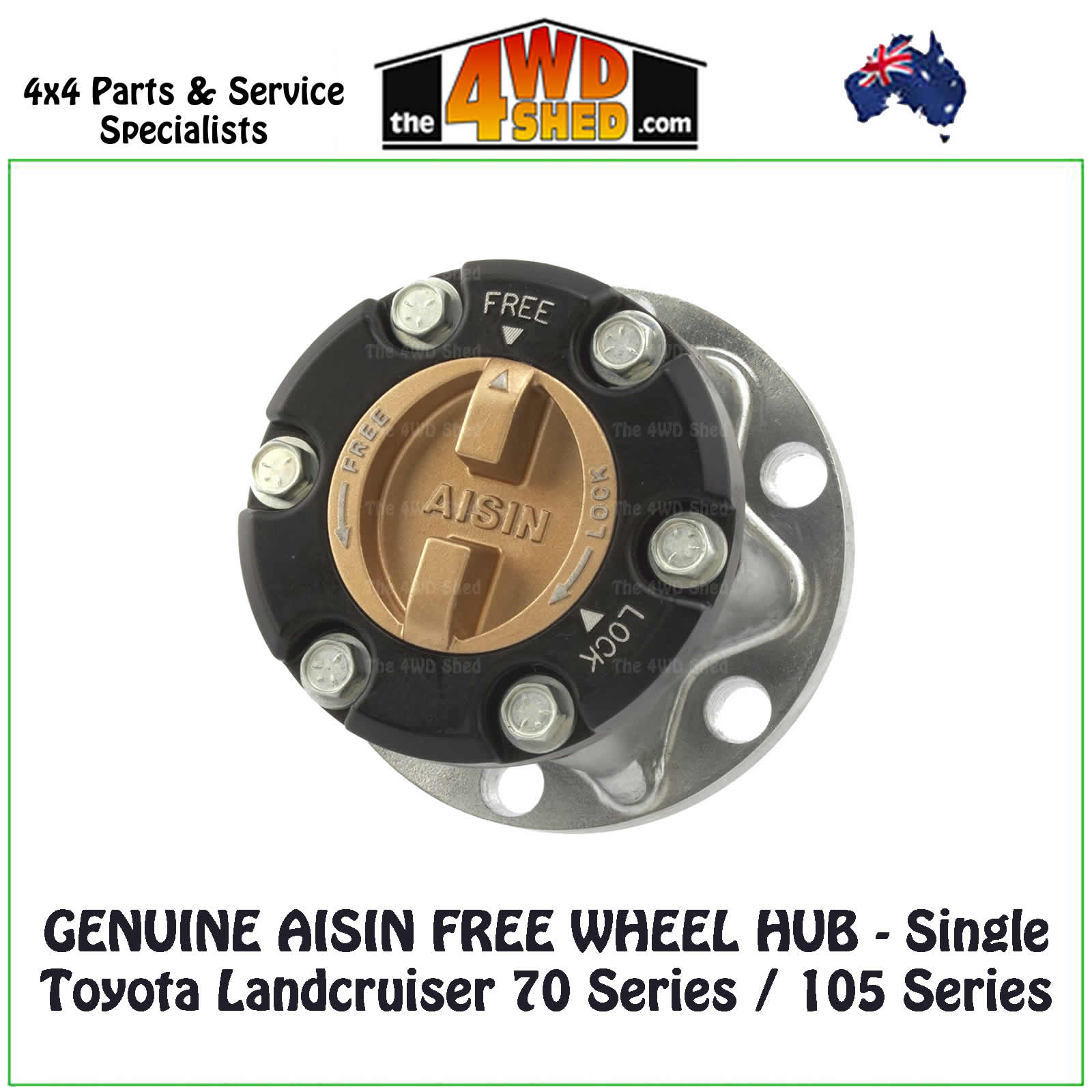

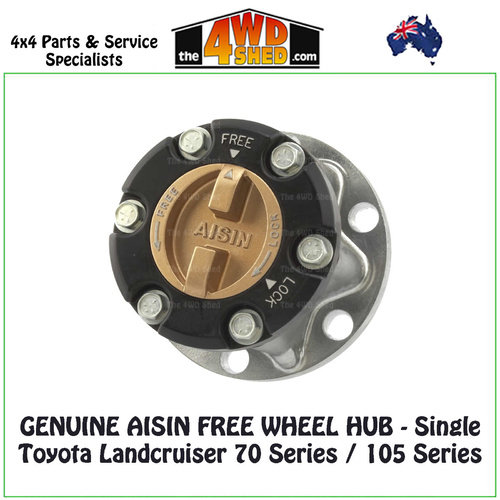

More infoGENUINE AISIN Free Wheel Hubs - SINGLE HUB
Suits Toyota Landcruiser 78 / 79 / 105 Series
The Free Wheel Hub is an essential drivetrain component that transfers and disconnects power to part time 4 Wheel Drive applications.
The robust locking mechanism, compact size, and durable design, AISIN Free Wheel Hubs are used as original equipment by TOYOTA. Large dial allows for easier manual locking & unlocking of hubs.
- LANDCRUISER GRJ79, VDJ76, VDJ78, VDJ79
- LANDCRUISER HDJ78, HDJ79
- LANDCRUISER HZJ105 Factory Part time Only
- LANDCRUISER FZJ78, FZJ79.
**Has 10mm bolts
Avoid cheap Chinese copies, these are the OE used by Toyota on all vehicles fitted from factory with free wheel hubs. If your vehicle has had a Part Time Kit installed these hubs will not fit.
Notes:
Suits 70 Series Models Pre 08/2016
Only suitable for 105 Series originally fitted with factory freewheeling hubs & factory part time transfer case CANNOT be used as a replacement for vehicles fitted with drive flanges as the CV shaft is to longThis is a Single Hub Only, if you require a PAIR Click Here
Please Note: Aisin hubs were released as an OEM part. If you are replacing existing broken damaged Aisin Hubs then these are a direct replacement part. If you are modifying your hubs by upgrading or swapping your existing hubs for these Aisin hubs please be aware there may be issues. It is up to you to know of any potential issues which could create problems with fitment. Problems when switching auto hubs to manual can include CV length issues, bolt hole & spacing issues, circlip depth etc. Returns on hubs that will not fit due to being fitted as a modification will incur a restocking fee of 20% when returned.
Genuine Part Number - 43530-60130

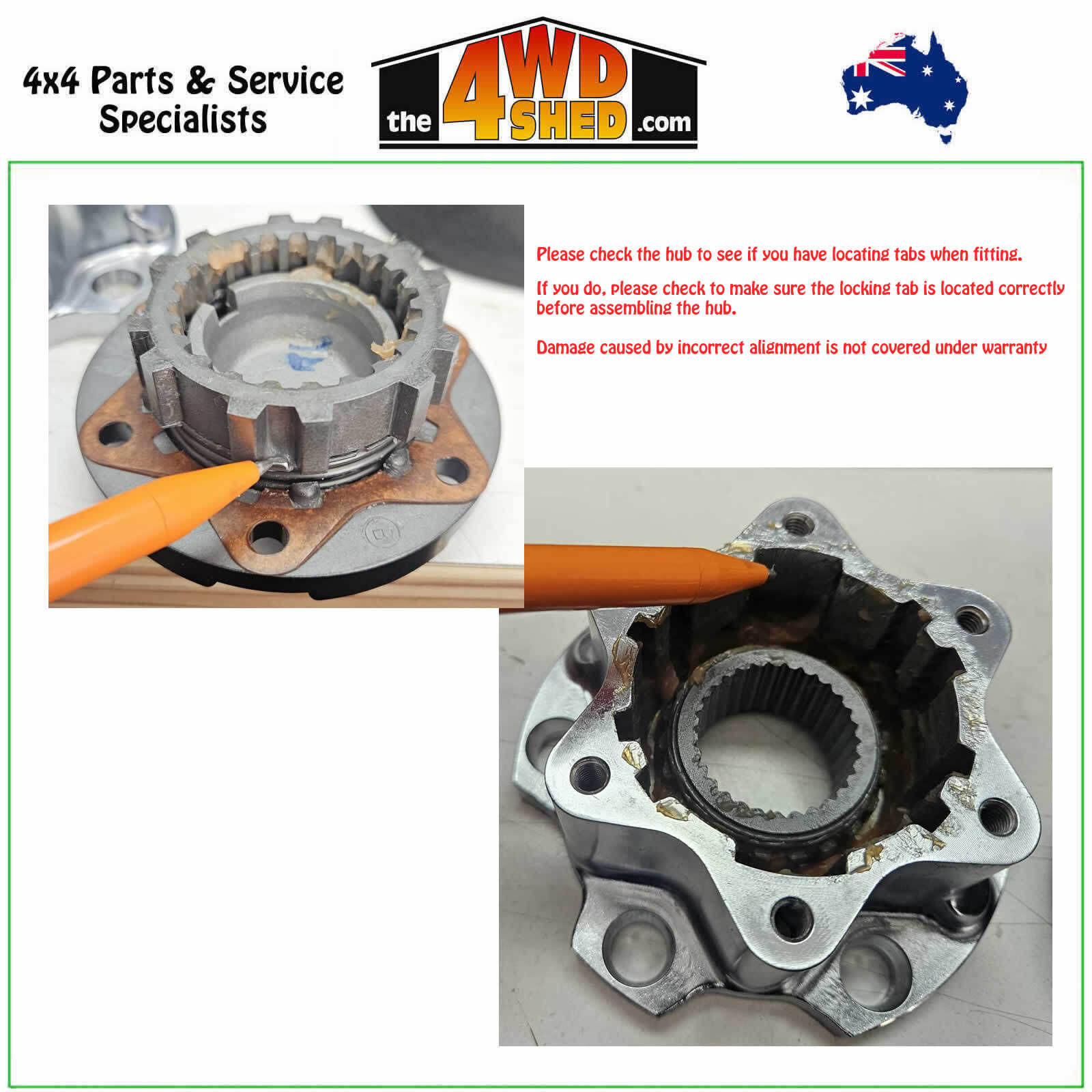

Fitting Note: Please check the hub to see if you have locating tabs when fitting. If you do, please check to make sure the locking tab is located correctly before assembling the hub.
Damage caused by incorrect alignment is not covered under warranty
| Specifications | |
| Spline | 30 T |
| PCD (mm) | 90.0 |
| Bolts | 6 |
(FHT-001)
| SKU | FHT-001 |
| Barcode # | 4954514997003 |
| Brand | AISIN |
| Shipping Weight | 1.5000kg |
