Air Bag Simple Inflation Incab Control Kit

Airbag Inflation Kit PX01 Incab Control

This kit is used to control Load Assist Kits from inside your cab without the need for a tank and electric valves. Simple installation with control of airbags independently up and down using our PX01 compressor.

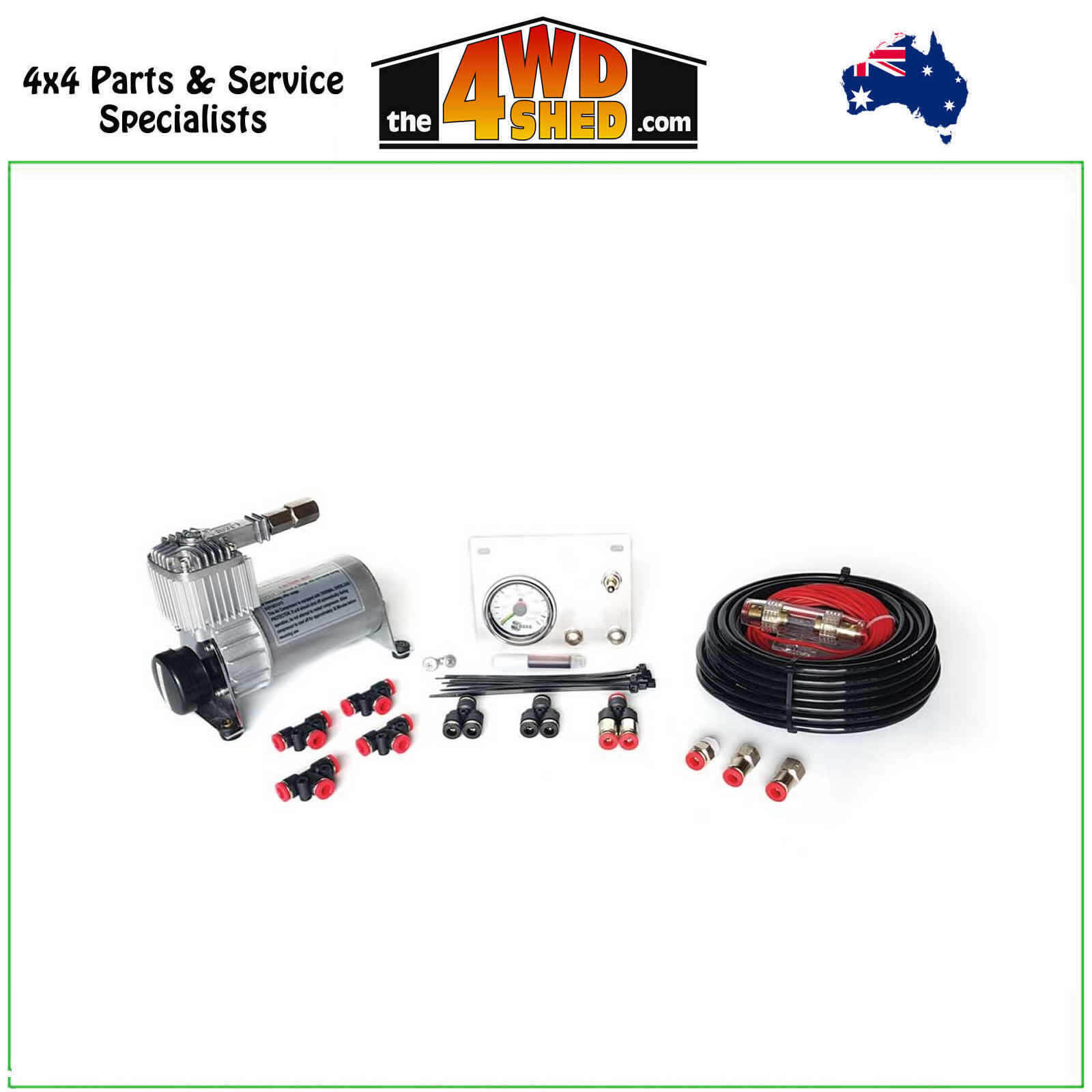

Includes:

• 1 x PX-01 12V BOSS Air Compressor.
• 1 x Stamped stainless steel gauge panel.
• 2 x Pneumatic Push Buttons for dropping each bag.
• 1 x 12V momentary switch for compressor.
• 1 x BOSS 200psi Dual Needle back-lit Gauge.
• 10 meters of 1/4” J844 DOT Airbrake line.
• 2 x 1/4” push connect check valves.
• 3 x Y Connectors.
• 2 x T Connectors.
• 4 x 1/4” female push fittings for gauge and buttons.
• 10 x Cable Ties.
• Instruction Sheet.

Boss Compressor

BOSS Air Suspensions 12v air compressors are the industry leader.

We designed and began manufacturing our range of air compressors after trying many other brands only to be let down time and time again. Performance of other brand compressors are sometimes impressive, however they wear out quickly and take longer and longer to recover your air needs, that's if they re-start under load!

Other popular 12 volt air compressors just don't stack up to the BIG BOSS compressor. Make sure the alternator is up to the task because the bigger the compressor the more amps it will need! BOSS 12V air compressors do not require oil!

The designs are quick and easy to mount. Engine driven compressors available upon request, brackets are up to the installer.

BOSS Air Compressors use the latest technology to deliver compressors that perform tirelessly for many years of service.

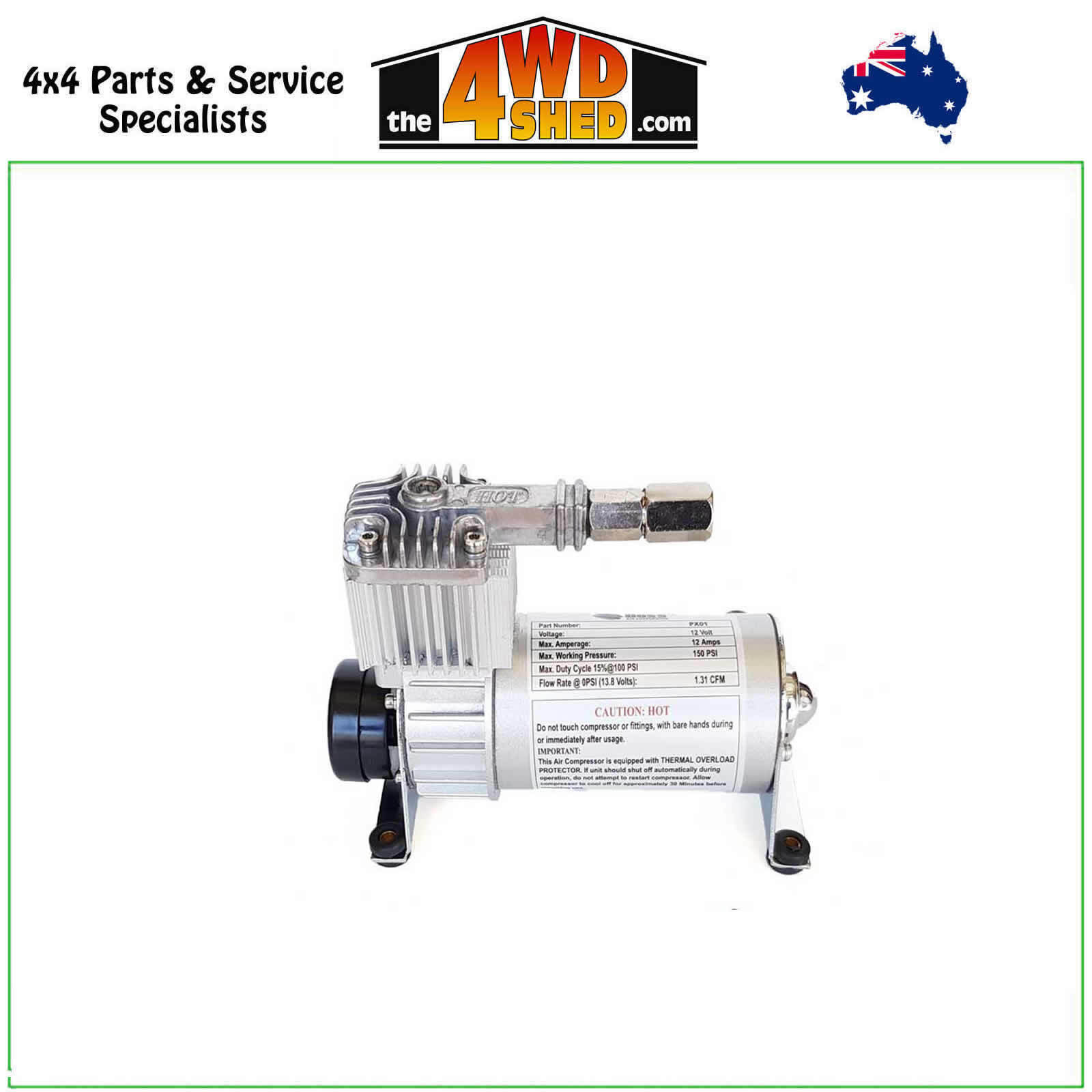

Small PX-01 12v Air Compressor Oil less compressor can be mounted vertical or horizontal for easy installation

• PX-01 Compressor
• Duty Cycle 15%@100psi
• Max working pressure 150psi
• 1.31cfm
• Rubberised mounting feet
• Amp draw Max 12amps
• Check Valve Installed
• 1/4″NPT fitting.
• Air Filter

Mounting sizes are 70mm centres wide and 145mm centres long
