BCDC Alpha 50A Middle Install Wiring Kit

Make your next BCDC Alpha 50A installation simple with REDARC’s BCDC Alpha 50A middle install wiring kit.

Compatible with: BCDC Alpha 50A DC Battery Charger (BCDC12050B) & BCDC Alpha50 R DC Battery Charger (BCDC12050R)

The BCDC Alpha 50A Wiring Kit has been designed to facilitate simple installation of a REDARC BCDC Alpha 50A DC to DC Battery Charger when the secondary battery is installed in the middle of the vehicle (up to 4.5m away from the start battery).

This wiring kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC Alpha50 when the secondary battery is in the middle of the vehicle. The cables come pre-crimped on one end and, and the other end of the cables can be trimmed to length to suit the specific installation.

When installing the BCDC Alpha R, this wiring kit requires modification, follow our Tech Tip here to learn how.

FEATURES

• Suits in-vehicle installations
• Perfect for secondary batteries that are installed in the cabin or middle of the vehicle
• Complete wiring solution
• Suits BCDC Alpha 50A
• Cables supplied pre-crimped at one end
• All required cables, fuses, fuse holders and connectors included

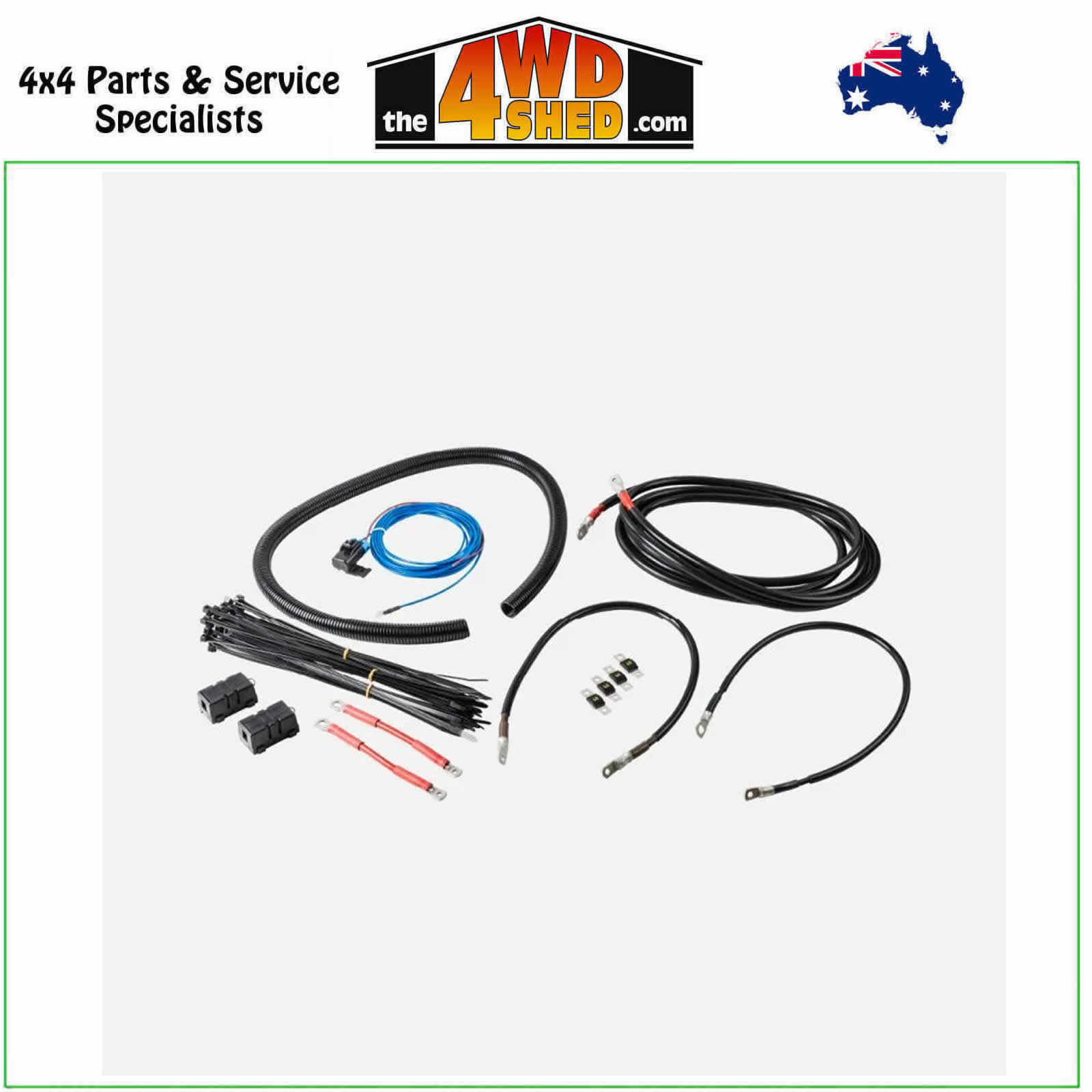

KIT INCLUDES

• 1 of each brown, black and red cable
• 60A Fuse kit (supplied with 4 x MIDI fuses and 2 x MIDI fuse holders)
• 2 x 150mm red cable
• 1m Protective Conduit
• 45 x Cable ties
• Blue cable (2A MINI Blade Fuse, 1 long blue cable and 1 short red/blue cable)
