CalOffroad Fox 4x4 Tour Pack 3" Lift Kit - Toyota Hilux N70 2005-2015

$3,647.00

More info.

Make 4 interest-free payments of $911.75



In Stock

Available Options


Calculate Shipping



1 x CalOffroad Fox 4x4 Tour Pack 3" Lift Kit - Toyota Hilux N70 2005-2015 delivered to , AU


Freight Quote Required - $0.00
This is FREE to collect your product from our store in Bayswater, VIC. If you require freight to your location please contact us for pricing before purchase.
Collect from our Bayswater VIC Store - $0.00
We will call when item is ready for Pick Up

CalOffroad Fox 4x4 Tour Pack 3" Lift Kit - Toyota Hilux N70 2005-2015

Fits Toyota Hilux N70 2005-2015

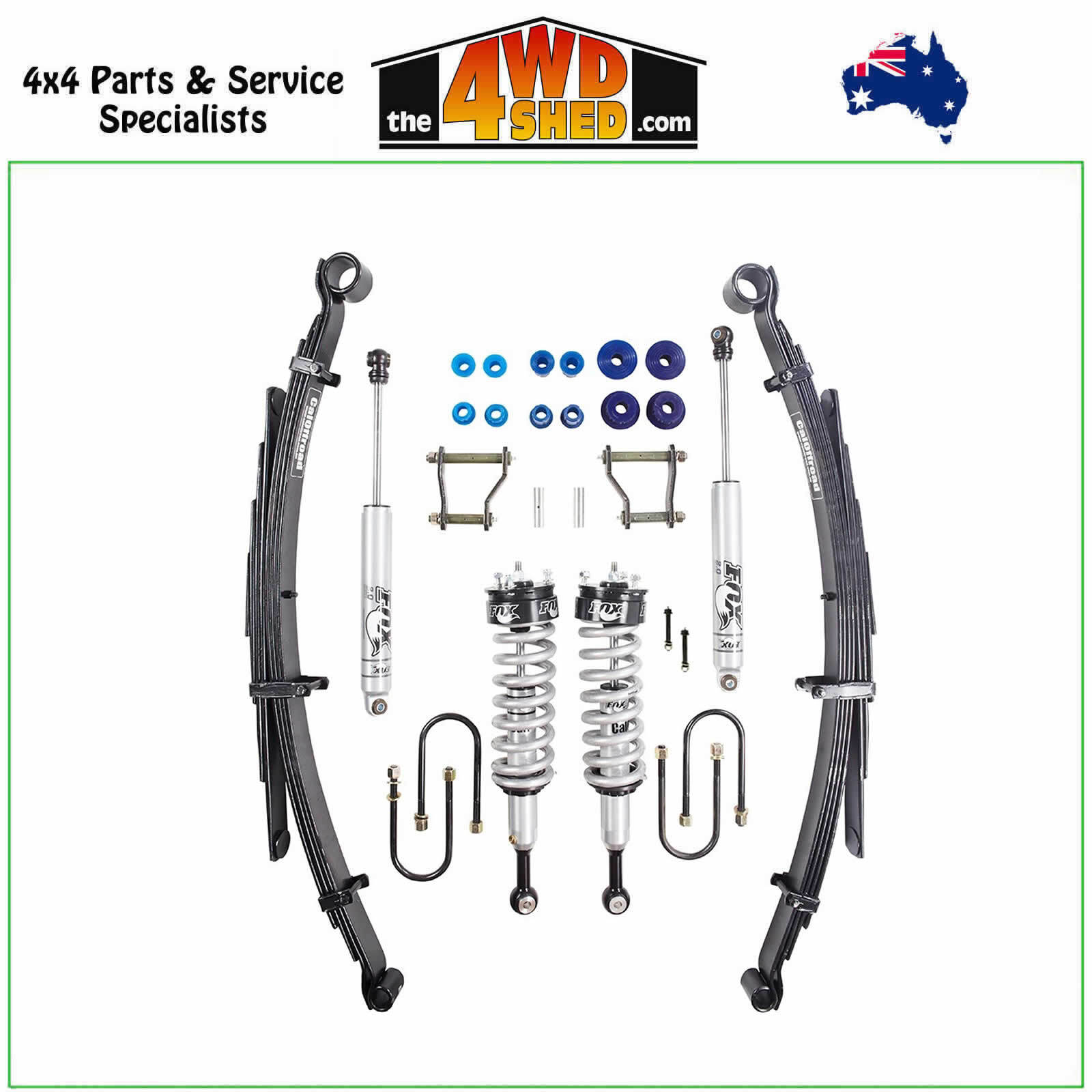

3" Suspension Lift Kit includes

  • 2 x 986-02-024 Fox Struts
  • 2 x CalOffroad Platinum coils springs
  • 2 x Fox Shocks
  • 2 x CalOffroad Leaf Springs
  • 4 x CalOffroad Ubolts
  • 2 x CalOffroad GSHLX150R Greasable Shackles
  • 1 x CalOffroad BKHLX150 Leaf Spring Bush Kit
  • 2 x CalOffroad Greasable Pins

Kit Variations

  • CAL5018-LI-LI - Tour Pack with Light Duty Front Coil Spring & Light Duty 0-300kg Rear Leaf Spring
  • CAL5018-LI-ME- Tour Pack with Light Duty Front Coil Spring & Medium Duty 300-500kg Rear Leaf Spring
  • CAL5018-LI-HE - Tour Pack with Light Duty Front Coil Spring & Heavy Duty 500kg Constant Rear Leaf Spring
  • CAL5018-LI-EX - Tour Pack with Light Duty Front Coil Spring & Extra Heavy Duty 600kg+ Rear Leaf Spring
  • CAL5018-ME-LI - Tour Pack with Medium to Heavy Duty Front Coil Spring & Light Duty 0-300kg Rear Leaf Spring
  • CAL5018-ME-ME  - Tour Pack with Medium to Heavy Duty Front Coil Spring & Medium Duty 300-500kg Rear Leaf Spring
  • CAL5018-ME-HE  - Tour Pack with Medium to Heavy Duty Front Coil Spring & Heavy Duty 500kg Constant Rear Leaf Spring
  • CAL5018-ME-EX - Tour Pack with Medium to Heavy Duty Front Coil Spring & Extra Heavy Duty 600+kg Rear Leaf Spring
  • CAL5018-EX-LI - Tour Pack with Extra Heavy Duty Front Coil Spring & Light Duty 0-300kg Rear Leaf Spring
  • CAL5018-EX-ME - Tour Pack with Extra Heavy Duty Front Coil Spring & Medium Duty 300-500kg Rear Leaf Spring
  • CAL5018-EX-HE - Tour Pack with Extra Heavy Duty Front Coil Spring & Heavy Duty 500kg Constant Rear Leaf Spring
  • CAL5018-EX-EX - Tour Pack with Extra Heavy Duty Front Coil Spring & Extra Heavy Duty 600+kg Rear Leaf Spring

*Coilovers come assembled in these kits

CalOffroad has strong roots with offroad trucks that began in the early 80s. Spending time in the USA with industry leaders building the latest in vehicle design and offroad suspension technology. Testing offroad designs in Moab Utah and Colorado. CalOffroad has a family history of covering most of Australia's remote and outback destinations. We have our own offroad testing facility that we use to refine and develop products. This combined experience allows us to create the most advanced 4wheel drive suspension components available in Australia and anywhere in the world.

With the over 30 years of 4x4 and suspension development, this has helped us bring the most advanced technology into our suspension range.

CalOffroad leaf springs have been developed over many years and are designed to bring you the most advanced and smoothest ride possible.

Our leaves feature a specially designed wear pad between each leaf. Each leaf pack features a specific build ratio that allows us to tune when the 1st stage engages with the 2nd stage, this means we can supply you the smoothest riding leaf pack whether you have no weight or large amounts of weight.

We also build in a high flex design allowing for more wheel travel and if you require more again just let us know, and we can custom-build any pack to suit.

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

The coil overs come adjusted to an approximate height and may require fine-tuning adjustment for your specific vehicle

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration, allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The 4WD Shed can install all CalOffroad Suspension Components. Please call us (03) 9720 8783 for a quote on fitting in our Bayswater, Vic workshop.

***Lift kits are made to order, contact us availability/lead time***

Item price is Pick Up only, if you require freight please contact us for pricing as we need to manually add this to your order. Business address is preferred to keep freight costs down due to the size & weight of the item.

Body 2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing Large diameter, heavy-duty spherical
Mounting Direct replacement for stock and aftermarket lifts kits
Adjustments

Ride height preload ring

(CAL5018)

SKU CAL5018
Brand Fox Suspension
Shipping Weight 35.0000kg
