CalOffroad Platinum Series Tour Pack 2" Lift Kit - Toyota Landcruiser 79 Series Dual Cab

CalOffroad Platinum Series Tour Pack 2" Lift Kit - Toyota Landcruiser 79 Series Dual Cab 2012-On

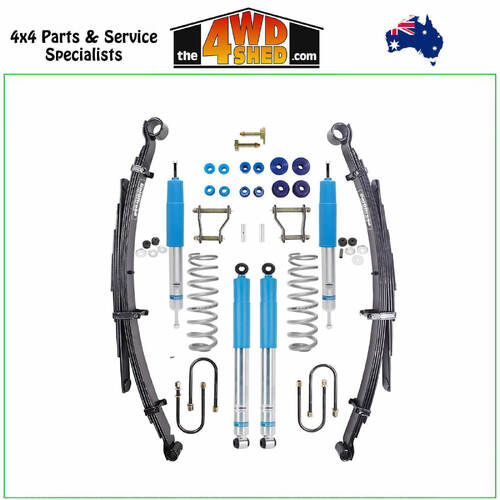

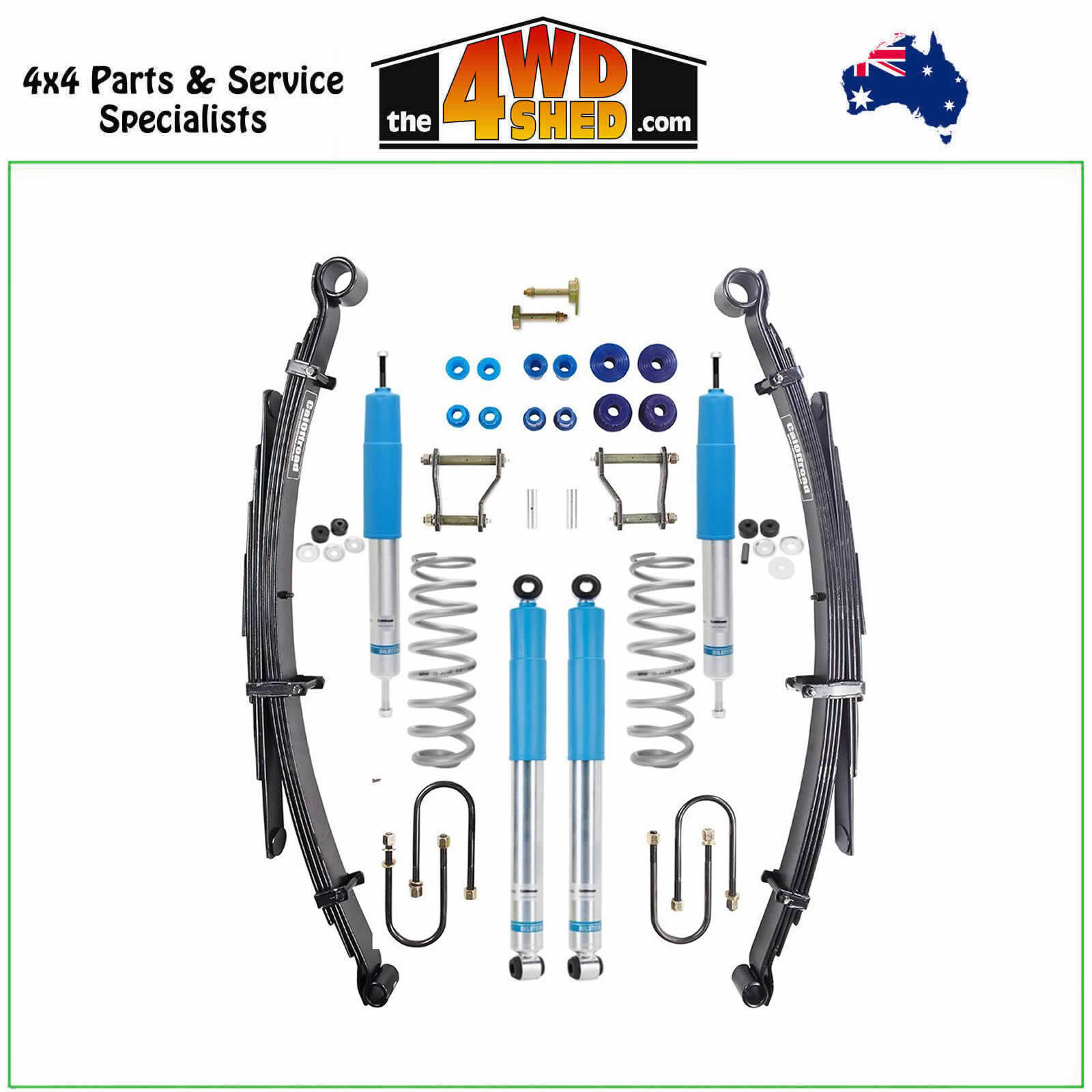

Bilstein Tour Pack Suspension Lift Kit

The CalOffroad Platinum Series Bilstein shocks are a high-end shock absorber Designed in Australia and built in the Bilstein High Performance Factory in Germany.

With over 14months of R&D, design and testing put into these shocks, CalOffroad are proud to release one of the most advanced shocks on the market for raising your Landcruiser

Our bolt-on Platinum Series front and rear shocks are loaded with advanced technology and a long list of features that make it the most comfortable and reliable setup.

The precision honed internal body allows for perfect tolerance for the proprietary IFP (internal floating Piston ) Technology and the main piston body.

Machined ring eyes allow for accurate bushing fitments.

Multiple circlip grooves for height adjustment if using the original or aftermarket coil springs. Longer main shaft thread to help make install and down travel adjustment easy.

CalOffroad Bilstein Platinum body increases cooling capacity. The vehicle-specific lower mount includes a composite bushing that reduces road noise and vibration.

Inside is an internal reservoir with proprietary  (IFP)Internal Floating Piston technology

mono tube design with IFP separates the shock oil from the nitrogen charged high-pressure gas chamber. The IFP stops air mixing with the oil to  eliminate aeration allowing consistent maximum performance from this high end shock absorber. These shocks have valving developed in Australia and are factory-tuned to meet the high demands of the Australian terrain.

The CalOffroad Platinum Series struts and shocks are fully rebuildable.

these shocks are valved specific and help eliminate the wallow feel of the landcruiser

Using a larger piston in its mono-tube design, the CalOffroad Platinum Bilstein Offroad shock absorber offers greater performance reserves and an extended service life, even when put through strenuous driving conditions, such as towing or off-road applications. You can expect optimum road adhesion and enhanced lane change stability in day-to-day applications as well as extreme situations thanks to CalOffroads Platinum Bilstein precise damper settings, both aspects that often leave a lot to be desired in large 4WDs.

Extensive testing and fine-tuning has been undertaken to ensure that fitting CalOffroad Platinum Bilstein Offroad shock absorbers to your 4WD improves handling performance across all regards. Offering a higher load carrying capacity as well as a higher degree of vehicle control, the CalOffroad Platinum Bilstein Offroad shock absorber increases 4WD capability across all driving conditions, from the black top to the off-road trails.

CalOffroad Leaf Springs are engineered to the highest quality to enhance the off-road performance of your 79 Series Land Cruiser. Our leaf springs are equipped with proprietary wear pads between each leaf, significantly reducing vibration and road noise to create a quieter and more enjoyable ride. Common problems found in other brands can include squeaking and rubbing as each leaf grinds on the other. Caloffroad has solved this issue on our leaf spring packs through our proprietary wear pads, as they eliminate direct contact between the leaves. Each leaf pack comes in different weight options, allowing you to set up your ride just the way you need; whether you are carrying no load, work tools, or heading on a desert trip, we have the kit for you. Run our CalOffroad Leaf Springs for the smoothest ride on earth.

Kit Variations

• CAL5020-LI-LI - Tour Pack with Light No Added Weight Front Coil Spring & Light Duty 100-300kg Rear Leaf Spring
• CAL5020-LI-ME - Tour Pack with Light No Added Weight Front Coil Spring & Medium Duty 300-500kg Rear Leaf Spring
• CAL5020-LI-HE - Tour Pack with Light No Added Weight Front Coil Spring & Heavy Duty 500kg+ Rear Leaf Spring
• CAL5020-LI-EX - Tour Pack with Light No Added Weight Front Coil Spring & Extra Heavy Duty 600+kg Constant Rear Leaf Spring
• CAL5020-HE-LI - Tour Pack with Light No Added Weight Front Coil Spring & Light Duty 100-300kg Rear Leaf Spring
• CAL5020-HE-ME - Tour Pack with Light No Added Weight Front Coil Spring & Medium Duty 300-500kg Rear Leaf Spring
• CAL5020-HE-HE - Tour Pack with Light No Added Weight Front Coil Spring & Heavy Duty 500kg Rear Leaf Spring
• CAL5020-HE-EX - Tour Pack with Light No Added Weight Front Coil Spring & Extra Heavy Duty 600+kg Constant Rear Leaf Spring

Note this is a highly modified suspension system and all items must be checked for safe fitment, especially brake line clearance and length, wheel tyre and arm clearance. Professional fitment is recommended.

The 4WD Shed can install all CalOffroad Suspension Components. Please call us (03) 9720 8783 for a quote on fitting in our Bayswater, Vic workshop.

***Lift kits are made to order, contact us availability/lead time***

Item price is Pick Up only, if you require freight please contact us for pricing as we need to manually add this to your order. Business address is preferred to keep freight costs down due to the size & weight of the item.
