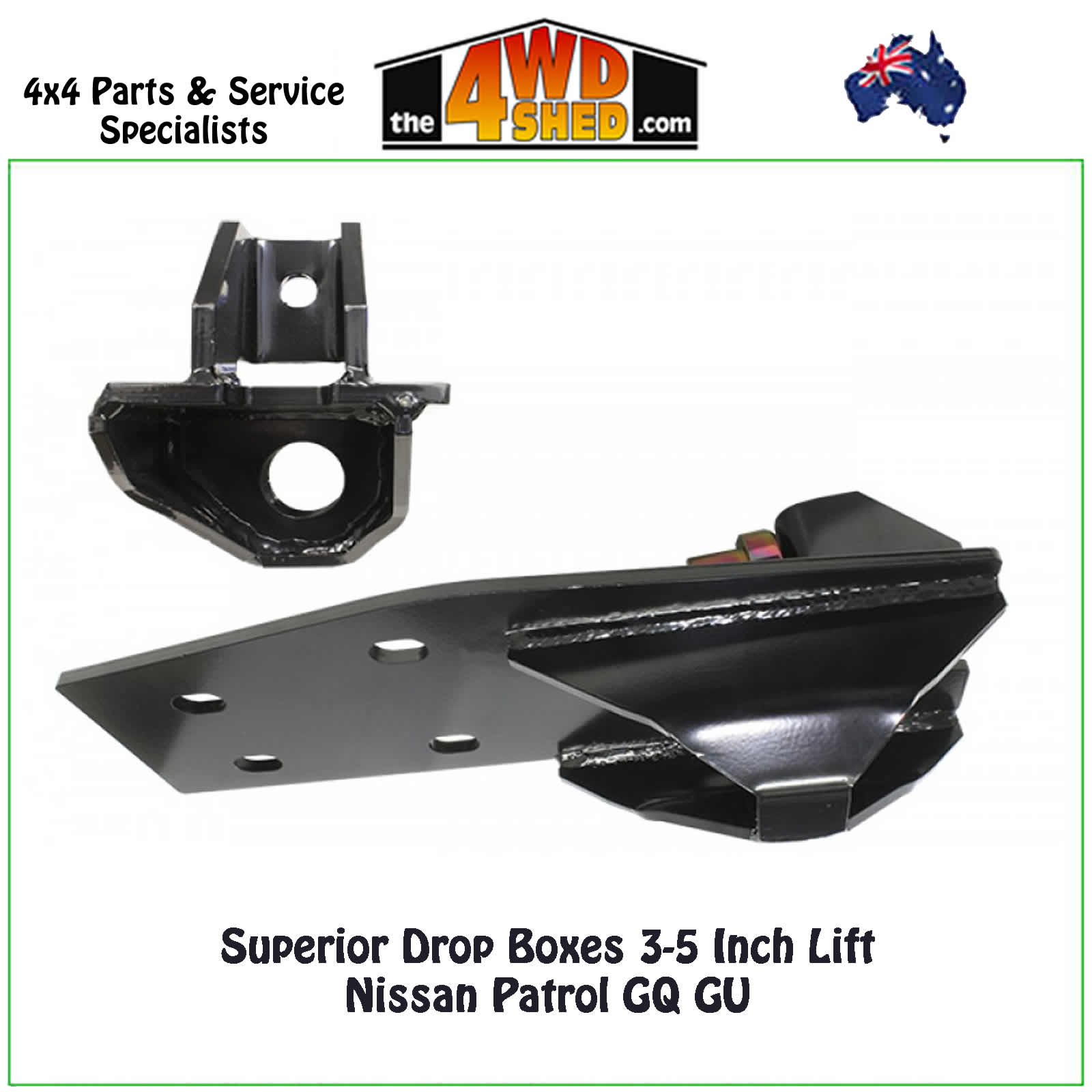

Drop Boxes 3-5 Inch Lift Nissan Patrol GQ GU
More infoSuperior Engineering Drop Boxes 3-5 Inch Lift Nissan Patrol GQ GU
NEW High Clearance Design! 100% Bolt-On Design - These Drop Boxes will fit without any cutting needed!
Superior Engineering has designed the most high clearance of all Drop Boxes on the market.
Drop boxes are designed to drop the rear of your Radius arms on the Nissan Patrol GQ and GU.
By dropping the rear of the radius arm when a lift is performed it will greatly improve the drivability of the vehicle.
When the rear of the Radius Arms are lowered the same amount as the vehicle is lifted the suspension will work, bind free to allow the shocks and the coils to move within their full range.
Drop boxes loose slight ground clearance from under the 4wd drive but it will depend on your driving style and your driving habits if this will have any impact on your vehicle and your 4wding.
If your driving style is more over large rocks and logs and obstacles then Superior Engineering recommends their SUPERFLEX Arms.
If driving on the beach and more general road and general off road we recommend the drop boxes.
Advantages of Superior Engineering Drop Boxes:
- Manufactured from 250 grade carbon steel
- High clearance design allows tighter dimensions to decrease dropbox catching.
- 350 grade carbon steel boss supplied x 2
- Steel boss is CNC machined for precise fit
- High tensile zinc coated bolts supplied
- Genuine Superior Engineering Logo laser etched into sides.
- 8mm grade 250 carbon steel base plate
- 6mm grade 250 carbon steel for main side plates
- Upper Tab is gusseted to prevent bending during hard impacts
- 24mm mid section to support steel bosses
- Secures by 10 bolts in total
- Upper tab is manufactured from 6mm grade 250 carbon steel
- Sandblasted and rust prevention applied
- Slotted main base to allow for slight variation in patrol chassis
- Connects to both Cross Member and the original Radius Arm hole
- Fully seal welded with MIG
- Designed to accept Superior SUPERFLEX arm if required
- Black powdercoated in matt finish
SOLD PER PAIR (2)
NOTE: Please check ABS sensor lines(if fitted) are free to move through the full range of travel
The 4WD Shed is an Authorised Stockist for Superior Engineering.
Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If its not listed on our website please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.
(SE-17231)
The 4WD Shed is an Authorized Stockist for Superior Engineering.
We stock, supply & fit a large range of items that can be found on Superior Engineering BUT in some instances there may be delays in stock or if it is a special order item.
We aim to ship items within 1-3 business days but if your order contains any items that fall under the above conditions we will contact you to notify you. If you wish to check availabilty before purchase you can call us or send an email.
Due to the weight of Superior products we may be required to quote freight on multiple items. We will contact you before beginning to process your order otherwise you can contact us for a freight estimate. We will try & keep costs down where we can so this may mean that we split your order over 2 parcels in order to keep weight & costs down.
Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.
| SKU | SE-17231 |
| Brand | Superior Engineering |
| Shipping Weight | 14.0000kg |
