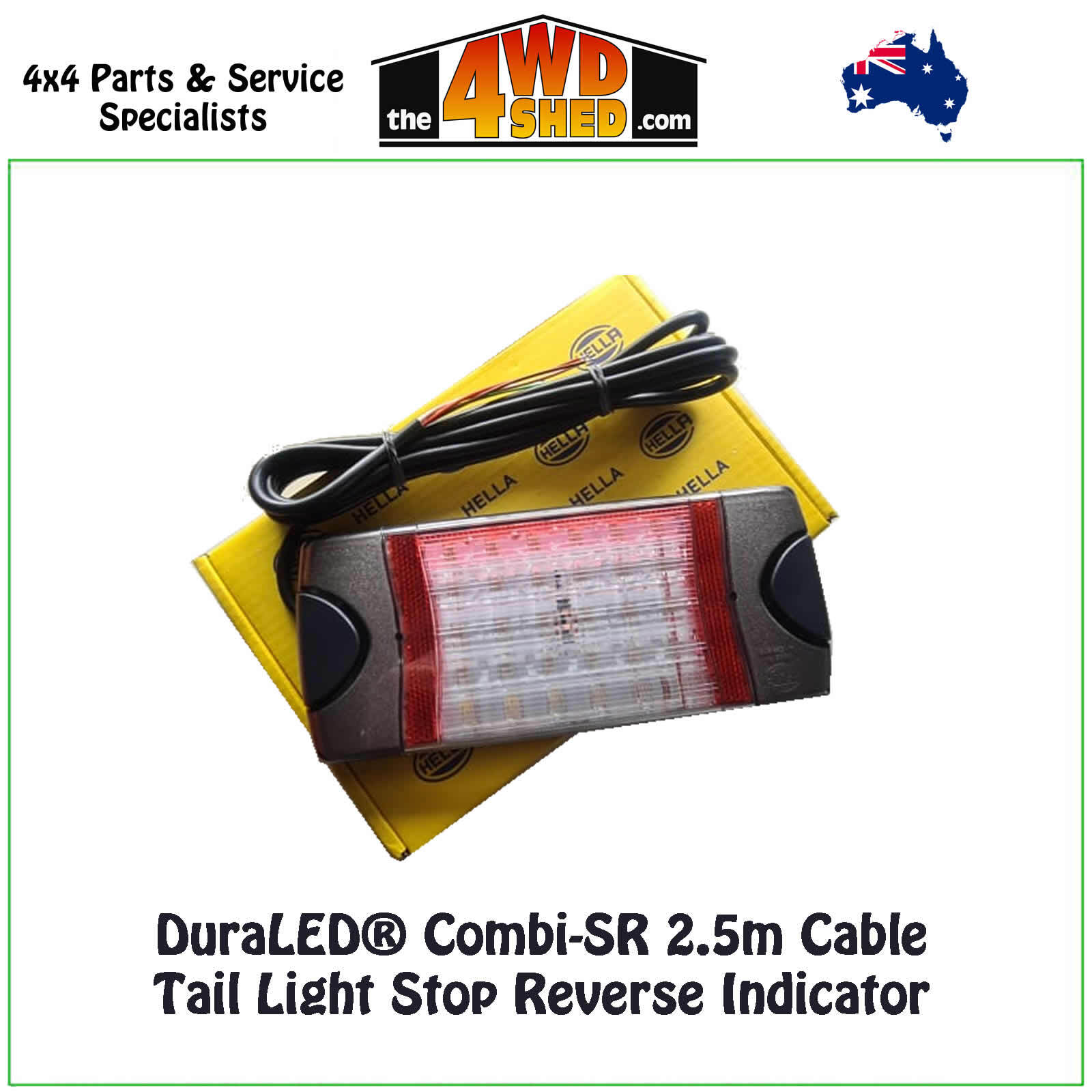

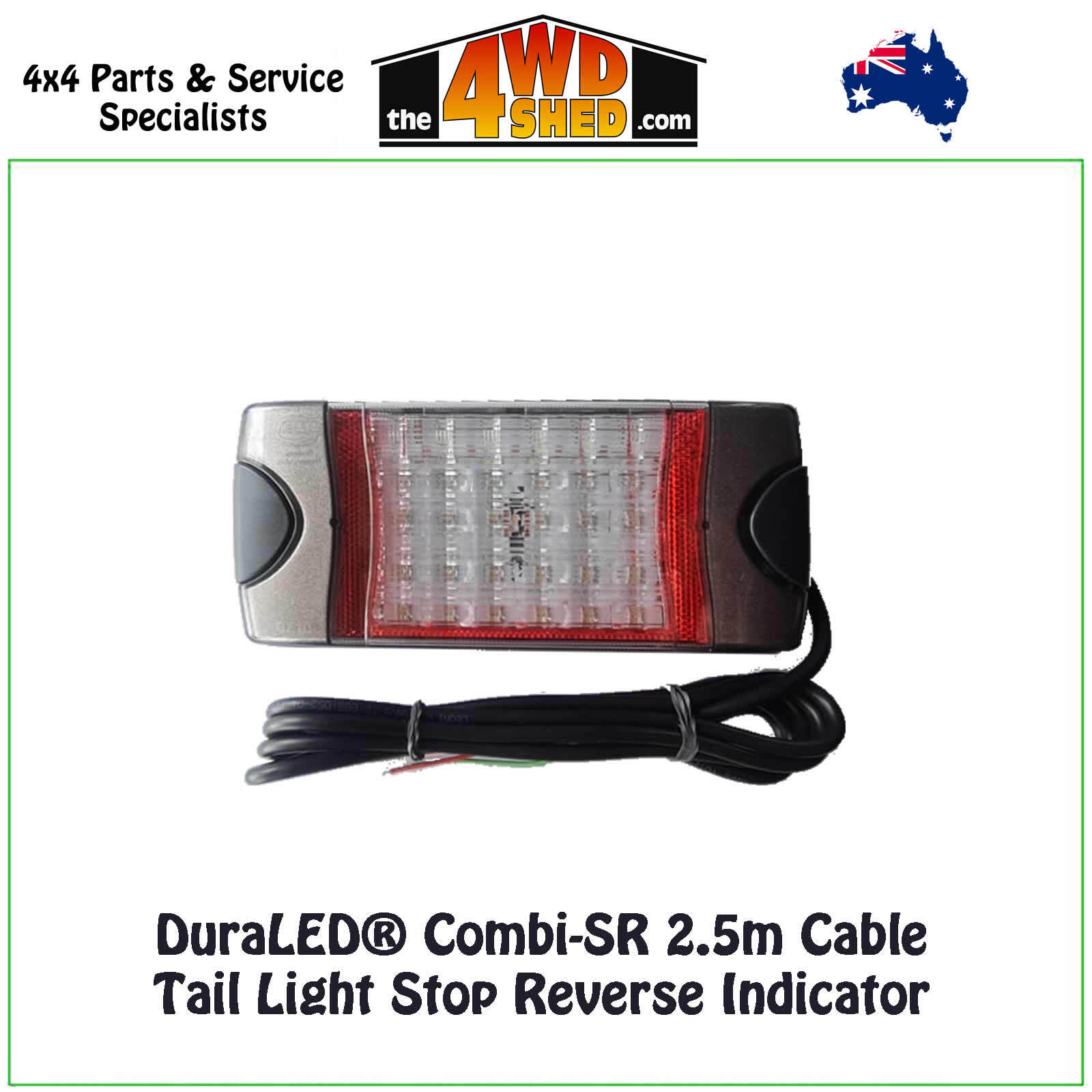

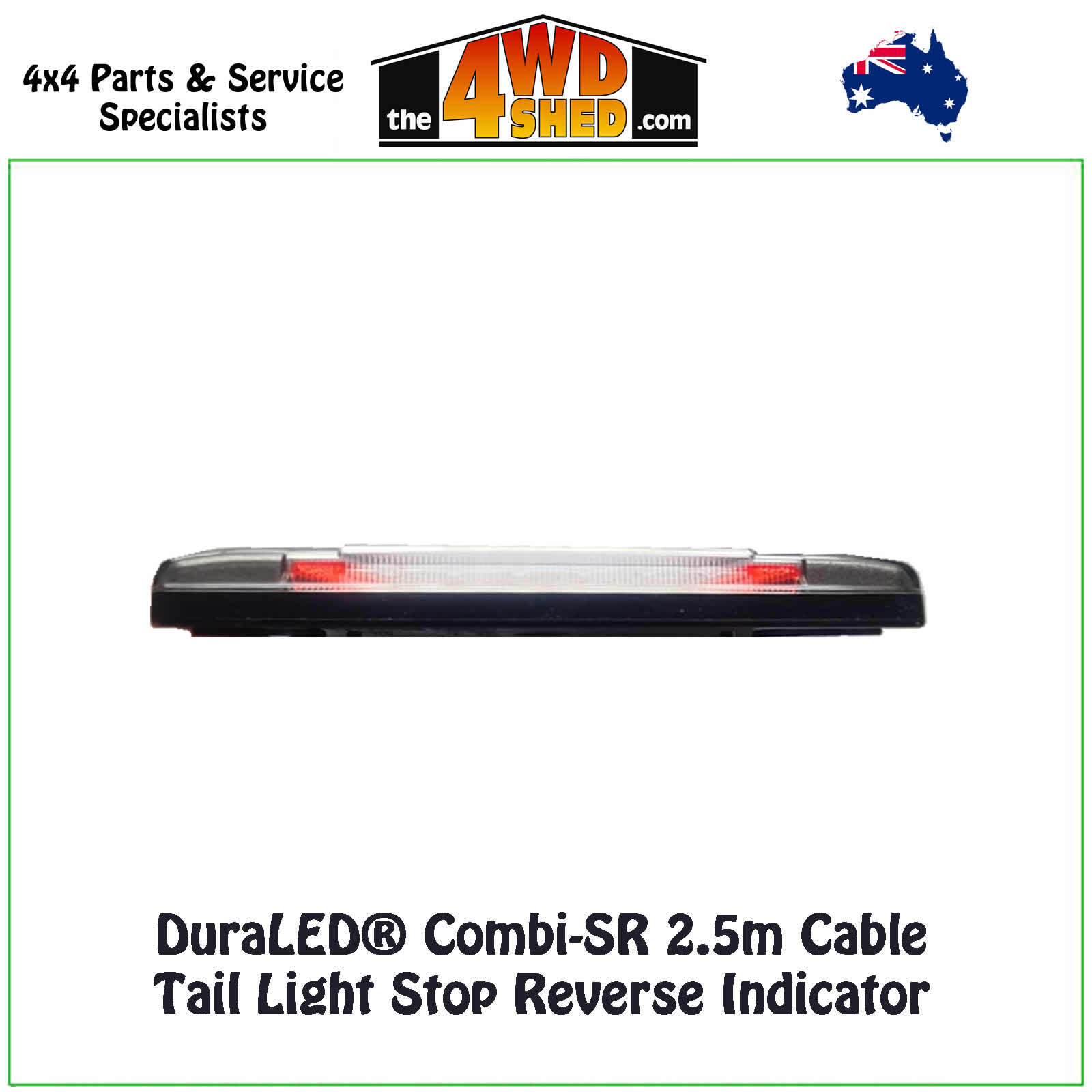

DuraLED® Combi-SR 2.5m Cable Tail Light Stop Reverse Indicator Universal Style

DuraLED® Combi-SR 2.5m Cable Tail Light Stop Reverse Indicator

The new all-in-one 5 function Combi-SR Lamp now incorporates a built-in retro reflector, saving both time and money on installation. The all-in-one design makes the Combi-SR the ideal choice for vehicles with limited space to mount a separate reflector.

The innovative HCS version, allows these lamps work seamlessly with many late model vehicle electrical systems. The Combi-SR is made with a high performance Grilamid® lens offering unmatched resistance to impact, long term UV exposure and commonly used chemicals.

As with all products in the DuraLED^® range, this new lamp offers superior durability and a class leading lifetime warranty* for complete peace of mind.

The now iconic DuraLED^® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

Features

• All-in-one 5 function design
• Second generation with retro reflector
• HCS Technology (12V & 24V)
• Grilamid Lens (high performance polyamide)
• Suitable for trucks, utes & trailers
• Lifetime Warranty*

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

HCS Technology - HELLA Compatibility Solution.
These lamps are designed to International Standard ISO 13207-1 to provide compatibility with commercial vehicle indicator failure systems.

*Lifetime means economic life of the vehicle these products are first installed on.

Sold as EACH

Specifications

Mounting

• Suitable for horizontal mounting
• Two hole surface mount with mounting bushes supplied

Voltage

• Multivolt™ suitable for 12 and 24V DC systems

Power Consumption

• Stop 5W
• Rear position:1.5W
• Rear direction indicator: 6W
• Reverse: 2W

Protection

• Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS)
•  IP 6K7 (Protection against dust and temporary water immersion)
•  IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

• Pre-wired with 2.5m of sheathed multi-core cable

Lens Material

• Grilamid^®

Compliance

• ECE R148
• ECE R150
• ISO 13207-1
• ECE R10
