Formula 4x4 3700kg GVM Upgrade Isuzu DMAX 2021-On

Email this product to a friend

Formula 4x4 3700kg GVM Upgrade Isuzu DMAX 2021-On

$4,290.00

More info.

Make 4 interest-free payments of $1,072.50



In Stock

Calculate Shipping

Formula 4x4 3700kg GVM Upgrade Isuzu DMAX 2021-On

GVM Kits purchased from us can only be installed by The 4WD Shed in our Vic workshop. Installation of the GVM suspension upgrade costs start from $1155

The most comfortable GVM upgrade, both off & on road. Perfect for touring, tough tracks and the beach. Proven in harsh Australian conditions.

After purchasing this GVM upgrade. Our suspension experts will contact you to make sure you get the right kit, by confirming all your vehicle details and requirements.

Formula 4x4 GVM upgrades require engineering and/or mod-plating to be signed off. This means that this GVM upgrade can only be installed by us at our workshop in Bayswater, Vic.

We will be in contact to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product. There is a pre-inspection that will be required before the kit can be ordered so we can determine that the GVM upgrade is correct for you.

High Level Product Details

  • This GVM kit provides a 40-50mm lift for loaded vehicles, with additional height gains for unloaded vehicles.
  • 100% legal, engineered, road tested, approved and certified.
  • Suitable for Mining Companies, Farmers, Tradesmen, Tourers and offroad enthusiasts
  • Vehicle warranty is NOT affected when a GVM Upgrade is fitted.
  • Tested, assembled and built in Australia.
  • This GVM kit by default includes an aftermarket upper control arm kit to correct alignment.
  • Once the GVM is installed in your DMAX, it will be mod plated and engineered to be state compliant.

Vehicle Compatibility

  • Isuzu DMAX TFS, RG01 2021-On

Applicable Variants: SX, LS-M, LS-U, X-Rider, X-Terrain

Kit contains:

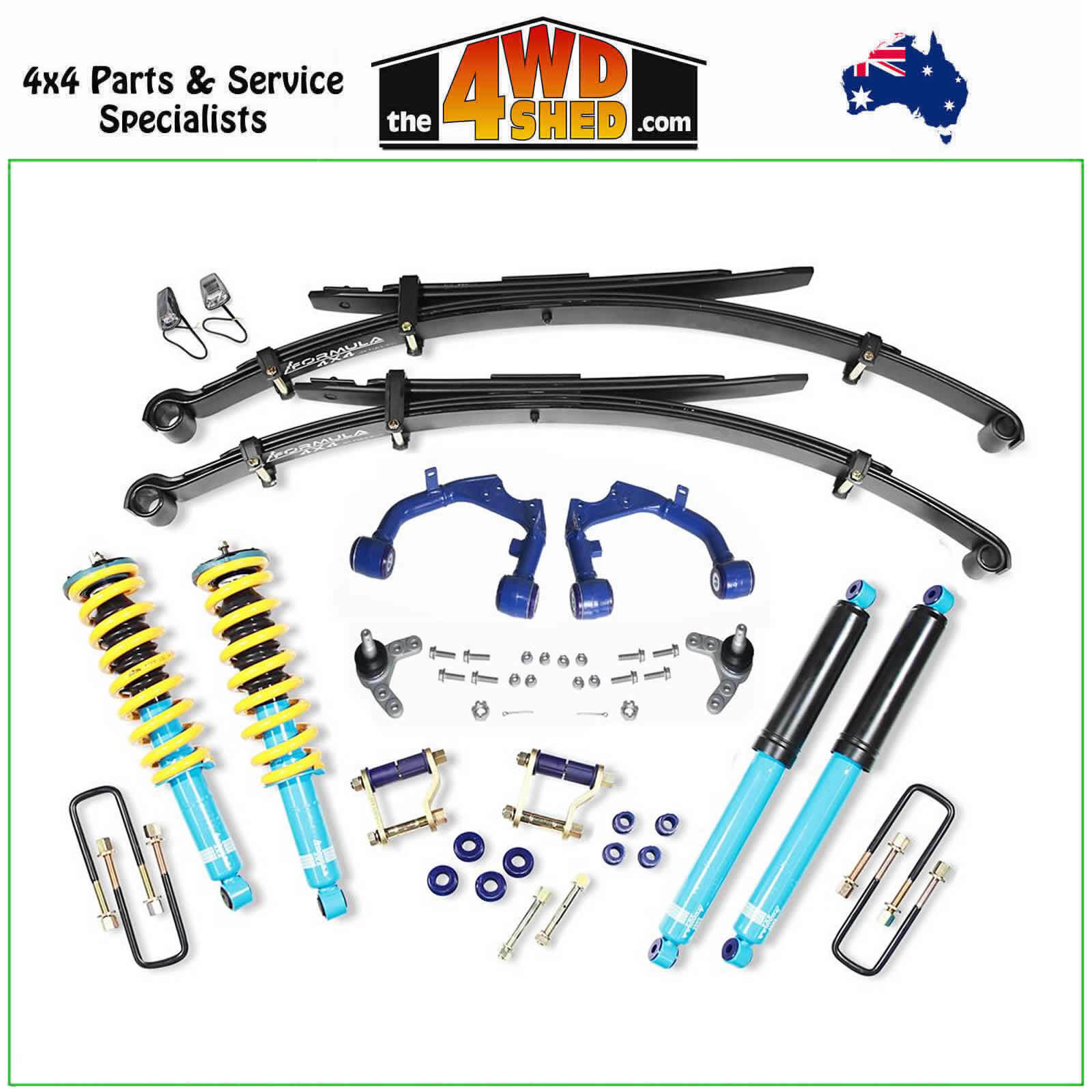

Formula 4x4 ReadyStrut Kit ISUZ101T-FOR x 1, Formula 4x4 Shocks 50030 x 2, SuperPro Fixed Offset Upper Control Arm Kit TRC6590 x 1, Formula 4x4 Leaf Springs FLS-150 (500kg Constant) x 2, Formula 4x4 U-Bolts FUB-006 x 4, SuperPro Shackle, Pin & Bush Kit KIT246SK x 1, SuperPro Brake Line Spacer Kit SPF5319K x 1, Cat 6 Indicators 77ACM2-GVM-IND x 1, Tyre Placard DMAXPLACARD x 1, Load Capacity Label DMAXLOADCL x 1, Document Kit GVMDMAXIS x 1

Upgrade Specifications

  • GVM Upgrade Limit: 3700kg (OE Spec 3100kg)
  • Front Axle Limit: 1650kg (OE Spec 1450kg)
  • Rear Axle Limit: 2051kg (OE Spec 1910kg)

Due to NB1 category change, CAT 6 side indicators are required.

Features

  • GVM Increase to 3700kg
  • No GCM increase.
  • Includes Low Pressure Nitrogen for fade free Big Bore shocks
  • Designed and built for Australian conditions
  • Tested fitted and supported by 4WD 24/7
  • Specifically designed for each application and vehicle performance
  • The most comfortable GVM Kit on the market
  • Big Bore shock design for improved heat dissipation, giving longer performance.
  • Tapered pegs on Front Struts for increased strength
  • Unlimited Kilometre warranty. Just activate your warranty online.

All GVM Upgrade Kits are supplied with appropriate documentation and can only be fitted by an authorised and approved Fulcrum Workshop.

Prices listed are for the GVM Suspension kit only, please contact us for fitting & engineering costs.

Formula 4x4 Warranty

Formula 4x4 GVM kits come with a 5 year / Unlimited Kilometre warranty. Just activate your warranty online. Learn more here.

The 4WD Shed is an Authorised Stockist & Installation Facility for Formula 4x4 GVM Upgrade kits.



ENGINEERING IN VICTORIA
Post-Rego
When purchasing this GVM kit, as per state legislation, vehicle engineering is required. This is completed by an engineer who signs off on the installation of the GVM upgrade kit and then provides a mod plate for your vehicle. For post-rego vehicles (vehicles that are already registered) there is an additional cost for this as the data for your already registered vehicle needs to be changed and a new mod plate needs to be assigned to the already registered vehicle. If you have modifications to your vehicle, then these may be inspected & additional codes may be applied, leading to adjusted costs.

Pricing for Engineering starts from $1,045

Pre-Rego
For pre-rego vehicles (before the vehicle is first ever registered) the GVM upgrade is applied & the ROVER database is updated. There is no charge for this service, as an external engineer is not required to inspect the vehicle. Approvals are done all in-house at The 4WD Shed in conjunction with Fulcrum Suspension.


(ISUZ-DMAXGVM)

SKU ISUZ-DMAXGVM
Brand Formula 4x4
Shipping Weight 100.0000kg
