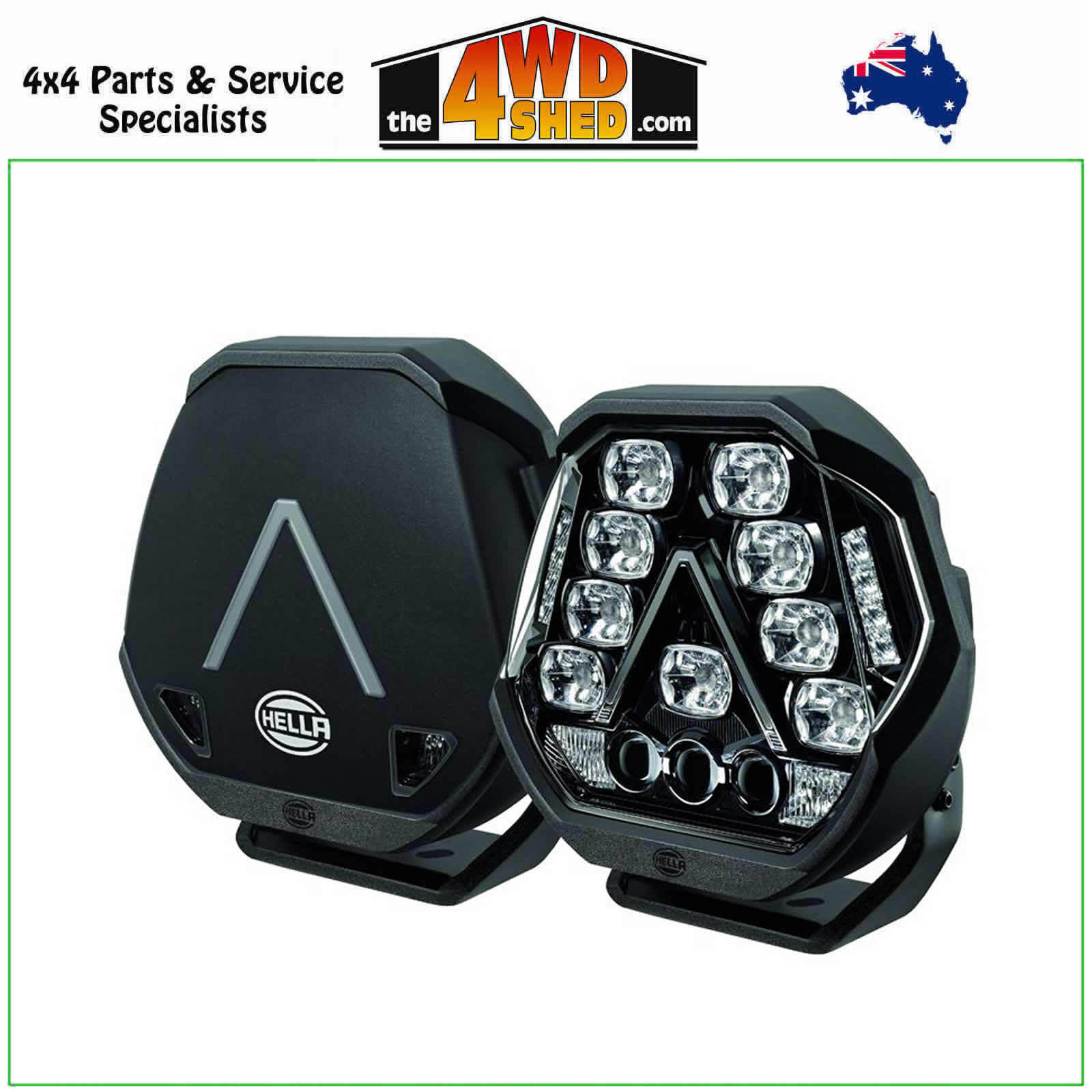

Hella Antares Series LED 9" Spot Beam Driving Light Kit DRL & Park Light inc Wiring Harness
More infoHELLA Antares Series LED 9" Spot Beam Driving Light Kit
DRL & Park Light Include Wiring Harness.
STAND OUT FROM THE CROWD WITH THE ALL NEW HELLA ANTARES 9” LED DRIVING LIGHTS.
Named after the radiant Antares star, these driving lights are engineered to illuminate the darkest roads, ensuring your journey is safe and spectacular. Co-designed in Australia for Australian roads, the Antares is sure to meet all your needs and more.
Safety & Visibility Day & Night
- Daytime Running Lamps provide visibility during daylight to alert oncoming traffic.
- Unique look position lamps increase visibility in urban environments.
TOUGH DRL INTEGRATED COVERS
- Provides stylish protection against sand, dust, mud & bugs.
- Includes distinctive Antares edge light design
COVER DETECTION
Switches off main beam when cover applied for greater operating efficiency.
SELECTABLE OUTPUT MODES
Easily adjust between high & low output for optimal driver comfort.
TOUGH CONSTRUCTION
IP69K dust & waterproof, suits harsh Australian conditions.

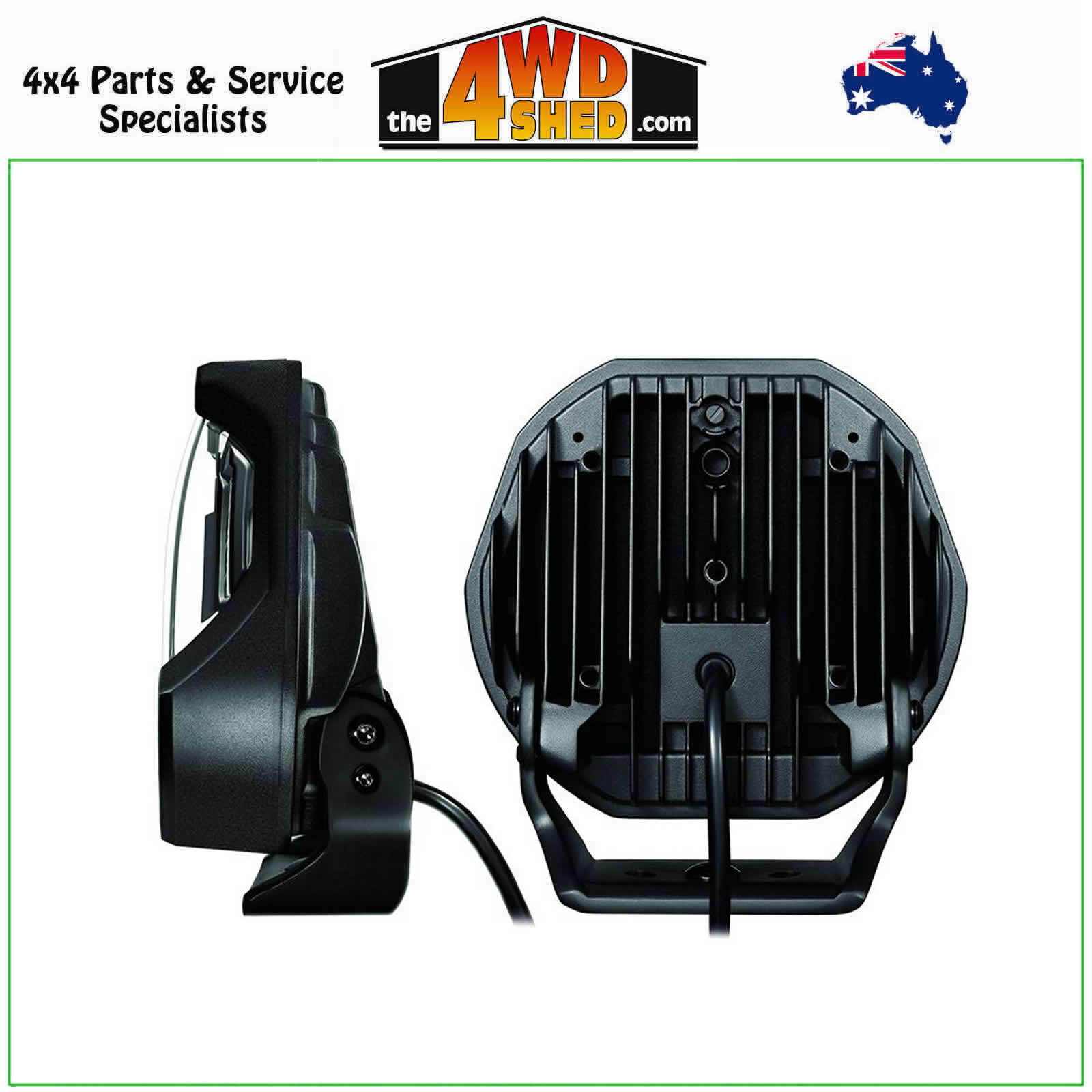

DIECAST ALUMINUM HOUSING & BRACKET
Durable, lightweight & corrosion resistant
Mounting holes for maximum stabilty

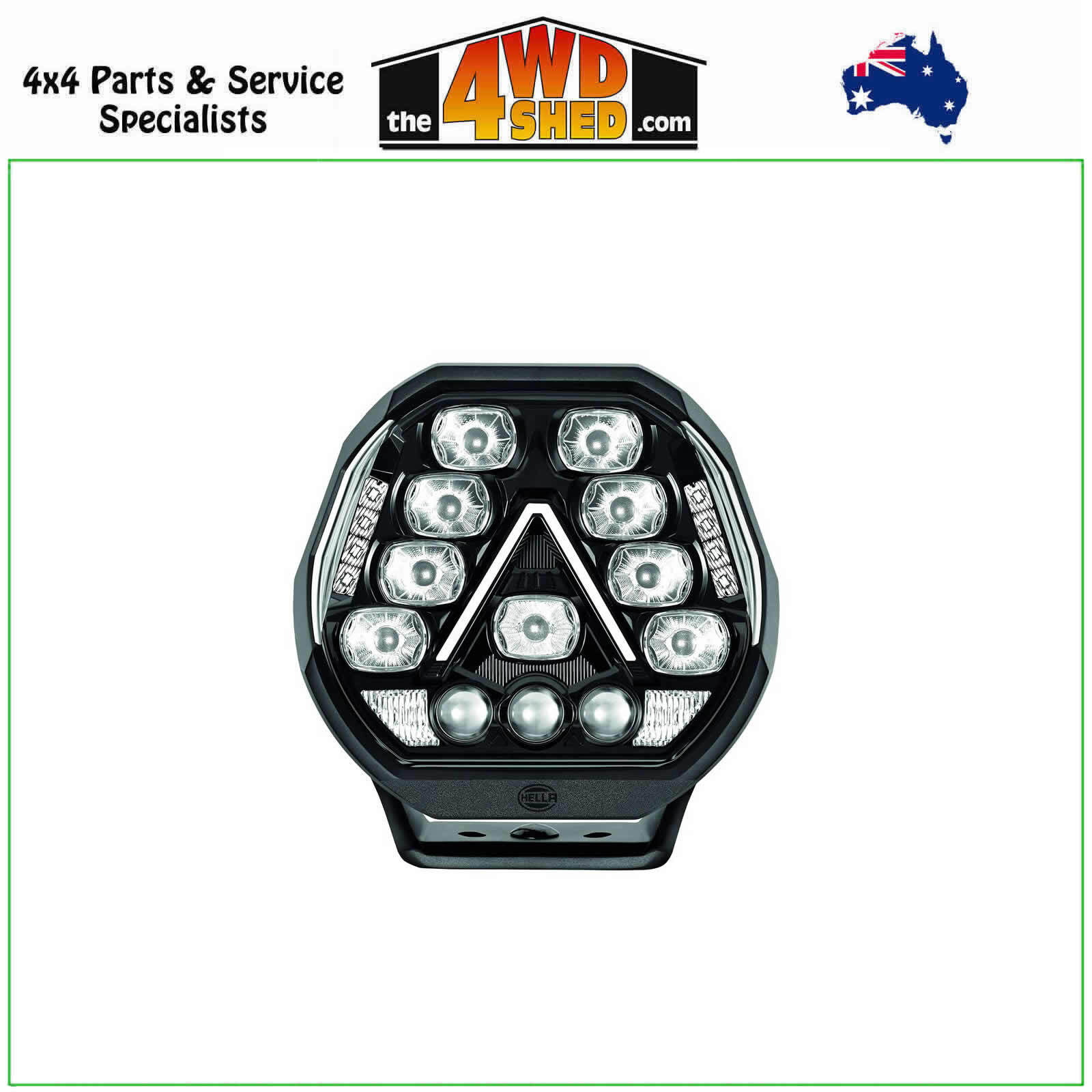

COMPOSITE LIGHTING DESIGN
3x projector spot beams exceed 800m distance
9x diamond glow position lamp with unique umbrella reflector technology
8x wide beam 10w LED clusters for even wider light dispersal (80m)

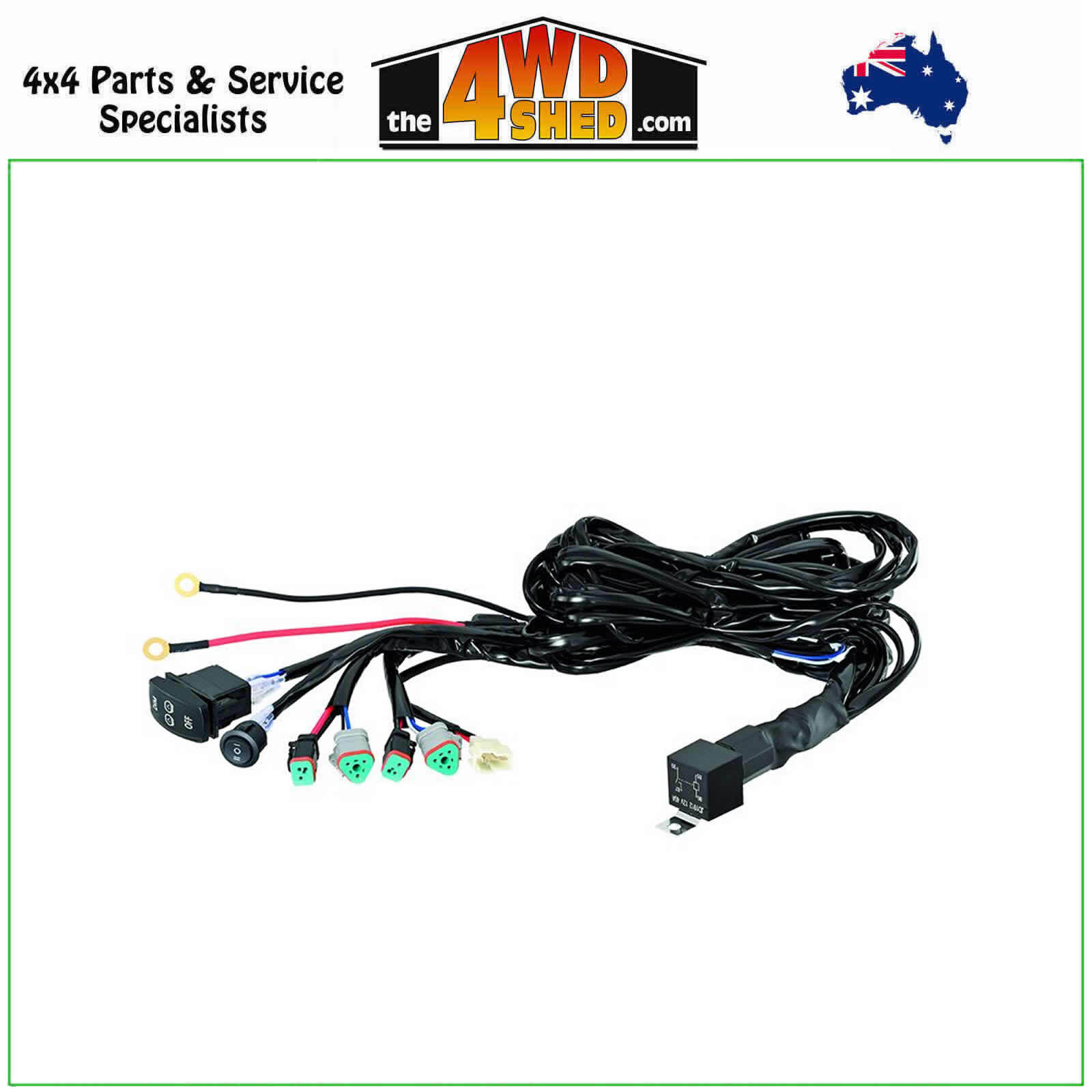

PLUG & PLAY WIRING HARNESS
With H4 & HB3 adaptors for easy DIY install
TAKE CONTROL OF YOUR LIGHTING WITH A MULTITUDE OF HELLA LIGHTING TECHNOLOGIES FOR SAFETY & VISIBILTY, DAY & NIGHT.
4 MODES
- High Output Mode
- Low output Mode
- Daytime Running Light
- Position Light

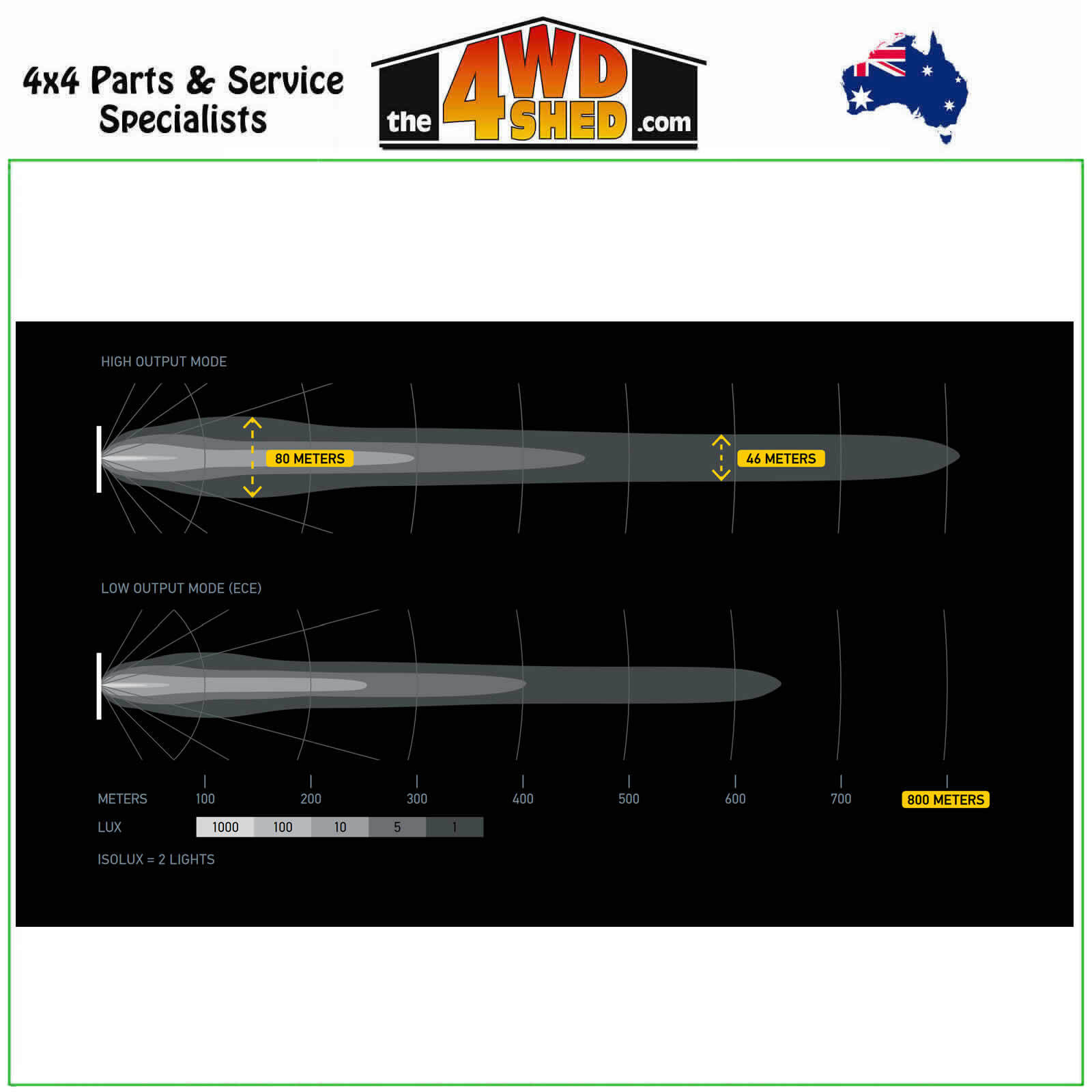

The Hella Antares intergrates lighting techniques mastered in collaboration with the largest automotive brands & decades of Australias harshest driving conditions, creating a composite beam that delivrsincredibly constant & impressive output:
- 80m wide beam exceeds 150m distance with the ultra-wide specific LED clusters
- Impressive mid-range width of 46m that exceeds 650m distance with the umbrella LED optic.
- Precision Projector LED gives a total distance exceeding 800m.
- All at the industry standard 1 Lux.
Sold as a PAIR
| LUMENS | 18000LM per light |
|---|---|
| Beam Pattern | Combination |
| Number of LED's | 52 per light |
| Lens material | Polycarbonate |
| Features | High Output, Low Output, DRL, Position Light Modes |
| Series | Antares |
| SIZE | 9" |
| Approvals | CISPR25 Class 3 |
| Kelvin | 5700K |
| Wiring | Wiring harness included (12V) |
| Brand | HELLA |
| Wattage | 120W per light |
| IP Rating | IP69K, IP67 |
| Current Draw | Max 11.4A @ 14.1V (High Output mode) per light |
| Housing Material | Die cast Aluminium |
| Input Voltage | 10-30VDC |
(1F0358228871)
| SKU | 1F0358228871 |
| Brand | Hella |
