Impressor Incab Digital Kit

Impressor Incab Digital Kit

All round air package kit for a 2 airbag system, onboard air for the 4×4 or running air lockers, tyres and small air tools.

This kit is an all round air package kit for a 2 airbag system, onboard air for the 4×4 or running air lockers, tyres and small air tools.

Featuring our Boss dual read-out digital gauge, gauge panel with three led switches , PX06 12volt 1.8cfm 100% Duty Cycle Air Compressor for rapid refilling the 5 port tank ready for the next use. Comes with our light weight, no rust Aluminium 3 gallon air tank, heat treated, shot blasted and anodised.

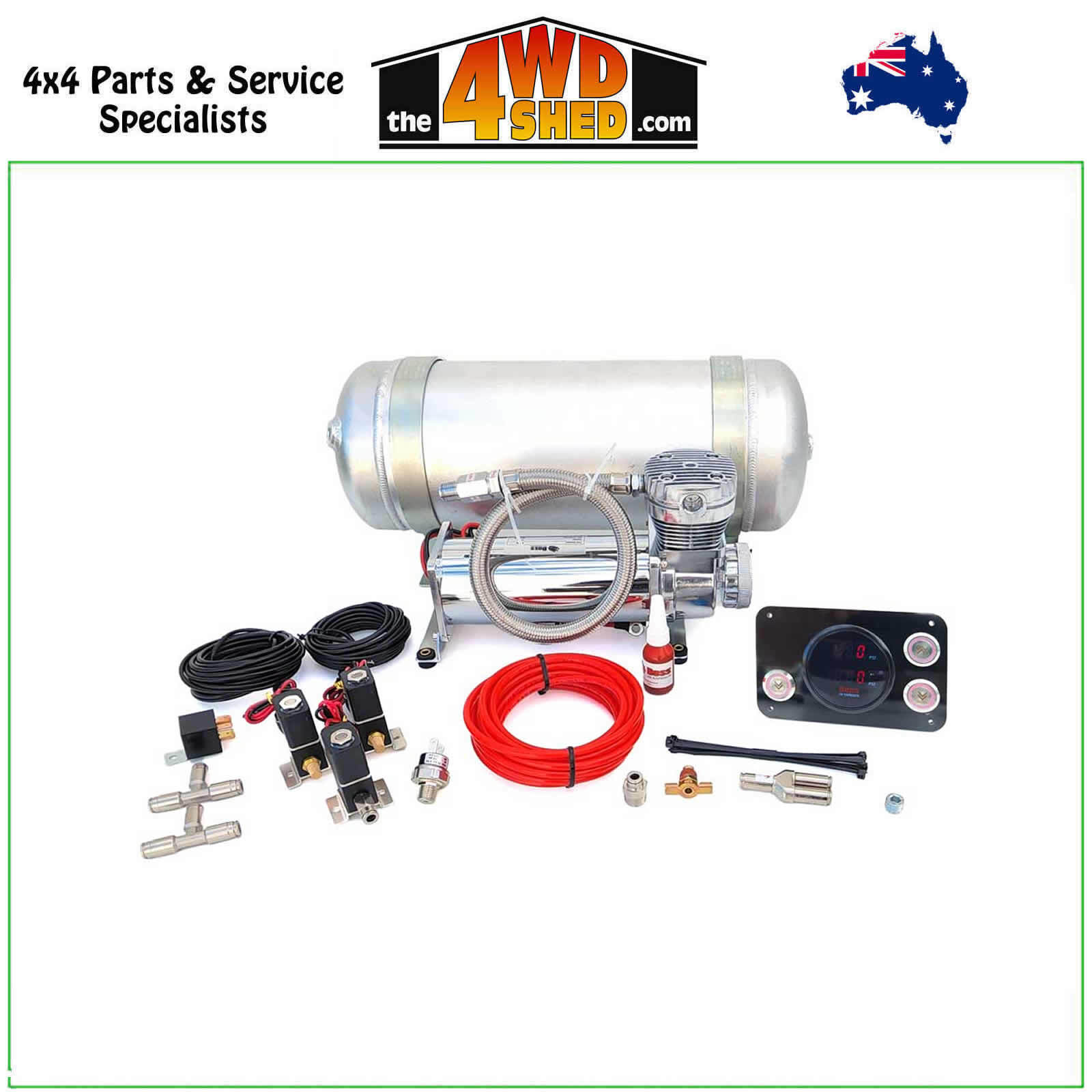

Includes:

•     1 x PX-06 12volt 100% Duty, 1.8cfm Air Compressors
•     1 x AT-03  5 port Boss Aluminium Air Tank
•     1 x 110-135psi Pressure Switch
•     1 x Braided Hoses with check Valve
•     1 x Brass 1/4″ Bung
•     1 x Drain Tap
•     1 x 40amp Relay
•     10 metres J844 DOT certified air line
•     1 x “Y” Check Valve
•     2 “Y” connectors
•     4 “T” connectors
•     1 x Digital BOSS Dual Read-out Gauge
•     Independent Left & Right LED Switches
•     Black Gauge Panel, 122mm x 78mm
•     5 x 1/4″ push fittings
•     3 x Mini 12v Electric Solenoid/Valves
•     3 x LED 12v Switch for actuating the Valves
•     1 x bottle of thread sealant
•     Instruction Sheet[/list]

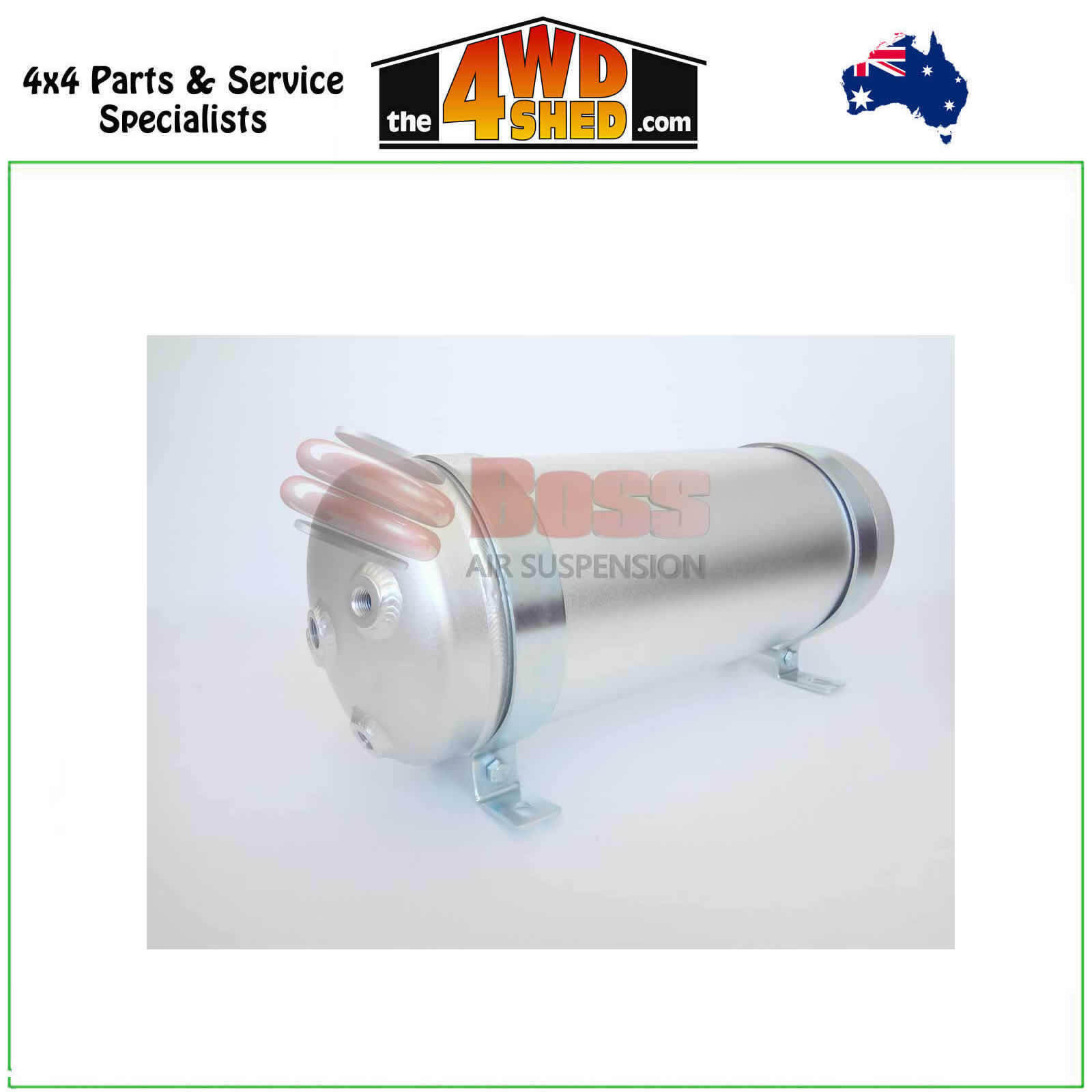

About Boss Alloy Air Tanks

Boss Manufactures lightweight T6 heat treated aluminium air tanks, with a range of tank sizes, port configurations and port sizes.

Furthermore, our tanks are rust free, providing clean air for valves. Also all 9L (3 gallon) & 15L (5 gallon) tanks can be mounted in 3 angles. On end, upright or upside down and still keep drain port at bottom with our unique design. Mounting legs included. Shot based anodised or chrome finish.

Also, recommended working pressure is 0 - 170psi. While maximum pressure is 400psi. Sizes range from 2 litres through to 15 litres with extruded centre section and stamped ends.

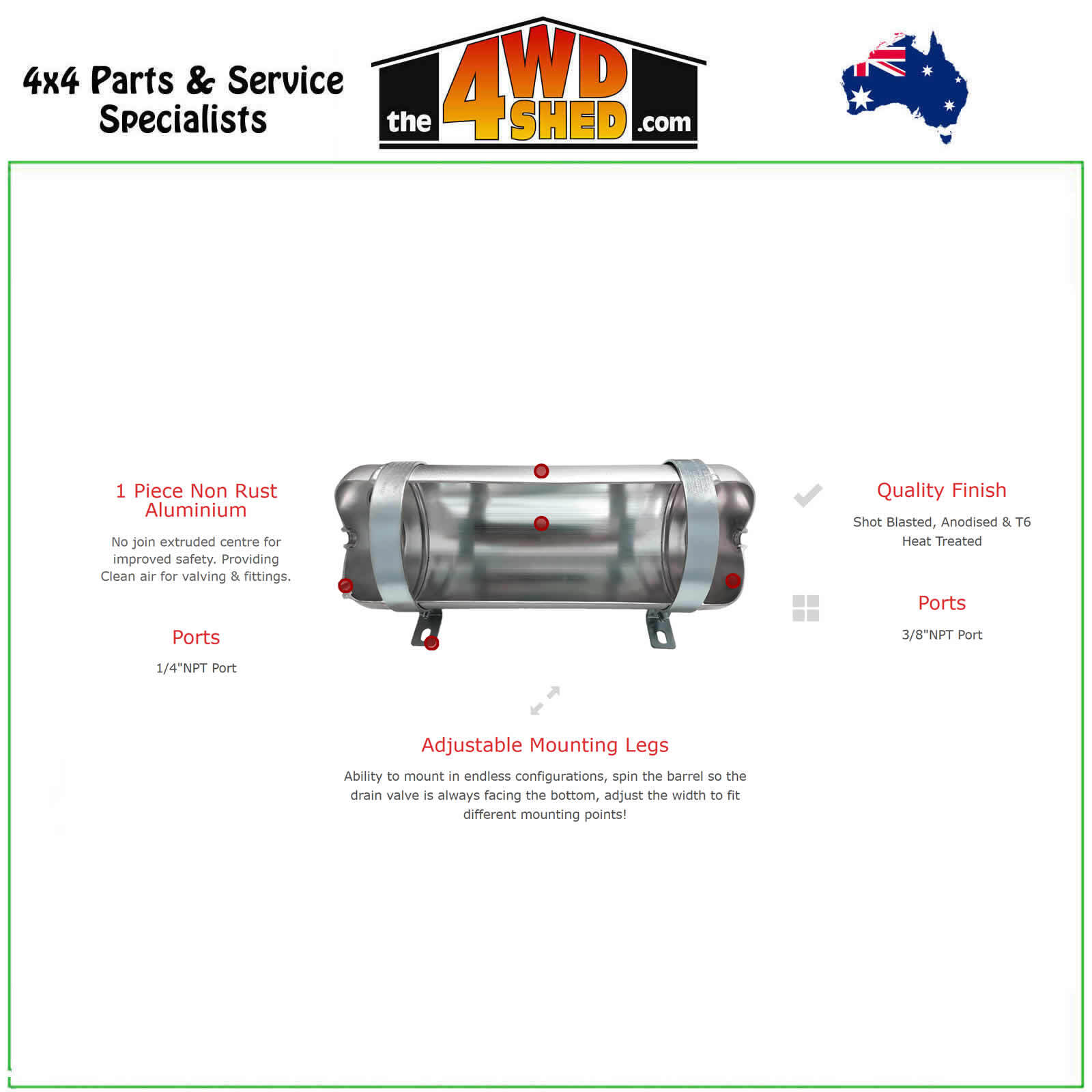

Features

1 Piece Non Rust Aluminium

No join extruded centre for improved safety. Providing Clean air for valving & fittings.

Ports

1/4"NPT Port

Adjustable Mounting Legs

Ability to mount in endless configurations, spin the barrel so the drain valve is always facing the bottom, adjust the width to fit different mounting points!

Quality Finish

Shot Blasted, Anodised & T6 Heat Treated

Ports

3/8"NPT Port

Adjustable Mounting Legs

Ability to mount in endless configurations, spin the barrel so the drain valve is always facing the bottom, adjust the width to fit different mounting points!

Size of the Alloy Tank.

Tank Size is L450mm x H220mm x W180mm

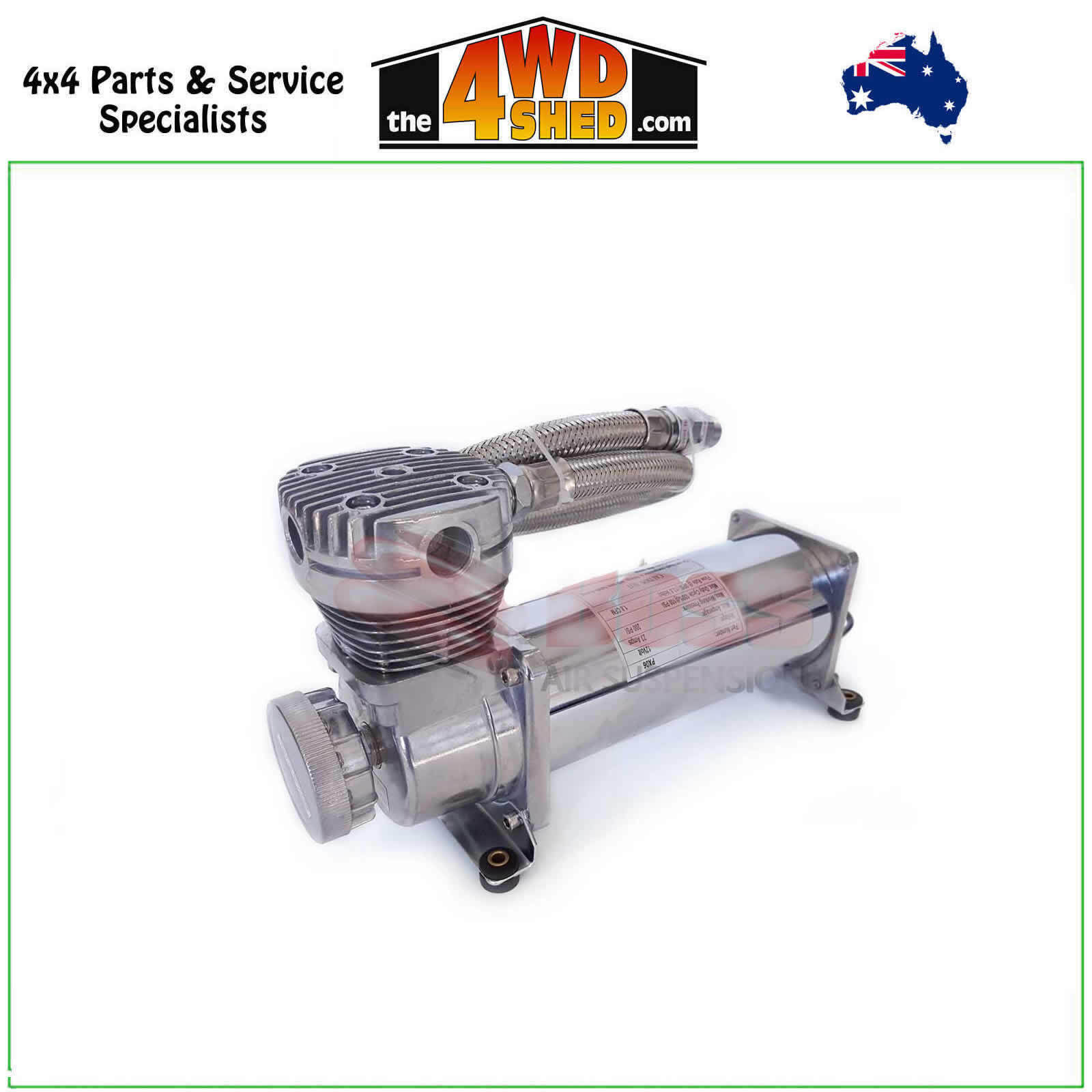

Boss Compressor

BOSS Air Suspensions 12v air compressors are the industry leader.

We designed and began manufacturing our range of air compressors after trying many other brands only to be let down time and time again. Performance of other brand compressors are sometimes impressive, however they wear out quickly and take longer and longer to recover your air needs, that's if they re-start under load!

Other popular 12 volt air compressors just don't stack up to the BIG BOSS compressor. Make sure the alternator is up to the task because the bigger the compressor the more amps it will need! BOSS 12V air compressors do not require oil!

The designs are quick and easy to mount. Engine driven compressors available upon request, brackets are up to the installer.

BOSS Air Compressors use the latest technology to deliver compressors that perform tirelessly for many years of service.

12v 100% duty cycle, ideal for air suspension use. Oil less compressor can be mounted vertical or horizontal for easy installation

•     PX-06 Compressor
•     Duty Cycle 100%@100psi
•     Max working pressure 200psi
•     1.8cfm
•     Amp draw Max 23amps
•     Check Valve
•     Braided Hose
•     IP 56 Rated

Mounting sizes are 85mm centres wide and 225mm centres long
