LA30 Airbag Kit Ford Ranger Next Gen 2022-On

AAA Suspension LA30 Airbag Kit Ford Ranger Next Gen 2022-On

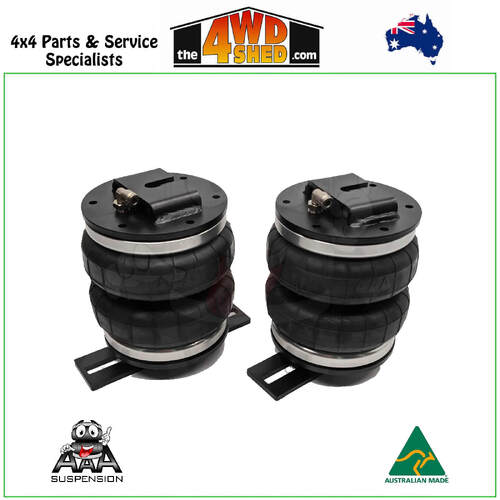

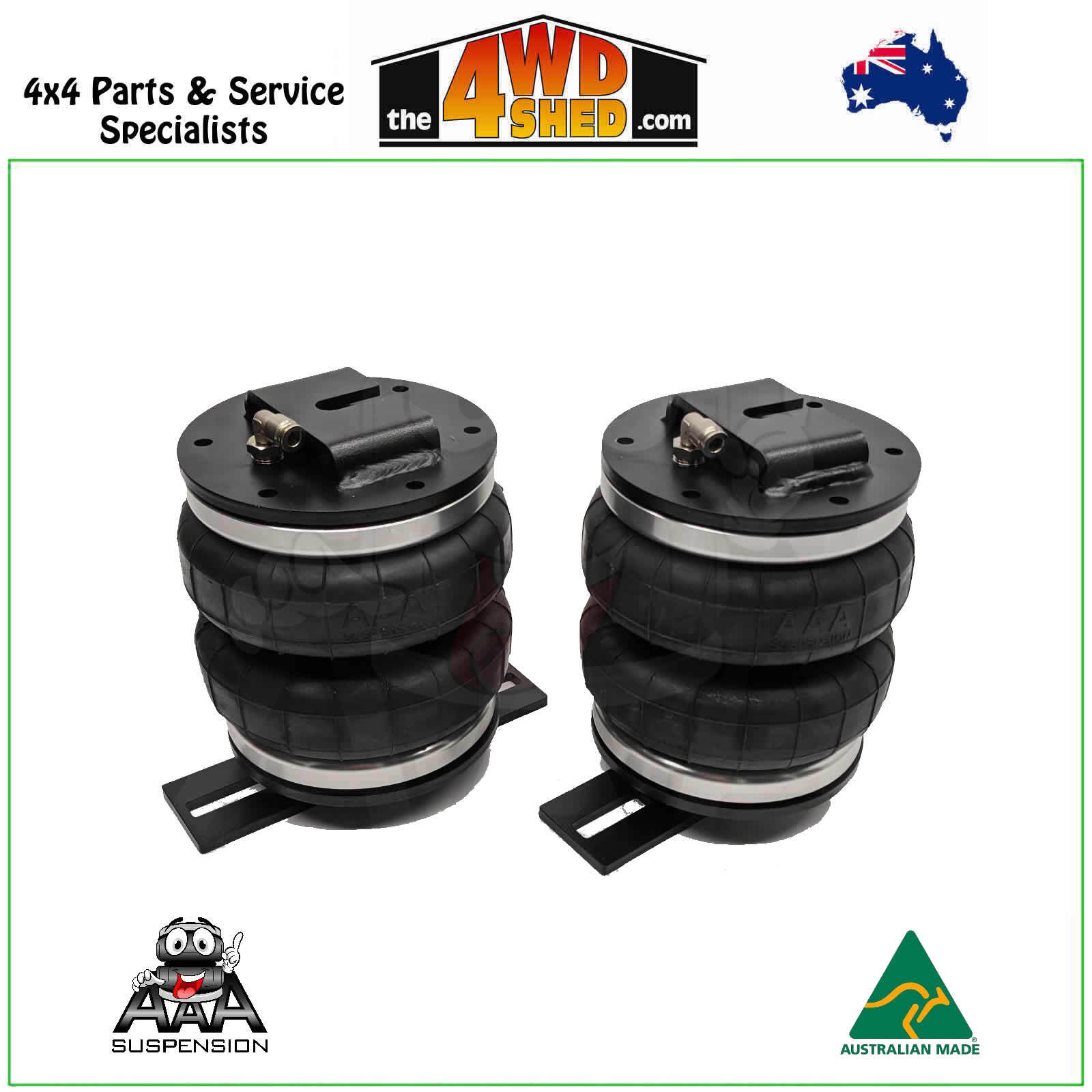

Airbag kit includes two airbags, vehicle specific airbag mounts, required bolts, air fittings, air line tubing and inflation valves. Full instructions available.

This kit is still suitable even if your vehicle has a 2″ lift.

This is a brand-new airbag load assist kit to suit the rear of the following vehicles:

• Ford Ranger Next Gen – 2022 ONWARDS –  4WD.

On these Next Gen Rangers the leaf springs sit above the axle and the U-Bolts point downwards.

What has come to light is that other brand kits rattle and their airlines come out at the bottom – AAA kits do not rattle and this AAA kit has the air line come from the top where it is safe and does not move.

Note: the Next Gen Ranger “Raptor” is our CA31 kit and the earlier PX Rangers is our LA28 kit.

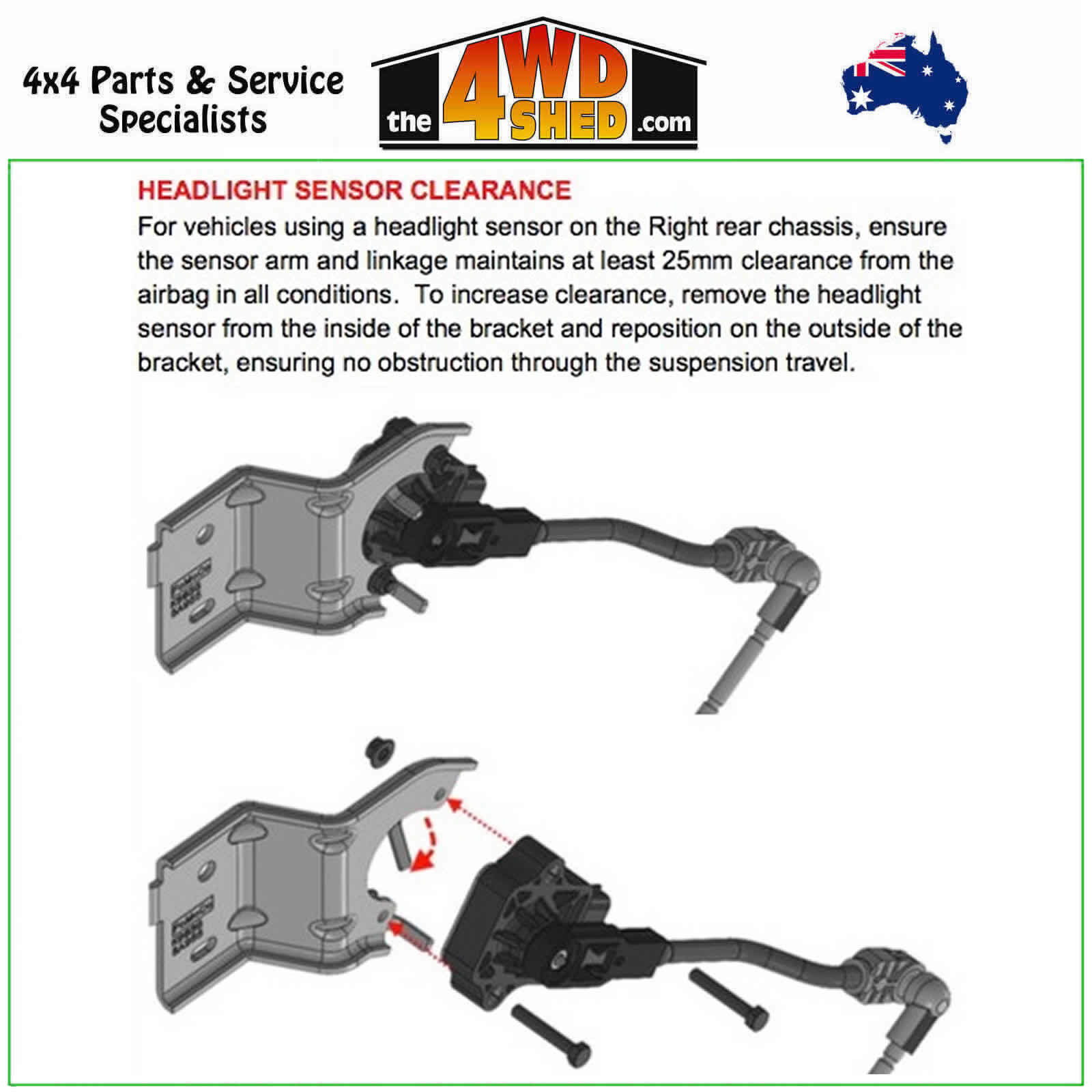

*** Headlight Sensor Clearance - For vehicles using a headlight sensor on the right rear chassis, ensure the sensor arm & linkage maintains at least 25mm clearance from the airbag in all conditions. To increase clearance, remove the headlight sensor from the inside of the bracket & reposition on the outside of the bracket, ensuring no obstruction through the suspension travel.

We provide a number of kitting options for our AAA Suspension Airbag Kits. Pricing is for an Airbag Kit with Powder Coat brackets. You can change to Galvanised brackets at additional cost. We also can offer in cab wiring kits. By selecting an “In-Cab Kit”, you will also be supplied with all the gear required to control the air in your bags from the inside of your vehicle, and you can option for us to supply a compressor included in the In-Cab kit for you too if you do not already have one installed. Just pick through your options when checking out.

The AAA leaf assist airbag kit replaces your bump stops and effectively becomes a bump stop conversion that can help you carry a load. When unloaded you want some air in the bags (10-15 psi) so you have some cushion or softness in the new bump stop effect. Then as you load up just add more air – what ever it takes to keep the vehicle level.  The AAA kit is rated at 2.5t so that’s the bags being capable of lifting 2.5t of additional weight over the rear axle. Your real limit is your GVM and what’s safe and sensible, but know the bags are up for what ever your load might be.

The rubber in the bags is heavier than the rubber in the sidewalls of your tyres, so they last for ever seeing there is no rubbing or moving parts as such. AAA kits come with a 10 year new for old warranty on all bags, brackets, airlines and valves.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.

If interested in seeing what’s involved click the PDF instructions available below our images. Also watch the video below.
