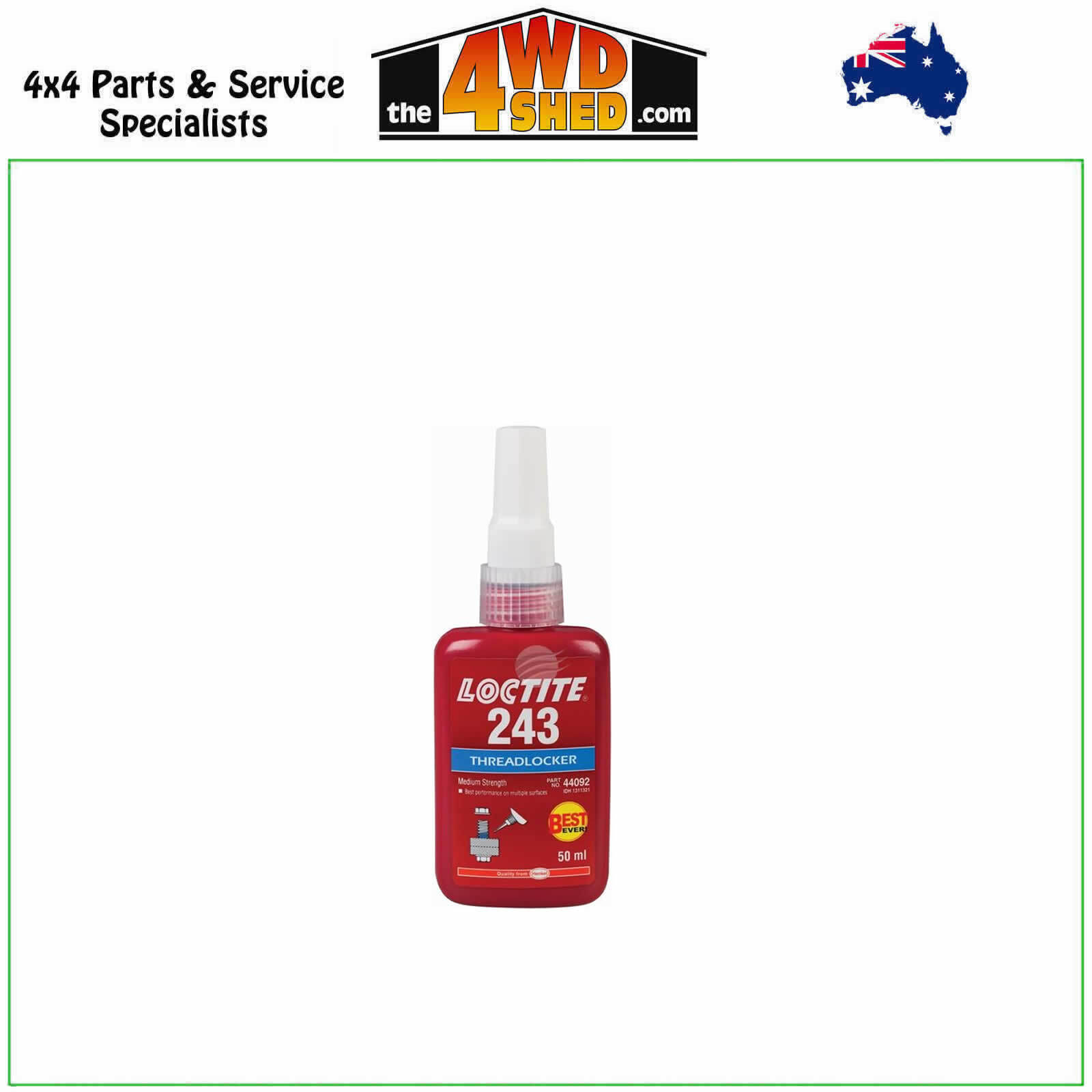

LOCTITE 243 - Threadlocker Medium Strength Blue 50ml
More infoLOCTITE 243 - Threadlocker Medium Strength Blue 50ml
LOCTITE 243 is a medium strength blue threadlocking adhesive that seals and secures metal nuts and bolts to prevent loosening due to shock and vibration.
LOCTITE® 243 is a general purpose threadlocker that provides a medium strength bond. LOCTITE 243 works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g., motor oils, corrosion prevention oils and cutting fluid.
- Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
- Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)
- Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids
- Permits disassembly with ordinary hand tools for easy service and maintenance
- P1 NSF Reg. No.: 123000
Invented by Loctite as a revolutionary method to positively lock and seal threaded fasteners, LOCTITE® threadlocker adhesives are used in a wide range of applications – from delicate fuel injection components to heavy-duty transmission and engine assemblies.
Specified by automotive OEMs and approved for use on factory assembly lines, threadlockers work by filling the spaces between threads. The result is a secure, one-piece assembly that will not loosen under stress.
What Strength Threadlockers are available.
Low Strength Threadlockers
- Removable with hand tools
- Adjustment screws
- Calibration screws
- Meters and gauges
- Up to ¼" (6 mm) diameters
Medium Strength Threadlockers
- Removable with hand tools
- Machine tools and presses
- Pumps and compressors
- Mounting bolts
- Gear boxes
- Up to ¾" (19 mm) diameters
High Strength Threadlockers
- Removable with heat and hand tools
- Heavy equipment
- Suspension bolts
- Motor and pump mounts
- Bearing cap bolts and studs
- Up to 1" (25 mm) and larger diameters
Wicking Threadlockers
- Removable with heat and hand tools
- Preassembled fasteners
- Instrumentation screws
- Electrical connectors
- Carburettors
- Up to ½" (12 mm) diameters
Technical Information
| Application method | Dispense Gun, Dispense System, Manual |
| Application temperature | -55.0 - 180.0 °C (-65.0 - 360.0 °F ) |
| Applications | Threadlocking |
| Breakaway torque, M10 Steel Nuts/Bolts | ~26.0 N·m (230.0 in./lb. ) |
| Colour | Blue |
| Cure type | Anaerobic Cure |
| Fixture time | 10.0 min. |
| Key characteristics | Disassembly: Removable, Fluorescent, General Purpose, Oil Tolerant, Primerless, Strength: Medium Strength, Thixotropic |
| Physical form | Liquid |
| Prevail torque, M10 Steel Nuts/Bolts | 5.0 N·m (40.0 in./lb. ) |
| Recommended for use with | Metal, Metal: Passive Metal |
| Specific gravity, @ 23.0 °C | 1.08 |
| Viscosity, Speed 20 RPM | 2150.0 mPa·s (cP) |
(1311321)
| SKU | 1311321 |
| Brand | Loctite |
| Shipping Weight | 0.0800kg |
