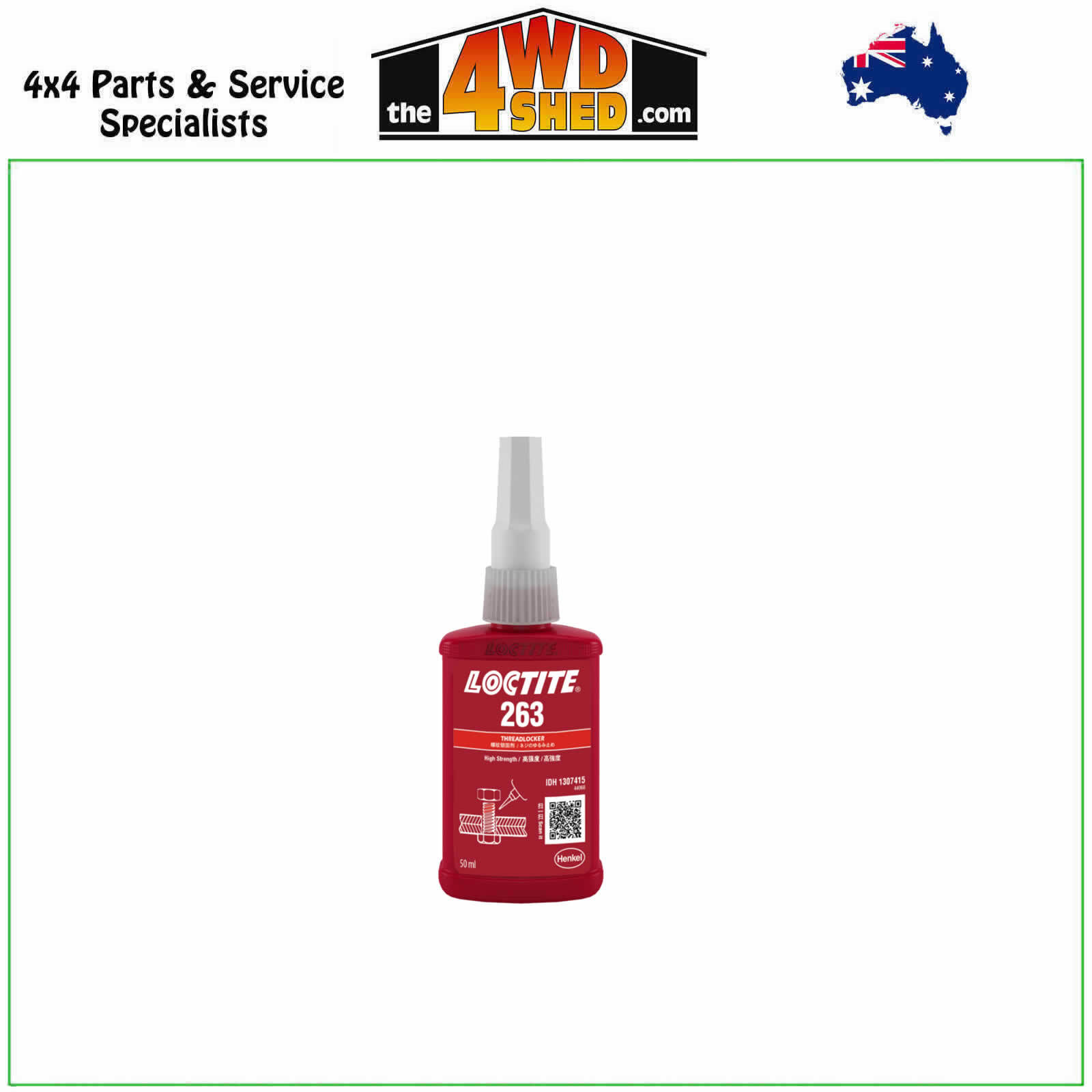

LOCTITE 263 - Threadlocker High Strength Red 50ml
More infoLOCTITE 263 - Threadlocker High Strength Red 50ml
Dual cure, acrylic dimethacrylate ester fluorescent threadlocker designed for the permanent locking and sealing of threaded fasteners.
LOCTITE® 263 is a red, high-strength, primerless threadlocker for permanently locking and sealing bolts, nuts and studs to prevent loosening due to vibration. It works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces without the use of primer. Suitable for use on most oil-coated, “as-received” fasteners without cleaning.
- Particularly suited for heavy duty applications such as studs into motor housings where high strength is required
- Prevents loosening and leakage from shock and vibration
- Designed for the permanent locking and sealing of threaded fasteners
- Provides robust curing performance
- Offers high temperature performance and oil tolerance
Invented by Loctite as a revolutionary method to positively lock and seal threaded fasteners, LOCTITE® threadlocker adhesives are used in a wide range of applications – from delicate fuel injection components to heavy-duty transmission and engine assemblies.
Specified by automotive OEMs and approved for use on factory assembly lines, threadlockers work by filling the spaces between threads. The result is a secure, one-piece assembly that will not loosen under stress.
What Strength Threadlockers are available.
Low Strength Threadlockers
- Removable with hand tools
- Adjustment screws
- Calibration screws
- Meters and gauges
- Up to ¼" (6 mm) diameters
Medium Strength Threadlockers
- Removable with hand tools
- Machine tools and presses
- Pumps and compressors
- Mounting bolts
- Gear boxes
- Up to ¾" (19 mm) diameters
High Strength Threadlockers
- Removable with heat and hand tools
- Heavy equipment
- Suspension bolts
- Motor and pump mounts
- Bearing cap bolts and studs
- Up to 1" (25 mm) and larger diameters
Wicking Threadlockers
- Removable with heat and hand tools
- Preassembled fasteners
- Instrumentation screws
- Electrical connectors
- Carburettors
- Up to ½" (12 mm) diameters
Technical Information
| Agency approvals / certificates / specifications | NSF/ANSI 61 |
| Application method | Dispense System, Manual |
| Application temperature | -65.0 - 360.0 °F (-55.0 - 180.0 °C ) |
| Applications | Threadlocking |
| Breakaway torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb. ) |
| Colour | Red |
| Cure type | Anaerobic Cure |
| Fixture time | 10.0 min. |
| Key characteristics | Disassembly: Disassembly with Heat, Fluorescent, General Purpose, Oil Tolerant, Primerless, Strength: High Strength |
| Physical form | Liquid |
| Prevail torque, M10 Steel Nuts/Bolts | 33.0 N·m (290.0 in./lb. ) |
| Recommended for use with | Metal, Metal: Passive Metal |
| Specific gravity, @ 25.0 °C | 1.1 |
| Viscosity, 20 RPM | 500.0 mPa·s (cP) |
(1331618)
| SKU | 1331618 |
| Brand | Loctite |
| Shipping Weight | 0.0800kg |
