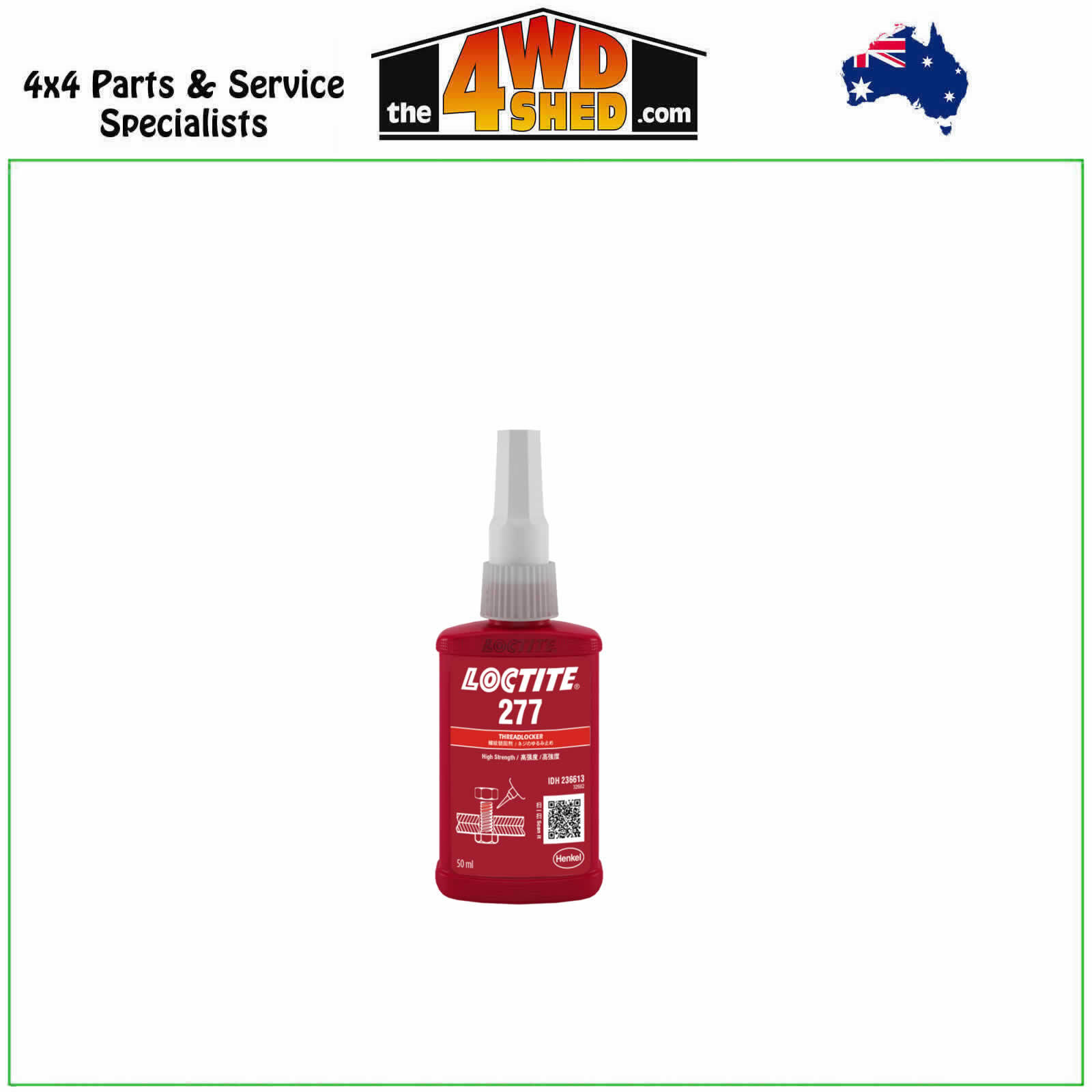

LOCTITE 277 - Threadlocker High Strength Red Chemically Resistant 50ml
More infoLOCTITE 277 - Threadlocker High Strength Red Chemically Resistant 50ml
Red, high strength, high viscosity methacrylate-based threadlocking adhesive, suited to large threads. Fluoresces to allow monitoring.
LOCTITE® 277 is a red, high strength, high viscosity, methacrylate-based threadlocking adhesive. It has a fixture time on steel of 30 min, brass 25 min and stainless steel 270 min making it deal for applications where migration of the adhesive must be prevented. Can tolerate slight contaminations of industrial oils. Suited to large threads. Fluoresces to allow monitoring.
- High strength
- High viscosity
- Prevents unwanted movement, loosening, leaks and corrosion
- Resists vibration
Invented by Loctite as a revolutionary method to positively lock and seal threaded fasteners, LOCTITE® threadlocker adhesives are used in a wide range of applications – from delicate fuel injection components to heavy-duty transmission and engine assemblies.
Specified by automotive OEMs and approved for use on factory assembly lines, threadlockers work by filling the spaces between threads. The result is a secure, one-piece assembly that will not loosen under stress.
What Strength Threadlockers are available.
Low Strength Threadlockers
- Removable with hand tools
- Adjustment screws
- Calibration screws
- Meters and gauges
- Up to ¼" (6 mm) diameters
Medium Strength Threadlockers
- Removable with hand tools
- Machine tools and presses
- Pumps and compressors
- Mounting bolts
- Gear boxes
- Up to ¾" (19 mm) diameters
High Strength Threadlockers
- Removable with heat and hand tools
- Heavy equipment
- Suspension bolts
- Motor and pump mounts
- Bearing cap bolts and studs
- Up to 1" (25 mm) and larger diameters
Wicking Threadlockers
- Removable with heat and hand tools
- Preassembled fasteners
- Instrumentation screws
- Electrical connectors
- Carburettors
- Up to ½" (12 mm) diameters
Technical Information
| Application method | Dispense Gun, Dispense System, Manual |
| Application temperature | -55.0 - 150.0 °C (-65.0 - 300.0 °F ) |
| Applications | Threadlocking for Large Bolts/Studs |
| Breakaway torque, M10 Steel Nuts/Bolts | 32.0 N·m (280.0 in./lb. ) |
| Colour | Red |
| Cure type | Anaerobic Cure |
| Fixture time | 45.0 min. |
| Key characteristics | Fluorescent, Strength: High Strength, Thixotropic |
| Physical form | Liquid |
| Prevail torque, M10 Steel Nuts/Bolts | 32.0 N·m (280.0 in./lb. ) |
| Recommended for use with | Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel |
| Viscosity, 20 RPM | 7000.0 mPa·s (cP) |
(232658)
| SKU | 232658 |
| Brand | Loctite |
| Shipping Weight | 0.0800kg |
