Lightforce Driving Lights Switch Isuzu DMAX MUX Mazda BT50
More infoLightforce Driving Lights Switch Isuzu DMAX MUX Mazda BT50

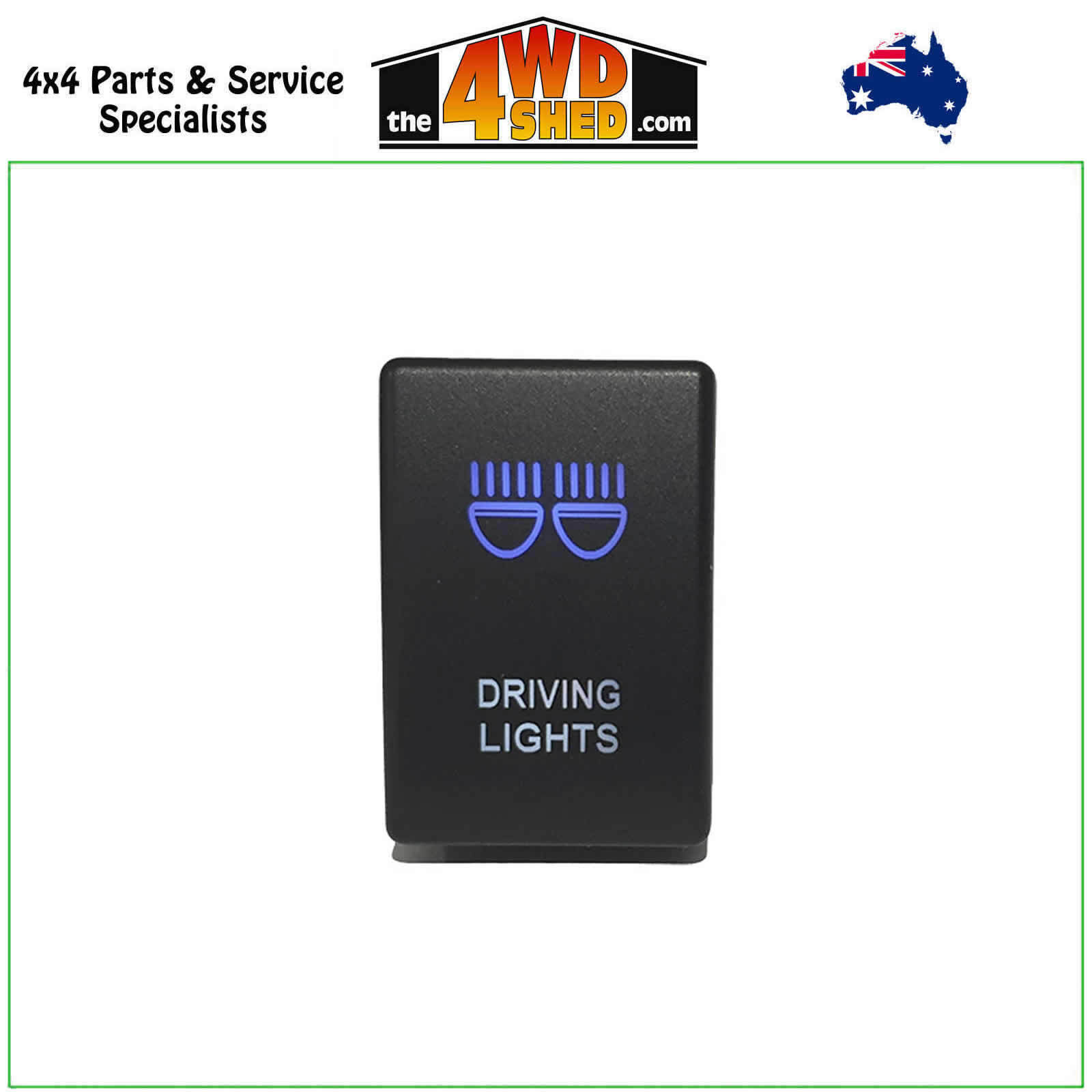

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.

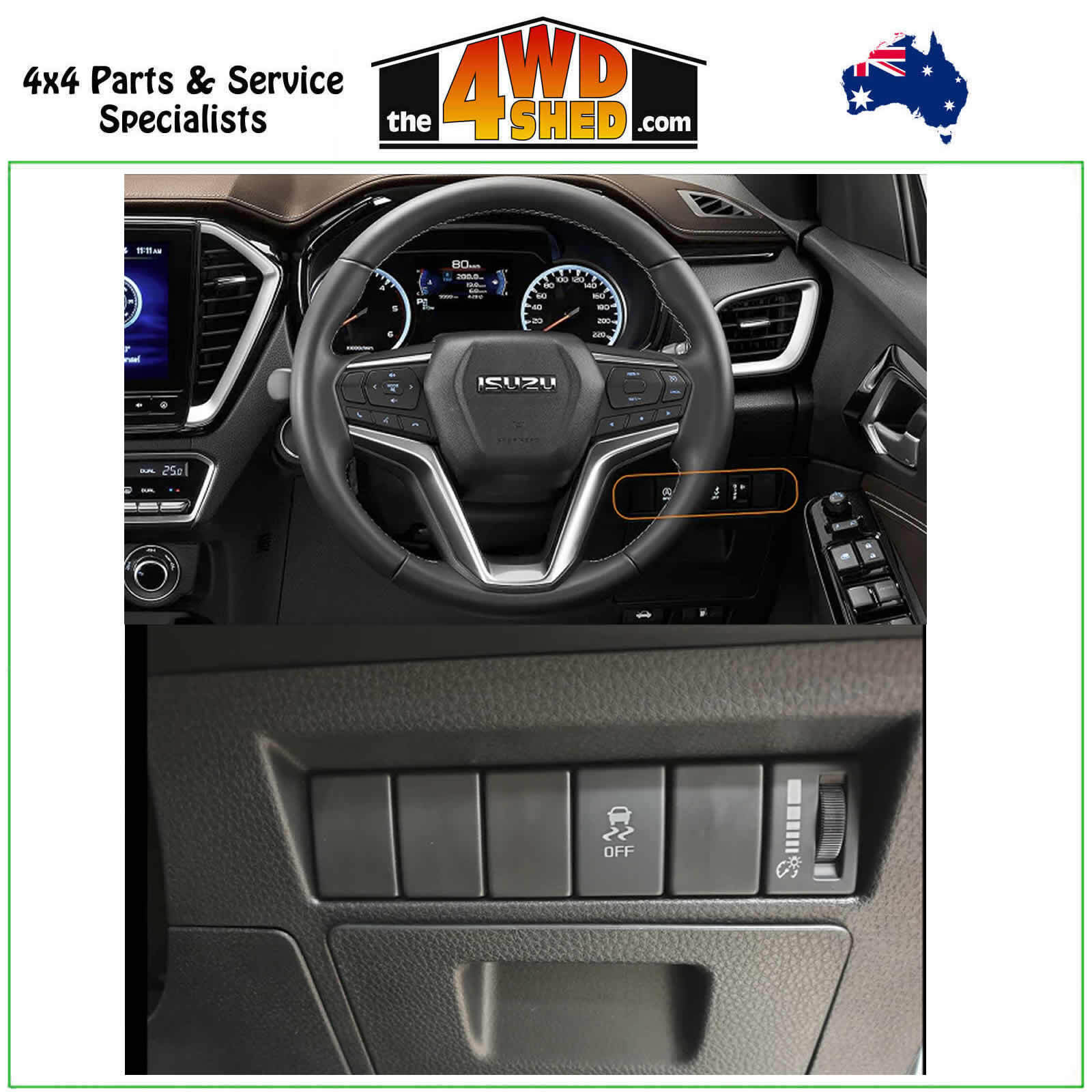

This factory-style Driving Lights switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.
Specifications include:
- Switch cut out size is 20mm x 31mm
- Housing material black PVC
- Single switch input
- Dual LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with a relay)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
Vehicle Compatibility
| Make | Model | Compatible From |
|---|---|---|
| Isuzu | D-max | 2020 |
| Isuzu | Mux | 2021 |
| Mazda | BT50 | 2020 |
*Please check sizing before purchase to check suitability.
Wiring Instructions
- Pin 1 - Switch Input
- Pin 2 - Switch Output
- Pin 3 - Not used
- Pin 4 - Dash Illumination
- Pin 5 - Negative / Earth
*Use with Relay is recommended.
(CBSWDC3DL)
| SKU | CBSWDC3DL |
| Brand | Lightforce |
| Shipping Weight | 0.2000kg |
