Outback Tourer Mid-Lift Leaf Sprung 35" Tyres Track Corrected Chromoly Diamond Diff 4.2T GVM Toyota Landcruiser 79 Series Gen 3 Dual Cab

Front End

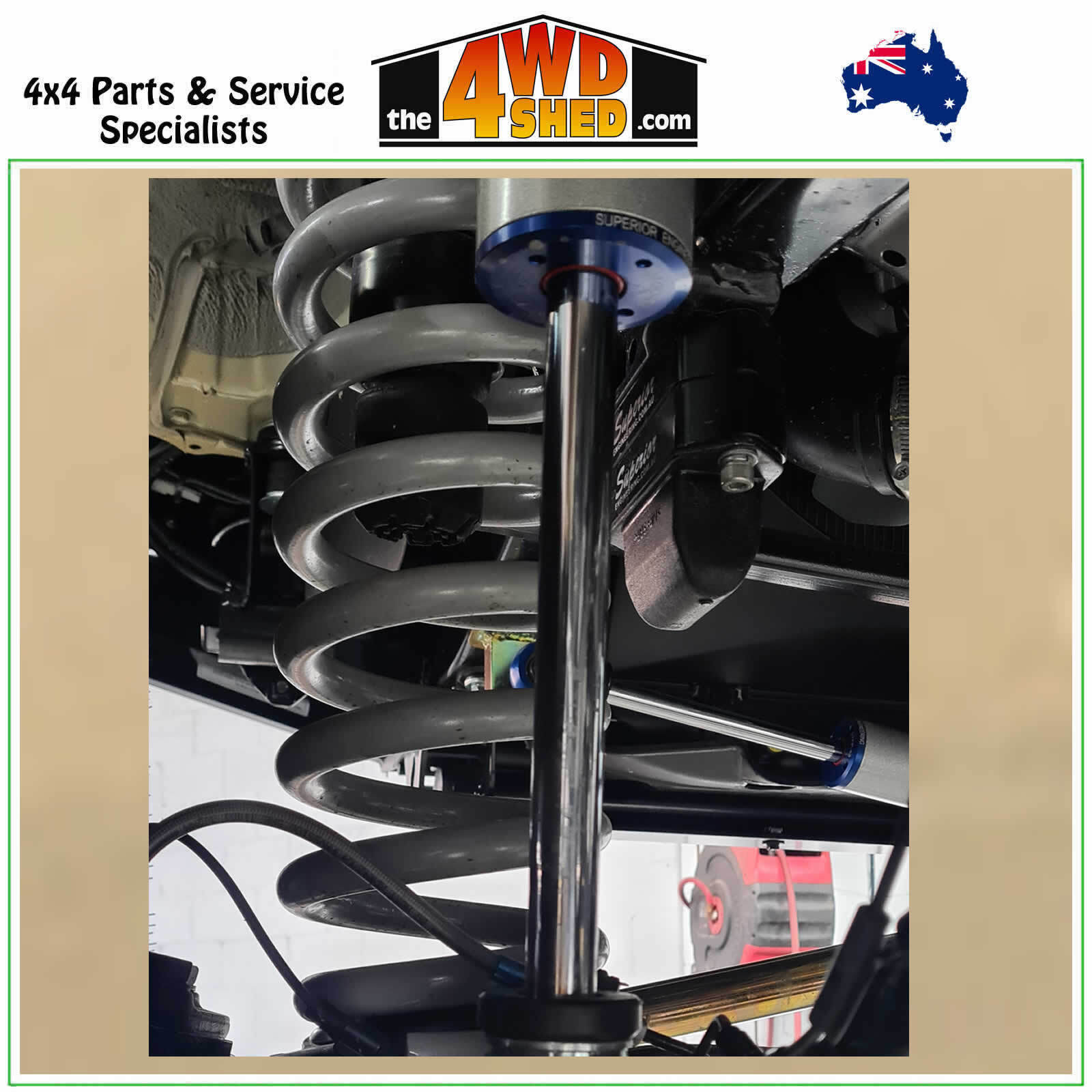

The front of your Outback Tourer Landcruiser is held up by our Australian Made Heavy Duty Coil Springs coated in our Signature Superior Silver Powder coat. Diff Housing Re-Alignment comes courtesy of the Superior Adjustable Panhard Rod which is manufactured from 32mm OD High Tensile Steel to suit any lift height from 2 Inch to 5 Inch and covered by a Lifetime Warranty against bending.

Radius Arm Options

All Outback Tourer Kits come standard with Superior Engineering Drop Radius Arms, with the option to upgrade to Superior Engineering Superflex or Hyperflex Radius Arms.

• Drop Radius for the everyday driver
• Superflex (Patented Design) for the weekend warriors
• Hyperflex (Patented Design) for the vehicle built to tackle hard tracks every weekend

All Superior Engineering Radius Arms use Genuine Bushes, and are manufactured from Bis80 Steel with the Castor Correction needed at the lift. height achieved by your chosen Outback Tourer Kit. Superior Radius Arms are covered by a Lifetime Warranty against bending.

Steering

Correction of steering geometry back to OEM specifications and overall component strength are at the forefront of the Outback Tourer Steering Upgrades.

Superior Engineering Competition Spec Solid Drag Link and Tie Rod Steering Arms come standard across the range, topped off with our 2.0” Bore IFP Steering Dampener and Heavy-Duty Dampener Brackets. Superior Engineering Comp Spec Steering Arms are covered by a Lifetime Warranty against bending.

Shocks

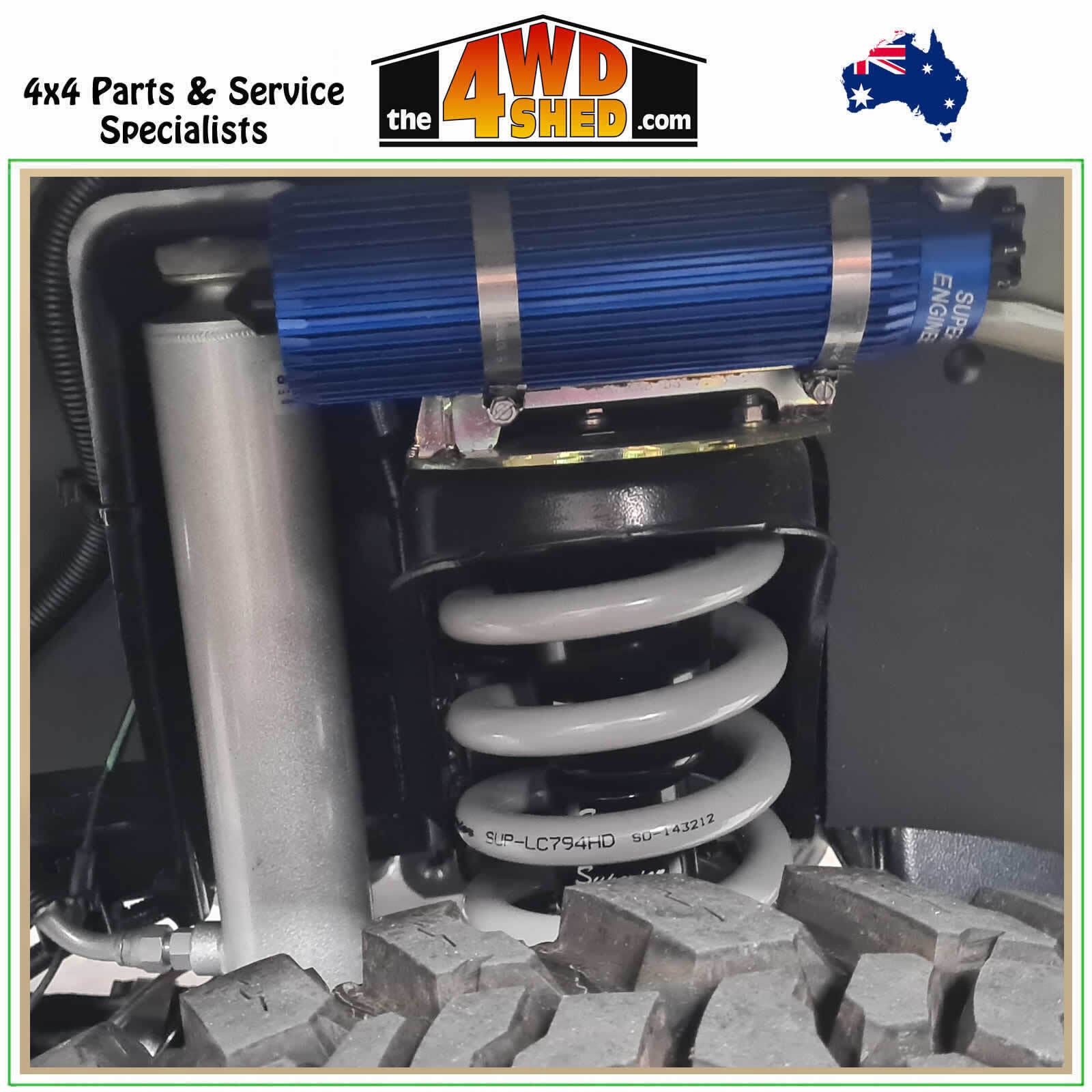

All Outback Tourer Mid-Lift Kits come with your choice of either Superior Engineering 2.0 or 2.5 Remote Reservoir Shock Absorbers Front & Rear, and for those wanting In-Cab Adjustable Shocks, we offer our Superior ECDS 2.5 Shock Kit Front & Rear.

Superior Engineering Remote Reservoir Shock Absorbers feature an external compression adjuster knob as standard across the range, with an additional rebound adjuster feature included exclusively on the 2.5 Inch Bore Shocks. Included are our 70 Series specific Shock Reservoir Mounts front & rear designed to keep your Reservoirs securely fixed out of harm’s way.

Speedo Correction

Superior Engineering Mid-Lift Outback Kits can be legally certified Pre-Registration with tyre sizes up to and including 35 Inch, with Wheel Offsets varying from 0 through to -25. A Superior CANBUS Specific Speedo Correction Module is calibrated to your nominated tyre size and installed to ensure accurate speedometer readings.

Rear End

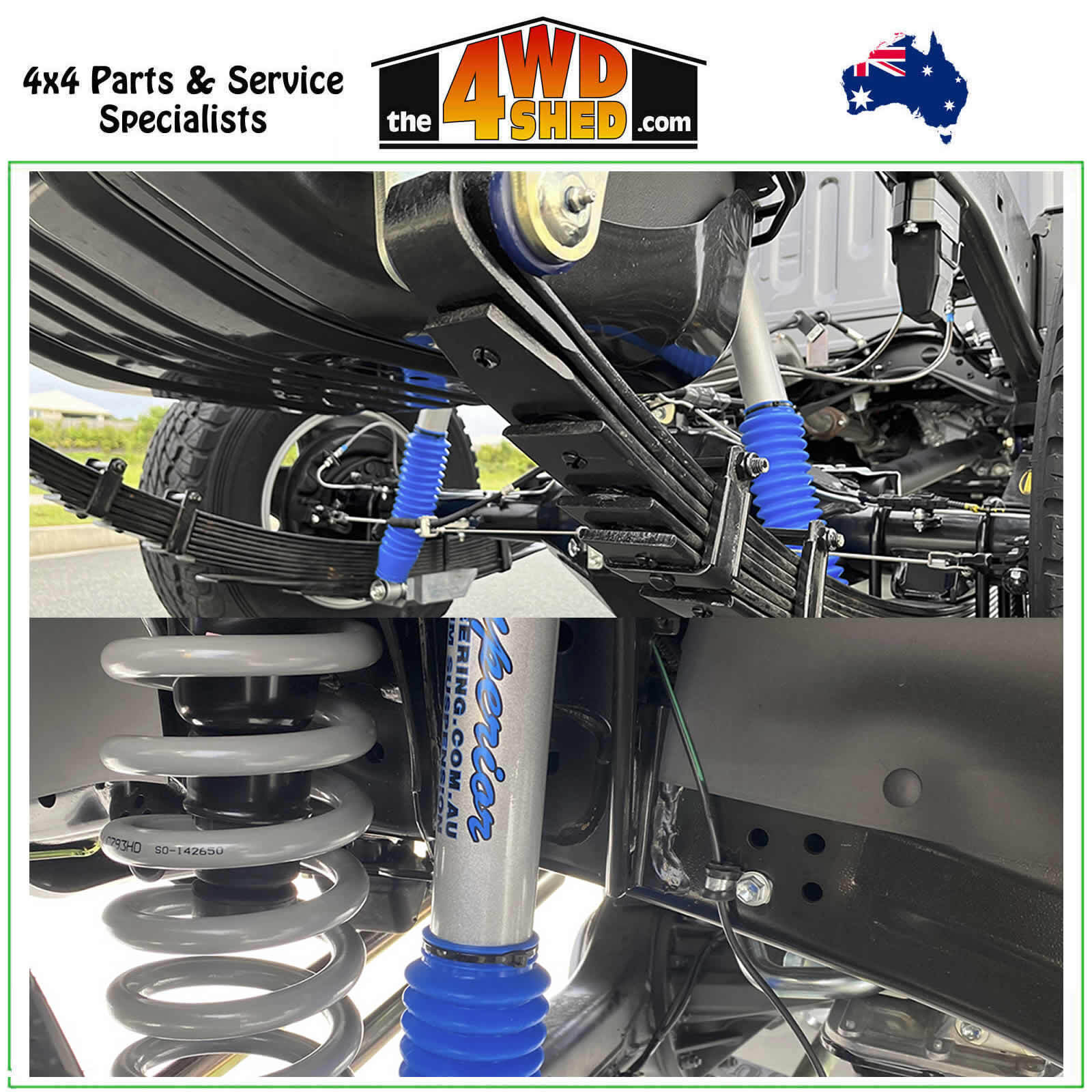

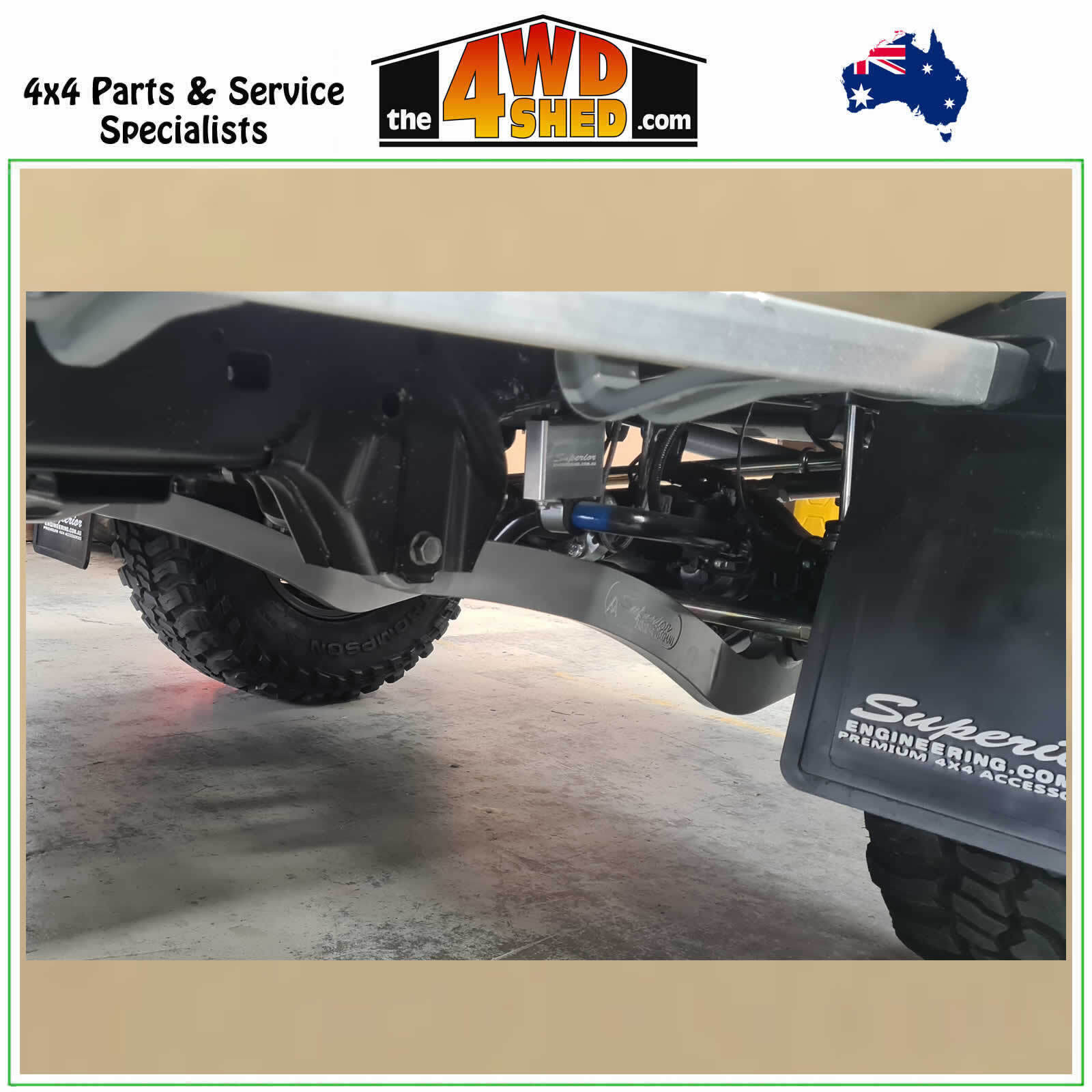

The centre piece of all Outback Tourer Leaf Sprung GVM Upgrades is our Superior Engineering Leaf Sprung Track Corrected Diamond Diff Housing. Designed to bring the rear wheel track out parallel with the front diff, this housing is the ultimate in functionality & strength - covered by a Lifetime Warranty against bending or cracking.

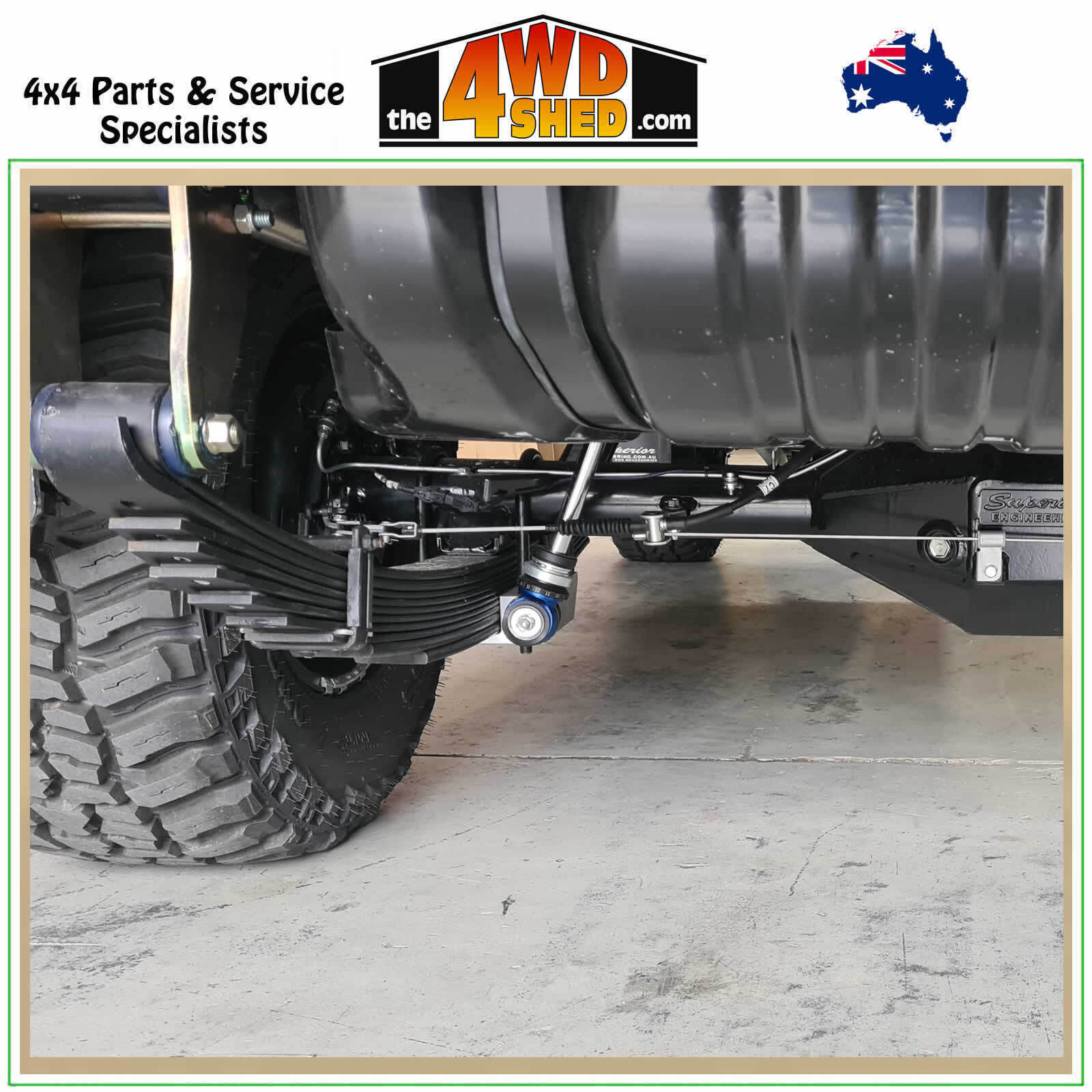

OEM Locker & OEM Brake Assembly compatible, load rated to 3,150kg and manufactured from 830MPA Chromoly Steel, the Diamond Diff Housing is supported by GVM Suitable Leaf Springs fitted out with Polyurethane bushes, Greaseable Fixed Pins, Greaseable.

Colour Upgrade Options

Superior Diamond Diff Housings come in Satin Black Powder coat as standard, but can be upgraded to Superior Silver, Signal Red, Blaze Blue or Sandy Taupe. Please Contact Your Local Superior Engineering Production Facilitiy for Pricing.

Axle Set

Outback Tourer Diamond Diffs come standard with 300m Axles manufactured by RCV in the United States, which are covered by a lifetime warranty against breaking. These axles are coupled with our 4340M Billet Drive Plates and topped off with Anodized Blue alloy axle caps etched with the Superior Engineering Logo.

Brakes

Superior Outback Tourer Kits include a number of important upgrades to the standard braking system, giving you the confidence that your 70 Series has the Braking Performance needed when loaded to your new Gross Vehicle Mass. These changes include a Double Diaphragm Brake Booster and Stainless-Steel Braided Chassis to Diff & Brake Caliper Lines Front & Rear. The cherry on top - Superior Engineering’s Patented Handbrake Upgrade kit.

The Little Things

On top of everything you have seen above, Outback Tourer Kits include a wide range of smaller functional components used to assist in the correction of your Suspension & Steering Geometry including Bump Stop Extensions & Sway Bar Extensions to name a few. A number of other components are included as part of the Approval Process including Superior Engineering Branded Mudflaps.

Guard Decals

Superior Engineering has made sure everyone you drive past or park next to knows just what you’re driving when they look up at you, thanks to our Superior Outback Tourer Chrome Guard Decals.

Suitable Accessories

Superior Engineering offer a range of suitable additional accessories for your Outback Tourer including Brown Davis Long Range Fuel Tanks, Rock Slider Side Steps & More. Please Contact Your Local Superior Engineering Production Facilitiy to discuss your options.
