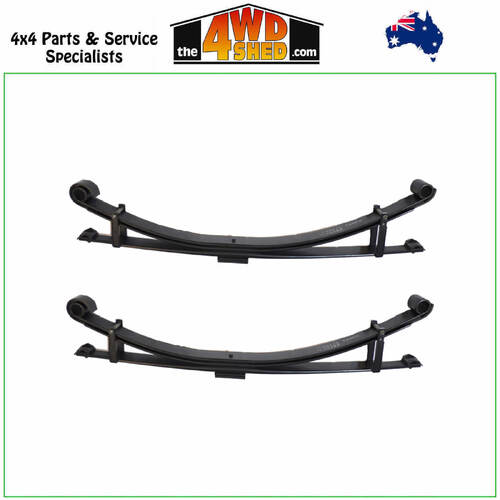

Parabolic Leaf Springs 75 Series Toyota Landcruiser


Buying Options

Quantity Image Name Price
TLC013P Front Parabolic Leaf Springs 0-500kg TLC013P Front Parabolic Leaf Springs 0-500kg
$1,029.00
In stock

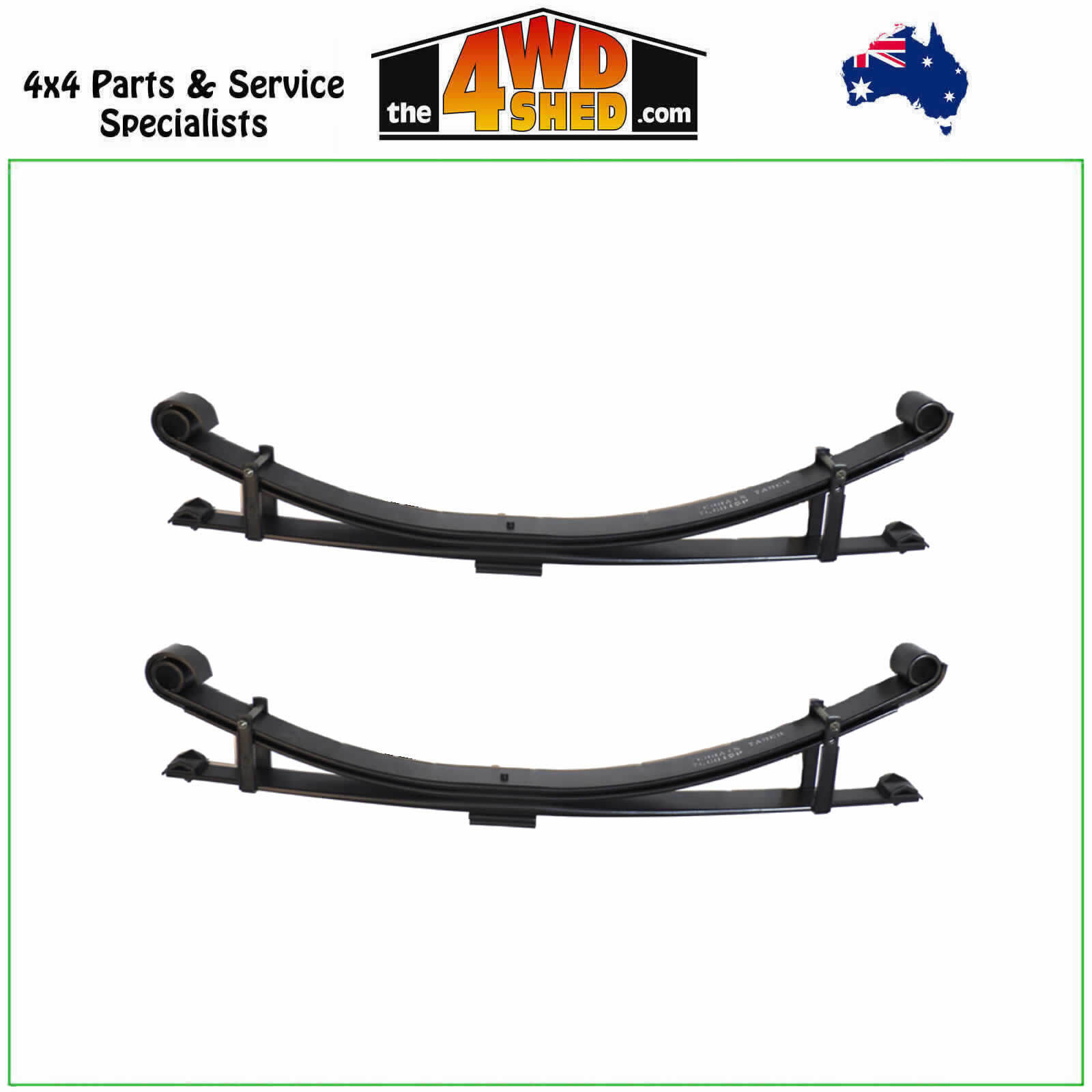

TLC015P Rear Parabolic Leaf Springs 0-500kg TLC015P Rear Parabolic Leaf Springs 0-500kg
$1,499.00
In stock

Terrain Tamer Rear Parabolic Leaf Springs are designed for the ultimate ride quality.

Parabolic leaf springs are a replacement for the conventional multi leaf spring with ride comfort and articulation being their major advantage. A parabolic spring pack has a minimal number of leafs with the leaf material being tapered. Utilising a new design on an old technology, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

After more than three years of extensive research and development, combined with the latest in steel technology, Terrain Tamer have launched an innovative product with a significant advantage over standard multi-leaf springs. Parabolic springs feature a parabolic taper, which means they are thicker in the centre and become thinner toward each end. This allows each leaf to work independently for enhanced flex, without sacrificing load capacity. The result is a quieter, more comfortable ride under a wide range of conditions.

Vehicle Fitment

  • 75 Series Toyota Landcruiser 1984-1998

Estimated Lift

  • 50mm

Load Rating Options

  • Front 0-500KG (TLC013P)
  • Rear 0-500KG (TLC015P)

Features

  • Lighter – Less unsprung weight
  • Less Shock – Less shock load on the differential gears
  • Quieter – The leafs do not touch each other
  • Comfort – With Better articulation
  • Better Ride Quality - Both Loaded & Unloaded

Sold as a PAIR.

NOTE: 2 LEAF PARABOLIC 70 SERIES TEND TO LEAN TO ONE SIDE. PACKERS ON THE SPRING ARE USED TO LEVEL THE VEHICLE. PACKERS CAN BE REMOVED IF THE VEHICLE SITS UNLEVEL. TO LOWER THE SPRING REMOVE ONE PACKER FROM THE BOTTOM & MOVE IT TO THE TOP. THIS WILL DROP THE VEHICLE ON THAT SIDE BY THE THICKNESS OF THE PACKER.

This is for the Parabolic Springs only, also available as a suspension kit SK009 please contact us for pricing. Check the constant load rating to suit your needs before purchase.

Shipping Note: All Springs are Pick Up from our Bayswater Vic store. If you require shipping you will need to contact us for a personalised freight quote due to the size & weight of these springs.





(TLC-75SERIES)

SKU TLC-75SERIES
Shipping Weight 65.0000kg
