Professional Series Backlit Smart 8 Switch Panel
More infoProfessional Series Smart 8 Switch Panel

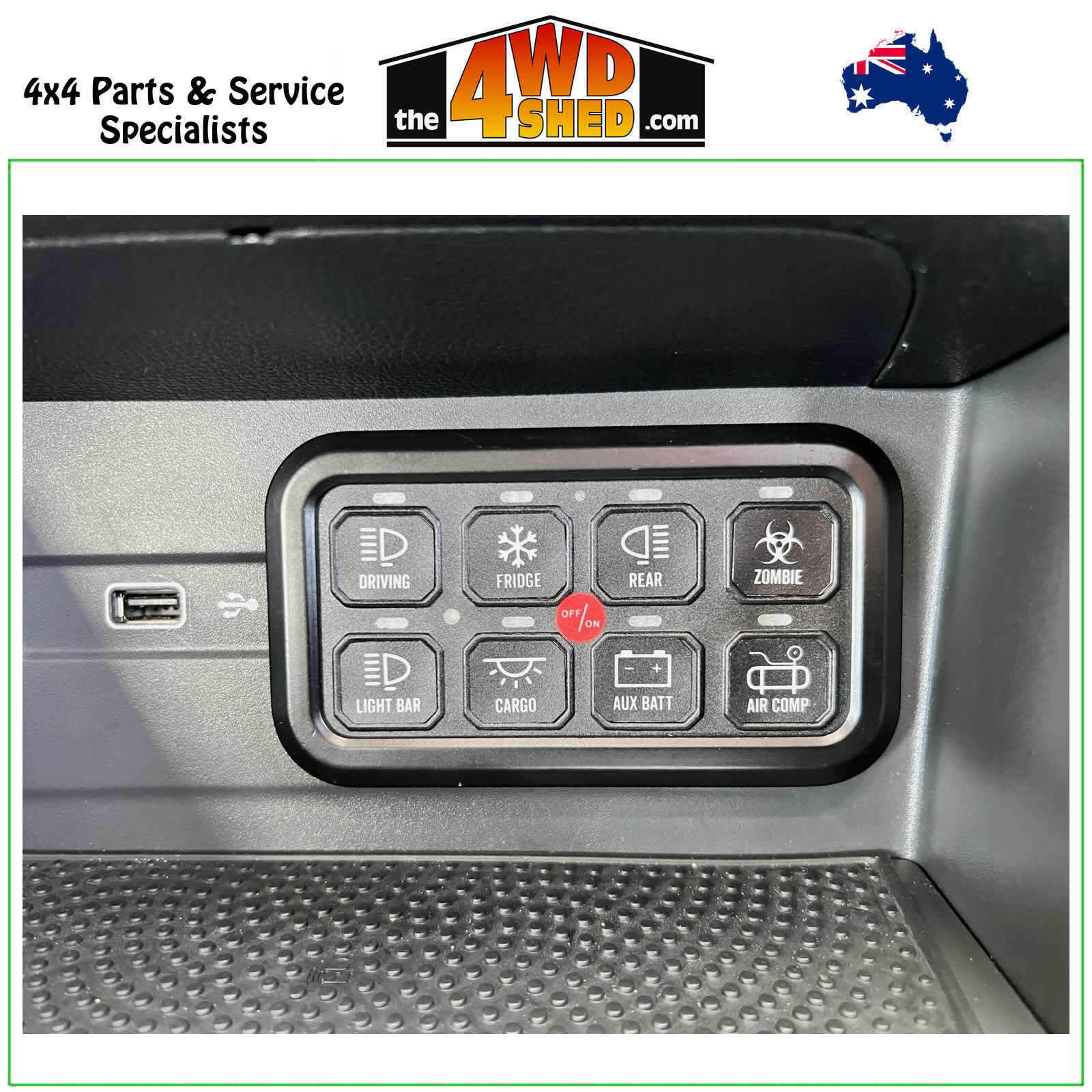

The HULK Professional Series Smart 8 Switch panel is ideal for 4WDs, SUVs, Caravans and Trucks. This system allows you to control up to 8 different auxiliary LED lights or electrical devices and includes 64 Programmable RGB Backlit Colours to match your vehicle's dash colour scheme.

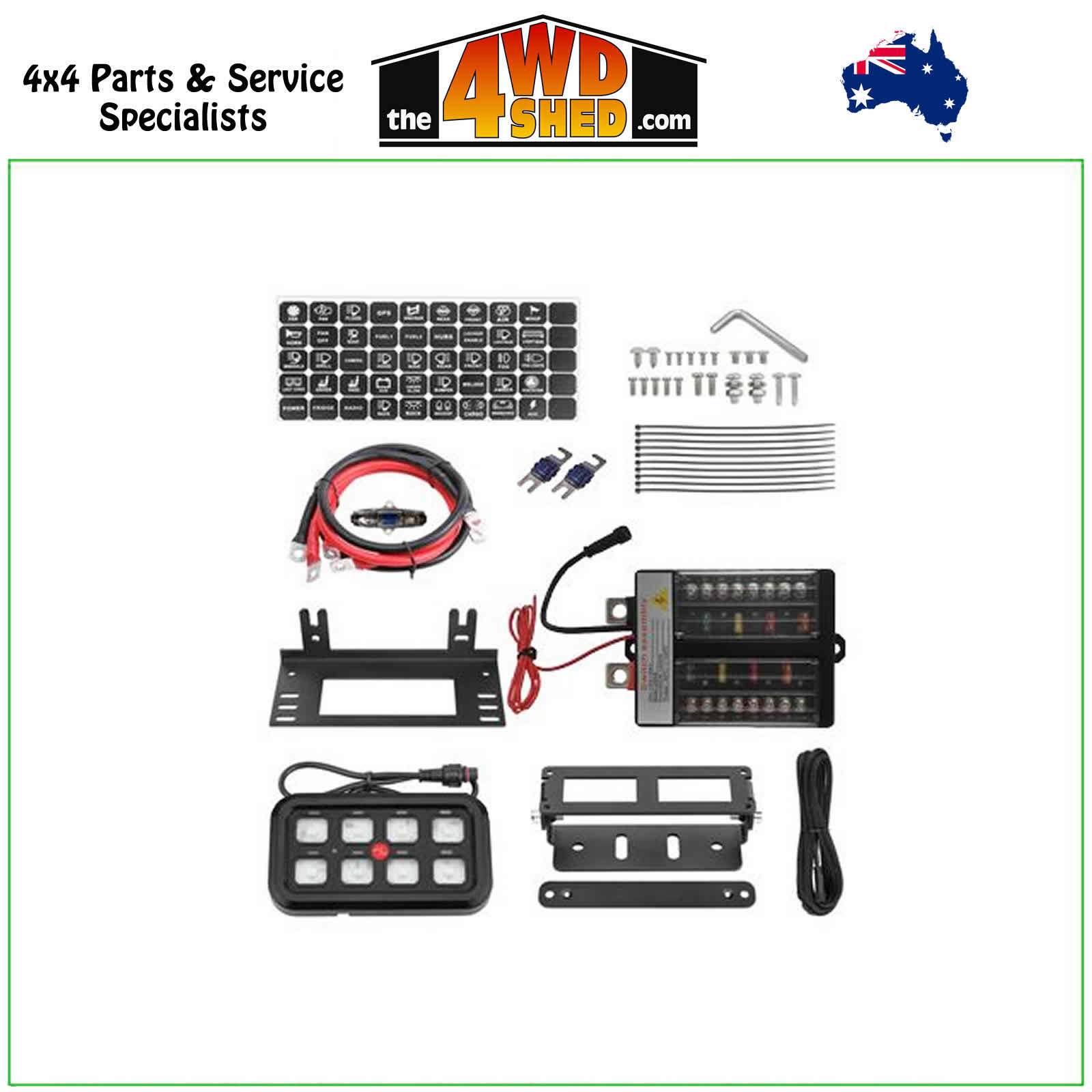

Compact in design, this 8-Way Switch Panel operates at 12V / 24V DC and comes with a full accessory kit for a complete installation, including spare 60A fuses for the main power supply.
The HULK Professional Series Smart 8 Switch has a built-in ON/OFF master switch panel that automatically adjusts the backlighting to "Night Mode".
Features
- 64 programmable backlit colours
- Now has an APP – Apple & Android
- 3 Programmable functions – 1 On / Off, 2 Off / Momentary On & 3 Pulsed
- 70 Decals ( Icons )
- High Beam Trigger – for Driving Lights / Light Bars – to meet ( ADR Approval )
- 3 Year Warranty
- Red LED Switch Status Indicator
Please Note Unit Is Only IP51 Rated

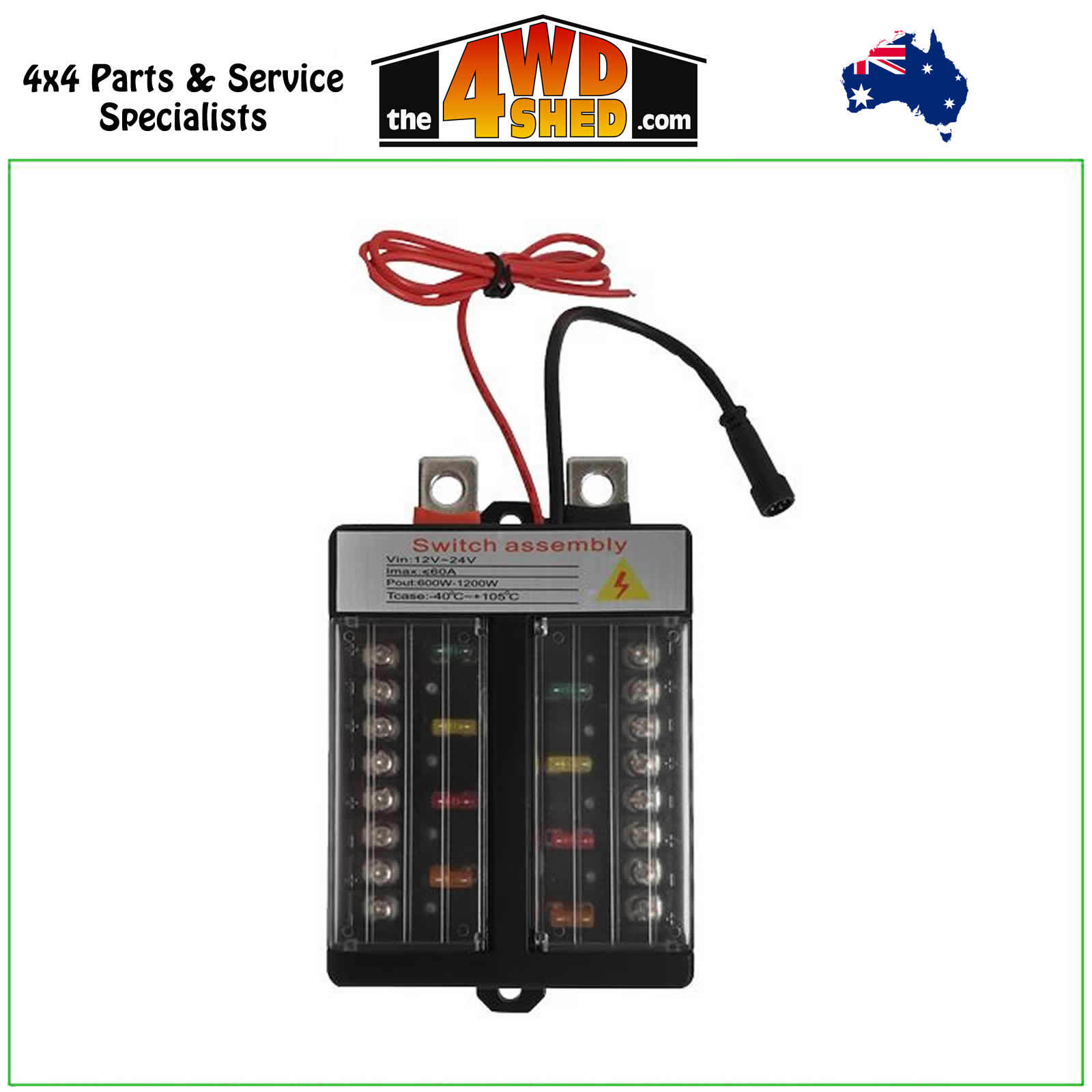

The Maximum Current per Output:
- Output Fuses 1 and 5 are 30amp ( High Beam output Wire )
- Output Fuses 2 and 6 are 20amp
- Output Fuses 3 and 7 are 10amp
- Output Fuses 4 and 8 are 5amp

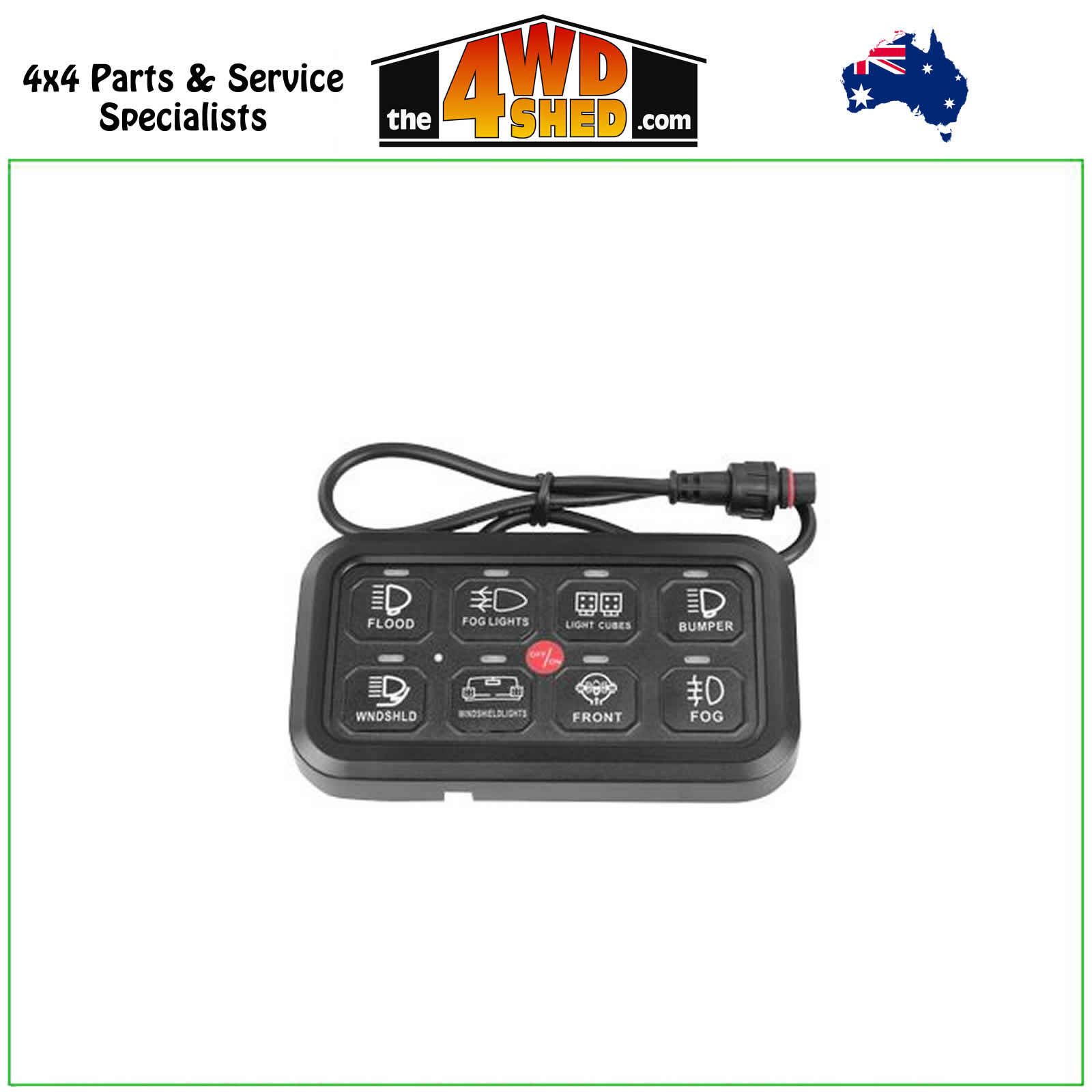

Key Pad L: 115mm x H: 65mm x D: 12mm
The 4WD Shed is an Authorised Stockist for Hulk 4x4.
(HU1300)
| SKU | HU1300 |
| Brand | HULK 4x4 |
| Shipping Weight | 1.8000kg |
