Recovery Tow Points Holden Colorado RG 7 Trailblazer & Isuzu Dmax MUX

Recovery Tow Points - PAIR

Version 3 Now Available!

ROADSAFE, the leading supplier of rated recovery points, are excited to be bringing another Australian CAD designed, engineered & RATED recovery point product to the market. Now featuring an internal radius teamed with an external chamfer around the shackle eye, for improved soft shackle compatibility to prolong longevity of the ROADSAFE soft shackles in recovery scenarios.

To suit:

• Holden Colorado RG 2012-2020
• Holden Colorado 7 2012-2016
• Holden TrailBlazer 2012-2020
• Isuzu DMAX RT 2012 - 2020
• Isuzu MUX 2012-2020

When you hit the tracks you need to have reliable recovery points that are built & tested tough! There is alot of talk out there about using the Factory recovery points on your vehicle.....DON'T!!! These are factory tie town points used when the vehicles are shipped from the manufacturer & are not designed for Recovery situations.

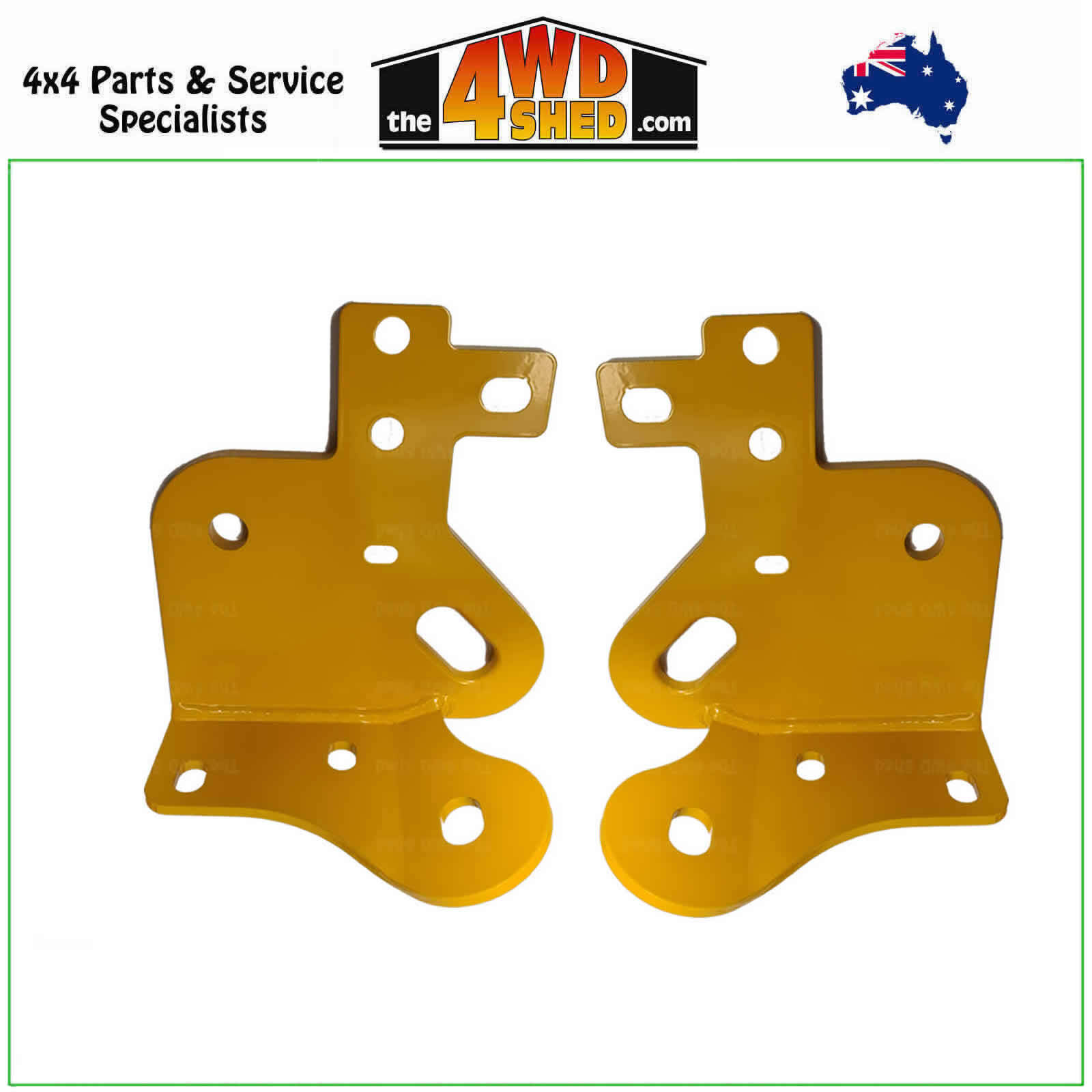

Tow Points have been designed as matched pairs, supplied in LH/RH for vehicle specific fitment. Your purchase will include high tensile bolts, and any additional, vehicle specific mounting hardware required to ensure secure fitment to vehicles. Correct fitment of these components is critical for yours & others personal safety.

Each pair of Tow Points is supplied with vehicle specific fitment instructions. These instructions should be followed during fitment to ensure all steps are taken for correct installation, so when required, the points will be at their optimum Working Load Limit (WLL) as stamped.

Features

• Made from 14mm SS41 carbon steel plate
• Direct bolt onto your chassis using high tensile bolts - no cutting or welding required
• Powder coated yellow for high visibility
• Matched pair - specific to each side
• Allow for use of 4.75T bow shackles and a bridle strap
• Rated to a Working Weight Limit (WWL) of 5000 Kg per tow point

Kit contains:

• 2 x Tow Points
• All hardware for fitment

If a bullbar is fitted modifications might be required to the bar bracket, and/or additional hardware might be required such as longer bolts etc

Fitting is available at our workshop in Bayswater, Victoria. Additional costs may apply.

The 4WD Shed is an Authorised Stockist of Roadsafe 4WD

Fitment Notes - These are used as a guide if your bullbar is not listed then we cant guarantee if the points will suit your vehicle & bullbar.

• FITS ALL MODELS AND BODY STYLES
• ARB Summit Bar requires 2 longer than what's supplied with the RP-COL02 - refer to imagery
• Ironman requires modification - Cut the lower return off from the Bull bar mount Drill new 12mm hole between 2 vertical holes Manufacture new tab to mount protection plates The current points can be modified to fit, however if modified they will not be covered by the rating applied. The new design will need to be tested with these modifications.
• TJM - Modifications required, trim bull bar gussets back 20mm to allow fitment of tow point flush against chassis.
• Factory Nudge Bar fitting requires removal of nudge bar, install RP-COL02 per instructions, and refit nudge bar.
• Legendex - discard L shaped packers, and factory bash plate will need trimming (see images)

It is the Tow Points themselves as supplied that have been tested to the WLL advised. It is at the vehicle owners discretion for fitment, ensuring that the chassis is adequately designed, constructed and/or rated to suit this application.

It is recommended that Tow Points are fitted by a qualified mechanic with specialist 4WD knowledge, who has an understanding of your vehicle including weights carried, the style of Bull Bar, general usage etc. as in some circumstances these Tow Points may not be suitable for your vehicle.

These Tow Points have been designed and tested for straight line pull.  The Tow Points have not been tested for lifting purposes & should not be used for lifting, the forces applied differ between lifting and straight line pull type recoveries. Roadsafe Tow Points are FEA Tested during design and Destruction tested during development to establish Working Load Limits.

ALWAYS USE TOW POINTS AS A MATCHED PAIR WITH AN EQUALISING BRIDLE.  Failure to use tow points correctly can result in tow point fatigue and/or bending, and will void your warranty.  Never use a single point combined with a side load/pull.

If a recovery is to be performed, it is imperative both Tow Points are utilised, with the use of a bridle strap. This will share the load through the front of your vehicle, giving increased strength and safety margins, the use of a bridle strap will also keep all components tethered in the case of a failure, reducing the risk of serious injury or death.

Always INSPECT the Tow Points and shackles before each use. Do not use if there are visible signs of damage or wear (including cracking or elongation). Do not exceed the Working Load Limit (WLL) of the shackle or Tow Points. Always STAY A SAFE DISTANCE away from the recovery area – at least 1.5 times the length of the recovery strap. Incorrect use of recovery equipment can result in serious injury or death.

Always ensure that adequate PREPARATION for the recovery, to minimise the strain on either vehicle, has been undertaken i.e. Digging, Rock placement etc. If you do not understand how to use this equipment safely or are uncomfortable with your abilities in the use of recovery equipment, please complete a course that specialises in four wheel driving & 4WD vehicle recovery.
