Runva EWS10000 PREMIUM Winch 24V with Synthetic Rope

$2,050.00

More info.

Make 4 interest-free payments of $512.50



In Stock


Calculate Shipping



1 x Runva EWS10000 PREMIUM Winch 24V with Synthetic Rope delivered to , AU


Oversize Flat Rate - $49.00
Business address preferred. An excess shipping charge to send your oversized item to a residential address or if in a remote & regional area may be incurred.

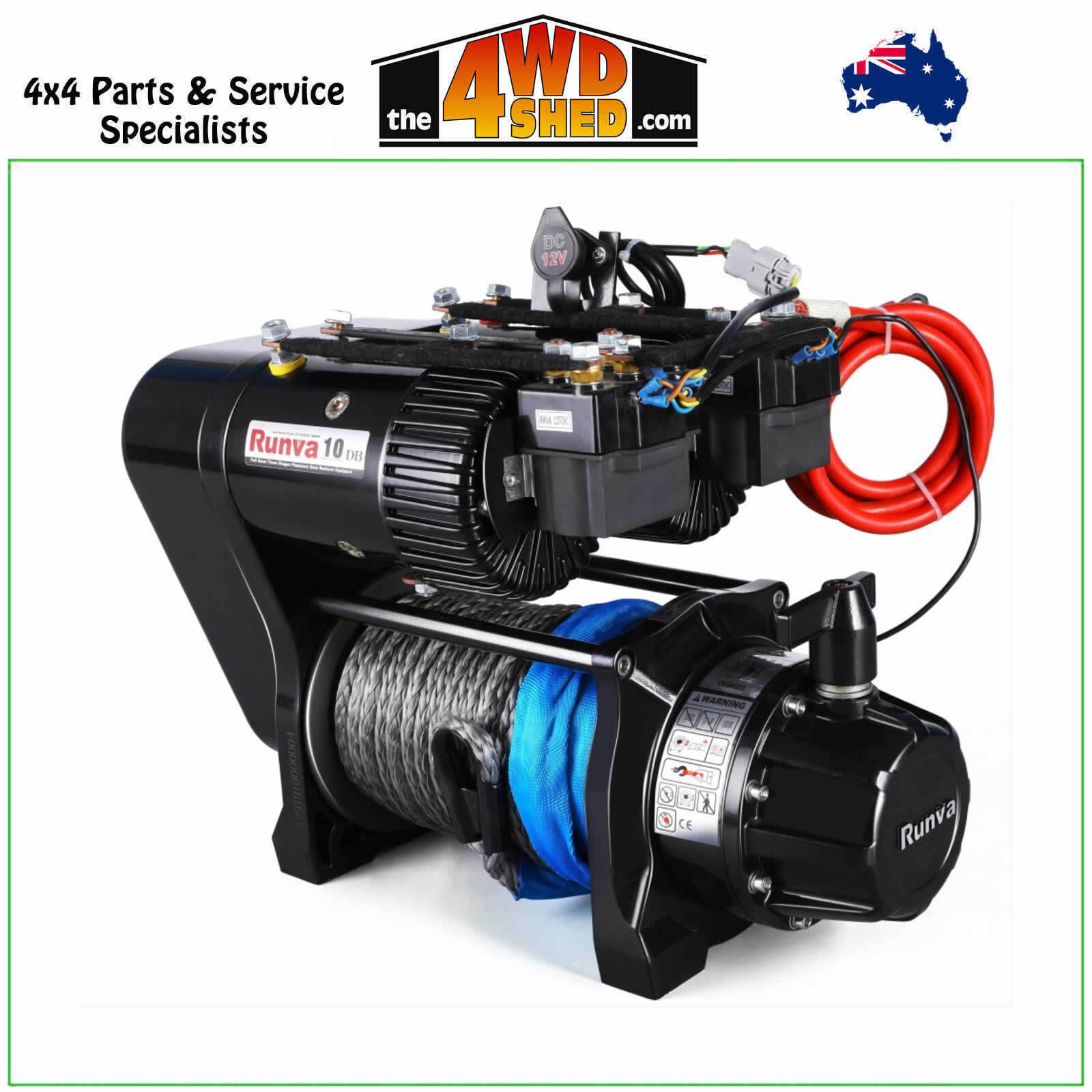

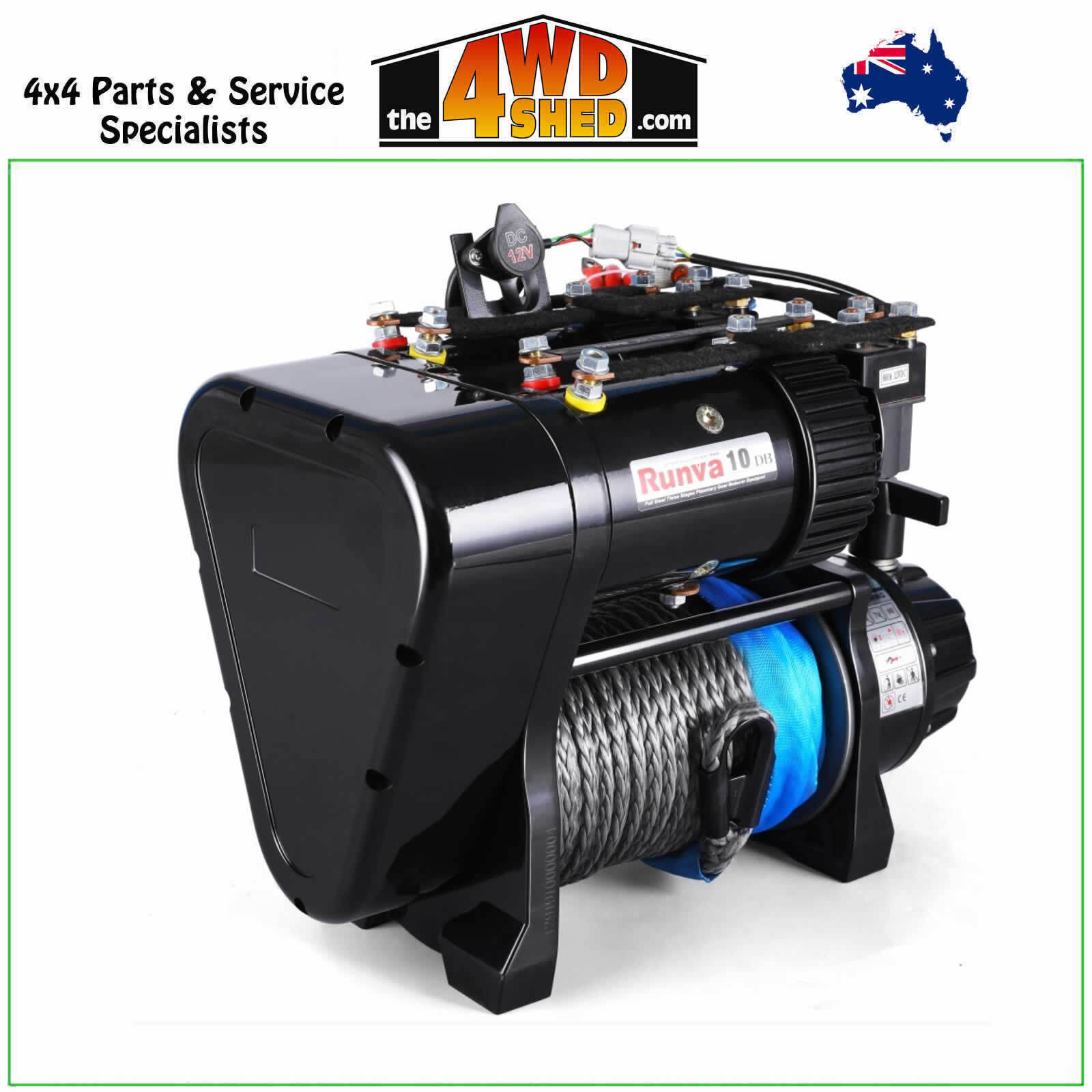

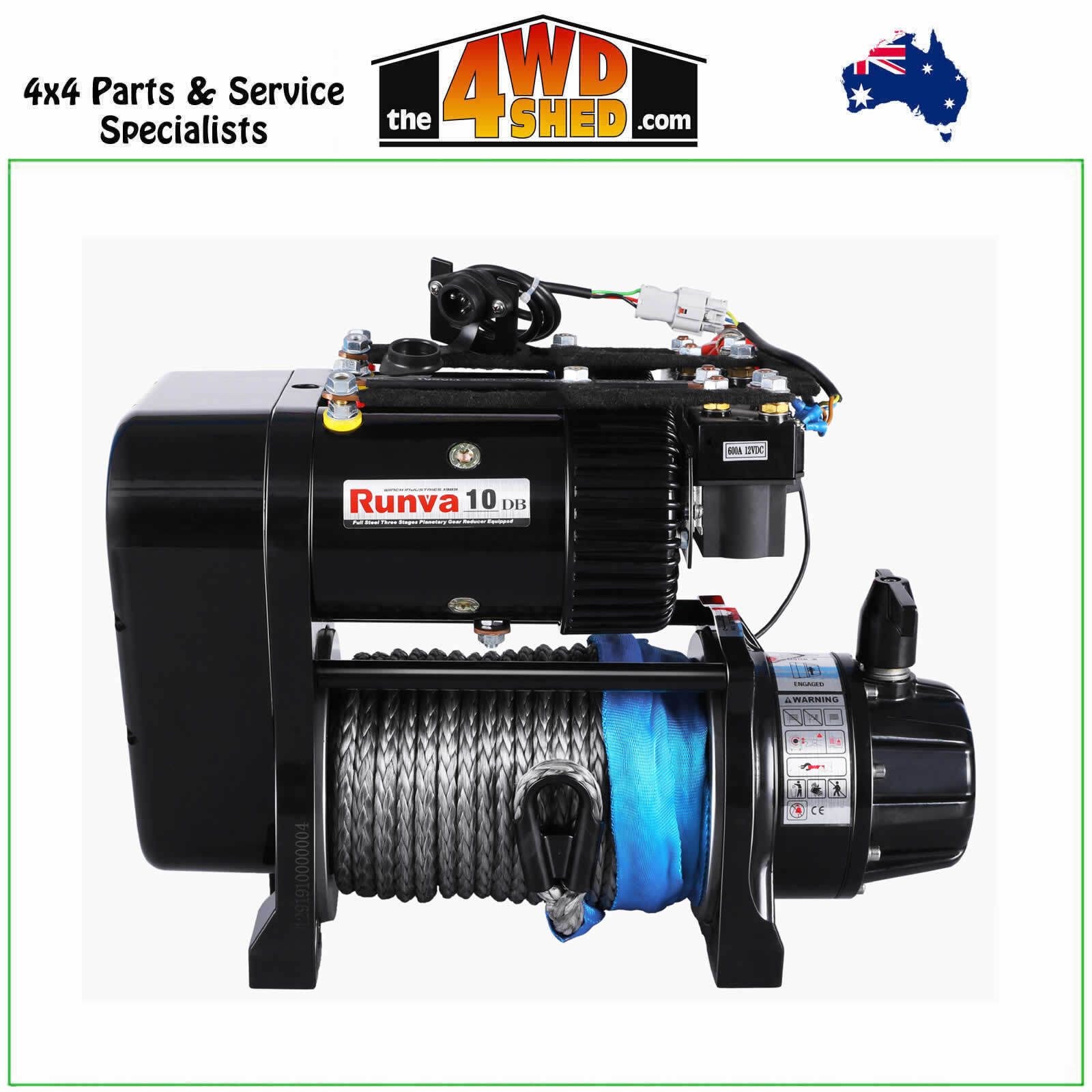

Runva EWS10000 PREMIUM 24V with Synthetic Rope

  • TWIN MOTOR - LOW MOUNT COMPETITION SPEC
  • 10,000LB LINE PULL CAPACITY
  • MASSIVE TORQUE
  • IP67 INGRESS PROTECTED
  • RATCHET BRAKE IN GEARBOX
  • AVAILABLE IN 12V AND 24V
  • AIR FREESPOOL CLUTCH AVAILABLE SEPARATELY

The Runva EWS10000 Premium is our twin motor low mount competition spec winch. (Different to a high mount winch). Featuring a massive 10,000lb of line pull from two powerful and reliable 7.2HP motors. This winch has a huge amount of torque. The gearbox is a three stage planetary setup with low 108:1 gear ratio for fast line speeds.

This model has all of our Premium features built in. Feel confident in the most extreme conditions with full IP67 ingress protection. The brake is our most advanced Ratchet system which is located in the gearbox which is super efficient and able to hold without fail when you stop winching. (Same brake as featured in our vertical lifting winch). Unlike the other traditional brake systems which uses brake pads, this will not wear out.

The clutch is easily engaged/disengaged via the Rotary Clutch system. The EWS10000 Premium is also fully compatible with our optional extra Runva Air Clutch for easy in-cab control.

This model is the ideal choice for recreational or competition use. The EWS10000 Premium will not bolt straight into a standard 4X4 Winch Bar/Bullbar. This winch does require a large supply of power to run it effectively. We recommend a battery of around 1000CCA minimum, along with upgraded power leads of around 70mm2 minimum.

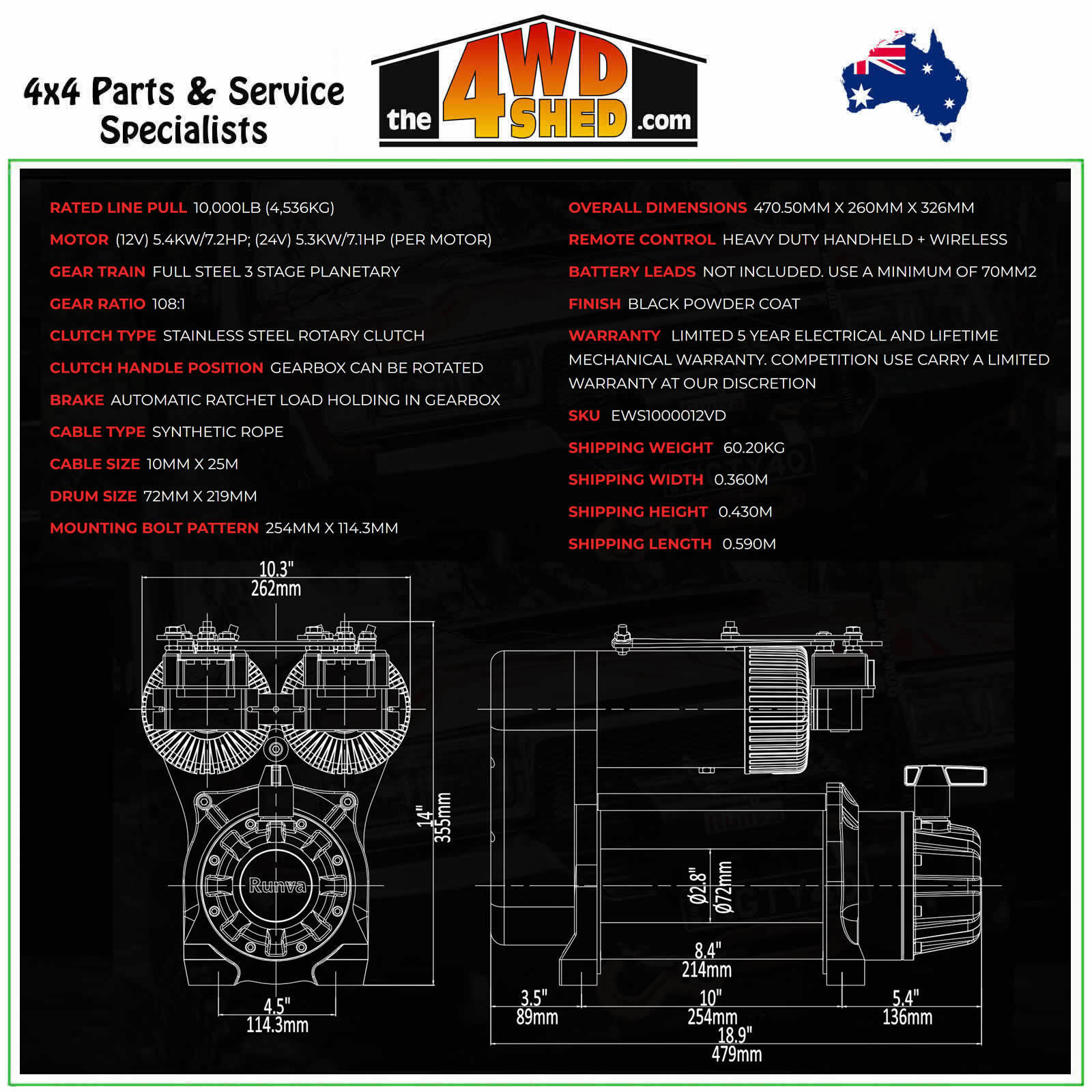

RATED LINE PULL 10,000LB (4,536KG)
MOTOR (12V) 5.4KW/7.2HP; (24V) 5.3KW/7.1HP (PER MOTOR)
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO108:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC RATCHET LOAD HOLDING IN GEARBOX
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 10MM X 25M
DRUM SIZE 72MM X 219MM
MOUNTING BOLT PATTERN 254MM X 114.3MM
OVERALL DIMENSIONS 470.50MM X 260MM X 326MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS NOT INCLUDED. USE A MINIMUM OF 70MM2
FINISH BLACK POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY. COMPETITION USE CARRY A LIMITED WARRANTY AT OUR DISCRETION

Included Accessories

https://www.runvawinch.com.au/assets/image_product_page/include/EWS_include.png

Please Note: This is an order in item, no COM Returns are accepted.

The 4WD Shed is an Authorised Dealer for Runva Winches & Accessories

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Shipping Weight 60.20kg
Shipping Width 0.360m
Shipping Height 0.430m
Shipping Length 0.590m

(EWS1000024VD)

SKU EWS1000024VD
Brand Runva
Shipping Weight 61.0000kg
