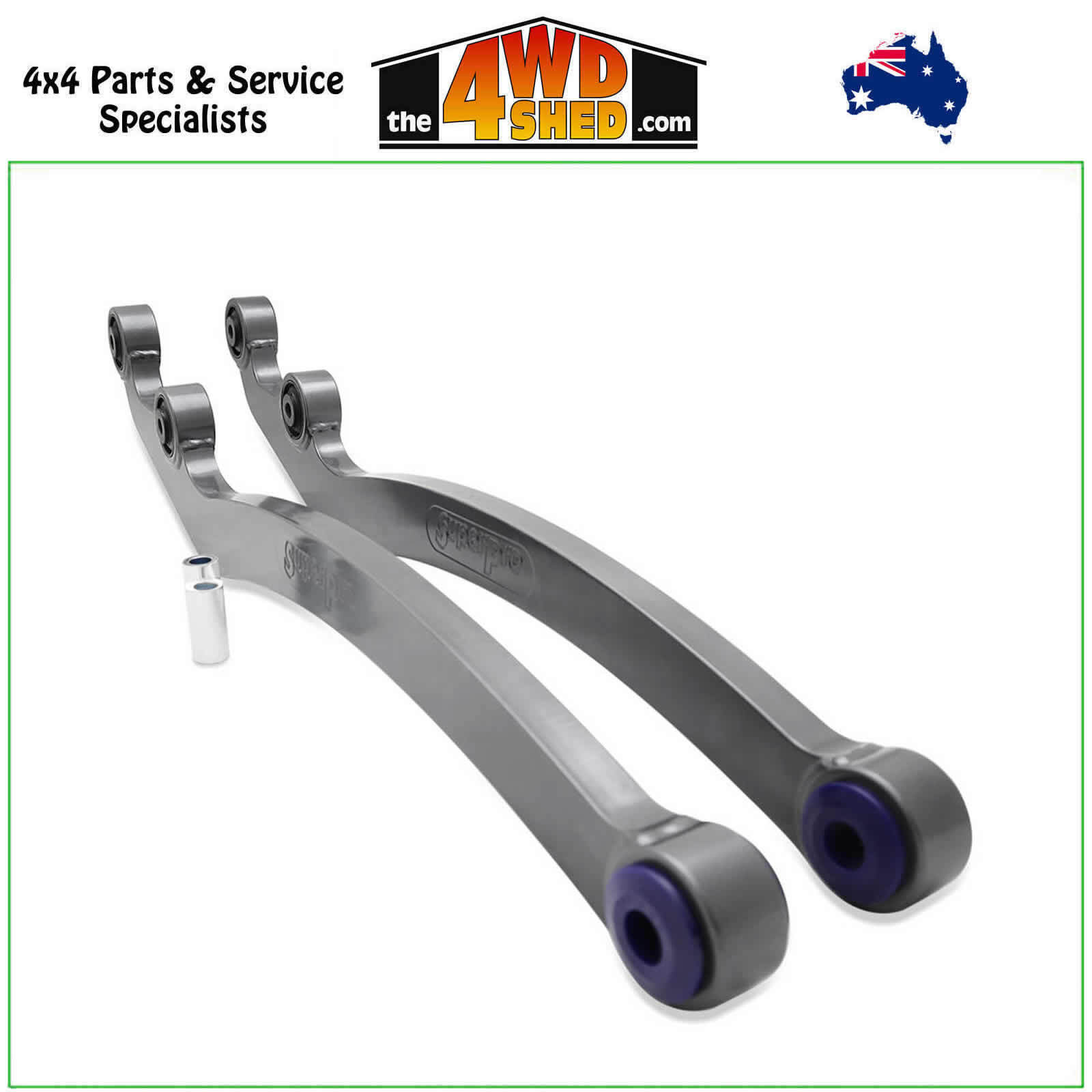

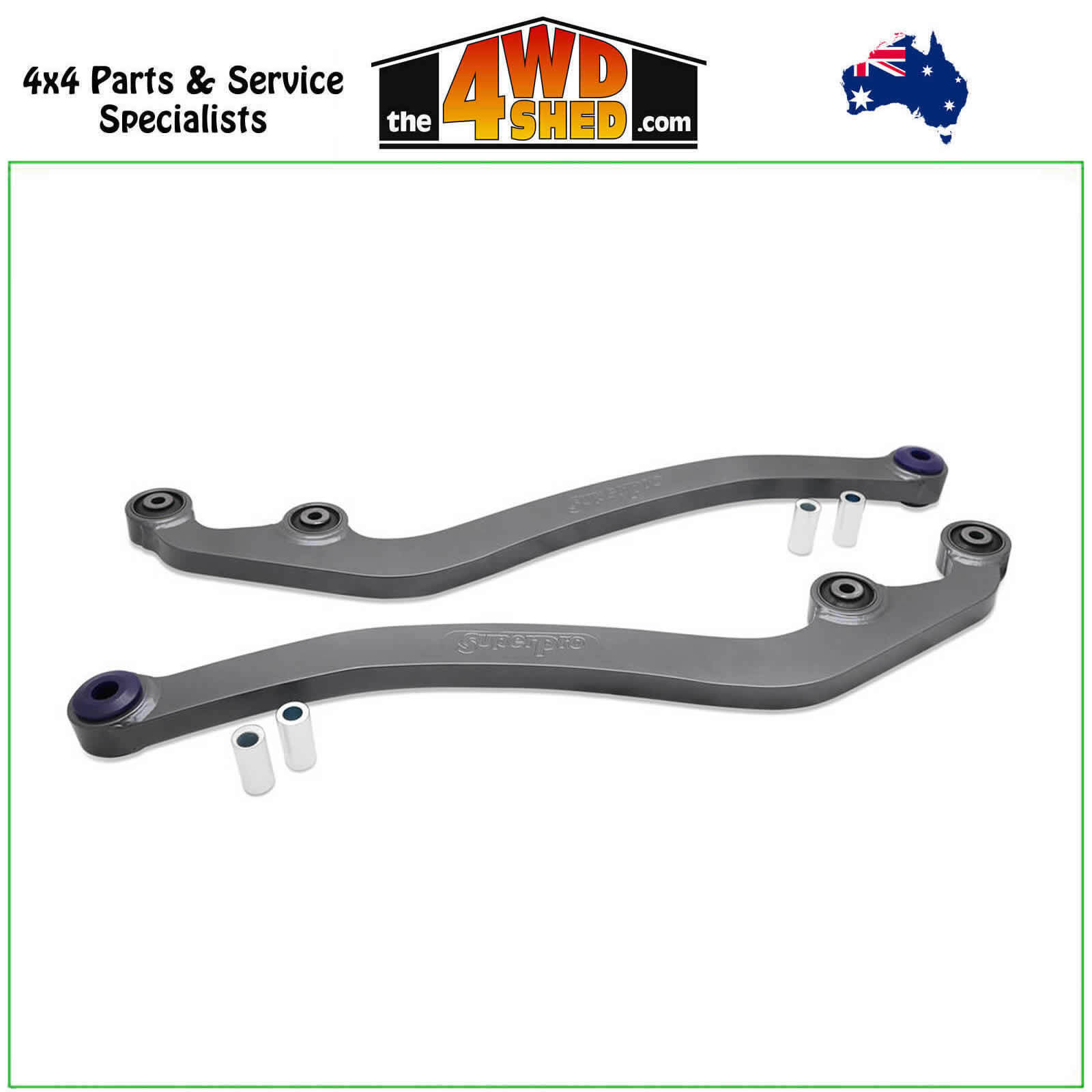

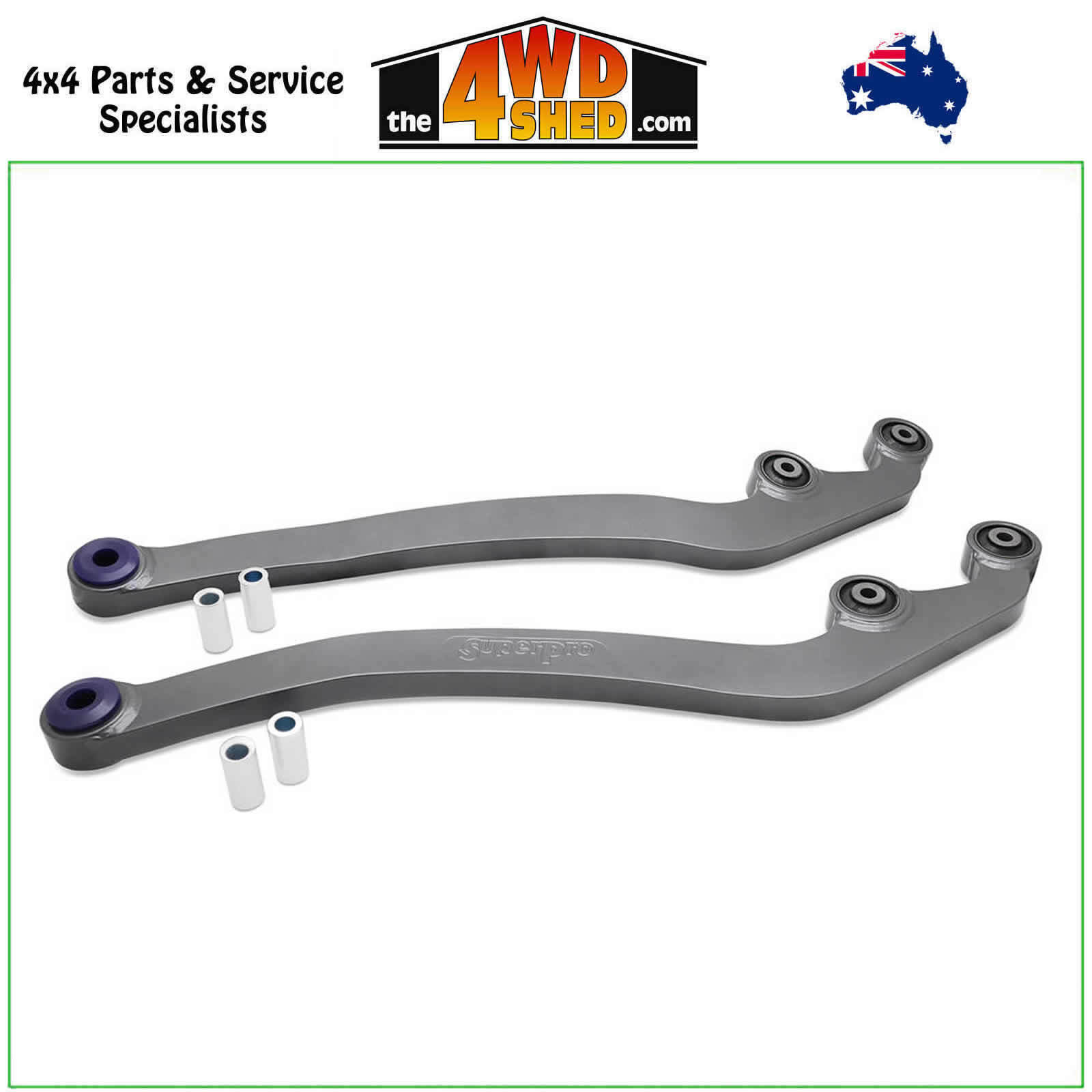

SuperPro Radius Arm Kit Toyota Landcruiser 76 78 79 80 105 Series Pre 7/2016
More infoSuperPro Radius Arm Kit Toyota Landcruiser 76 78 79 80 105 Series Pre 7/2016
Raising a vehicle washes off caster and the effects of decreased caster are a loss of straight line stability, vague steering at higher speeds and can cause caster shimmy.
The SuperPro Caster Correction Arm Kit solves the issues with 'built in' caster correction in the design, with nearly 4 Degrees for a 50mm lift and 2.5 Degrees for a 75mm lift
- Lifetime Warranty
- Enhances your vehicles handling and performance
- Upgraded arm design, construction, material and bushings
- Comes with pre-installed bushings
- Designed as an easy direct replacement and upgrade part
- Designed, tested and engineered in Australia
These arms are perfectly suited as a standard replacement and upgrade from factory arms. SuperPro through design ensures the elimination of undesirable arm movement to maintain better steering geometry and alignment in all driving conditions.
SuperPro Radius arms are built to meet the high-quality requirements set by SuperPro's Q&A team; designed to outperform both competitor and OE products. Following our business motto "Engineered to Outperform", SuperPro exceeds many design expectations and has been certified as such.
- Axle alignment required after fitting
Fitment Difficulty- Fitting Position: Front
2hrs Fitment Time
Features
- Caster Correction Arm
- Suit vehicle with 2-3" lift
Suits
- TOYOTA LANDCRUISER 80 Series 1990-1998
- TOYOTA LANDCRUISER 105 Series 1998-2007
- TOYOTA LANDCRUISER 76, 78 Series 1999-7/2016
- TOYOTA LANDCRUISER 79 Series 1999-7/2016
Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.
Why be concerned about Castor?
It should be common knowledge by now that raising a vehicle washes off castor. The effects of decreased castor are a loss of straight line stability, vague steering at higher speeds and can cause castor shimmy. The SuperPro Lift Correction Arm Kit solves the issues with “built in” castor correction in the design, with nearly 4 Degrees for a 50mm lift and 2.5 Degrees for a 75mm lift. SuperPros Nissan Patrol Radius Arms have been designed with castor correction to only suit raised vehicles. The design uses concentric bushings with advantages such as durability, comfort and increased articulation over non-centrally located bushings.
Why deliver more Articulation?
Articulation is critical to maintain tyre contact and keeping the cabin stable in rough road and off road scenarios. Articulation is the ‘hanging point’ for many aftermarket Radius arms, which continue to use the OE bushings or inferior replacement rubber alternatives. The SuperPro Radius Arm Bushings utilises the SuperPro Hybrid material and offers superior articulation by redefining the form and function of the bushing in this location. By redesigning the profile of the bushing and creating a pocket for the SuperPro Hybrid material to flow, a higher articulating bush with far greater durability has been created. The addition of a larger inner tube has led to a more robust part for high speed highway stability and off road ruggedness without compromising NVH.
Why be concerned about un-sprung weight?
When it comes to a radius arm and vehicle suspension, unsprung weight is a critical factor. It affects not only ride and comfort but the dynamic system dampening and harshness. Vehicle Manufacturers spend a significant amount of time tuning vehicle suspension systems to ensure resonant frequencies are mitigated and tyre to road contact is maximised in all conditions, altering the unsprung mass of components has potential to compromise this. The SuperPro Lift Correction Arm retains the OE design intent by providing an equally weighted arm. Solid section radius arms may well be rugged for the extremist 4x4 user, but the extra weight does cause concerns and adds stress to other suspension components. This can be an issue on heavily corrugated roads where the extra unsprung mass generates more energy that has to be absorbed by the shock absorbers, add to this, a set of bigger, heavier wheels and tyres and this issue is further exacerbated. With advances in materials and engineering designs, a smarter hollow section option exists today over the “old school” solid design.
Now there is no reason to compromise on road handling for off road performance and durability.
(TRC1216)
| SKU | TRC1216 |
| Brand | SuperPro |
| Shipping Weight | 24.0000kg |
