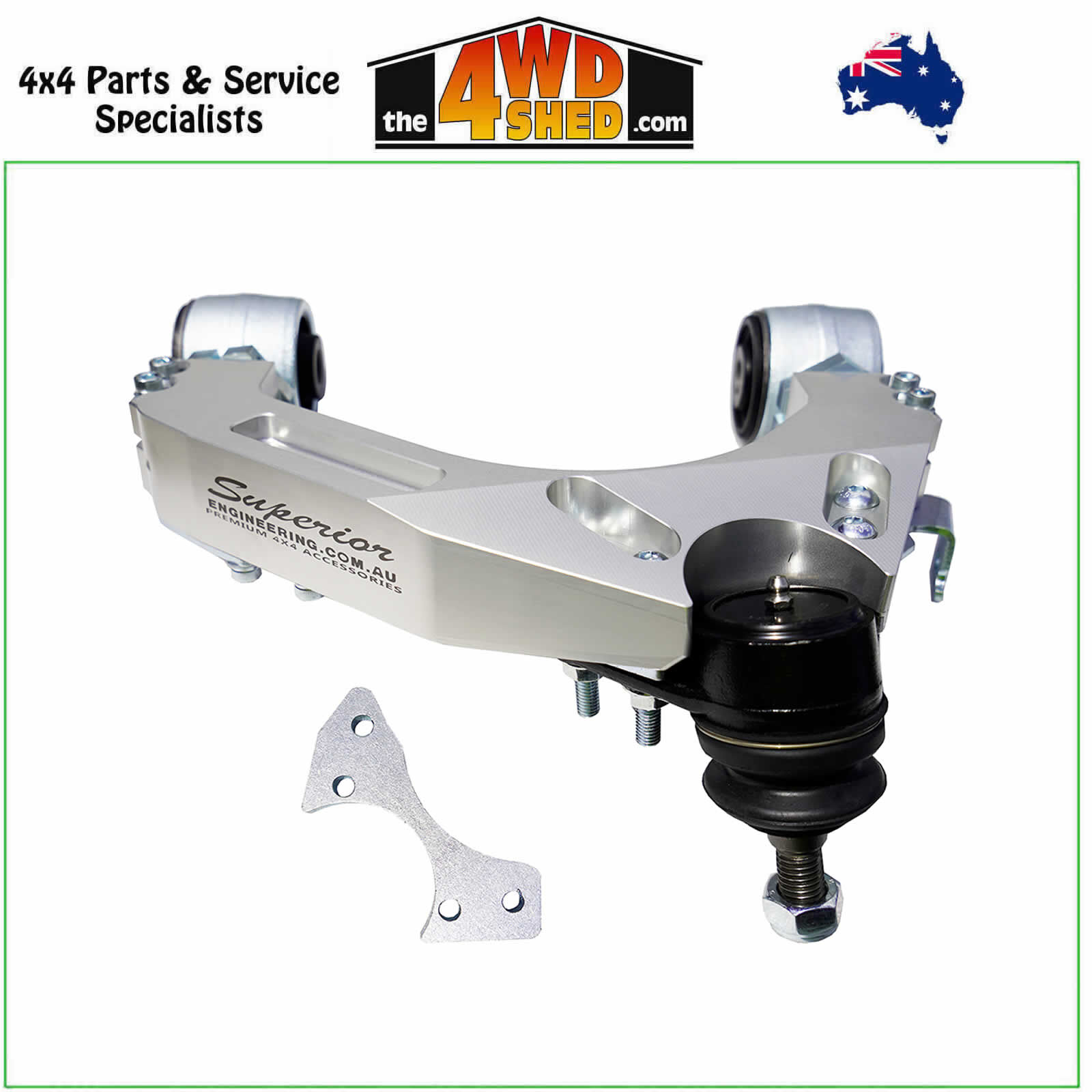

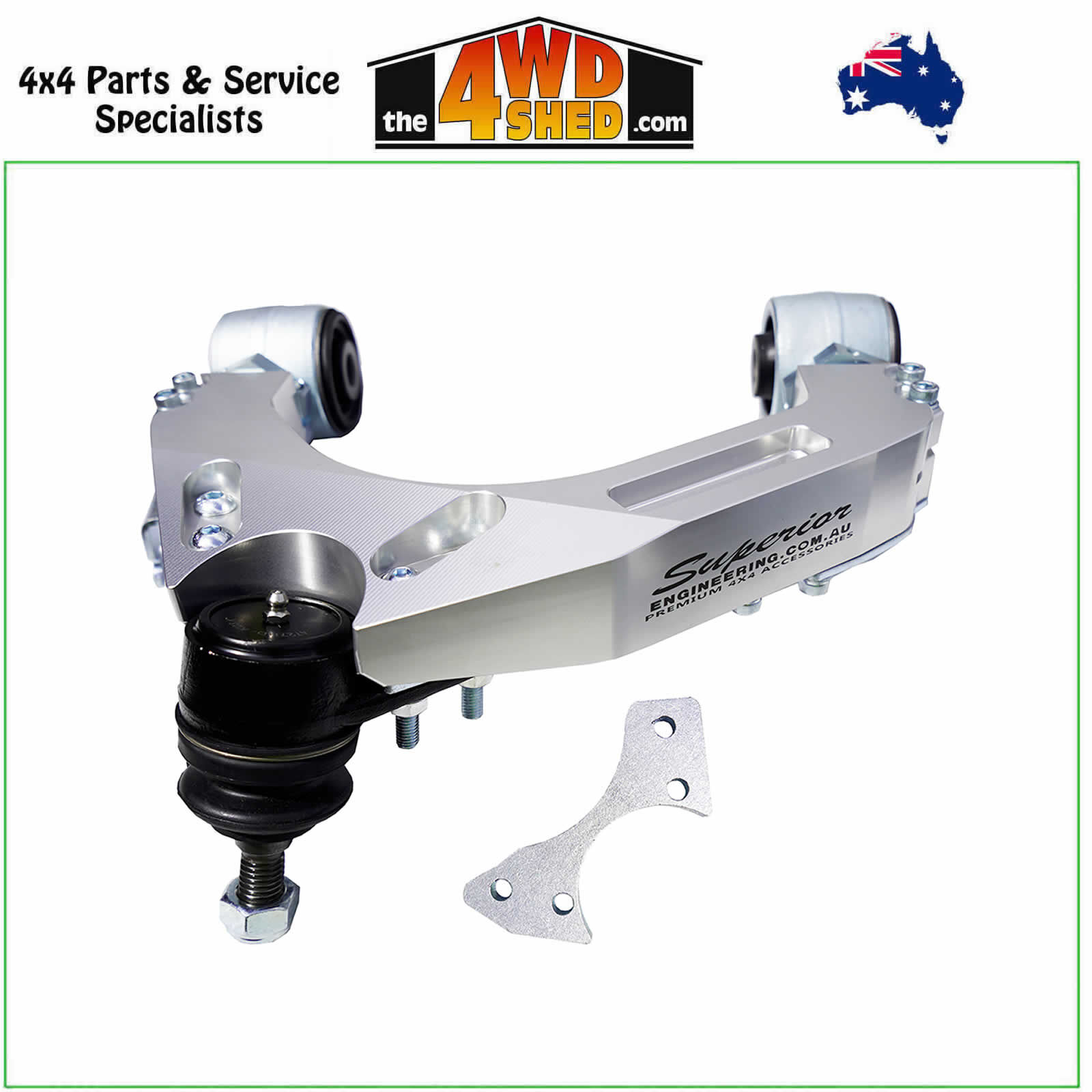

Superior Billet Series 6061 T6 Alloy Upper Control Arms Isuzu DMAX Mazda BT50 07/2020-On
More infoSuperior Billet Series 6061 T6 Alloy Upper Control Arms Isuzu DMAX Mazda BT50 07/2020-On
Superior Engineering Billet Alloy Adjustable Upper Control Arms are designed to increase articulation offering increased off-road performance and restoring wheel alignment geometry after fitting a lift kit to your vehicle.
KEY FEATURES & BENEFITS
If you are looking to lift your Navara’s suspension and increase its offroad performance then you can’t go past the Superior Engineering Billet Alloy Upper Control Arms for your NP300.
- Designed to increase articulation for improved off-road performance
- Restores wheel alignment geometry after fitting a lift kit
- Helps prevent wheels from lifting off the ground on uneven terrain
- Increases down travel and maximizes coil/chassis clearance
- Allows for greater camber and castor adjustment for better wheel alignment
- Reduces unnecessary wear and tear on suspension components
- Minimizes or avoids fender trimming by optimizing tire placement in the wheel arch
- Made from CNC machined aircraft-grade 6061-T6 Aluminium alloy
- Equipped with double clamped high tensile steel greaseable adjuster bosses
- Features high-angle greasable OE style ball joints for up to 20 degrees more travel
Superior Engineering Billet Alloy Adjustable Upper Control Arms are designed to increase articulation offering increased off-road performance and restoring wheel alignment geometry after fitting a lift kit to your vehicle.
When fitting a lift kit, the OE suspension components are pushed to their limits of adjustment. Wheel travel suffers and the loss of articulation can result in wheels being lifted off the ground when travelling over uneven terrain. Fitting a fully adjustable upper control arm helps to restore lost articulation allowing for better off-road performance. All Superior Engineering UCA’s are designed to increase down travel and maximised coil/chassis clearance
The Billet Alloy Upper Control arms are also used to provide better wheel alignment geometry by allowing greater camber and castor adjustment. This reduces unnecessary wear are tear on the suspension components and uneven tire wear becomes a thing of the past!
An added advantage in using an adjustable UCA is the ability to get your tire where you want it in the wheel arch. By combining the adjustment in the Upper and Lower control arms, users can maximize alignment angles and move oversized tires in the wheel well to minimize or avoid fender trimming.
Superior Engineering is the market leader when it comes to designing and building rugged, adjustable front upper control arms to suit the demands of lifted offroad vehicles. The main arm is CNC machined from a large piece of aircraft-grade 6061-T6 Aluminium alloy and then fitted with double-clamped high tensile steel greaseable adjuster bosses. High-Angle Greasable OE-style ball joints offer up to 20 degrees more travel than some common OE ball joints.
NOTES
Due to the range of travel in these UCA's, Superior recommends the use of only the highest quality ball joints, please contact us for suitable replacement parts.
TECH SPECS
| MAIN UCA MATERIAL | Aircraft-grade 6061-T6 Aluminium Alloy |
|---|---|
| ROD END MATERIAL | High Tensile Steel |
| BALL JOINTS | High-Angle Greasable OE style |
| ROD END BUSHES | Greaseable Polyurathene |
| RATED LOAD | 3150kg |
| FINISH | Silver Anodzied Finish |
WHAT'S INCLUDED
- 2 x Superior Billet Alloy UCA's
- 4 x High Tensile Steel Rod Ends
- 4 x Double Adjuster Clamps
- 2 x High-Angle Greasable OE style Ball Joints
- 4 x Polyurethane Pivot Bushes
- 1 x Fitting Kit with all required Bolts, Washers and fittings
The 4WD Shed is an Authorised Stockist for Superior Engineering.
Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If its not listed on our website please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.
(SE-49562)
The 4WD Shed is an Authorized Stockist for Superior Engineering.
We stock, supply & fit a large range of items that can be found on Superior Engineering BUT in some instances there may be delays in stock or if it is a special order item.
We aim to ship items within 1-3 business days but if your order contains any items that fall under the above conditions we will contact you to notify you. If you wish to check availabilty before purchase you can call us or send an email.
Due to the weight of Superior products we may be required to quote freight on multiple items. We will contact you before beginning to process your order otherwise you can contact us for a freight estimate. We will try & keep costs down where we can so this may mean that we split your order over 2 parcels in order to keep weight & costs down.
Please make sure you have a valid contact number in your order details for us to contact you regarding any delays.
| SKU | SE-49562 |
| Brand | Superior Engineering |
| Shipping Weight | 12.9000kg |
