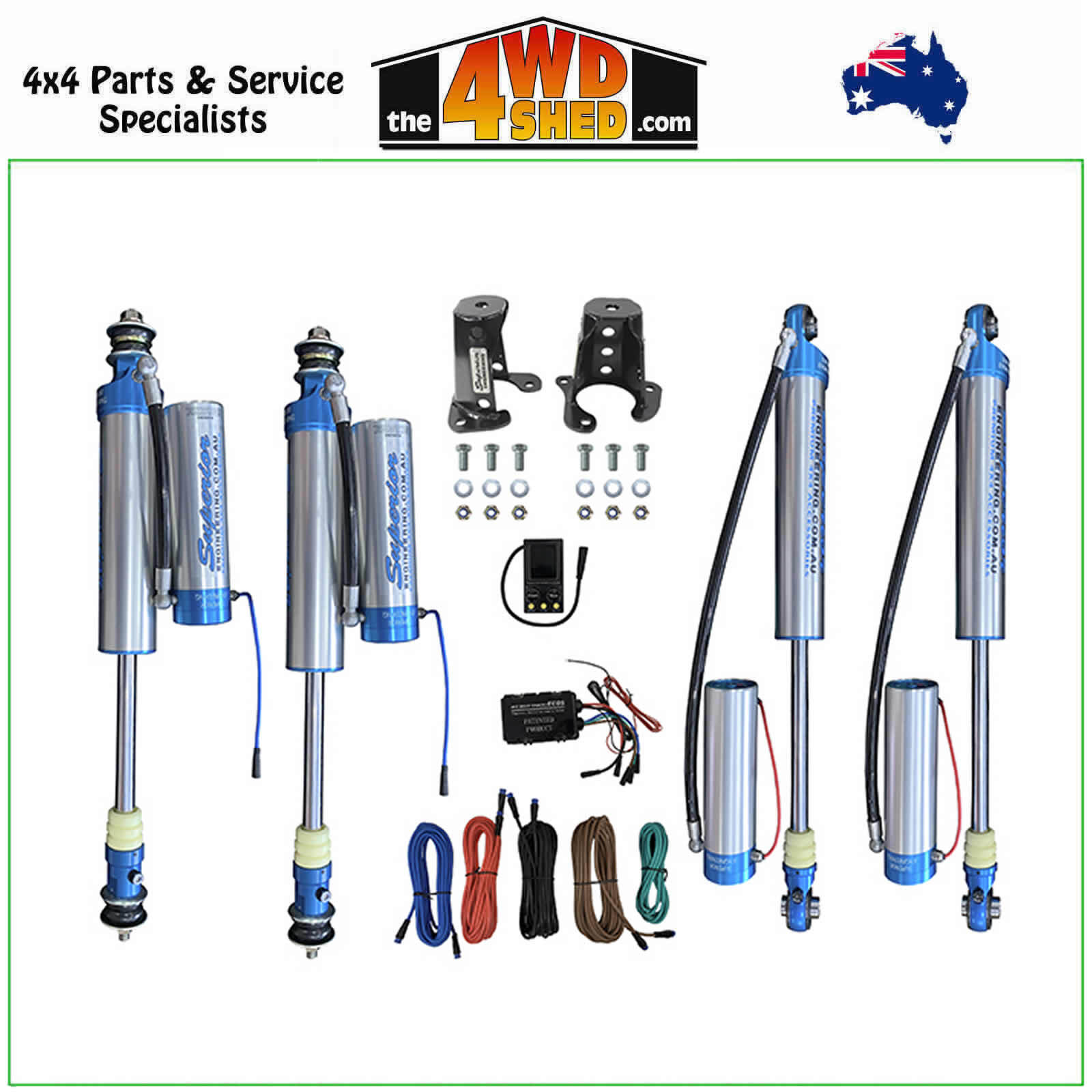

Superior (ECDS) Electric Adjustable 2.5 Monotube Remote Reservoir Shock Kit 6 Inch 150mm Lift Nissan Patrol GQ GU

Superior Electric (ECDS) Adjustable 2.5 Monotube Remote Reservoir Shock Kit 6 Inch 150mm Lift Nissan Patrol GQ GU (Shock Kit Only)

3 Year and Unlimited Km's Warranty
Superior Engineering Electric (ECDS) Adjustable 2.5 Monotube Remote Reservoir Shocks are covered by a 3 Year Unlimited Kilometer warranty, for full details please see our warranty page or give us a call.

Electronic Controlled Damping System (ECDS)

Imagine a world where you can adjust your shocks through 100 levels of Compression adjustment from the comfort of the driver's seat. Well with the Superior ECDS Shocks that world is a reality.

Our latest range of adjustable 2.5 shocks comes with an in-cab controller this allows for not only a large range of adjustment of the compression but also 4 levels of fine-tuning of the adjustment with either 5, 16, 64 or 100-stage adjustment.
All these levels offer the same amount of compression adjustment, just with different amounts of fine-tuning.

Simple Wiring
The wiring of the system is simplified with colour-coded wires for the different shocks.

Rebound Adjustment
These shocks also feature 6 levels of rebound adjustment via a knob on the leg of the shock (not in-cab adjustable)

Heat Treated Alloy Steel Piston
Features race-inspired port configurations and variable rate shim stack technology to provide vehicle-specific damping performance and optimum ride quality. A composite Teflon wears band offers low internal resistance and high compressive strength enhancing shock performance.

Spherical Rod End Assembly - Strut
High-performance spherical rod end assembly designed for correct clearance and increased strength Suitable For your application. Fitted with Teflon-lined Commercial Grade spherical bearings for smooth articulation and the longest life.

Remote Reservoir Canister
Remote Reservoir Canister for increased oil volume, and greater cooling capacity. Internal Floating Piston separates the shock Oil and Nitrogen eliminating Foaming or mixing of the oil and gas that produces shock fade.

Highest Quality Materials
CR3+ plated Bored and Honed cylinder tubes, Aircraft quality billet aluminium components, High-pressure hydraulic hose, and seals. Plus the 22mm Hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.

Fully Rebuildable For Longevity
These Superior Electric (ECDS) Remote Reservoir Shocks are fully Rebuildable, Serviceable, and Upgradeable. All parts are carried in stock and allow the user to finely-tune, adjust, and service their shocks, ensuring you get the longest life possible from your suspension.

Features

• up to 100-stage compression adjustment with a simple turn of the dial on the in-cab controller
• 6-stage rebound adjustment with a simple turn of the knob mounted on the shock.
• 60mm Piston with Teflon
• 22mm super polished shaft
• 66mm outer body
• floating piston inside the reservoir
• Cr+3 Surface finish
• Unique Valving and Piston Design

The 4WD Shed is an Authorised Stockist & Fitter for Superior Engineering.

Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If its not listed on our website please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.

5 Stage Fine Tuning

16 Stage Fine Tuning

64 Stage Fine Tuning

100 Stage Fine Tuning
