Superior Hyperflex Radius Arms Toyota Landcruiser 76 78 79 Series 8/2016-On (Curved Style Arms)


Buying Options

Quantity Image Name Price
2 Inch 50mm Hyperflex Radius Arms (Curved Style Arms) 2 Inch 50mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock
3 Inch 75mm Hyperflex Radius Arms (Curved Style Arms) 3 Inch 75mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock
4 Inch 100mm Hyperflex Radius Arms (Curved Style Arms) 4 Inch 100mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock
5 Inch 125mm Hyperflex Radius Arms (Curved Style Arms) 5 Inch 125mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock
6 Inch 150mm Hyperflex Radius Arms (Curved Style Arms) 6 Inch 150mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock
7 Inch 175mm Hyperflex Radius Arms (Curved Style Arms) 7 Inch 175mm Hyperflex Radius Arms (Curved Style Arms)
$2,400.00
In stock

Superior Hyperflex Radius Arms Toyota Landcruiser 76 78 79 Series 8/2016-On (Curved Style Arms)

NOTE: Due to a change in the chassis width of the 2017 on 76/78/79 series We have designed these arms to work with these models. Fitting of these arms requires modification to a crossmember.

PLEASE BE ADVISED: Fitment of Superior Superflex & Hyperflex Arms for Landcruiser requires permanent removal of the OE Sway Bar Mounts from your Diff Housing.

Superior Superflex & Hyperflex Arms for Landcruiser are provided with suitable provisions to re-install your OE Sway Bar once the arms are installed.

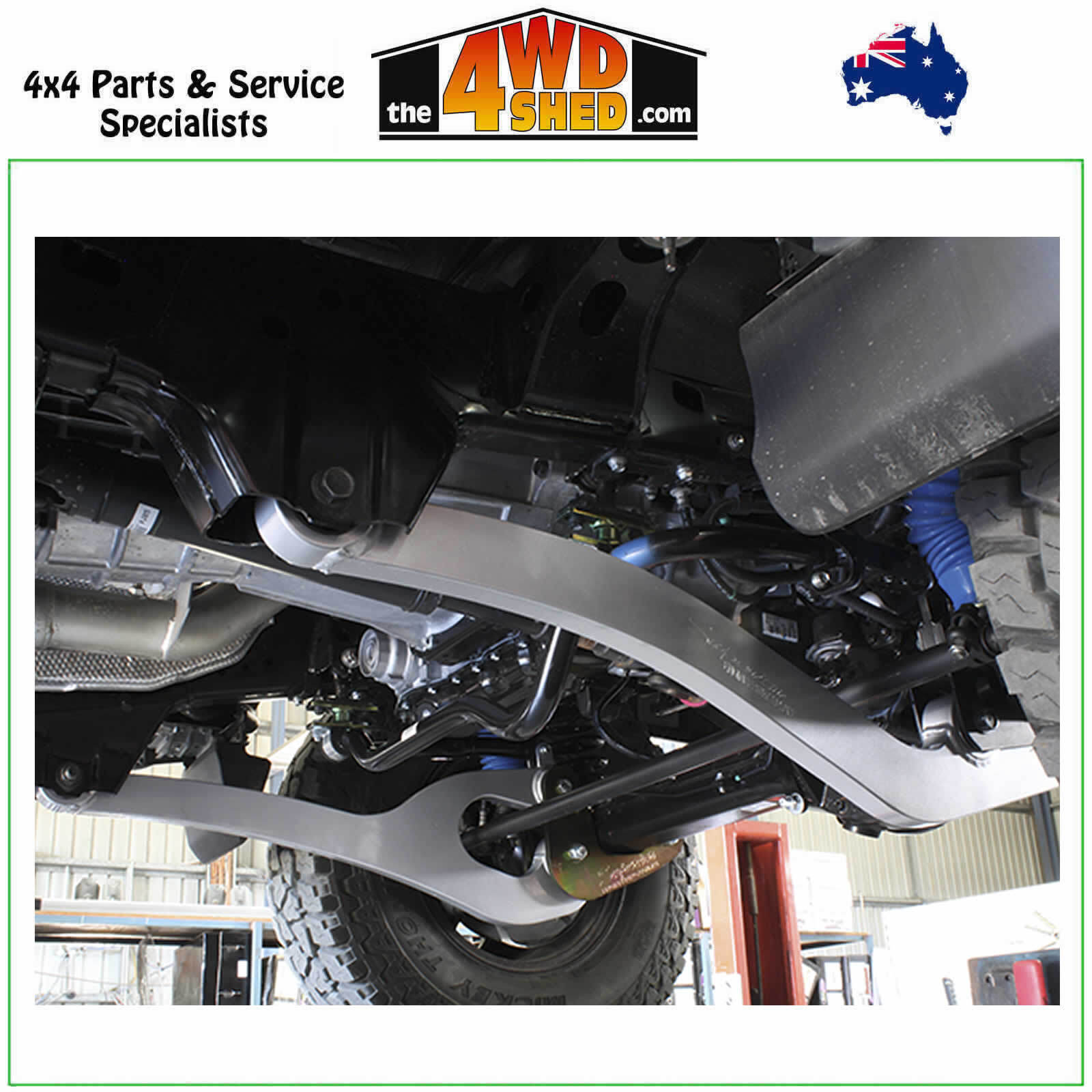

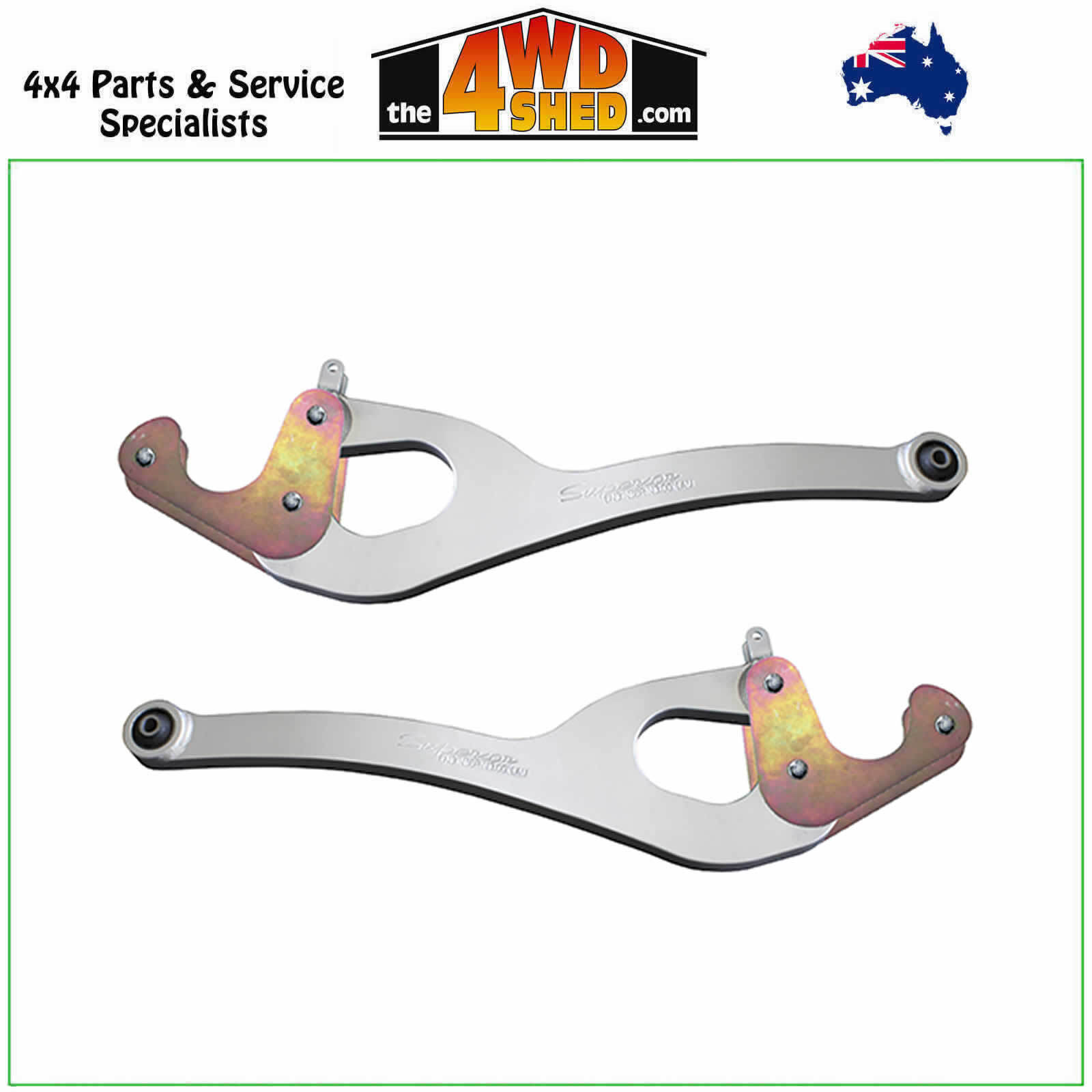

This is a Superior Engineering Hyperflex Hybrid Radius Arm Suitable For Toyota LandCruiser 76/78/79 Series.

Superior Engineering is leading the way again with our latest radius arms design, the Hyperflex Radius Arm.
We figured if one of our Patented Superflex was good then why not run two, and after some testing, we are now proud to offer the Hyperflex Radius Arms.

These arms don't just offer extreme levels of flex for the front of your LandCruiser 76/78/79 Series, the also handle extremely well on road.
We have completed NCOP approval testing up to 110km/h, meaning the Hyperflex Radius Arms are legal* for use on road throughout Australia.

With the arms, we supply fitting instructions and all the bushes are pressed into the arms so you don’t have to.

With these arms, you will get the flex and drivability you need, and longer life from your bushes. Why not have extra flex as well as good on-road handling?

Why not have extra flex as well as good on-road handling?

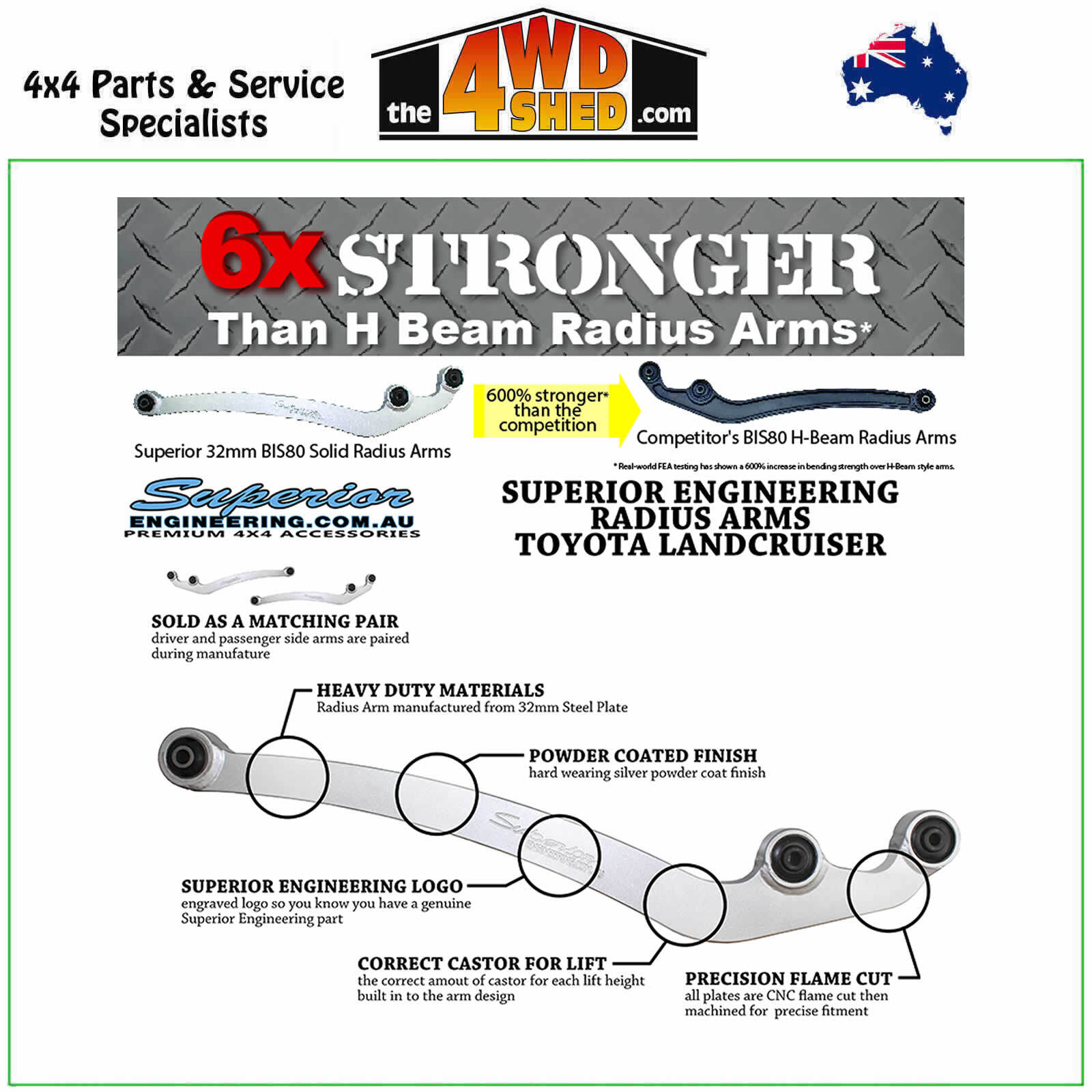

Benefits of Superior Engineering HYPERFLEX Drop Radius Arms

  • Manufactured from High Tensile Plate
  • High Tensile Bush Eyes
  • Massive 32mm main Beam thickness for maximum strength
  • Rubber Bushes pre-fitted into arms
  • Laser-cut to precise measurement and caster location
  • Authentic Superior Engineering Logo machined into the side of Arms
  • (Factory Sway bar will fit to allow safe on-road handling)
  • The Brackets to fit the sway bar are supplied at no extra cost
  • They are manufactured Suitable For various lifts
  • Sandblasted with rust prevention applied
  • Powder Coated for maximum durability and finish
  • High Tensile Plate will not crack unlike Cast Radius Arms
  • Adapter plates and bolts have a SA5 Zinc coating for rust prevention
  • Allows vehicle to track correctly on road due to correct caster
  • Maximum Clearance between the Tie Rod and the Radius Arms
  • Factory bushes fit the SUPERFLEX ARMS, We don't use special sizes Bushes
  • Superior Engineering's Super flex arms are a Patented Design
  • Patent No's. 2008202797, 2010100451, 2011904187
  • 100% money-back Guarantee if you don't get more flex than your original or aftermarket Radius Arms!

Available in the following configurations

  • 2 Inch Castor Correction (33795)
  • 3 Inch Castor Correction (33796)
  • 4 Inch Castor Correction (33797)
  • 5 Inch Castor Correction (33798)
  • 6 Inch Castor Correction (40645)
  • 7 Inch Castor Correction (40905)

Note: Factory bump stops may need to be extended depending on the coils and shock combination used. Due to the huge variances in different weights of vehicles / heights variances and suspension combinations in vehicles it is highly recommended to move your suspension in the full range of the shock absorber compression / rebound travel and also taking into consideration coil bind, check all areas for clearance issues ,if you require more assistance in this talk to one of our sales team for further advice.

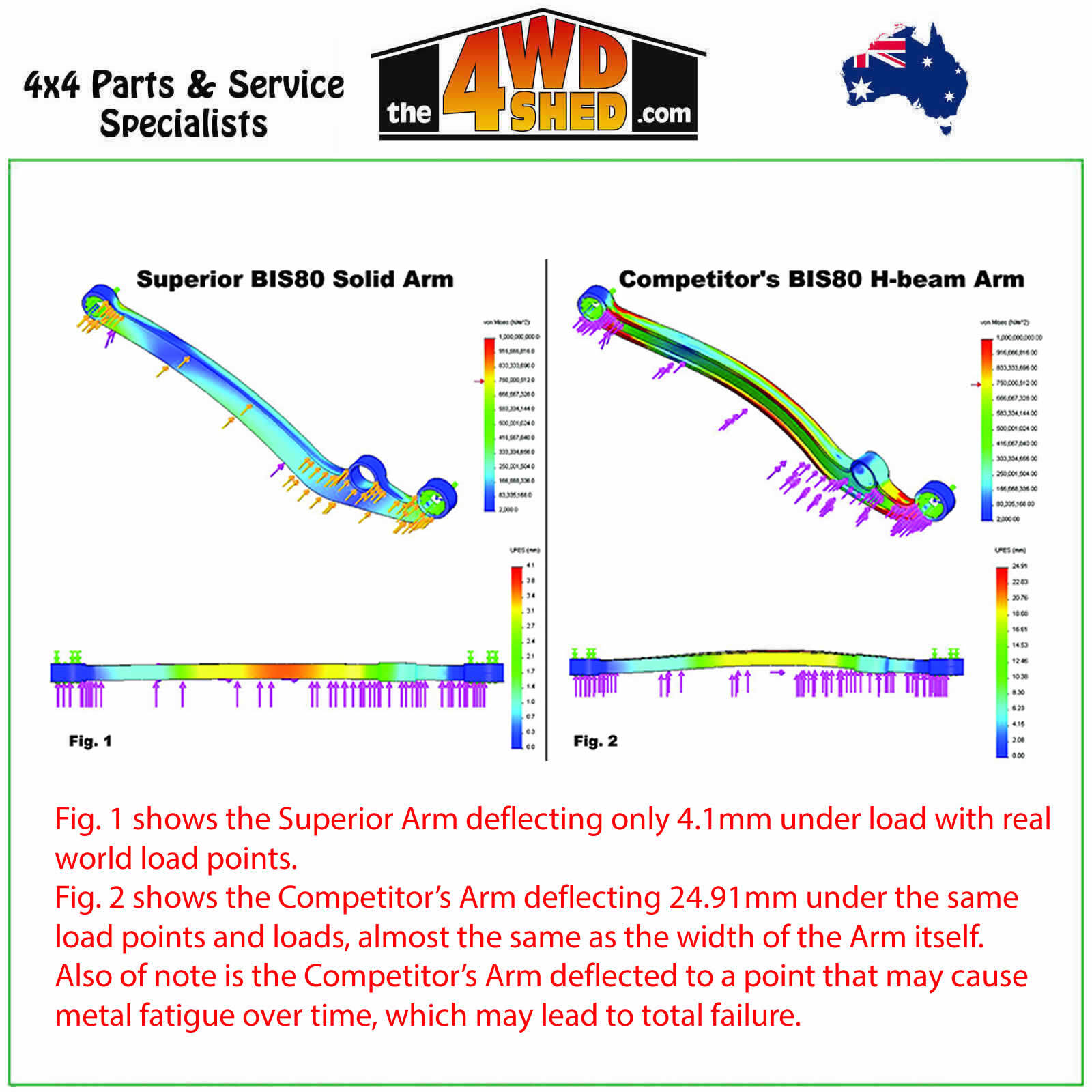

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded. In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However, extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Availability: Please call us to check availability, as there are a number of variations we may need to order these in.

The 4WD Shed is an Authorised Stockist for Superior Engineering.

Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If it's not listed on our website, please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.

(SE-33794)

SKU SE-33794
Brand Superior Engineering
Shipping Weight 40.0000kg
