Superior Hyperflex Radius Arms with Drop Boxes Nissan Patrol GQ GU - PAIR

Superior Hyperflex Radius Arms with Drop Boxes Nissan Patrol GQ GU

Note: Superior Engineering Hyperflex Radius Arms are supplied with mounting plates specifically designed to accommodate your specific Front Diff Protection for your Patrol.

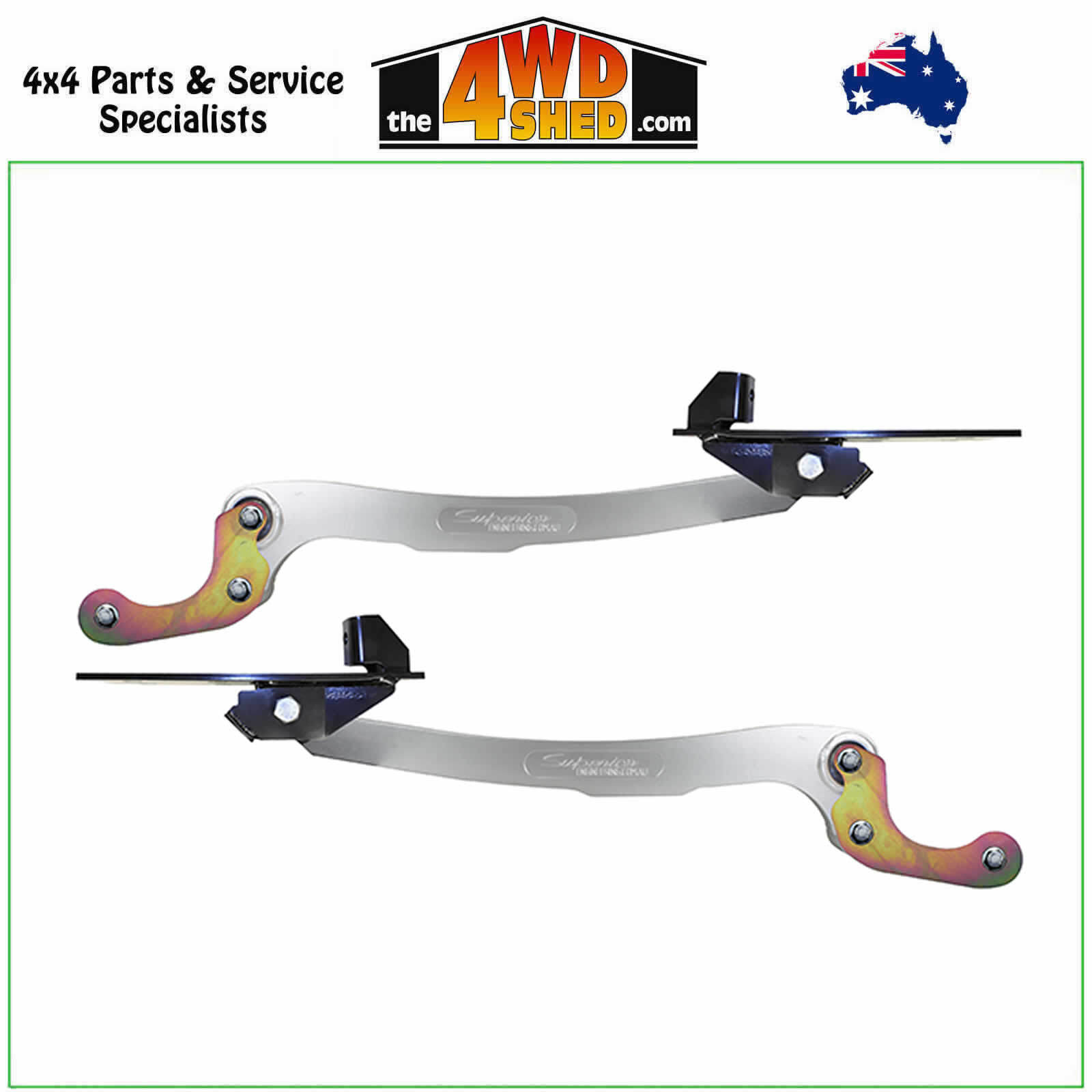

This is a Superior Engineering Hyperflex Hybrid Radius Arm with Drop Boxes Suitable For Nissan Patrol GQ/GU.

Superior Engineering is leading the way again with our latest radius arms design, the Hyperflex Radius Arm.

We figured if one of our Patented Superflex was good then why not run two, and after some testing, we are now proud to offer the Hyperflex Radius Arms.

These arms don't just offer extreme levels of flex for the front of your Nissan patrol, the also handle extremely well on road.

The difference with our hybrid design arms over the standard Nissan radius arms is the use of a Toyota style rear bush. This change allows increased life from the rear bush when flexing the arms up off-road, by allowing the arm to flex down without the binding found in the pin style design.

With the arms, we supply the mounting drop boxes that are a straight bolt-in design requiring no cutting and all bolts need for mounting. We also supply fitting instructions and all the bushes are pressed into the arms so you don’t have to.

NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.

Please let us know if you have front diff protection on your vehicle.

Features:

• Manufactured from High Tensile Bisalloy 80/Strenx700 Plate
• High Tensile Bush Eyes
• Massive 32mm main Beam thickness for maximum strength
• Rubber Bushes pre-fitted into arms
• Laser-cut to precise measurement and caster location
• Authentic Superior Engineering Logo machined into the side of Arms
• Factory Swaybar will fit to allow safe on-road handling
• Factory ABS lines will bolt-on
• HYPERFLEX ARMS are manufactured Suitable For various lifts
• Sandblasted with rust prevention applied
• Powder Coated for maximum durability and finish
• High Tensile Bisalloy 80/Strenx700 Plate will not crack unlike Cast Radius Arms
• Sway Bar Adapter plate bracket and bolts have an SA5 Zinc coating for rust prevention
• Allows vehicle to track correctly on road due to correct caster
• Maximum Clearance between the Tie Rod and the Radius Arms
• Factory bushes fit the HYPERFLEX ARMS; we don’t use special sizes Bushes
• Superior Engineering's HYPERFLEX ARMS are a Patented Design

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact, Superior Engineering Radius arms may bend but will never crack and fail

Note: Factory bump stops may need to be extended depending on the coils and shock combination used. Due to the huge variances in different weights of vehicles / heights variances and suspension combinations in vehicles it is highly recommended to move your suspension in the full range of the shock absorber compression / rebound travel and also taking into consideration coil bind, check all areas for clearance issues , if you require more assistance in this talk to one of our sales team for further advice.

Available in the following configurations

• 2-3 Inch Castor Correction (31291)
• 4 Inch Castor Correction (31292)
• 5 Inch Castor Correction (31293)
• 6 Inch Castor Correction (31294)

Please note that the rear Mushroom bushes are not supplied, and they can be purchased separately.

If you require mushroom bushes please let us know. These are available at additional cost.

NOTE: Please check ABS sensor lines (if fitted) are free to move through the full range of travel.

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However, extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Availability: Please call us to check availability, as there are a number of variations we may need to order these in.

SOLD AS PAIR
