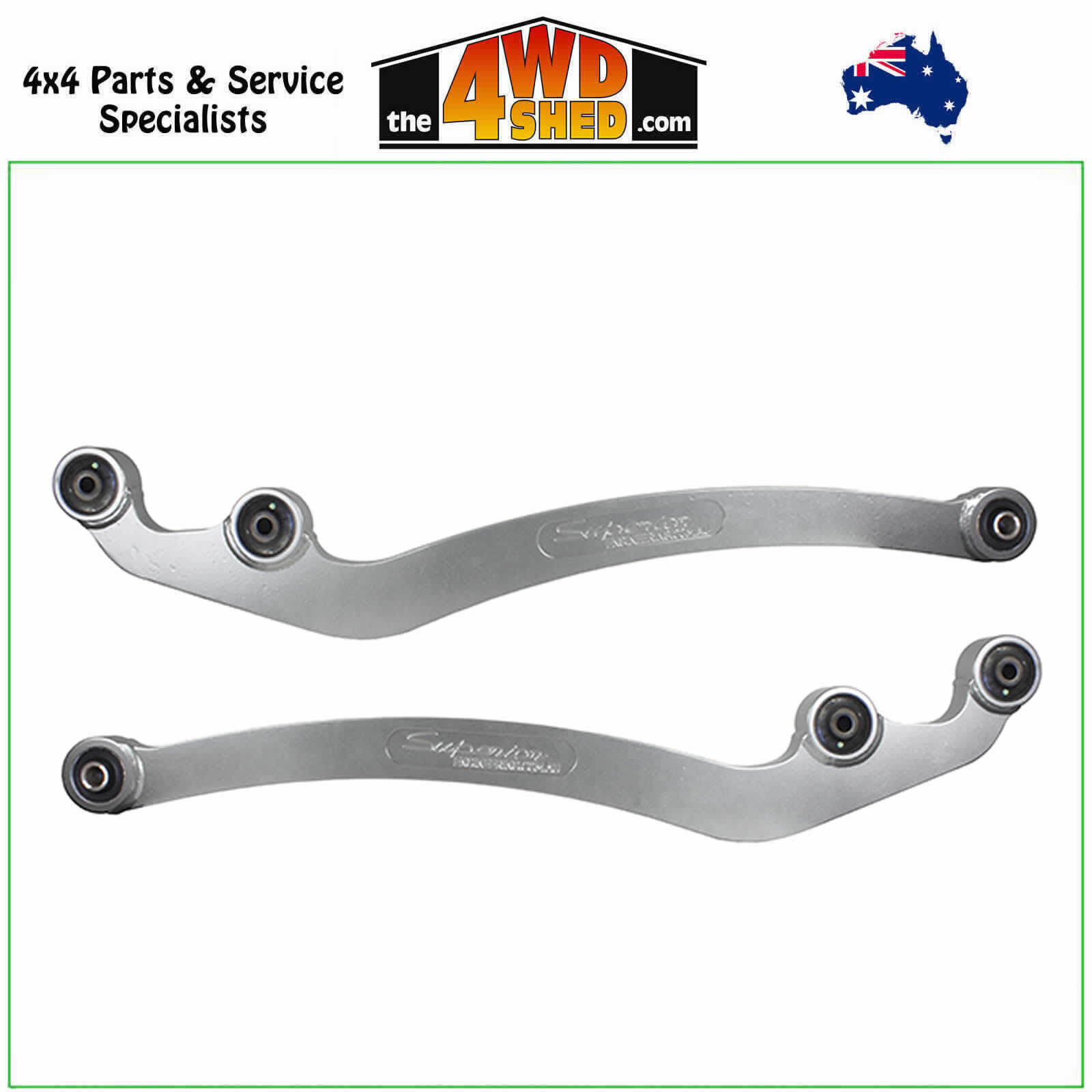

Superior Radius Arms Toyota Landcruiser 76 78 79 Series 2.8ltr TD 10/2022-On

Superior Radius Arms Toyota Landcruiser 76 78 79 Series 2.8ltr TD 10/2022-On

Benefits of Superior Drop Radius Arms

• Manufactured from High Tensile Plate
• High Tensile Bush Eyes
• Massive 32mm main Beam thickness for maximum strength
• Rubber Bushes pre- fitted into arms
• Laser cut to precise measurement and caster location
• Authentic Superior Engineering Logo machined into side of Arms
• (Factory Sway bar will fit to allow safe on road handling)
• They are manufactured Suitable For various lifts
• Sand blasted with rust prevention applied
• Powder Coated for maximum durability and finish
• High Tensile Plate will not crack unlike Cast Radius Arms
• Allows vehicle to track correctly on road due to correct caster

Superior Engineering Dropped Radius Arms are generally used on competition trucks where maximum ground clearance is needed, although a trend is growing in Australia to fit these Radius arms into non-competition Vehicles.

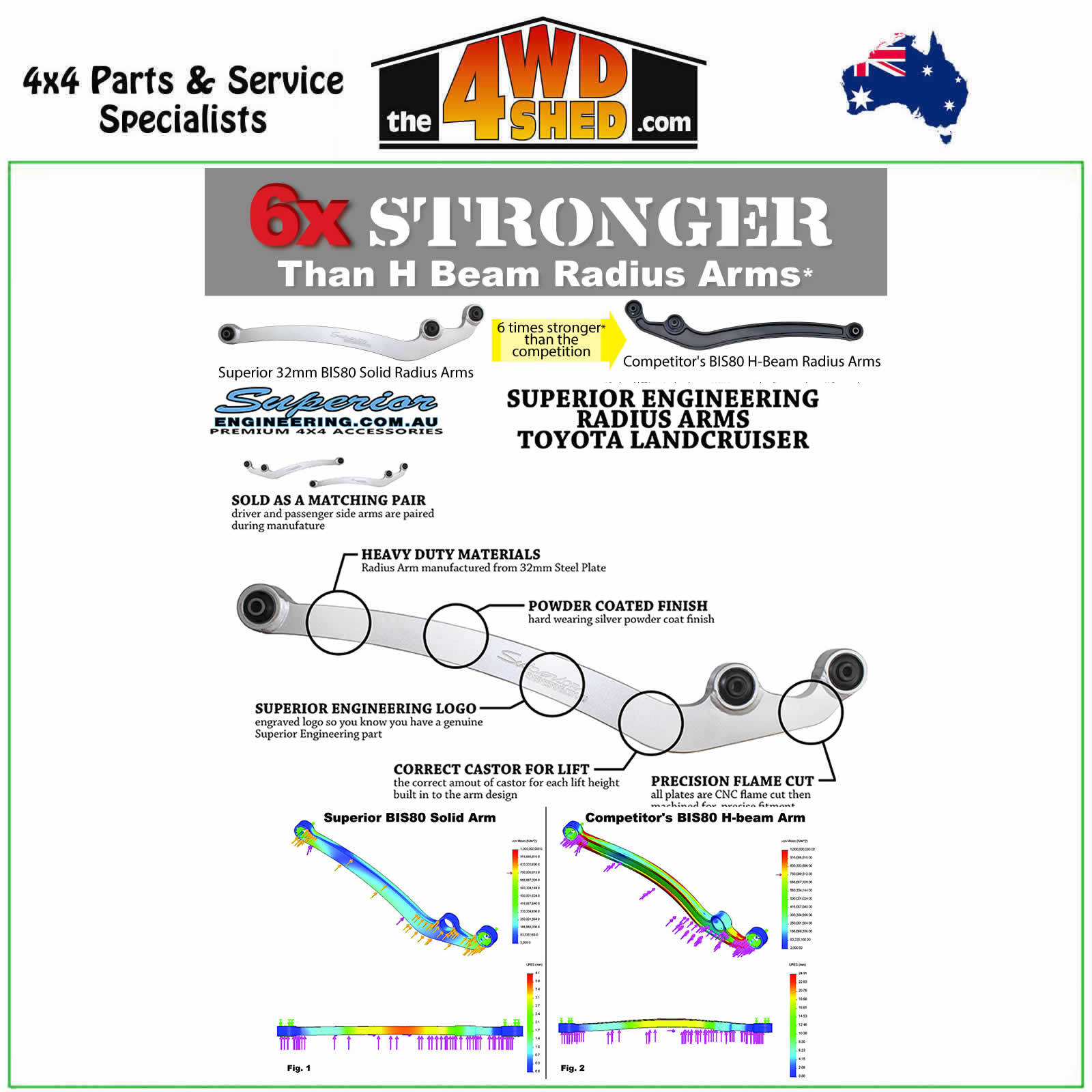

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

Note: Factory bump stops may need to be extended depending on the coils and shock combination used. Due to the huge variances in different weights of vehicles / heights variances and suspension combinations in vehicles it is highly recommended to move your suspension in the full range of the shock absorber compression / rebound travel and also taking into consideration coil bind, check all areas for clearance issues , if you require more assistance in this talk to one of our sales team for further advice.

Available in the following configurations

• 2 Inch Castor Correction (50476)
• 3 Inch Castor Correction (50477)
• 4 Inch Castor Correction (50478)
• 5 Inch Castor Correction (50479)
• 6 Inch Castor Correction (50480)
• 7 Inch Castor Correction (50481)

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However, extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Availability: Please call us to check availability, as there are a number of variations we may need to order these in.

The 4WD Shed is an Authorised Stockist for Superior Engineering.

Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If it's not listed on our website, please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.
