Superior Superflex Radius Arms Caster Correction Nissan Patrol GQ GU - PAIR

Superior Superflex Radius Arms Nissan Patrol GQ GU

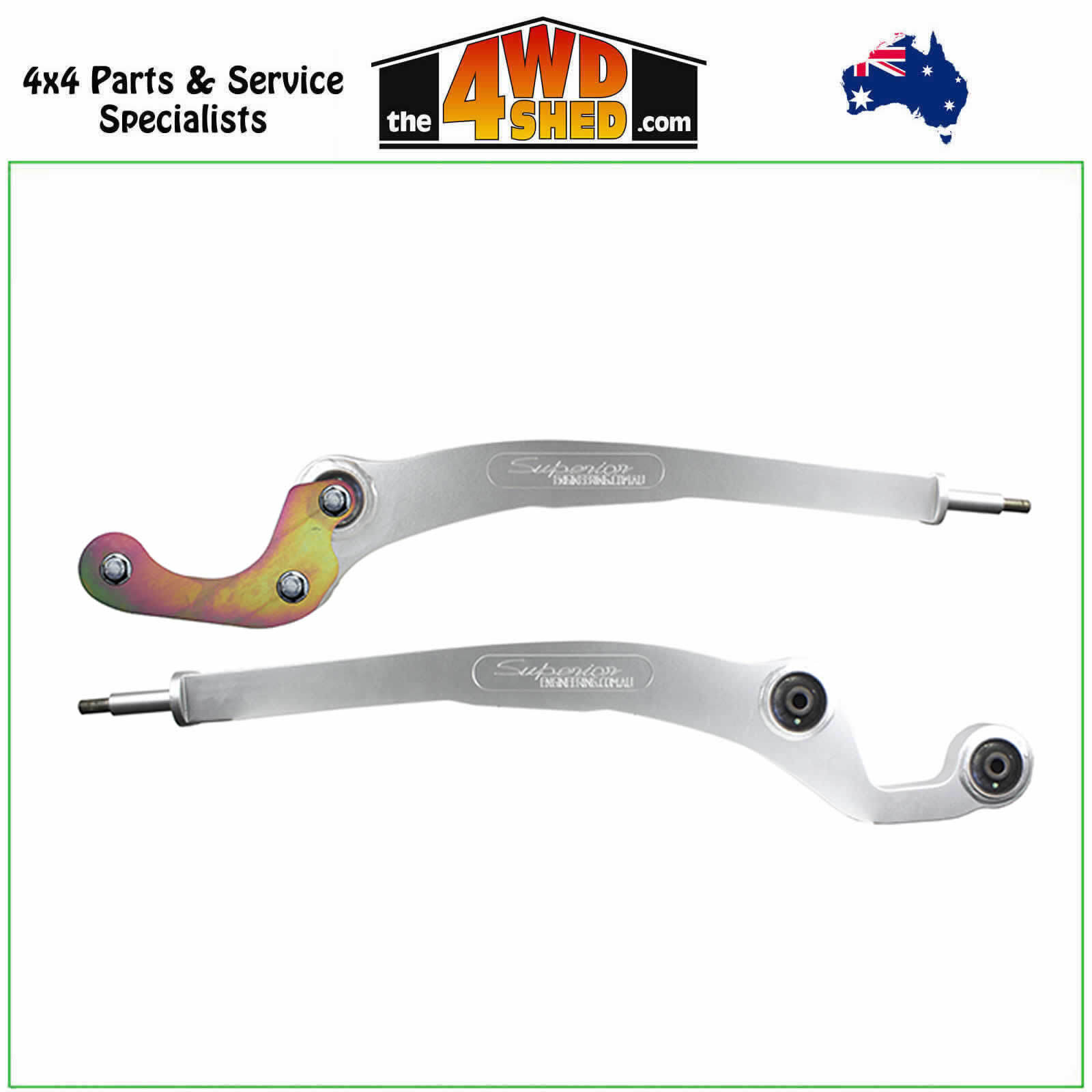

This is a pair of Superior Engineering Superflex Radius Arms suitable for a GQ/GU Nissan Patrol (Offroad Series) with a 2-6 inch lift.

Superior Engineering SUPERFLEX Radius arms were designed in 2008 for Competition Trucks to benefit from maximum articulation as well as Excellent High-Speed Handling as well.

Since their introduction to the Australian and overseas market, there has been a huge trend towards choosing Superior Engineering SUPERFLEX Arms over the standard Radius Arm design.

NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.

Features:

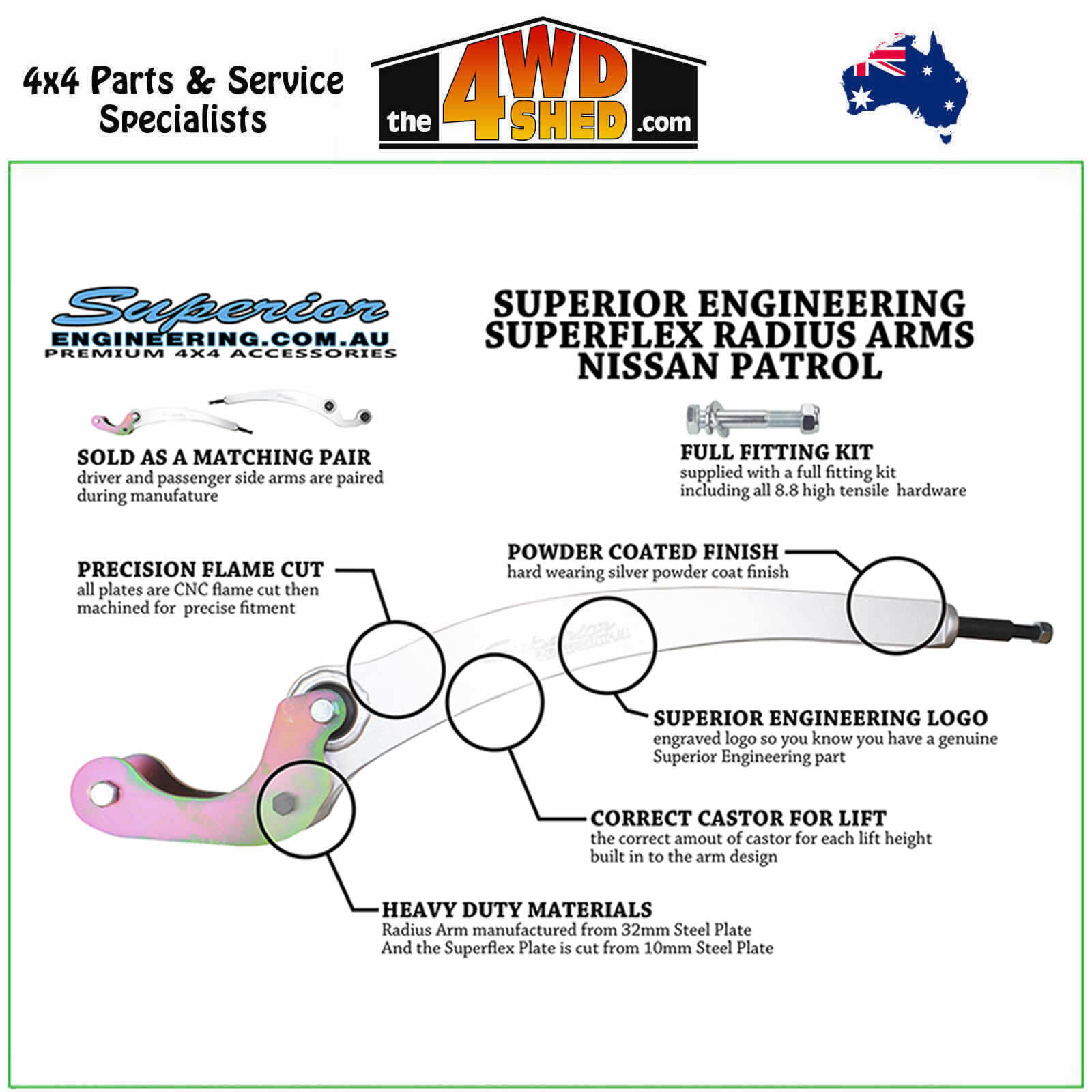

• Benefits of Superior Engineering SUPERFLEX Drop Radius Arms
• Manufactured from High Tensile Plate
• High Tensile Plate Bush Eyes
• Massive 32mm main Beam thickness for maximum strength
• Rubber Bushes pre-fitted into arms
• Laser-cut to precise measurement and caster location
• Authentic Superior Engineering Logo machined into the side of Arms
• SUPERFLEX ARMS are manufactured Suitable For various lifts
• Sandblasted with rust prevention applied
• Powder Coated for maximum durability and finish
• High Tensile Plate will not crack unlike Cast Radius Arms
• Sway Bar Adapter plate bracket and bolts have a SA5 Zinc coating for rust prevention
• Allows vehicle to track correctly on road due to correct caster
• Maximum Clearance between the Tie Rod and the Radius Arms
• Factory bushes fit the SUPERFLEX ARMS, We don't use special size Bushes
• Superior Engineering's Superflex arms are a Patented Design
• Patent No's. 2008202797, 2010100451, 2011904187
• 100% money-back Guarantee if you don't get more flex than your original or aftermarket Radius Arms!

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact, Superior Engineering Radius arms may bend but will never crack and fail

Note: Factory bump stops may need to be extended depending on the coils and shock combination used. Due to the huge variances in different weights of vehicles / heights variances and suspension combinations in vehicles it is highly recommended to move your suspension in the full range of the shock absorber compression / rebound travel and also taking into consideration coil bind, check all areas for clearance issues , if you require more assistance in this talk to one of our sales team for further advice.

Available in the following configurations

• 2 Inch Castor Correction (28872)
• 3 Inch Castor Correction (28873)
• 4 Inch Castor Correction (28874)
• 5 Inch Castor Correction (28875)
• 6 Inch Castor Correction (28876)

Please note that the rear Mushroom bushes are not supplied, and they can be purchased separately.

If you require mushroom bushes please let us know. These are available at additional cost.

NOTE: Please check ABS sensor lines (if fitted) are free to move through the full range of travel.

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However, extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Availability: Please call us to check availability, as there are a number of variations we may need to order these in.

SOLD AS PAIR
