Superior Superflex Radius Arms Toyota Landcruiser 76 78 79 Series 2.8ltr TD 10/2022-On

Superior Superflex Radius Arms Toyota Landcruiser 76 78 79 Series 2.8ltr TD 10/2022-On

PLEASE BE ADVISED: Fitment of Superior Superflex & Hyperflex Arms for Landcruiser requires permanent removal of the OE Sway Bar Mounts from your Diff Housing.

Superior Superflex & Hyperflex Arms for Landcruiser are provided with suitable provisions to re-install your OE Sway Bar once the arms are installed.

Superior Engineering SUPERFLEX Radius arms were designed in 2008 for Competition Trucks to benefit from maximum articulation as well as Excellent High Speed Handling as well.

Since their introduction to the Australian and overseas market there has been a huge trend towards choosing Superior Engineering SUPERFLEX Arms over the standard Radius Arm design.

Why not have extra flex as well as good on road handling?

Benefits of Superior Engineering SUPERFLEX Drop Radius Arms

• Manufactured from High Tensile Plate
• High Tensile Bush Eyes
• Massive 32mm main Beam thickness for maximum strength
• Rubber Bushes pre- fitted into arms
• Laser cut to precise measurement and caster location
• Authentic Superior Engineering Logo machined into side of Arms
• (Factory Sway bar will fit to allow safe on road handling)
• The Brackets to fit the sway bar are supplied at no extra cost
• They are manufactured Suitable For various lifts
• Sand blasted with rust prevention applied
• Powder Coated for maximum durability and finish
• High Tensile Plate will not crack unlike Cast Radius Arms
• Adapter plates and bolts have a SA5 Zinc coating for rust prevention
• Allows vehicle to track correctly on road due to correct caster
• Maximum Clearance between the Tie Rod and the Radius Arms
• Factory bushes fit the SUPERFLEX ARMS, We don't use special sizes Bushes
• Superior Engineering's Super flex arms are a Patented Design
• Patent No's. 2008202797, 2010100451, 2011904187
• 100% money back Guarantee if you don't get more flex than your original or aftermarket Radius Arms !

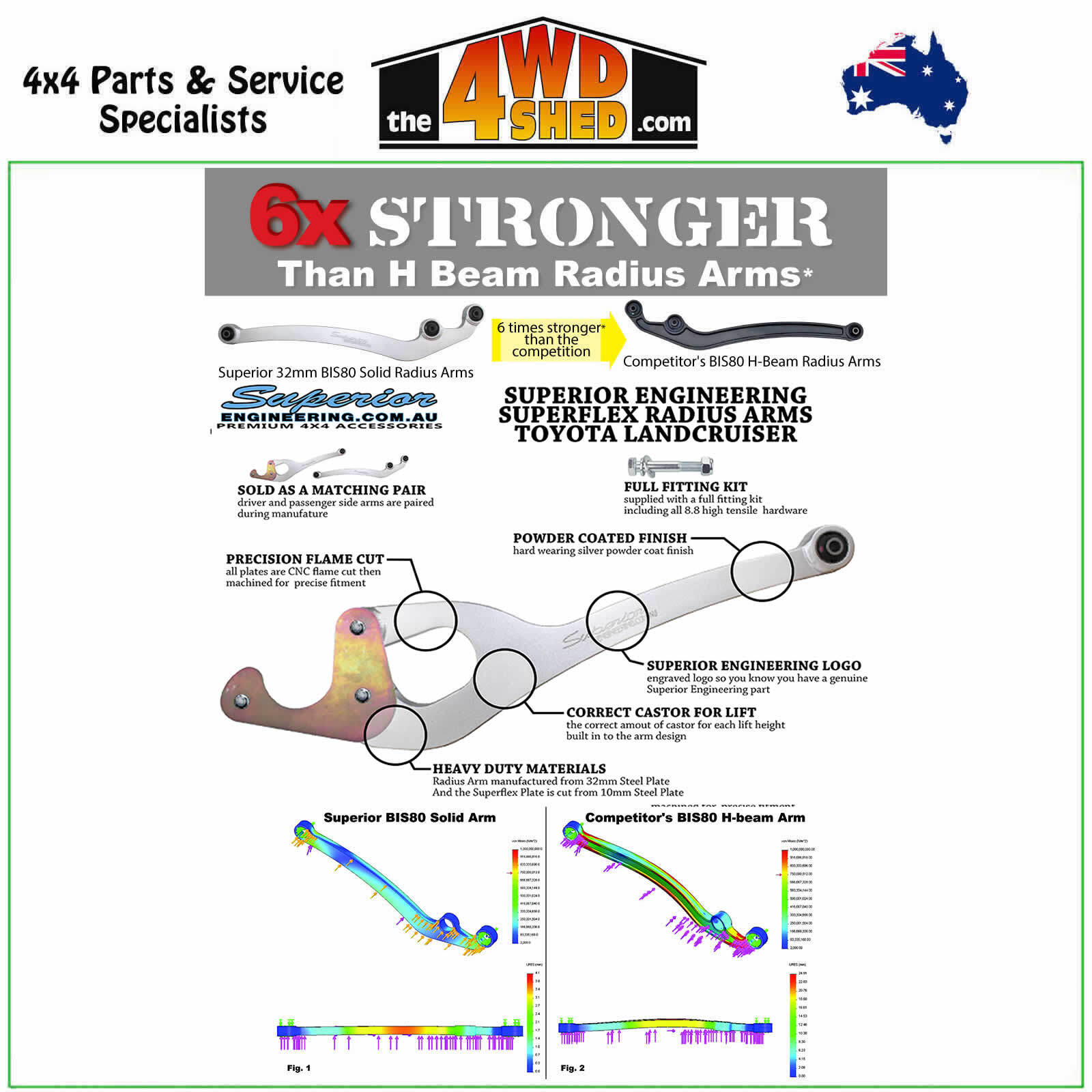

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail

Available in the following configurations

• 2 Inch Castor Correction (50482)
• 3 Inch Castor Correction (50486)
• 4 Inch Castor Correction (50487)
• 5 Inch Castor Correction (50488)
• 6 Inch Castor Correction (50489)
• 7 Inch Castor Correction (50490)
