Superior Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre July 2016


Buying Options

Quantity Image Name Price
2 inch 50mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 2 inch 50mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock
3 inch 75mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 3 inch 75mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock
4 inch 100mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 4 inch 100mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock
5 inch 125mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 5 inch 125mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock
6 inch 150mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 6 inch 150mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock
7 inch 175mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016 7 inch 175mm Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre 7/2016
$1,930.00
In stock

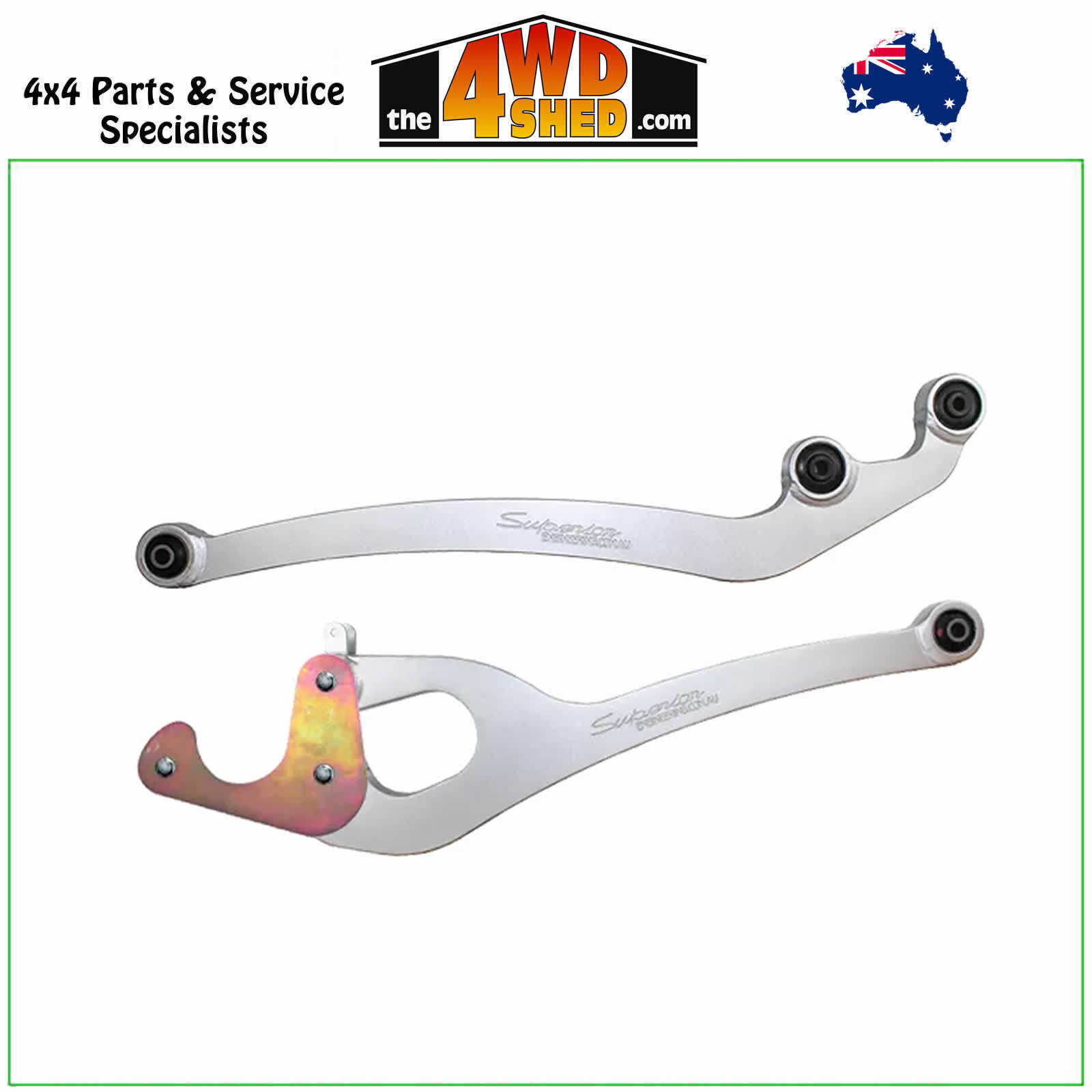

Superior Superflex Radius Arms Toyota Landcruiser 76 78 79 Series Pre July 2016

PLEASE BE ADVISED: Fitment of Superior Superflex & Hyperflex Arms for Landcruiser requires permanent removal of the OE Sway Bar Mounts

Superior Engineering SUPERFLEX Radius arms were designed in 2008 for Competition Trucks to benefit from maximum articulation as well as Excellent High Speed Handling as well.

Since their introduction to the Australian and overseas market there has been a huge trend towards choosing Superior Engineering SUPERFLEX Arms over the standard Radius Arm design.

NOTE: Due to a change in the chassis width of the 2017 on 76/78/79 series these arms will not fit, if you have a 2017 on model please refer to the image below to see if your vehicle is suitable for fitment of these arms.

Superior Superflex Radius Arms Suitable For Toyota LandCruiser 76/78/79 Series Pre July 2016 2 Inch (50mm) Castor Correction (Pair) - SUPRARM702

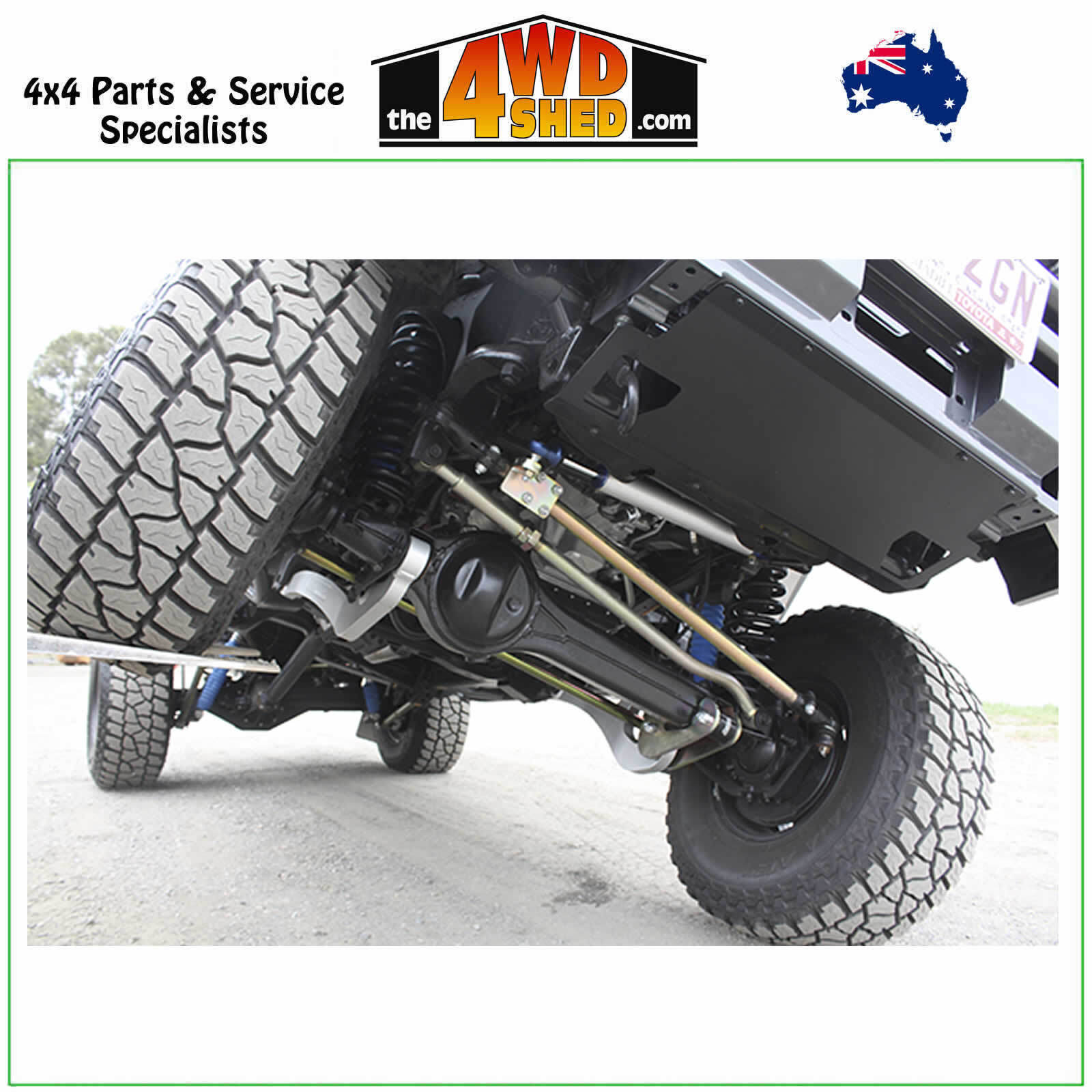

Why not have extra flex as well as good on road handling?



Benefits of Superior Engineering SUPERFLEX Drop Radius Arms

  • Manufactured from High Tensile Plate
  • High Tensile Bush Eyes
  • Massive 32mm main Beam thickness for maximum strength
  • Rubber Bushes pre- fitted into arms
  • Laser cut to precise measurement and caster location
  • Authentic Superior Engineering Logo machined into side of Arms
  • (Factory Sway bar will fit to allow safe on road handling)
  • The Brackets to fit the sway bar are supplied at no extra cost
  • They are manufactured Suitable For various lifts
  • Sand blasted with rust prevention applied
  • Powder Coated for maximum durability and finish
  • High Tensile Plate will not crack unlike Cast Radius Arms
  • Adapter plates and bolts have a SA5 Zinc coating for rust prevention
  • Allows vehicle to track correctly on road due to correct caster
  • Maximum Clearance between the Tie Rod and the Radius Arms
  • Factory bushes fit the SUPERFLEX ARMS, We don't use special sizes Bushes
  • Superior Engineering's Super flex arms are a Patented Design
  • Patent No's. 2008202797, 2010100451, 2011904187



Superior Superflex Radius Arms Suitable For Toyota LandCruiser 76/78/79 Series Pre July 2016 2 Inch (50mm) Castor Correction (Pair) - SUPRARM702

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real world load points.
Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

 Superior Superflex Radius Arms Suitable For Toyota LandCruiser 76/78/79 Series Pre July 2016 2 Inch (50mm) Castor Correction (Pair) - SUPRARM702

Cast radius arms are more vulnerable to breaking, leaving your vehicle undrivable and you stranded.

In the event of a major crash or major impact Superior Engineering Radius arms may bend but will never crack and fail.

Superior Superflex Radius Arms Suitable For Toyota LandCruiser 76/78/79 Series Pre July 2016 2 Inch (50mm) Castor Correction (Pair) - SUPRARM702

Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.

Suspension component performance chart

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However, extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Availability: Please call us to check availability, as there are a number of variations we may need to order these in.

The 4WD Shed is an Authorised Stockist for Superior Engineering.

Please Note: Though we try to keep the popular items in stock on occasion we may need to order from the warehouse. Superior Engineering manufacture thousands of products & we don't have the space to keep every item in stock at our retail store. If it's not listed on our website, please let us know & we can help you create an order. You are also more than welcome to contact us for availability before purchasing. We will notify you of any delays to your order, so please check your email for any updates.

(SE-19965)

SKU SE-19965
Brand Superior Engineering
Shipping Weight 40.0000kg
