Terrain Tamer Suspension Kit Nissan Patrol GQ SWB

Terrain Tamer Suspension Kit Nissan Patrol GQ SWB

Terrain Tamer kits contain everything you need to upgrade your existing leaf suspension on your vehicle & are designed to lift your vehicle within legal limits whilst providing comfort & durability expected in the 4WD industry.

Vehicle Fitment

• Nissan Patrol GQ SWB 1988-1997

Estimated Lift

• 40mm

Front Spring Options

• TTCS-0406 Front 40mm Coil Spring Up to 50kg (with Alloy Bullbar)
• TTCS-0407 Front 40mm Coil Spring Up to 100kg (with Steel Bullbar)
• TTCS-0409 Front 40mm Coil Spring Up to 150kg (with Steel Bullbar & Winch)

Rear Spring Options

• TTCS-0506 Rear 40mm Coil Spring Up to 50kg (Comfort)
• TTCS-0455 Rear 40mm Coil Spring Up to 150kg (Heavy Duty)
• TTCS-0454 Rear 40mm Coil Spring Up to 300kg (Heavy Duty Progressive Rate)
• TTCS-0460 Rear 40mm Coil Spring Up to 300-500kg (Heavy Duty Progressive Rate)

Front Shock Options

• G12114 Slimline G Series Shock 510mm Extension 310mm Compression
• TGS12491 TGS Expanded Body Shock Extension 510mm Compression 310mm

Rear Shock Options

• G12115 Slimline G Series Shock 654mm Extension 397mm Compression
• TGS12492 TGS Expanded Body Shock Extension 654m Compression 397mm

Steering Damper

• T14034 Heavy Duty 35mm Bore Steering Damper Eye/Eye
• T14034 Heavy Duty 35mm Bore Steering Damper Pin/Pin

Items which you can add at additional cost.

Panhards

• N83022 Adjustable Front Panhard
• N82500 Adjustable Rear Panhard

Caster Correction Kit

• TSBK0012 Synthetic Caster Correction Kit 2.5 Degree 25-50mm Raised Height
• TSBK0012R Rubber Caster Correction Kit 2.5 Degree 25-50mm Raised Height
• TSBK0013 Synthetic Caster Correction Kit 3.5 Degree Above 50mm Raised Height

*Caster Correction kits are recommended for up to 50mm. Above 50mm, then they are compulsory.

Front Sway Bar Parts

• YN54613-01J11 Bush D Type x2
• 56112-V0100 Bush Link Rod x4
• 56260-01J10 Ball/Pin Link Rod x2

Rear Sway Bar Parts

• 54613-06J10 Bush D Type 17mm ID x2
• 56112-V0100 Bush Link Rod x4
• 56260-01J10 Ball/Pin Link Rod x2 (10mm Ball Thread)

Please check the size, if you need a 12mm ball thread, we will need to make the change in the kit manually.

*56260-01J10 10MM BALL THREAD 54618-VB000TT 12MM BALL THREAD

Rear Suspension Bush Kits

• 55045-06J00 Trailing Arm Bushes x8
• TSBK0030 Trailing Arm Synthetic Bush Kit

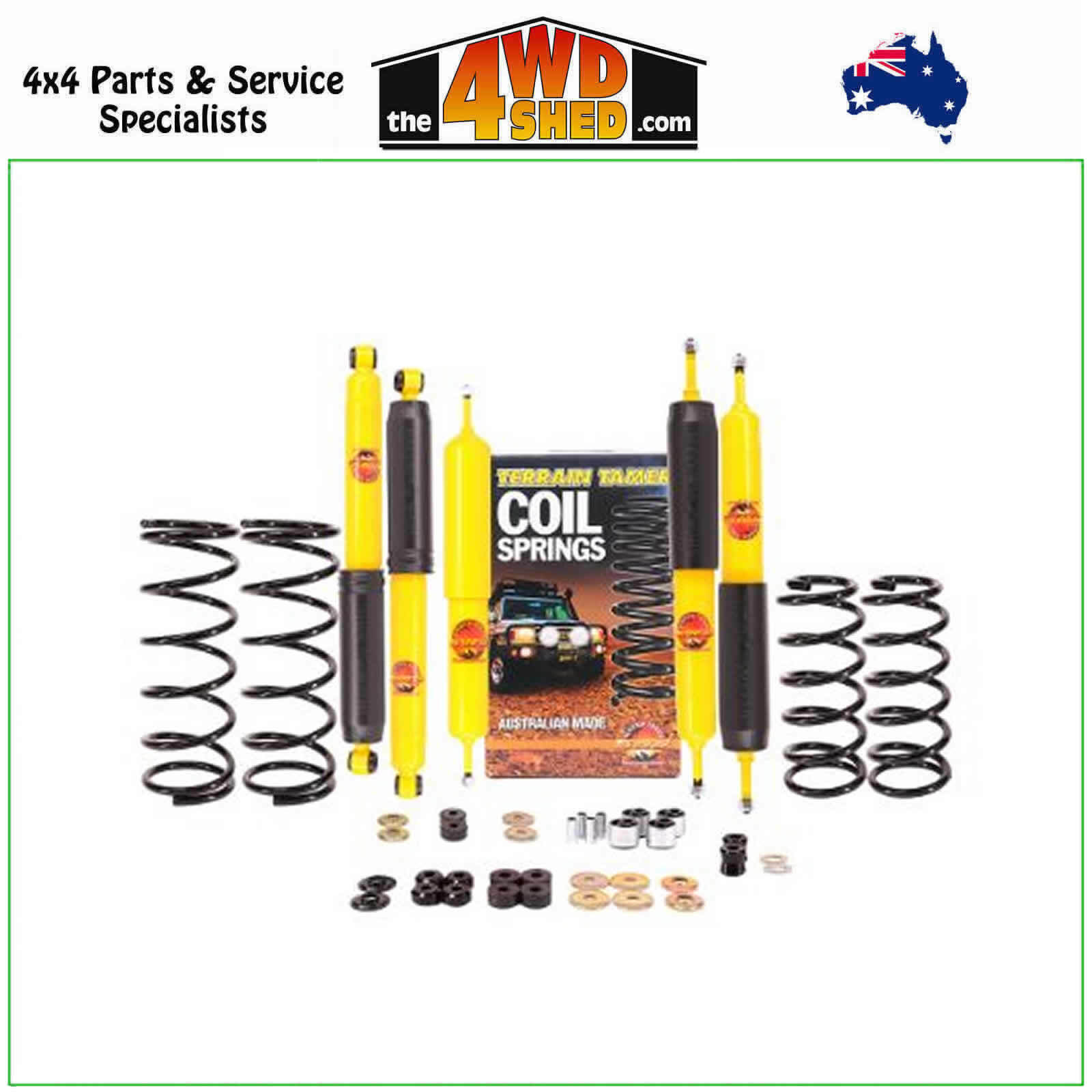

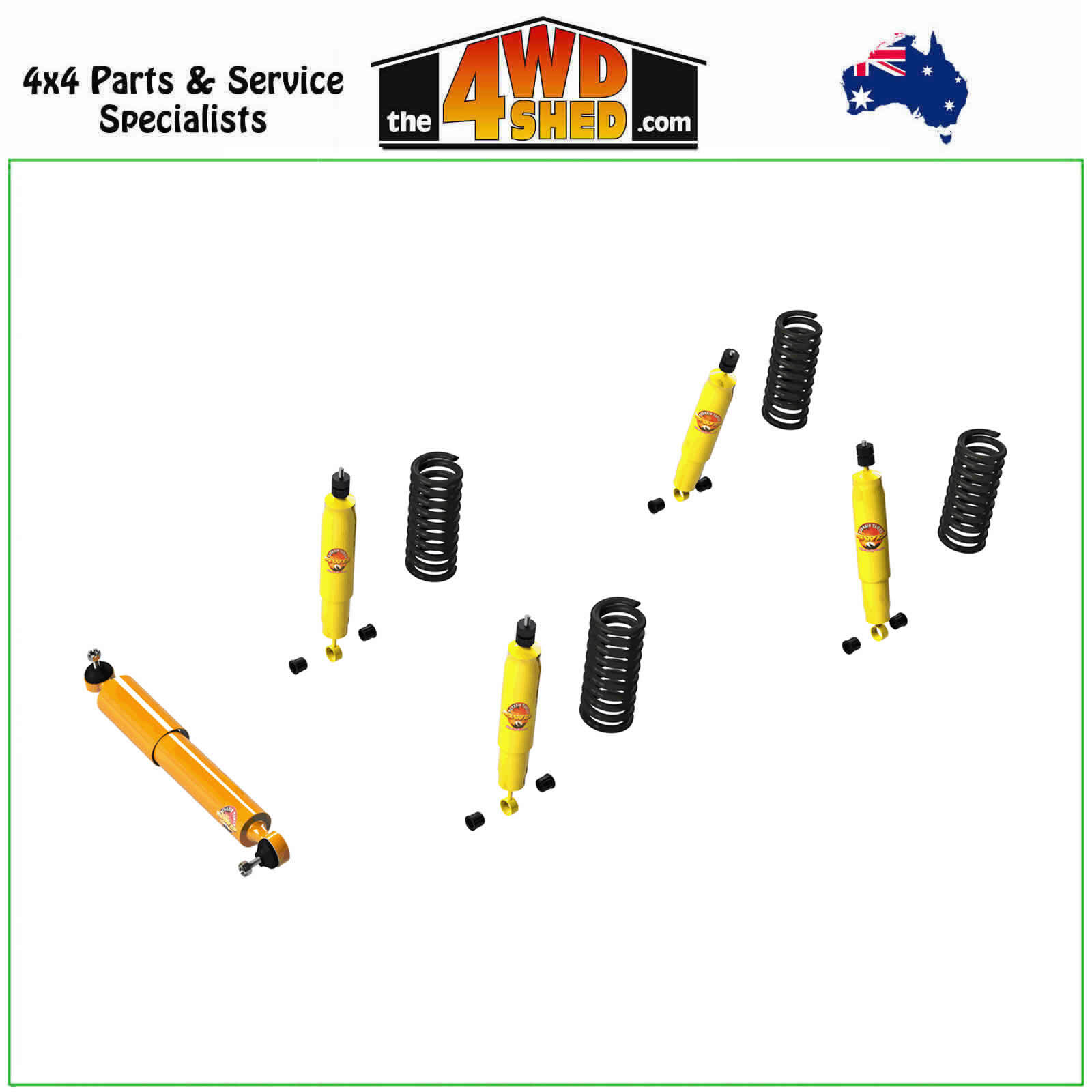

All Terrain Tamer Suspension kits will contain everything you need to set up your 4WD

• Shocks
• Springs
• Steering Damper (if required)
• Bushes
• Pin Kits
• U-Bolts

*Parts May Vary depending on kit choices available

About G Series Shocks

• 35mm bore diameter
• 16mm chrome hardened shaft
• 50mm outer body
• Twin Tube design
• Multistage valving system
• 3 year / 100,000km warranty (private use)
• Suitable for standard application

About TGS Expanded Body Shocks

• 40mm bore diameter
• 20mm chrome hardened shaft
• 60mm outer body
• Twin Tube design
• Double welded eyelets
• Multistage valving system
• German manufactured Nitrile seal
• 30-50mm lift, depending on application
• 3 year / 100,000km warranty (private use)
• Suitable for heavy-duty applications

About Anti-Friction Leaf Springs

Leaf springs have a tendency to squeak and grind with friction, making for a noisy and uncomfortable ride, and increasing the possibility of leaf wear during flex. While there are examples of rubber or polyurethane pads on the market aiming to combat these problems, they can end up being both costly and ineffective, often made from materials that result in splitting or premature wear.

Terrain Tamer’s in-built anti-friction pads are hard wearing and durable, placed between each of the leafs and on either side of the spring to deliver a long-lasting, easy and effective solution to common leaf spring issues.

• Made from ultra-high molecular weight polyethylene
• Stops friction caused by leafs rubbing together
• Reduces noise and provides a more comfortable ride

About Parabolic Leaf Springs

Parabolic leaf springs are a replacement for the conventional multi leaf spring, with ride comfort and articulation being their major advantage. A parabolic spring pack has a minimal number of leafs, with the leaf material being tapered. Utilising a new design on an old technology, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

Parabolic springs feature a parabolic taper, which means they are thicker in the centre and become thinner toward each end. This allows each leaf to work independently for enhanced flex, without sacrificing load capacity. The result is a quieter, more comfortable ride under a wide range of conditions.

• Lighter – Less unsprung weight
• Less Shock – Less shock load on the differential gears
• Quieter – The leafs do not touch each other
• Comfort – With Better articulation
• Better Ride Quality - Both Loaded & Unloaded

About SMART Coils

Australian made, TERRAIN TAMER SMART COILS are designed to reduce rebound forces travelling through the coil spring. This unique design with a tapered wire is made for front coil springs only.

As the driver turns or changes lanes, the progressive Smart Coil increases driver control and reduces wear on the suspension system.

• Australian made
• Tapered wire design
• Reduces the vehicle’s body roll
• Made from X5K Spring Steel

Fitting: Fitting of all Terrain Tamer products is available in our Bayswater workshop by our qualified fitters. Give the team a call on (03) 9720 8783 to book in your next mod!

Shipping Note: All Terrain Tamer Parabolic Suspension Kits are Pick Up from our Bayswater Vic store. If you require shipping, you will need to contact us for a personalised freight quote due to the size & weight of these kits.

Stock Availability: Contact us to check stock availability before ordering online. Though we try to keep popular movers in stock, we don't carry all makes & models. As suspension is highly selective to your needs, we may contact you to confirm your vehicle, weights, load carrying & use etc.
