Terrain Tamer Suspension Kit Toyota Hilux GGN25 KUN25 KUN26

Terrain Tamer Suspension Kit Toyota Hilux GGN25 KUN25 KUN26

Terrain Tamer kits contain everything you need to upgrade your existing leaf suspension on your vehicle & are designed to lift your vehicle within legal limits whilst providing comfort & durability expected in the 4WD industry.

Vehicle Fitment

• Toyota Hilux GGN 3/2005-Onwards
• Toyota Hilux KUN25 8/2004-Onwards
• Toyota Hilux KUN26 3/2005-Onwards

Estimated Lift

• 40mm

Front Spring Options

• TTCS-1777 Front Raised 40mm Coil Spring Up to 50kg (with Bullbar)
• TTCS-1695 Front Raised 40mm Coil Spring 50-100kg (with Bullbar)
• TTCS-1696 Front Raised 40mm Coil Spring 100kg+ (with Bullbar & Winch)
• TTCS-2302T Front Raised 40mm Coil Spring Standard (Smart Coil No Accessories Petrol)
• TTCS-2303T Front Raised 40mm Coil Spring Up to 50kg (Smart Coil Bullbar Diesel)
• TTCS-2304T Front Raised 40mm Coil Spring 50-100kg (Smart Coil Bullbar & Winch)
• TTCS-2412T Front Raised 40mm Coil Spring 100kg+ (Smart Coil Heavy Duty)

Rear Spring Options

• THL104 Rear Raised 40mm Leaf Spring Up to 100kg (Comfort Constant Load Dual & Extra Cab)
• THL104 Rear Raised 40mm Leaf Spring Up to 200kg (Comfort Constant Load Single Cab)
• THL105P Rear Raised 40mm Parabolic Leaf Spring Up to 400kg (Parabolic HD Single & Extra Cab)
• THL106 Rear Raised 40mm Leaf Spring Up to 300kg (HD Constant Load Dual & Extra Cab)
• THL106 Rear Raised 40mm Leaf Spring Up to 400kg (HD Constant Load Single Cab)
• THL107 Rear Raised 40mm Leaf Spring Up to 400kg (HD Constant Load Dual & Extra Cab)
• THL107 Rear Raised 40mm Leaf Spring Up to 500kg (HD Constant Load Single Cab)
• THL108 Rear Raised 40mm Leaf Spring 500kg+ (Extra HD Single Extra or Dual Cab)
• THL108P Rear Raised 40mm Leaf Spring 400-700kg (Parabolic Extra HD Single Extra & Dual Cab)

Front Shock Options

• TGSKUN26F TGS Expanded Body Shock Extension 555mm Compression 425mm

Rear Shock Options

• TGSKUN26R TGS Expanded Body Shock Extension 600mm Compression 375mm

Shackles

• Greasable Shackle Kit

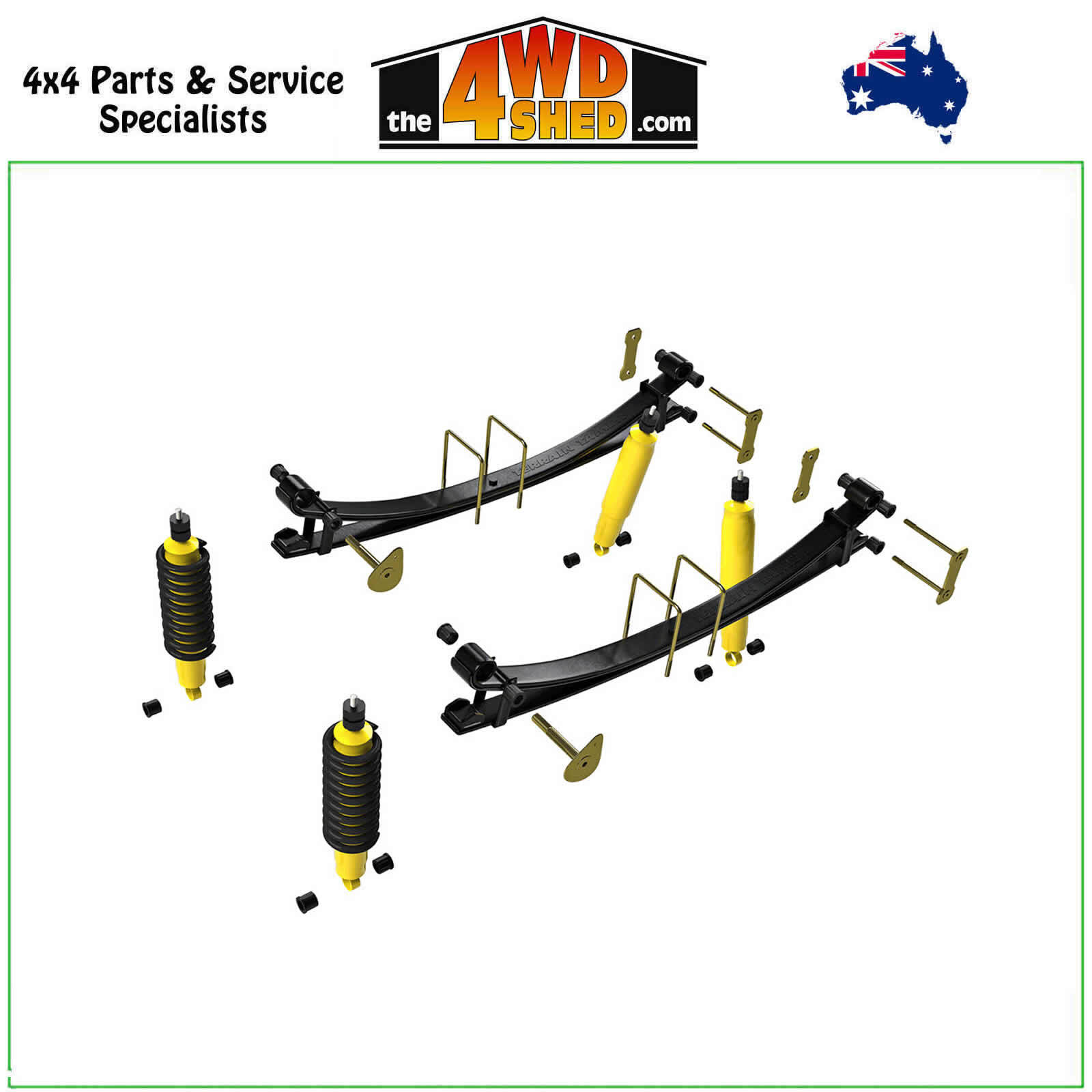

All Terrain Tamer Suspension kits will contain everything you need to set up your 4WD

• Shocks
• Springs
• Steering Damper (if required)
• Bushes
• Pin Kits
• U-Bolts

*Parts May Vary depending on kit choices available

About G Series Shocks

• 35mm bore diameter
• 16mm chrome hardened shaft
• 50mm outer body
• Twin Tube design
• Multistage valving system
• 3 year / 100,000km warranty (private use)
• Suitable for standard application

About TGS Expanded Body Shocks

• 40mm bore diameter
• 20mm chrome hardened shaft
• 60mm outer body
• Twin Tube design
• Double welded eyelets
• Multistage valving system
• German manufactured Nitrile seal
• 30-50mm lift, depending on application
• 3 year / 100,000km warranty (private use)
• Suitable for heavy-duty applications

About Anti-Friction Leaf Springs

Leaf springs have a tendency to squeak and grind with friction, making for a noisy and uncomfortable ride, and increasing the possibility of leaf wear during flex. While there are examples of rubber or polyurethane pads on the market aiming to combat these problems, they can end up being both costly and ineffective, often made from materials that result in splitting or premature wear.

Terrain Tamer’s in-built anti-friction pads are hard wearing and durable, placed between each of the leafs and on either side of the spring to deliver a long-lasting, easy and effective solution to common leaf spring issues.

• Made from ultra-high molecular weight polyethylene
• Stops friction caused by leafs rubbing together
• Reduces noise and provides a more comfortable ride

About Parabolic Leaf Springs

Parabolic leaf springs are a replacement for the conventional multi leaf spring, with ride comfort and articulation being their major advantage. A parabolic spring pack has a minimal number of leafs, with the leaf material being tapered. Utilising a new design on an old technology, the parabolic springs allow for a comfortable ride whether the vehicle is fully loaded or empty.

Parabolic springs feature a parabolic taper, which means they are thicker in the centre and become thinner toward each end. This allows each leaf to work independently for enhanced flex, without sacrificing load capacity. The result is a quieter, more comfortable ride under a wide range of conditions.

• Lighter – Less unsprung weight
• Less Shock – Less shock load on the differential gears
• Quieter – The leafs do not touch each other
• Comfort – With Better articulation
• Better Ride Quality - Both Loaded & Unloaded

About SMART Coils

Australian made, TERRAIN TAMER SMART COILS are designed to reduce rebound forces travelling through the coil spring. This unique design with a tapered wire is made for front coil springs only.

As the driver turns or changes lanes, the progressive Smart Coil increases driver control and reduces wear on the suspension system.

• Australian made
• Tapered wire design
• Reduces the vehicle’s body roll
• Made from X5K Spring Steel

Fitting: Fitting of all Terrain Tamer products is available in our Bayswater workshop by our qualified fitters. Give the team a call on (03) 9720 8783 to book in your next mod!

Shipping Note: All Terrain Tamer Parabolic Suspension Kits are Pick Up from our Bayswater Vic store. If you require shipping, you will need to contact us for a personalised freight quote due to the size & weight of these kits.

Stock Availability: Contact us to check stock availability before ordering online. Though we try to keep popular movers in stock, we don't carry all makes & models. As suspension is highly selective to your needs, we may contact you to confirm your vehicle, weights, load carrying & use etc.
