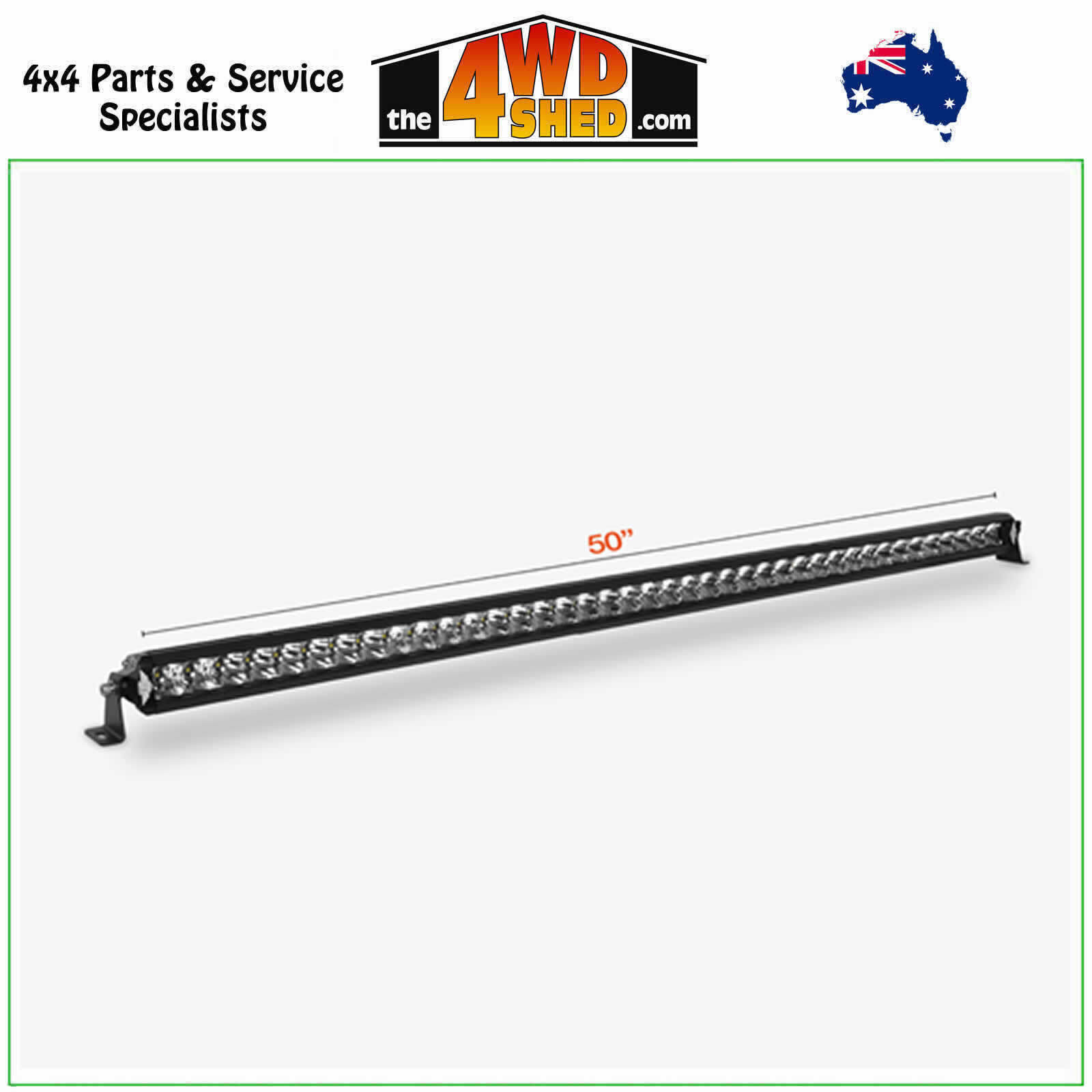

Ultimate9 LED 50" Light Bar

Ultimate9 LED 50" Light Bar - 50 inch

Expose the darkest of nights with our Ultimate9® LED Light Bars.

Why LED?

Exploring in the darkest of nights is safer and more enjoyable when equipped with the right gear. That is why LED Lighting has quickly become the first choice in off-road illumination.

When compared to halogen and HID options, LED lights are often made with extruded aluminium housings and polycarbonate lenses, offering far superior resilience against extreme vibrations, weather conditions, and impacts. Other benefits include longer lifespans, larger & greater fields of illumination and far more diversity in their applications due to a smaller footprint design.

With so many appealing features for off-roading in particular, it’s easy to identify why LED lighting is such a popular choice.

THE RIGHT LIGHT

LED technology continues to rapidly evolve, with new chip designs, optic profiles, and more streamlined manufacturing processes becoming accessible - ultimately expanding the availability of premium components.

Subsequently, increasing the availability of affordable lighting solutions.

Our team at Ultimate9 have more than 20 years of experience in automotive lighting, working alongside some of the largest offroad lighting brands in the industry.

Drawing from that experience, we're able to construct an LED lighting range that is not only powerful in performance but incorporate components once only found in high-end counterparts. Only, now with an attractive price.

With 5 sizes to choose from, the Ultimate9 LED Light Bars are an affordable lighting solution with market-leading features & performance.

Our sleek, single row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore® PolyVents for ultimate housing ventilation.

Encased in high-grade aluminium and protected by impact-resistant Lexan® Polycarbonate lenses, their rugged construction will last for years to come.

Features:

• 20, 26, 30, 40, & 50" Size Range
• Ingress Protection Rating of IP68/IP69K
• GE Lexan® Poly Carbonate Lens
• Gore® PolyVent Breather
• DuPont® Coated, 6063 Aluminium Housing
• 50,000 Hour Lifespan

Water & Dust Protected

To protect internal circuitry from damage that arises from moisture & dust ingress, Ultimate9 LED Light Bars are tested to ensure they meet the highest IP rating - IP68 & IP69K

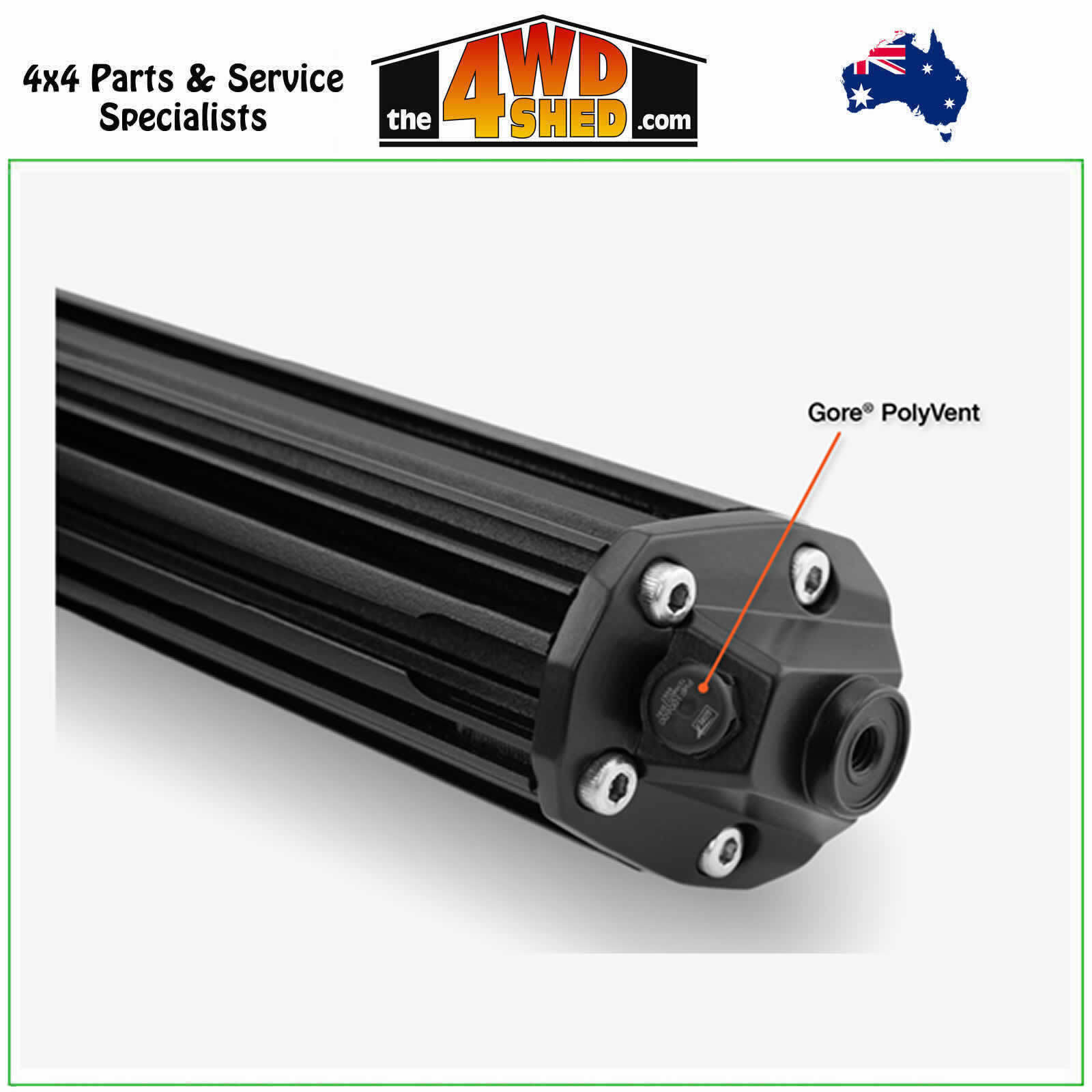

Ventilated

Although sealed, LED Bars also need to breathe to relieve pressure build-up as the light heats & cools. Utilising a Gore® PolyVent ensures internal pressure can equalise to prevent seal failure & moister/dust ingress - eliminating lens condensation & fogging.

Coating

While aluminium anodised surface coatings are corrosion-resistant over time, they fade from UV damage. DuPont® Polymer powder coats instead provide much higher UV & corrosion resistance and remain their chosen colour longer.

Lens

Lexan®, used for its strength in well-known products such as astronaut helmet visors, bulletproof glass, fighter jet canopies, ballistic eyewear, replaces glass and plastic lenses. UV, scratch and impact-resistant, Lexan®s ability to mould into complex shapes help form hardened, optically clear lenses for superior performance.

Optics

For improved visibility in changing conditions and environments, a combination of flood and spot reflector optic patterns offer both wide-angled and long spread illumination.

Tested & Certified

IP, vibration, UV, corrosions, RoHS, temperature exposure, impact, and EMC tests ensure Ultimate9 LED Light Bars exceed operational conditions and electrical standards for longevity & legal fitment.

Features:

•  Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
• IP68 for term long submersion and total dust ingress.
• IP69K for stream jet cleaning.
• Ventilation: Gore® PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063 grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont® coating.
• Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.

Kit Includes:

• LED Light Bar

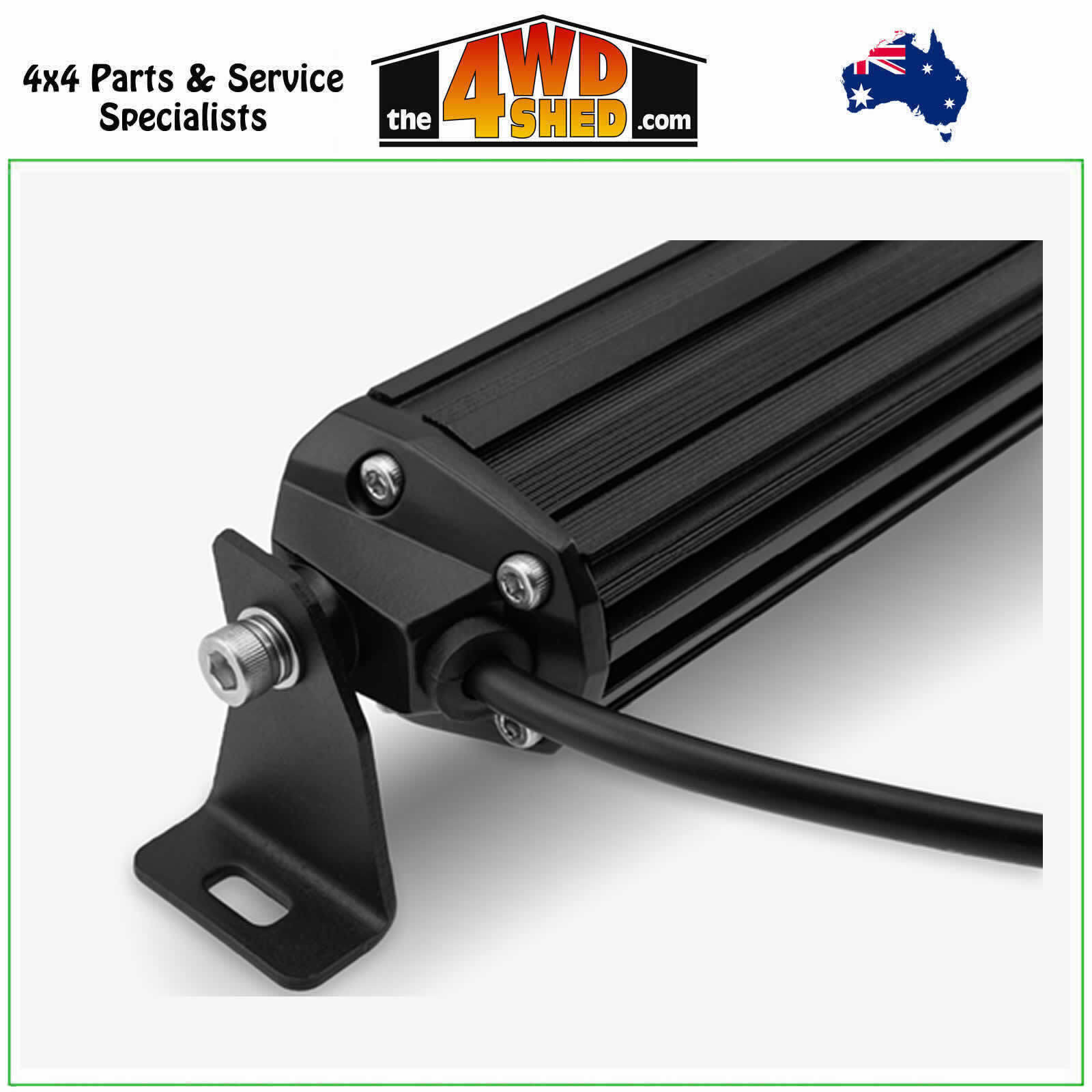

• Side-Mount Brackets & Hardware

*Harnesses available separately - See Specifications for more info.*

The 4WD Shed is an Authorised Stockist & Installer of all Ultimate9 products.

WHAT HARNESS DO I NEED?

Single Output Connector

Ultimate9 40" & 50" Light Bars, intended for roof mounting, utilise our Single Output Harnesses.

Lighting installed further from a battery, such as the roof of a vehicle, can experience a voltage drop - a drop in electrical potential from travelling along a longer path. Our Single Output Harness uses a larger DTP connector & heavier gauge AWG wire to reduce voltage drop.

Twin Output Connector

Ultimate9 20", 26", & 30" LED Light Bars, more often fitted at the front of vehicles, utilise our Twin Output Harness.

The Twin Output Harness is capable of powering two 20", 26" or 30" bars simultaneously.

Work Lamp Harnesses

Ultimate9 Work Lamps come supplied with their own individual harness. However, in the case of mounting two Work Lamps, our Twin Output Harnesses can be utilised.

Specifications

• Input Power: 9-36V
• Beam Pattern: Flood & Spot Combination
• Beam Spread: 8° Spot & 20° Flood
• Power: 218W
• Current Draw: 16.5A @ 13.2V
• Raw Lumen: 23,800 lm
• Effective Lumen: 10,854 lm
• Beam @ 1 Lux: 625m
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: 6063 Aluminium
• Housing Coating: DuPont®
• Lens Material: GE Lexan® Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Gore® PolyVent
• Weight: 3.36Kg

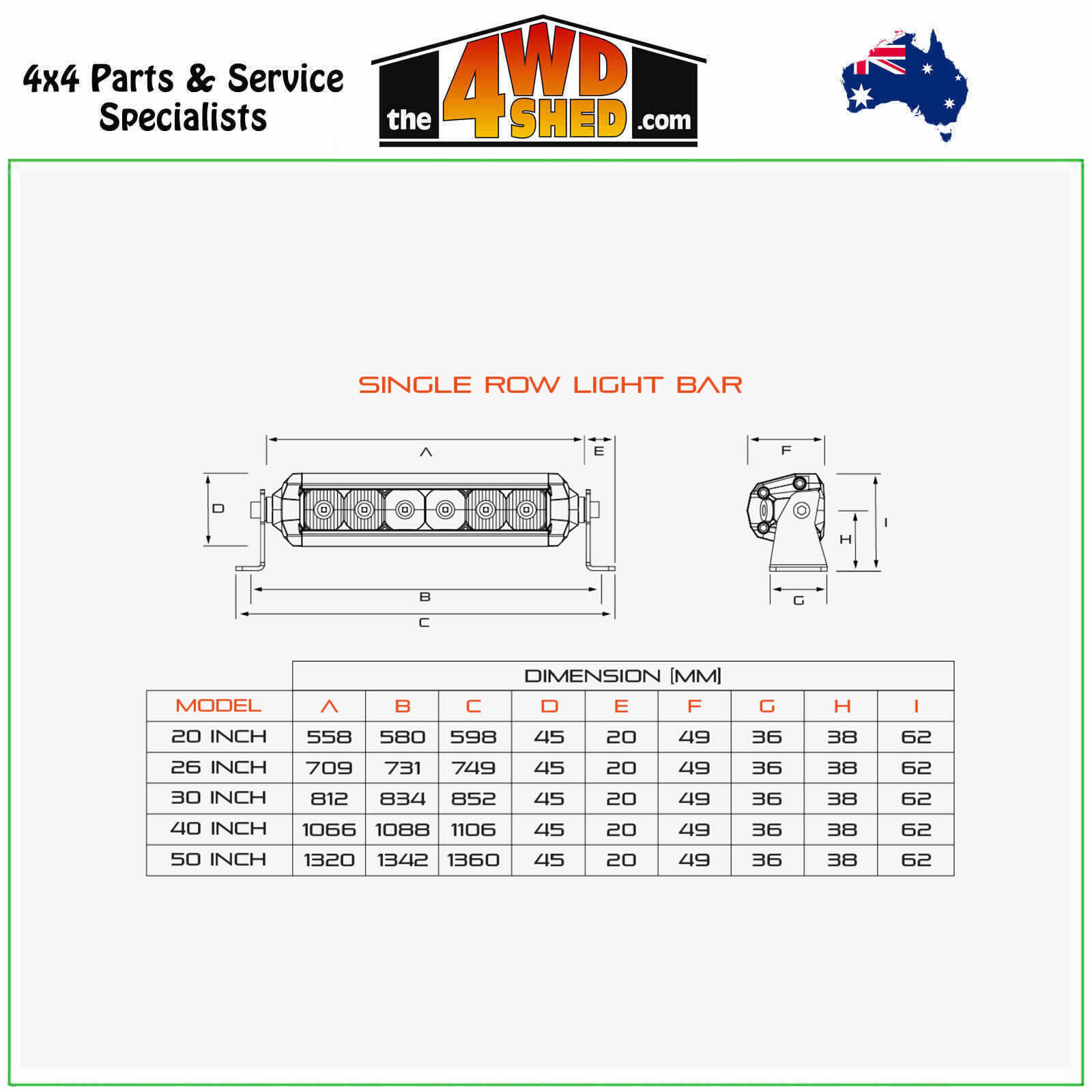

• Body Dimensions: (L)1320 x (H)46 x (W)49mm
• Lens Dimensions: 50" (1270mm)
• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM
• Required Harness: ULTLEDHDHS
