Ultimate9 LED Work Lamp Flush Mount
More infoUltimate9 LED Work Lamp Flush Mount
Brilliant performance projected in a driving beam pattern.
Features:
- Driving Beam Pattern
- 6 x Osram Grade A 5W LED Chips
- Ingress Protection Rating of IP68/IP69K
- GE Lexan® Polycarbonate Lens
- Military Grade Breather
- DuPont® Coated, Die Cast Aluminium Housing

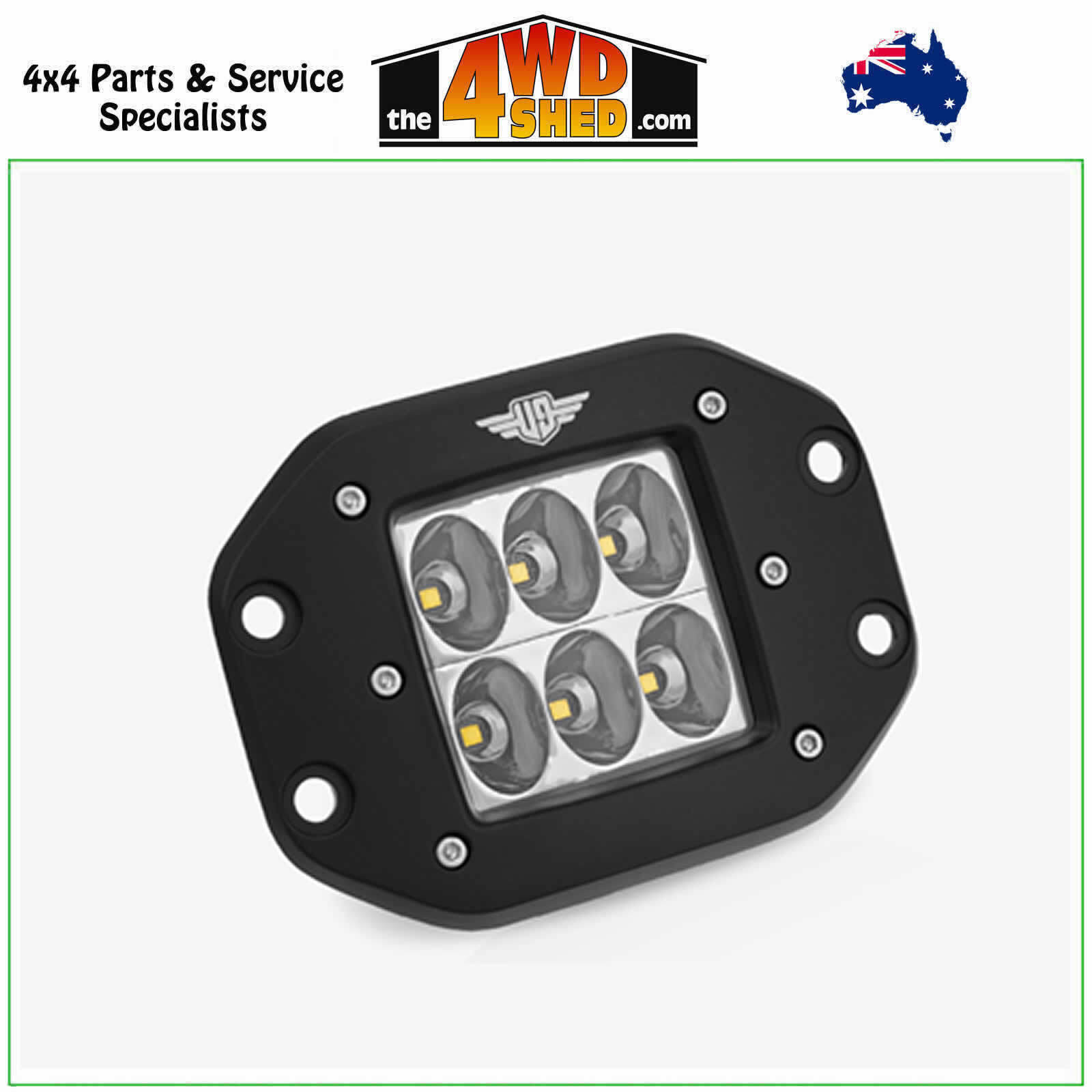

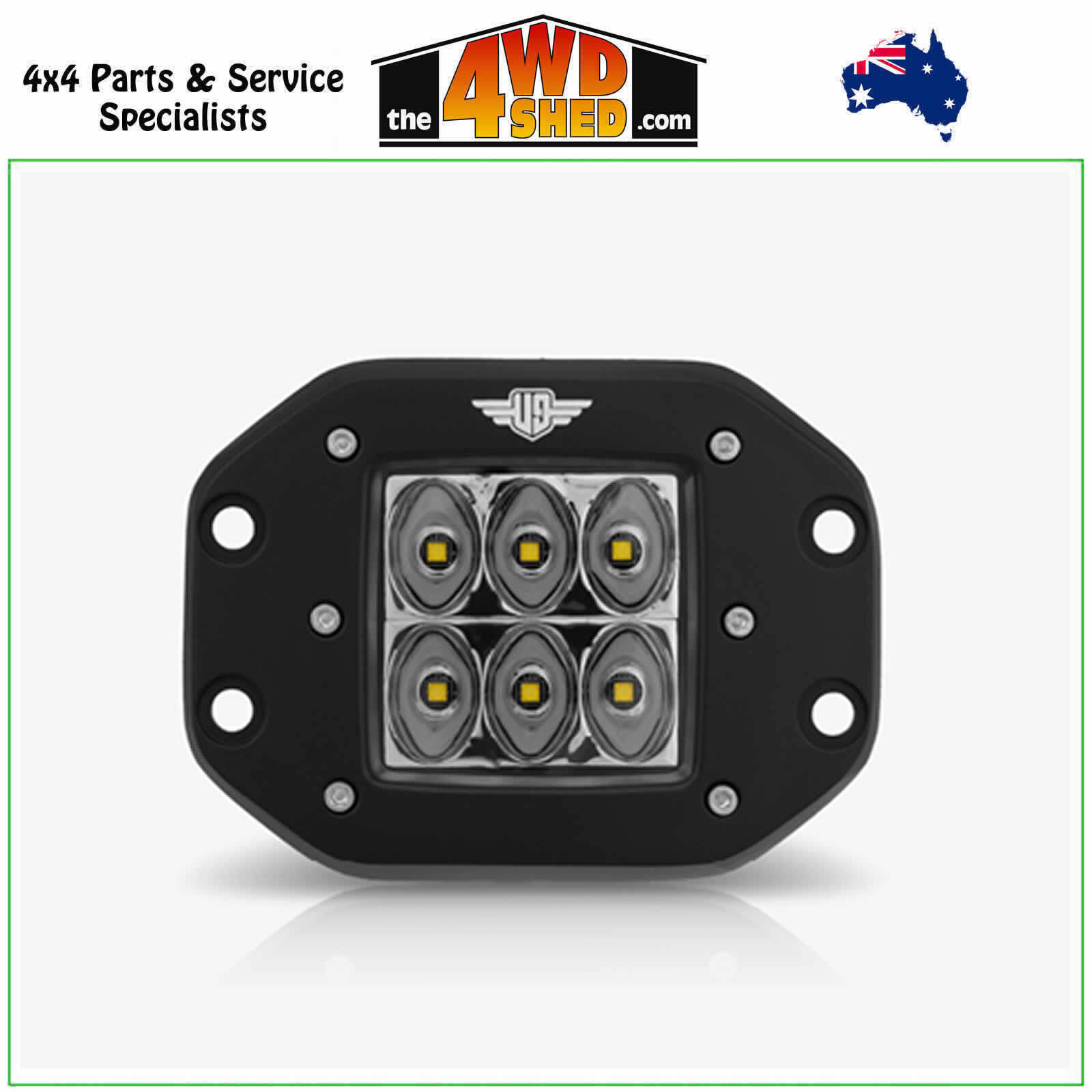

For a clean and factory looking build, it's hard to look past flush mount lights - enter the Ultimate9 Work Lamp: Flush Mount.

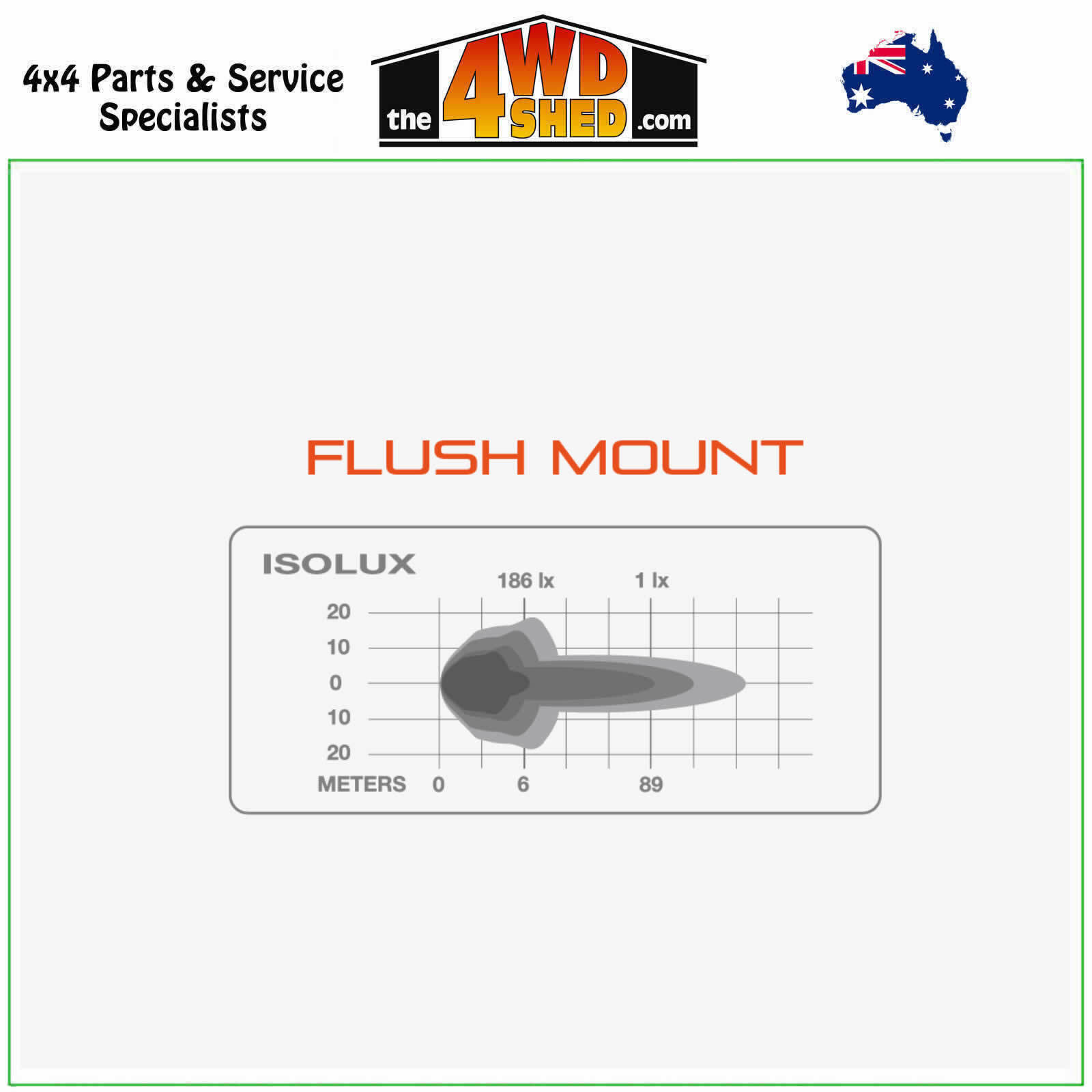

With x6 Osram 5W LED chips, a driving pattern reflector, and a Lexan® Polycarbonate lens - the Flush Work Light will cast a clean beam of light, reaching 1 Lux at 89m. Paired well with bull bars & nudge bars to uncover terrain immediately approaching while keeping a tidy finish.
Tested to meet the highest waterproof ratings, a 6063 grade aluminium housing and military grade breather allow wider & greater heat dissipation - improving longevity.
Features:
- Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
IP68 for term-long submersion and total dust ingress.

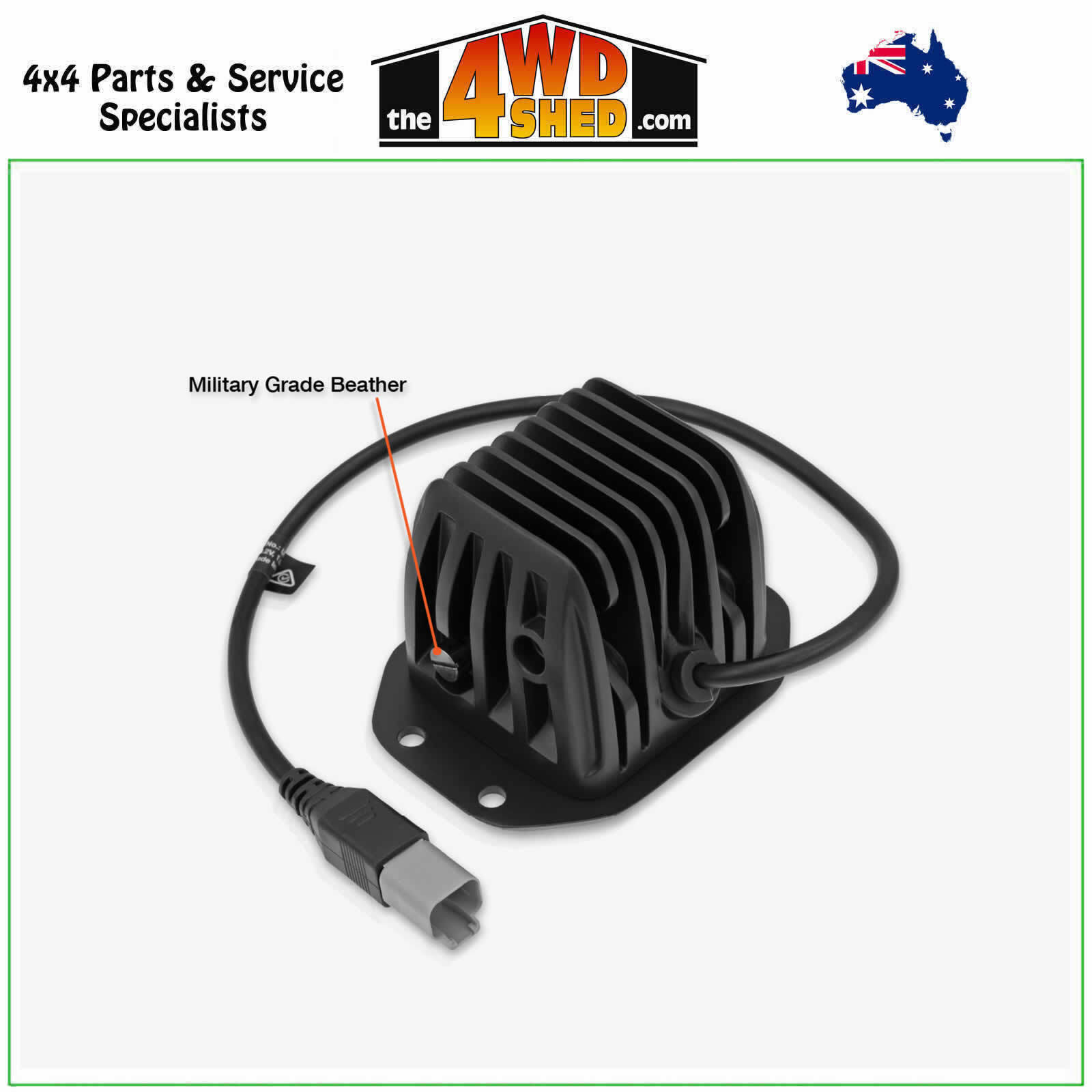

IP69K for stream jet cleaning. - Ventilation: Military grade breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: Die-cast 6063 aluminium housing with 304 Stainless Steel fastener. Overlaid with a UV & corrosion resistant Dupont® coating.
- Lens: GE Lexan® Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Driving Beam Pattern.
- Technology: 6x Grade A Osram 5W LED chips & sealed DT connectors.
What Harness Do I Need
Ultimate9 Work Lamps come supplied with their own individual harness. However, when installing two Work Lamps, our Twin Output Harnesses can also be utilised
Kit Includes
- Work Lamp: Flush Mount
- 304 Stainless Steel fastener
- Wiring Harness: 2.5m Relay ~ DT connector | 1.3m Relay ~ Light Switch | 1.3m Relay ~ Power Terminals
The 4WD Shed is an Authorised Stockist & Installer of all Ultimate9 products.
Specifications
- Input Power: 9-36V
- Beam Pattern: Driving
- Power: 30W
- Current Draw: 1.5A @ 13.2V
- Effective Lumen: 1,396 lm
- Beam @ 1 Lux: 89m
- LED Chips: Osram 5W
- Colour Temp: 6000-6500K
- Housing Material: Die Cast 6063 Aluminium
- Housing Coating: DuPont®
- Lens Material: GE Lexan® Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Military Grade
- Weight: 0.9Kg, Loom - 0.25Kg
- Body Dimensions: (L)123 x (H)92 x (W)83mm
- Lens Dimensions: 2" x 2" (50 x 50mm)
- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
(ULTLEDWL020)
