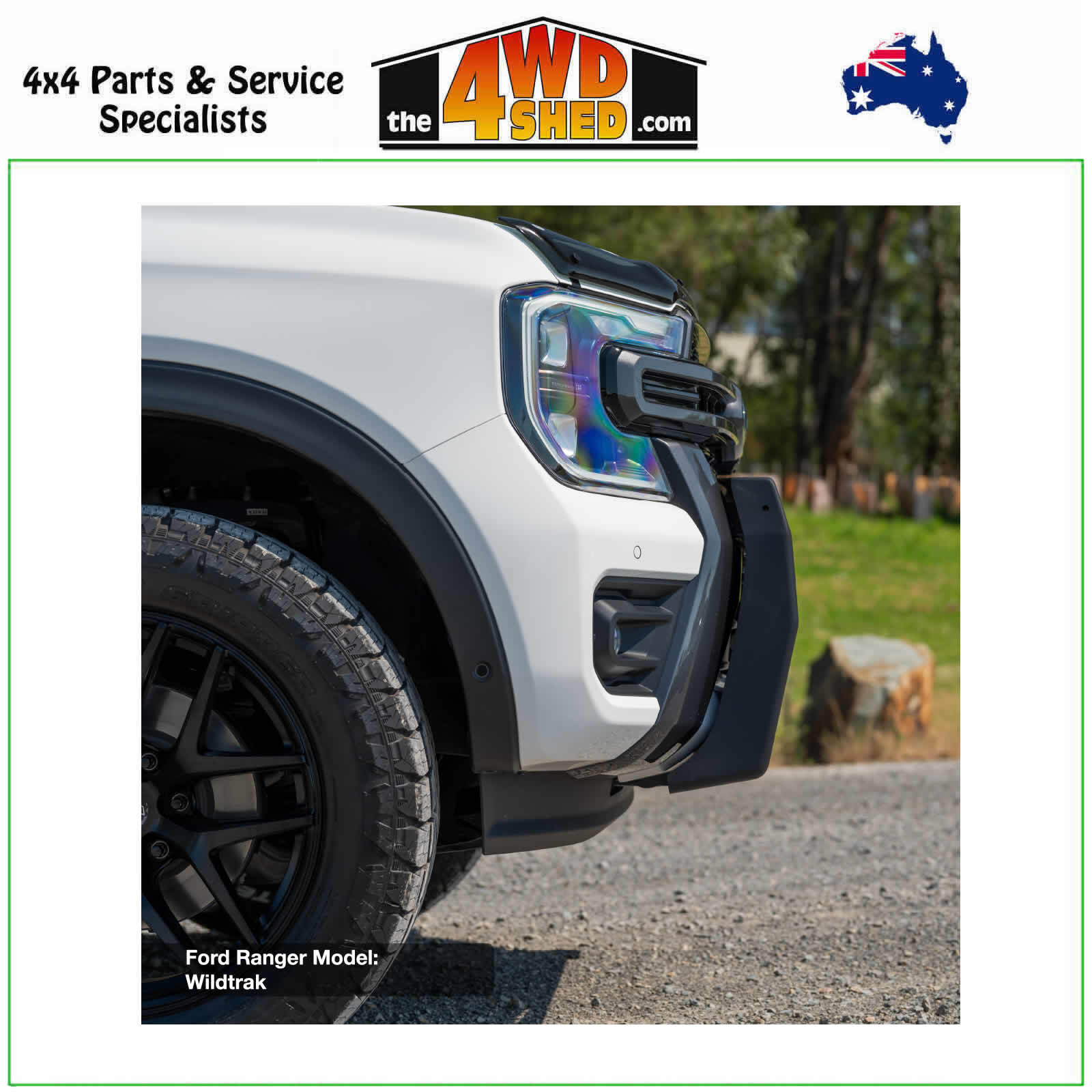

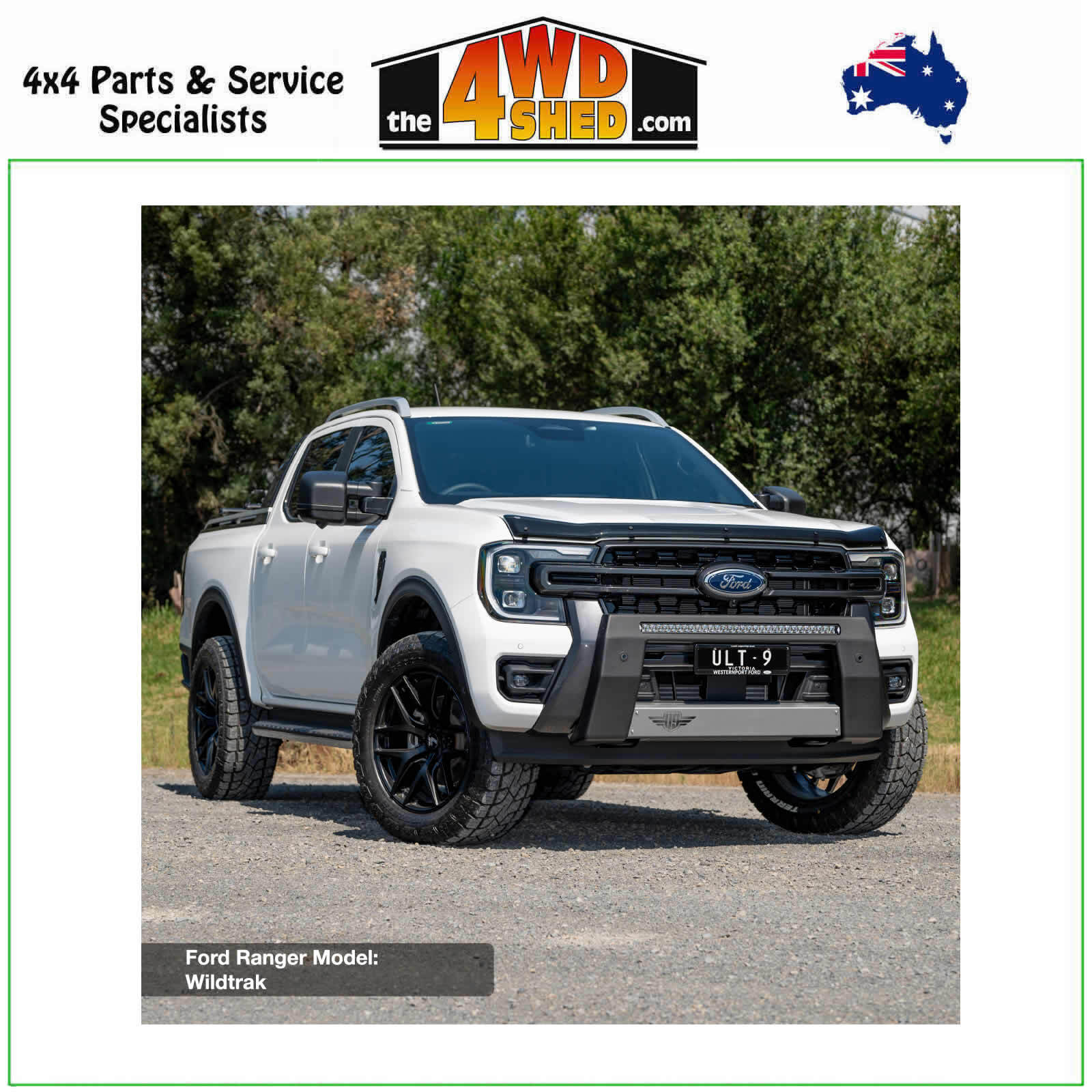

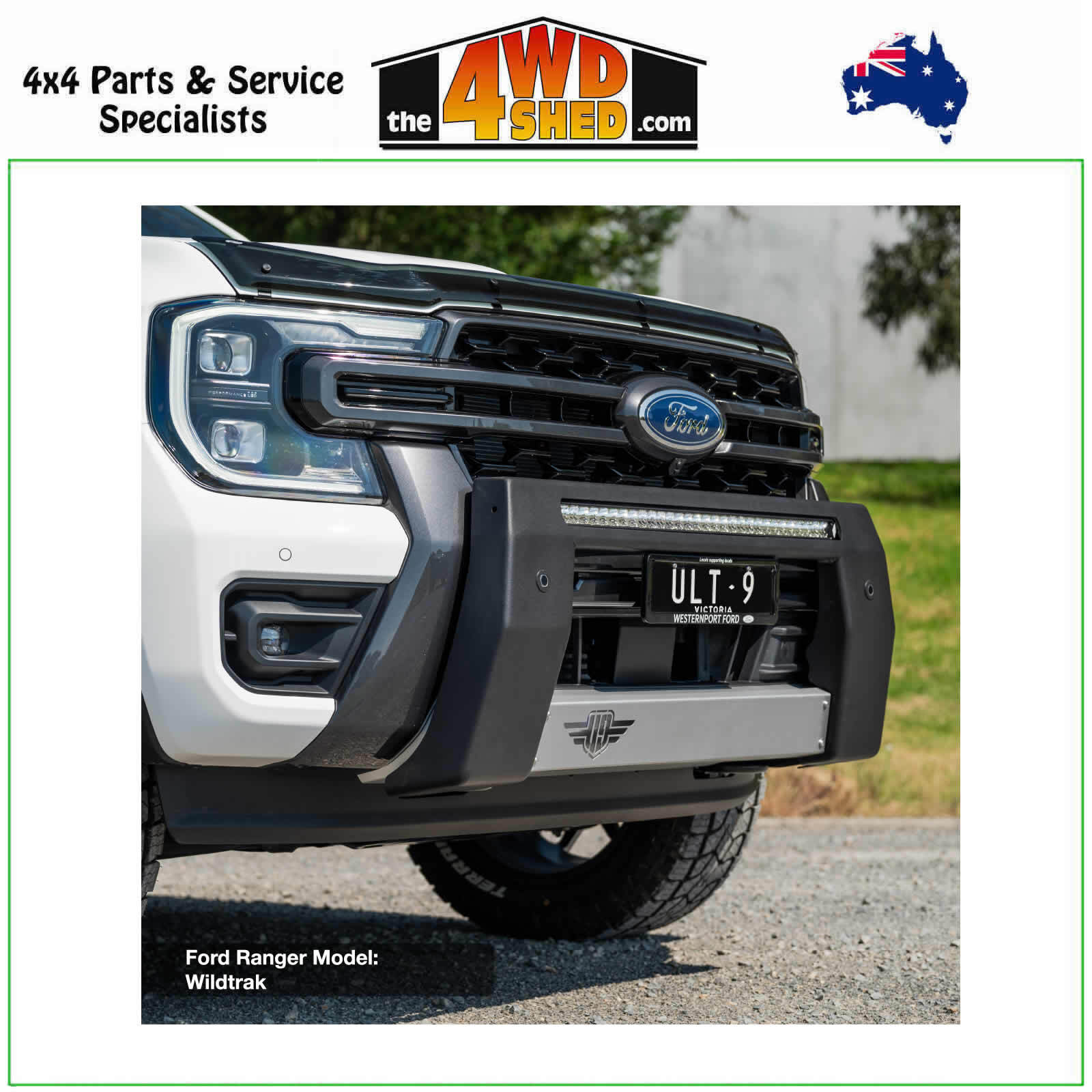

Ultimate9 Nudge Bar Ford Ranger Wildtrak Next Gen T6 2022-On
More infoThe Ultimate Nudge Bar to suit Ford Ranger Next Gen T6 (2022-On)
*Wildtrak Models Only
AUSSIE MADE & ADR COMPLIANT
Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.
Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.
Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.
Finished in a Black textured powder coat with a Silver coated centre pan for corrosion protection and a modern feel.
Suits the following Ranger variants:
- Wildtrak
Features:
- Australian-made: Designed, engineered, and manufactured in Australia.
- Steel Frame: 100% Australian-made steel.
- Airbag Compatible: Tested for airbag compatibility
- ADR Compliant: Designed to meet ADR standards.
- Low Profile: Over bumper design with minimal forward projection
- LED Lighting: Includes an Ultimate9 LED Light Bar 30"
- Lightweight: Weighing under 30Kg with included light bar
- Corrosion Protected: Zinc-plated.
- Finish: Black textured powder coat & silver coated centre pan
Ultimate9 Nudge Bars
Designed, Engineered, & Manufactured in Australia with Australian Steel.
Steel Construction
Manufactured with 100% Australian-made, 3mm steel for a rigid design.
Form-Fitting
Designed with modern vehicle styling in mind, contouring to the vehicle for minimal forward projection.
Integrated Light Bar
Bundled with an Ultimate9 LED Light Bar that nestles behind the front face with access holes for adjustment.
Coating
Zinc-plated for corrosion protection & powder coated with Dulux Mannex Black textured powder coat with a Silver Pearl coated centre pan.
Accessory Provision
Included points for UHF & mobile phone antennas, and additional Ultimate9 LED Light Bars.
ADR Compliant & Airbag Compatible
Designed to meet ADR standards and tested for airbag compatibility.
Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.
Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.
Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.
Finished in a Dulux Mannex Black textured powder coat with a Satin Silver coated centre pan for corrosion protection and a modern feel.
Kit Includes:
Models with Upfitter
- Nudge Bar
- Ultimate9 LED Light Bar 30"
- DTP Connector Kit
- Parking Sensor Extension Looms
- Parking Sensor Holders
- Parking Sensor Blanking Plates
- Slimline Number Plate Mount
- Installation Hardware
- Instructions
Models without Upfitter
- Nudge Bar
- Ultimate9 LED Light Bar 30"
- Ultimate9 Auxiliary Loom Twin Output Connector
- Illuminated Rocker Switch
- High Beam Adaptor
- Parking Sensor Extension Looms
- Parking Sensor Holders
- Parking Sensor Blanking Plates
- Slimline Number Plate Mount
- Installation Hardware
- Instructions
Our included Deutsch DTP connector kit makes it a breeze to hook up the integrated light bar and control it with switch #6 for models equipped with the overhead auxiliary switch panel. Illuminate your adventure.
Specifications:
- Material (nudge bar): 3mm steel
- Material (centre pan): 1.6mm steel
- Material (mounts): 6mm steel
- Protective coat: Zinc Plated
- Finish Coat (nudge bar): Black textured Powder Coat
- Finish Coat (centre pan): Silver Powder Coat
- ADR Compliant
- Airbag Compatible
- Dimensions: (L) x (W) x (H)
- Weight: < 30Kg
