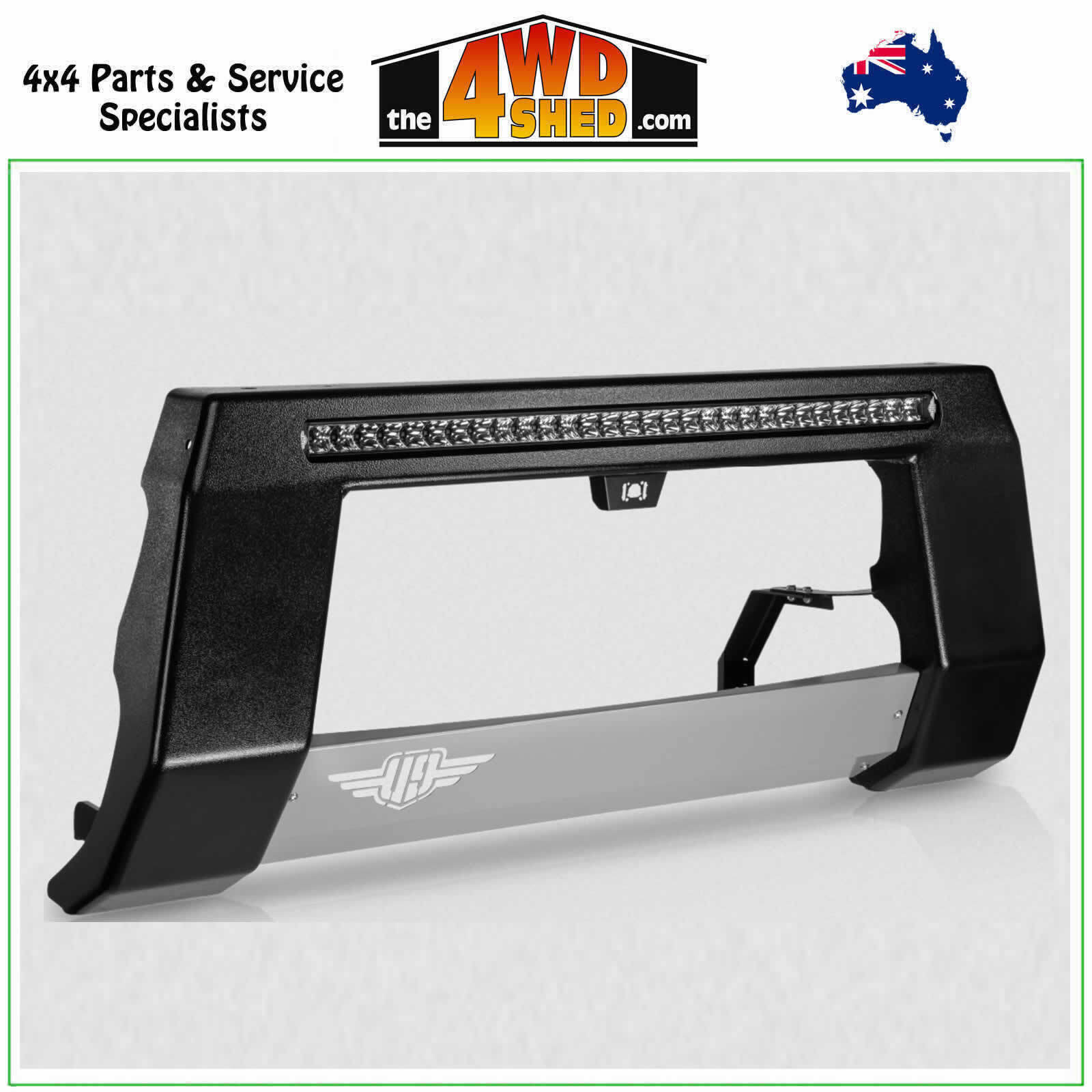

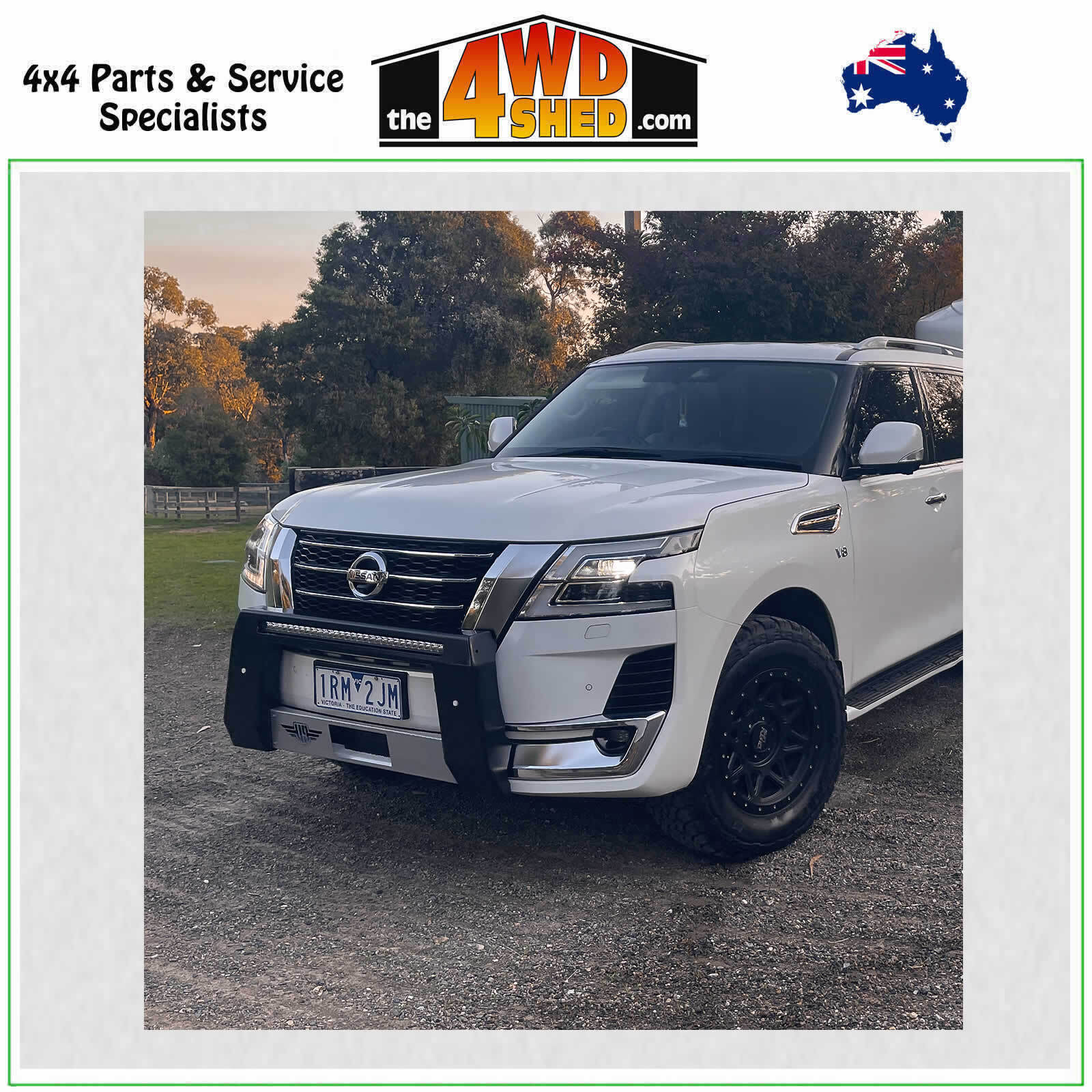

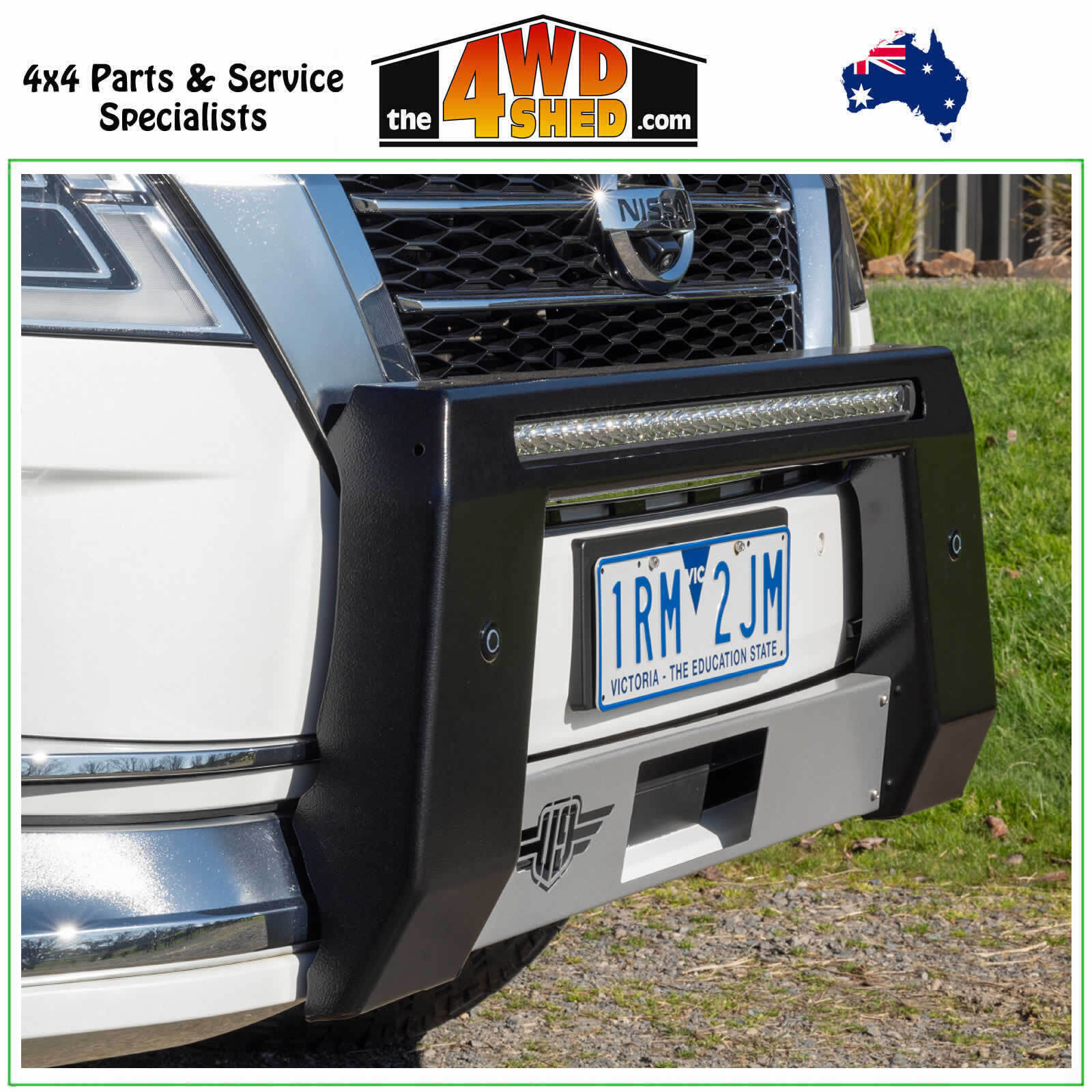

Ultimate9 Nudge Bar Nissan Patrol Y62 Ti S5 2019-On
More infoThe Ultimate Nudge Bar to suit Nissan Patrol Y62 Series 5 Ti (2019-On)
AUSSIE MADE & ADR COMPLIANT
Ultimate9 Nudge Bars add strength through their form-fitting package that contours to the face of modern vehicles for minimal forward projection.
Designed, engineered, and manufactured in Australia with Australian-made steel, our vehicle-specific designs accommodate OE vehicle safety features such as radar sensors, front cameras, and parking sensors - and are airbag compatible and ADR compliant.
With a lightweight design, adding under 30kg, there's plenty of extra room for other essential automotive accessories or cargo without overloading your vehicle.
Nudge Bars are often utilised as a platform to mount additional lighting, the Ultimate9 Nudge Bar is no exception, taking this to the next level.
In addition to provisional mounting points for accessories such as sand flags, UHF antennas and lighting, every Ultimate9 Nudge Bar comes equipped with an Ultimate9 LED Light Bar and a wiring harness that integrates perfectly into the bar's design.
Features:
- Designed, Engineered & Manufactured in Australia
- ADR Compliant
- Airbag Compatible
- Steel Construction
- Zinc Plated & Powder Coated
- Lightweight
- Ultimate9 LED Light Bar 30"
Ultimate9 Nudge Bars
Designed, Engineered, & Manufactured in Australia with Australian Steel.
Steel Construction
Manufactured with 100% Australian-made, 3mm steel for a rigid design.
Form-Fitting
Designed with modern vehicle styling in mind, contouring to the vehicle for minimal forward projection.
Integrated Light Bar
Bundled with an Ultimate9 LED Light Bar that nestles behind the front face with access holes for adjustment.
Coating
Zinc-plated for corrosion protection & powder coated with Dulux Mannex Black textured powder coat with a Silver Pearl coated centre pan.
Accessory Provision
Included points for UHF & mobile phone antennas, and additional Ultimate9 LED Light Bars.
ADR Compliant & Airbag Compatible
Designed to meet ADR standards and tested for airbag compatibility.
Ultimate9 Nudge Bars provide a layer of protection for the front of your vehicle to shield vital components such as the radiator in the event of an accident.
Their design has a low impact on front-end weight and also functions as a mounting platform with provision for UHF & mobile phone antennas, sand flags and additional Ultimate9 LED Light Bars.
Designed, engineered and manufactured in Australia with Australian 3mm steel, the low-profile, over-bumper design offers minimal forward projection and is packaged with an Ultimate9 LED Light Bar nestled in the front face.
Finished in a Dulux Mannex Black textured powder coat with a Satin Silver coated centre pan for corrosion protection and a modern feel.
Features:
- Australian-made: Designed, engineered, and manufactured in Australia.
- Steel Frame: 100% Australian-made steel.
- Airbag Compatible: Tested for airbag compatibility
- ADR Compliant: Designed to meet ADR standards.
- Low Profile: Over bumper design with minimal forward projection
- LED Lighting: Includes an Ultimate9 LED Light Bar 30"
- Lightweight: Weighing under 30Kg with included light bar
- Corrosion Protected: Zinc-plated.
- Finish: Dulux Mannex black textured powder coat with Satin Silver powder coated centre pan
Kit Includes:
- Nudge Bar
- Ultimate9 LED Light Bar 30"
- Ultimate9 Auxiliary Loom Twin Output Connector
- Front Camera Relocation Bracket
- Piggyback Harness
- OE Style Light Switch
- Installation Hardware
- Instructions
Optional Lighting:
The Ultimate Nudge Bar to suit Toyota Landcruiser 200 Series (2015 - ON) includes provision to fit the below additional light bars, these are not included & are available separately.
- Ultimate9 LED Light Bar 26" - Installs above included light bar
- Ultimate9 LED Light Bar 20" - Installs below included light bar (without front camera)
Note: When adding more than two additional light bars, the below harness is required.
-
Ultimate9 Auxiliary Loom Twin Output Connector
Specifications:
- Material: 3mm mild-steel
- Protective coat: Zinc Plated
- Finish Coat: Mannex Black textured Powder Coat
- Finish Centre Pan Coat: Satin Silver Powder Coat
- ADR Compliant
- Airbag Compatible
- Weight: < 30Kg
Fitting is available at our Bayswater Vic workshop. Please call for a quote on 03 9720 8783.
The 4WD Shed is an Authorised Stockist & Installer of all Ultimate9 products.
Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.
(ULTN03020)
| SKU | ULTN03020 |
| Brand | Ultimate9 |
| Shipping Weight | 31.0000kg |
