Upgraded Front Steering Knuckle Kit Bump Steer Correction Isuzu DMAX MUX Mazda BT50

The Isuzu D-Max, MU-X & Mazda BT-50 suffer from chronic bump steer resulting in radically increased tyre wear which is apparent in standard height vehicles, but becomes more prominent as you lift them.

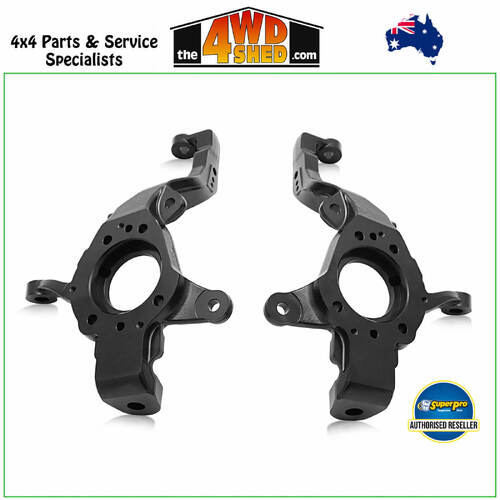

These brand-new steering knuckles resolve this issue and are suitable for both standard height and lifted vehicles.

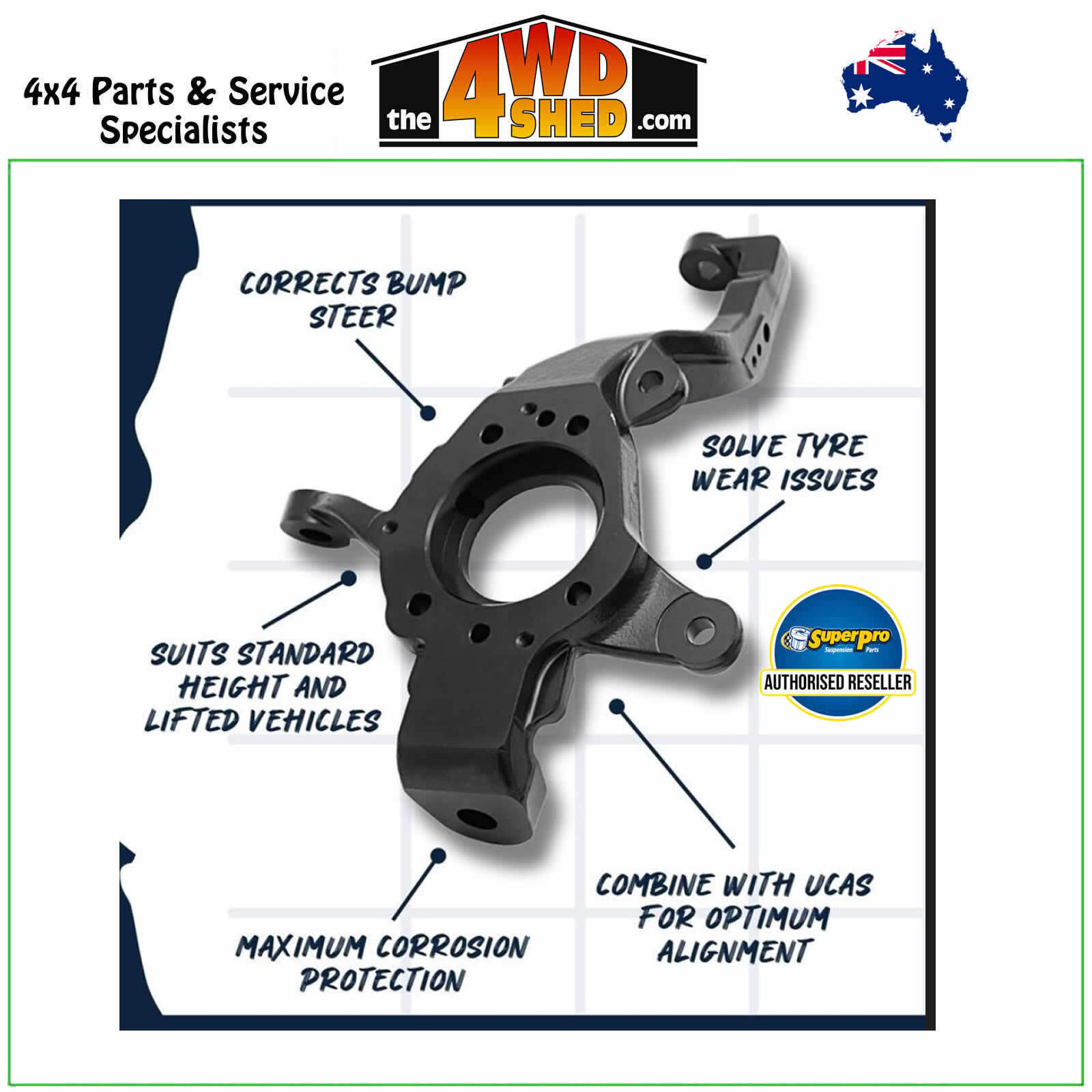

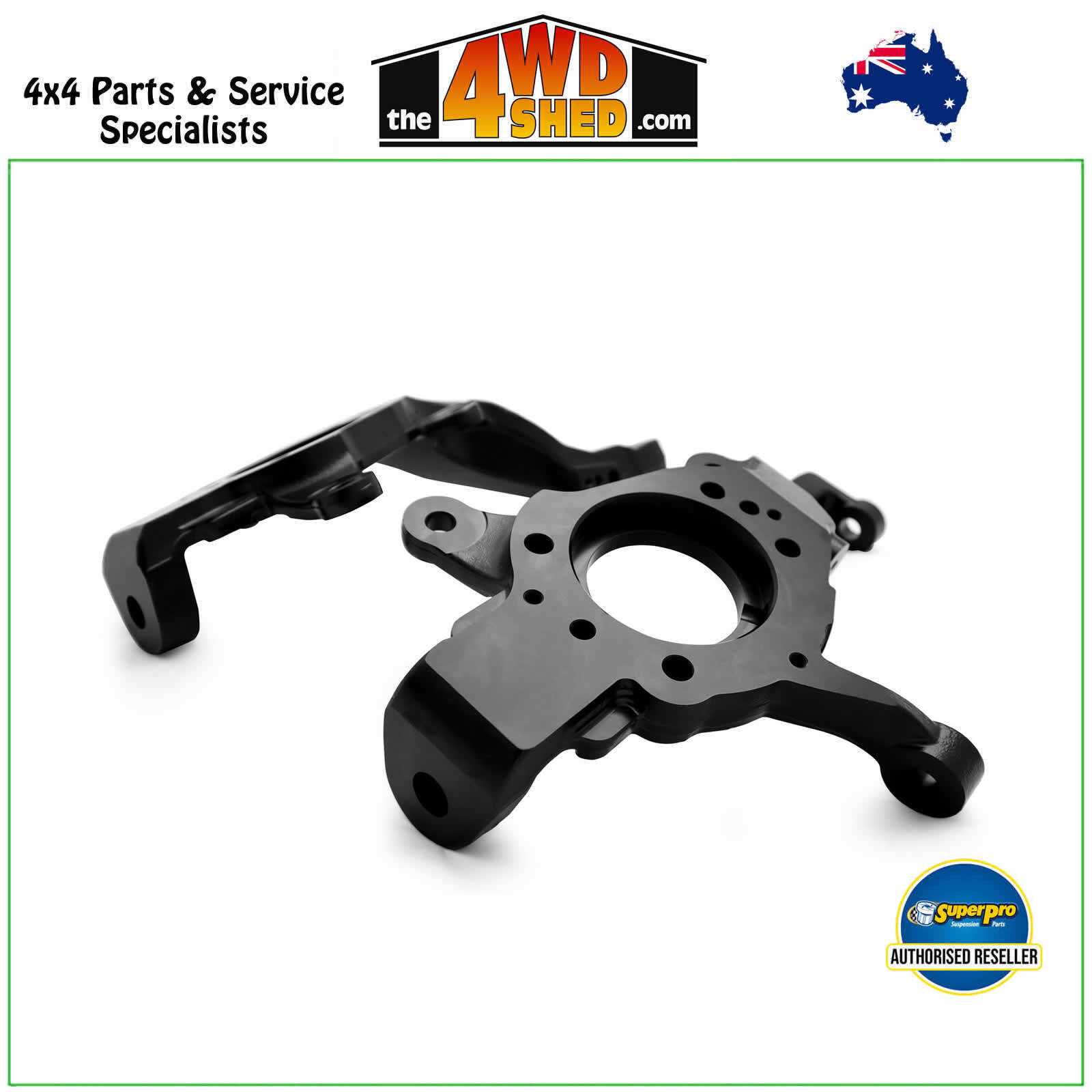

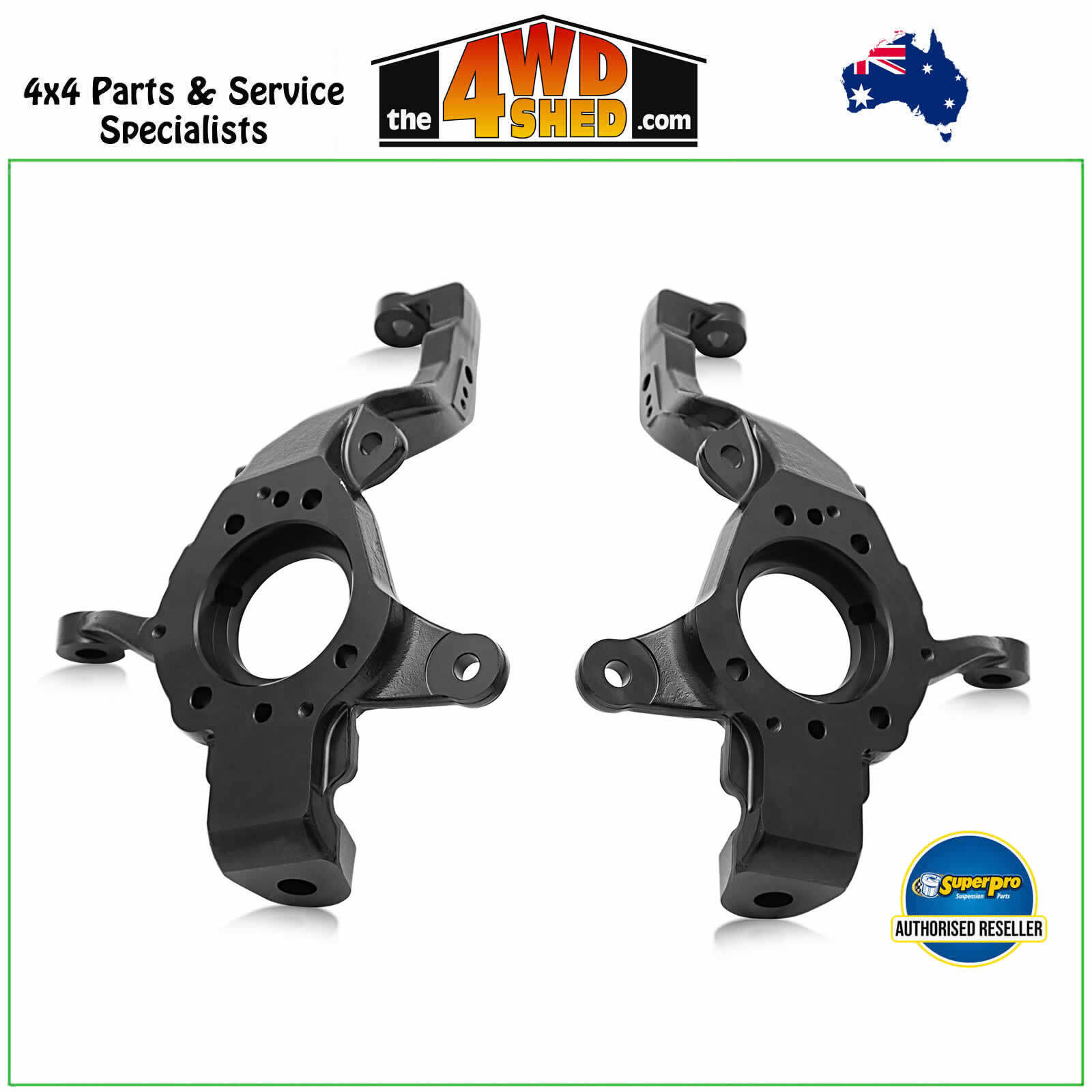

TRC6680 steering knuckles replicate all the features of the original equipment (OE) knuckles and come with identical mounting provisions for a seamless direct replacement.
It is produced using a hot forged 4140 AISI steel which is then post machined, heat treated and finished in black e-coat for maximum for corrosion protection.
Combine a pair of TRC6680 steering knuckles with a set of TRC6590 upper control arms in your vehicle and you will solve your premature tyre wear, sort your alignment issues and have your vehicle driving well as intended.

Why is bump steer an issue?

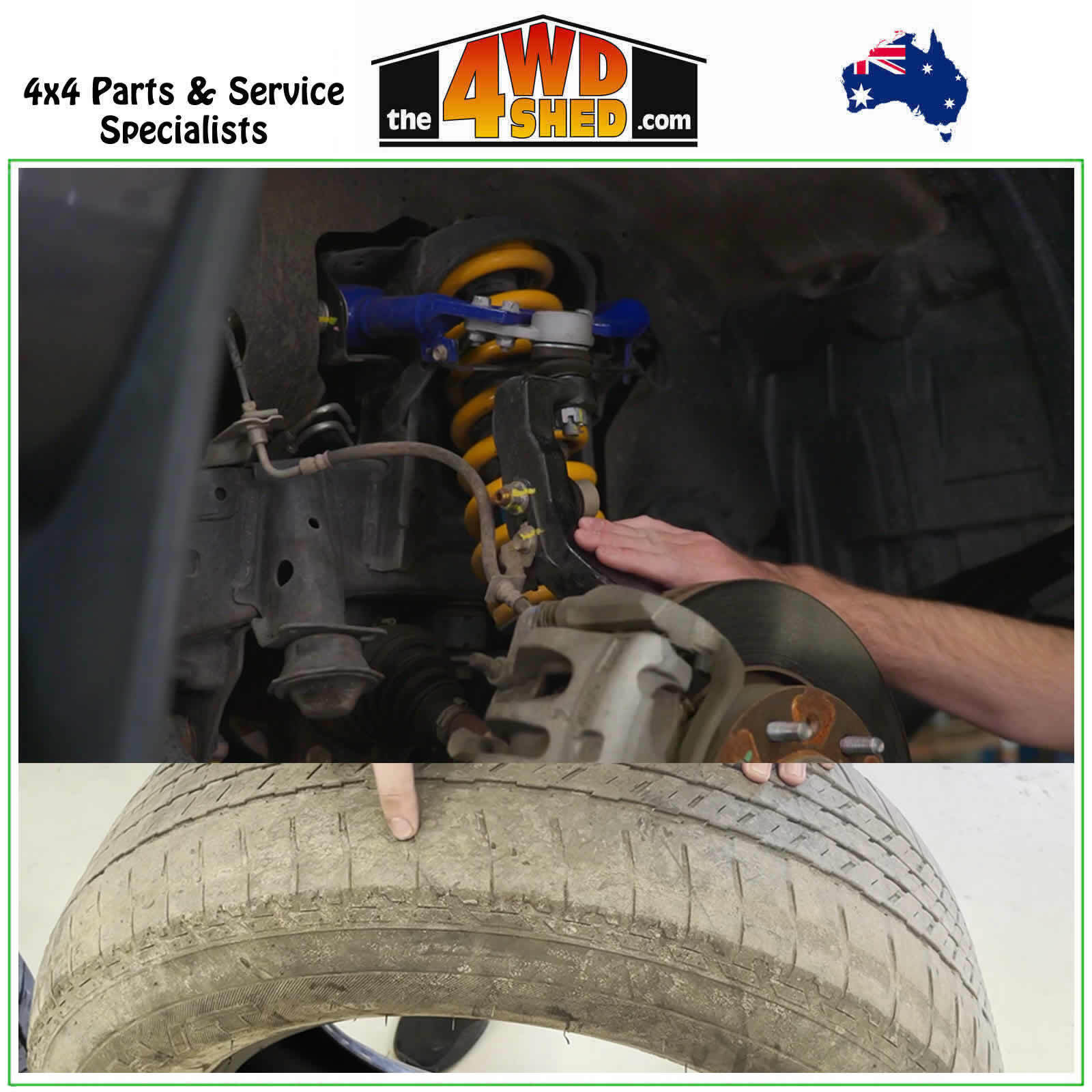

Bump steer is the change in toe in or toe out as the ride height of the vehicle changes. This occurs constantly when driving as the vehicle oscillates over the bumps in the road. This movement is magnified by increased weight from towing, high loads, accessories or a suspension lift . An excessive amount of bump steer will cause extreme amounts of premature tire wear, which is what field reports have shown to the development team first-hand and through their own R&D testing.

What does the SuperPro steering knuckle do to help?

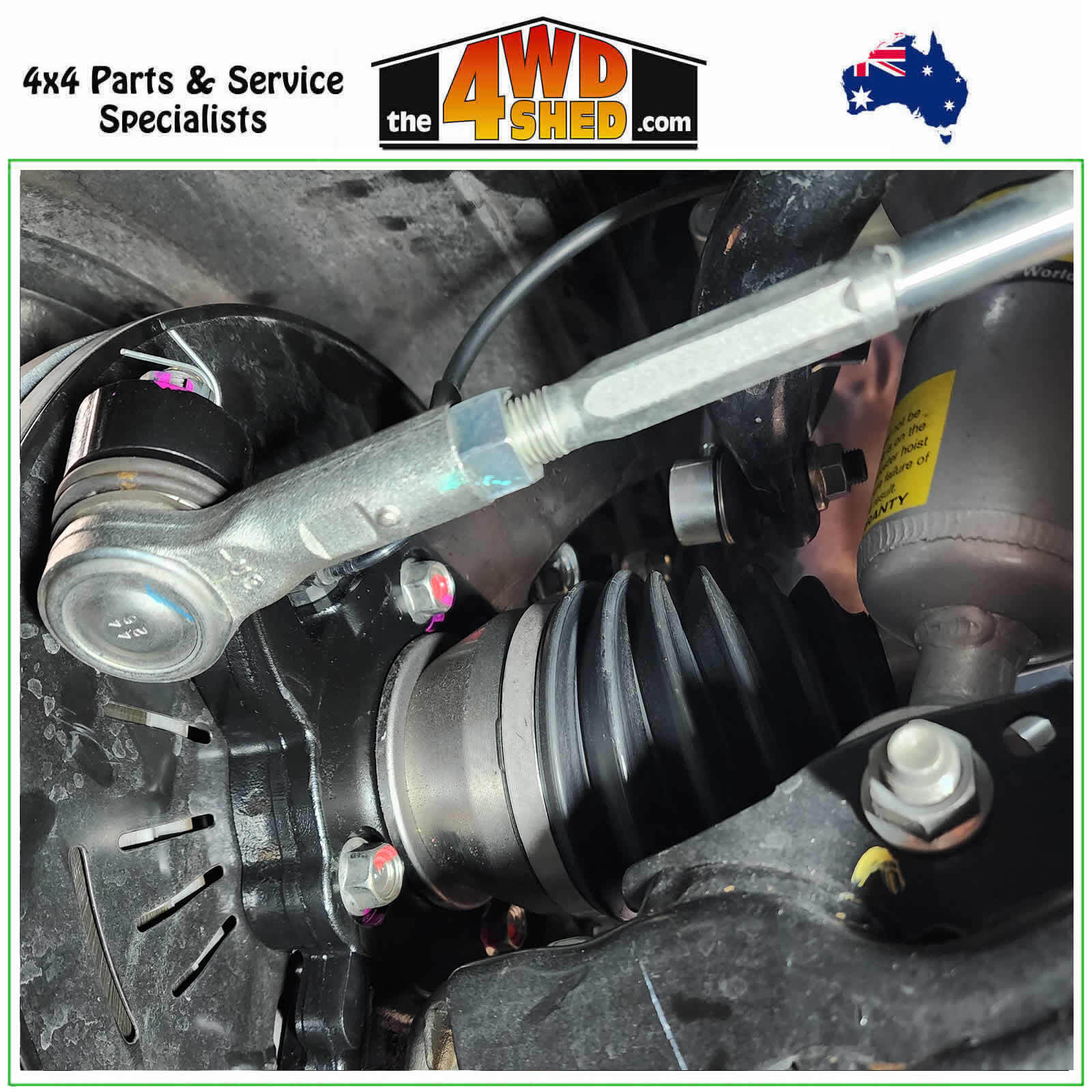

The SuperPro steering knuckle relocates the outer tie-rod pickup point to better optimise the steering geometry of the vehicle to reduce the amount of bump-steer at a range ride of heights. The graph below shows the bump steer reduction when the SuperPro steering knuckles are fitted to a lifted vehicle. The bump steer is reduced by about 75% overall, which when combined with the Zeder offset FUCA would reduce a further 10-15%. When the knuckles are installed in a standard-height vehicle, the bump steer is reduced to almost zero.

Vehicle Compatibility

• Isuzu DMAX 06/20-on TFR,TFS Platform/Chassis 3.0 DDI 4x4
• Isuzu MUX 06/21-on TFS/TFR SUV 3.0 Ddi 4x4
• Mazda BT50 07/20-on TF,TF Platform/Chassis 3.0 4x4

This steering knuckle kit must be installed as a pair on both sides of the vehicle. It is recommended that a skilled mechanic or technician undertakes the procedure. Fitting is available at The 4WD Shed at additional cost.

The 4WD Shed is an Authorised Stockist & Installer of SuperPro
