Upper Adjustable Control Arm Kit Toyota Prado 120 150 Series FJ Cruiser 4Runner

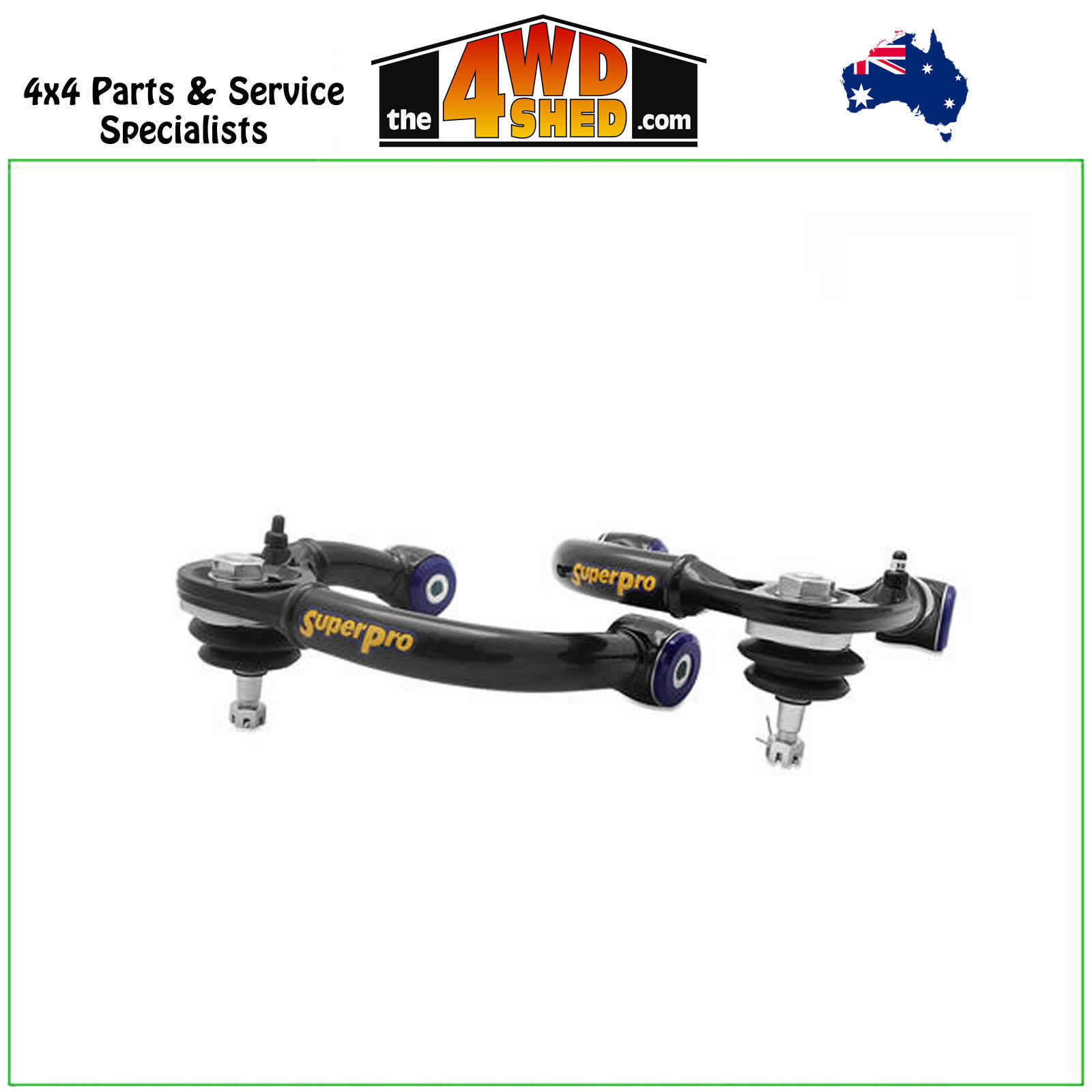

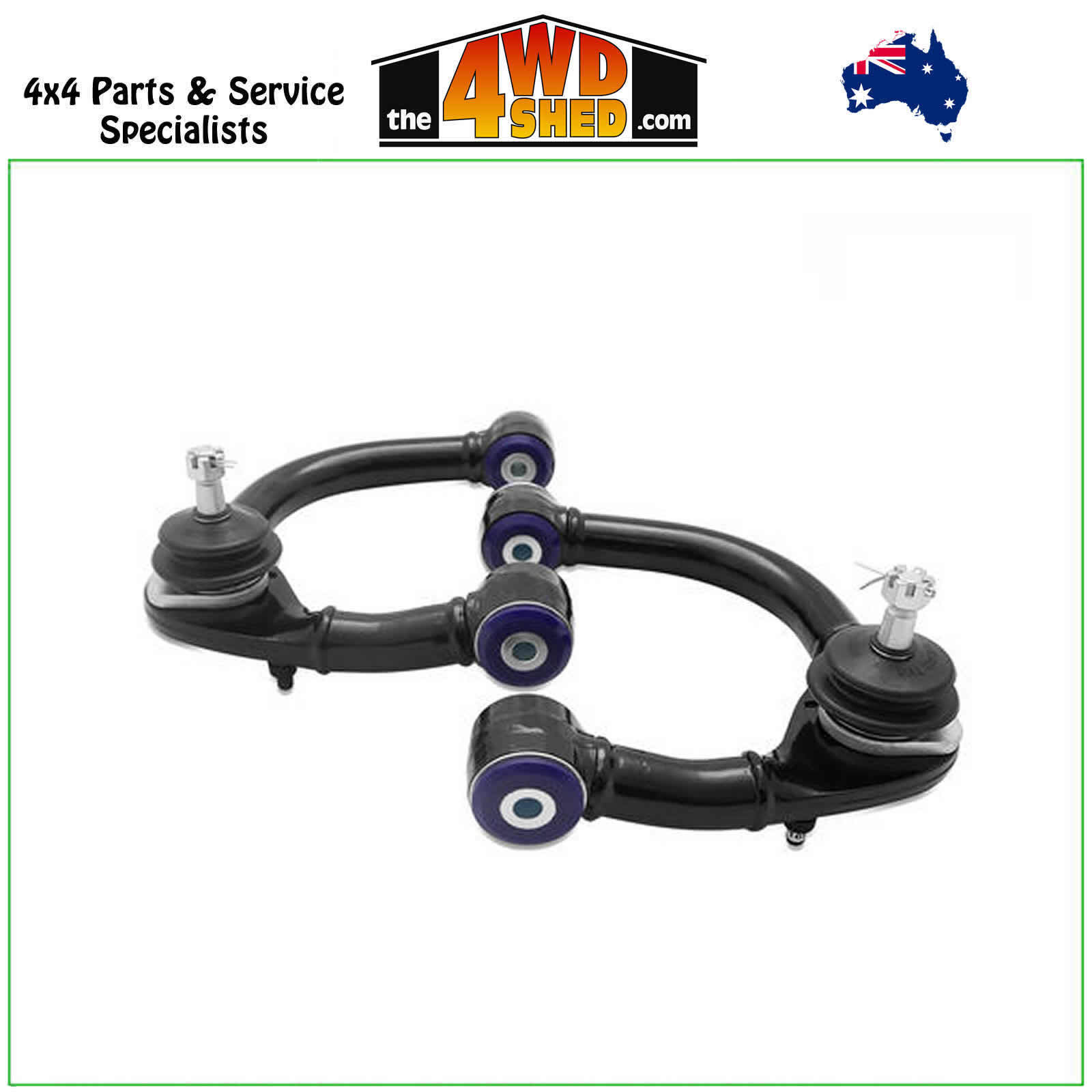

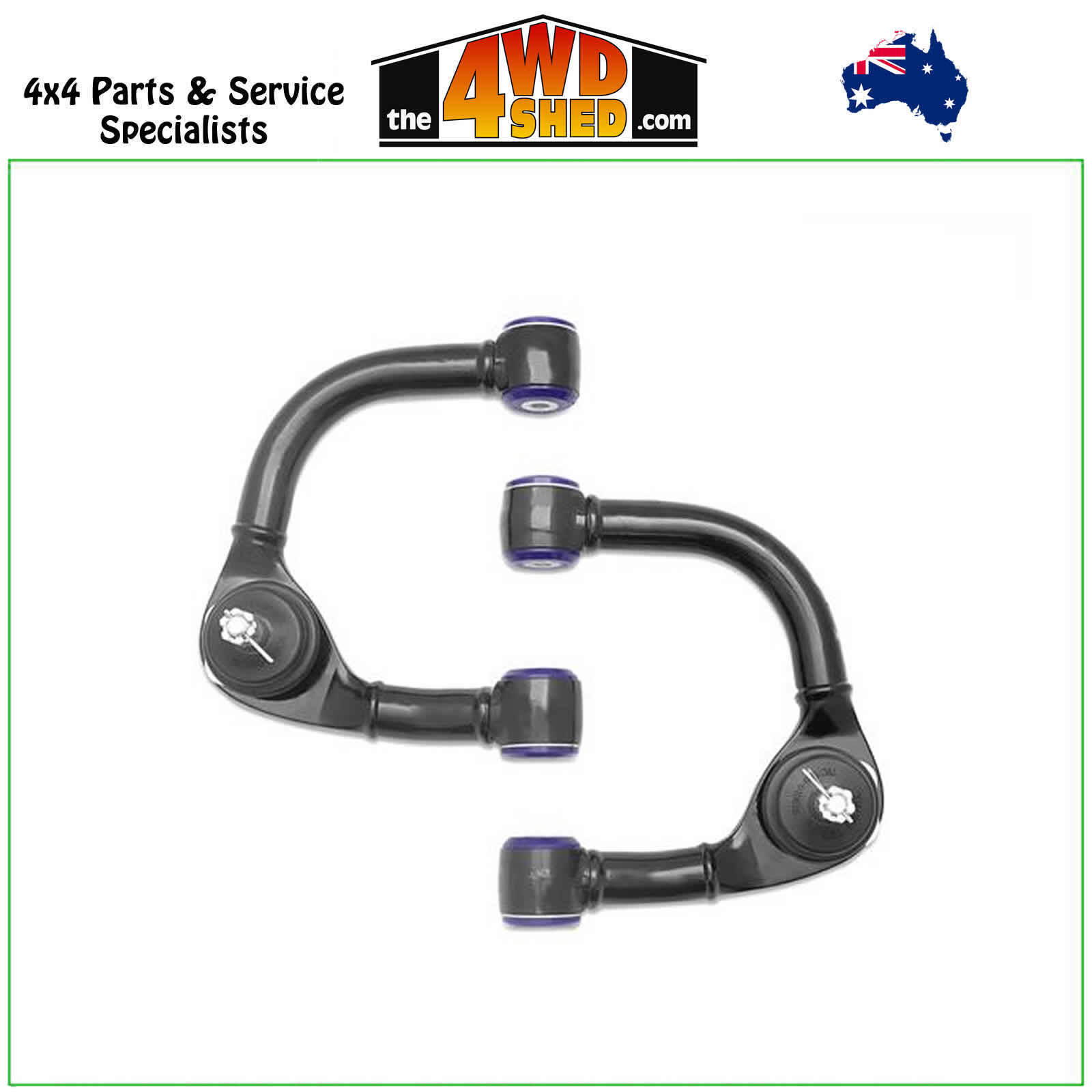

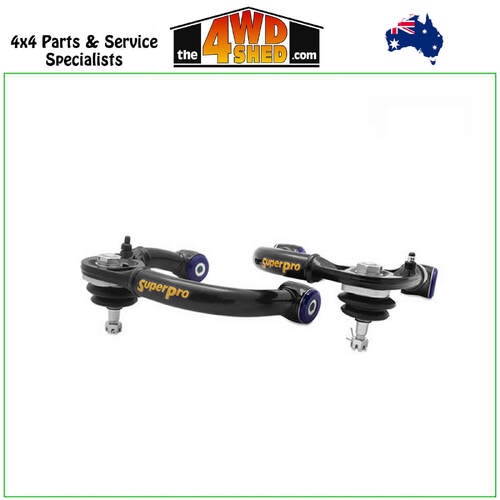

SuperPro Control Arm Upper Complete Adjustable Assembly - TRC8480

Arms fitted with Uprated Ball joints and SuperPro Bushes to reduce Arm movement.

Adjustable upper control arms with heavy-duty, high-articulation adjustable ball joints and SuperPro polyurethane bushings for 1 to 3 inch lifted vehicles.

The SuperPro adjustable upper control arm is an ideal aftermarket solution for owners of lifted 4WD vehicles seeking superior strength, durability, and flexibility. The control arm is made of high-quality materials, including forged steel housings and steel tubes, coated in a 3-stage powder coat for excellent resistance to wear and corrosion. The robot-welded construction ensures precise and consistent assembly, resulting in a high-quality product.

The SuperPro adjustable UCA features a heavy-duty high-articulation adjustable ball joint that provides +/-1.5 degrees camber and caster adjustment while providing a surplus of articulation that allows maximum suspension travel without binding. This UCA also includes SuperPro’s renowned polyurethane bushings, which offer superior resilience and durability compared to traditional rubber bushings. The polyurethane material is resistant to abrasion, wear, and chemicals, making it ideal for harsh off-road environments.

Features

• The new TRC480 adds approximately 2 degrees of caster over the OE UCA while providing minimal camber change. This change is then consistent on either extremity.
• There is much more usable adjustment to achieve the desired alignment for the customer for a variation of vehicle heights.
• The alignment can go from +3.5 degree caster & -1.5 degrees camber change over OE to +0.5 degrees caster & +1.5 degrees camber & everywhere in between.
• The TRC8480 has the added bonus of greater clearance around coil spring during suspension travel & increased clearance distance from tyre.

Vehicle Compatibility

Product Specifications:

• Components Per Product: 2ARMS,2BJ,4B
• Fitting Difficulty: difficult
• Fitting Position: Front
• Fitting time [min]: 150

*Axle alignment required after fitting

SuperPro Control Arms are manufactured, designed and tested right here in Australia. SuperPro Control Arms are built to the highest standard and are designed to outperform the competitors and a product’s OE counterpart. Following our business motto “Engineered to Outperform”, SuperPro exceeds many design expectations and has been certified as such.

SuperPro carries an extensive range of both complete repair and upgrade control arm kits. Our control arm kits come complete with pre-installed SuperPro Bushings, and all other components that are needed for an installation. Our aftermarket control arms have been designed to complement our existing suspension product range, so you can give your vehicle the ultimate upgrade with your favorite SuperPro products.

4WD Control arms

The trend of fitting accessories, larger tyres, rims, and suspension lift kits to a 4X4 vehicle has exposed the negative effects it has on a vehicle's wheel alignment. After these upgrades are installed, the vehicle will require both Camber and Caster adjustments to return the suspension geometry to OEM settings.

This leads to undesirable handling and driveability issues such as uneven and premature tyre wear, steering wheel vibrations, and wandering all over the road. Our SuperPro Control Arms have been designed to alleviate these issues and ensure better handling and performance.

SuperPro Control Arms are manufactured from a hybrid of high stress, cold formed steel tube and forged steel, with an adjustable position Ball Joint. They are also fitted with SuperPro bushes.

SuperPro 4x4 Upper & Lower Control Arm Features:

• Complete Adjustability
• Designed and Tested in Australia
• Made in Australia (Melbourne) with Aussie Steel
• Complete Kit solution
• Includes SuperPro Bushings
• Lifetime Warranty
• Solves Alignment Issues
• Longer Tyre Life
• Approved Nationally - VSB 14 Compliant (ADR compliant)
• Certified and confirmed to exceed OE specifications

4x4 Upper Adjustable Control Arms

SuperPro Upper Control Arms are supplied with the Camber and Caster adjustable ball joints and are fitted with our SuperPro polyurethane bushes. These adjustable ball joints can alter the Camber and Caster to the correct settings, giving your vehicle the best wheel alignment settings and increased clearance.

The control arms have been designed to remove the common issues that are usually faced when correcting alignment and clearance. They have also been designed to reduce tyre wear and allow the safety of the vehicle to be maintained.

Control Arm Manufacturing and Engineering

SuperPro manufactures multiple variations of control arms. These Control Arms have different features based on applications; 4X4 Control Arms, Performance Alloy Control Arms, and Repair Control Arms.

SuperPro Control Arms serve multiple purposes. The primary purpose for Performance and 4X4 Control Arms is to solve wheel alignment issues, adjusting the Camber and Caster settings of the vehicle. However, SuperPro Repair Control Arms are a complete repair solution. These Control Arms offer increased performance and a lifetime of value by improving the design of the OE Control Arm and incorporating our SuperPro Bushings. Depending on vehicle application, SuperPro Control Arms can either come as a fixed solution or an adjustable solution.

Typically, most Control Arms have a high range of movement. Most OE and aftermarket Control Arms utilize bonded rubber bushings. Due to the constraint strain of flex from all the Control Arm’s movement, these rubber bushings will wear quickly and will tear after a certain amount of time. This leads to a decrease in performance and will cause more suspension complications in the future.

To combat this issue, SuperPro has pre-installed each Control Arm kit with our unique range of SuperPro polyurethane bushings. Our Bushings have been engineered to complement the design of our Control Arms, giving you the best possible wheel alignment solution and an improvement in vehicle performance.
