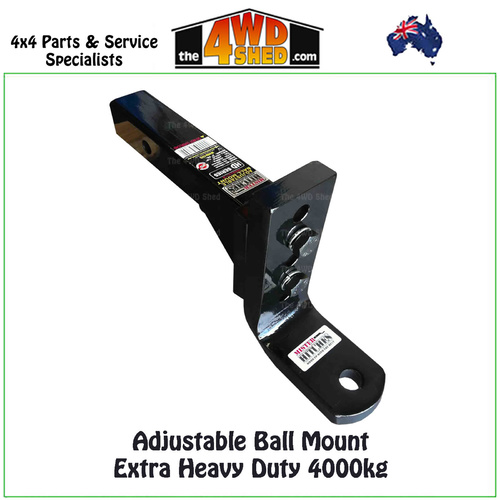

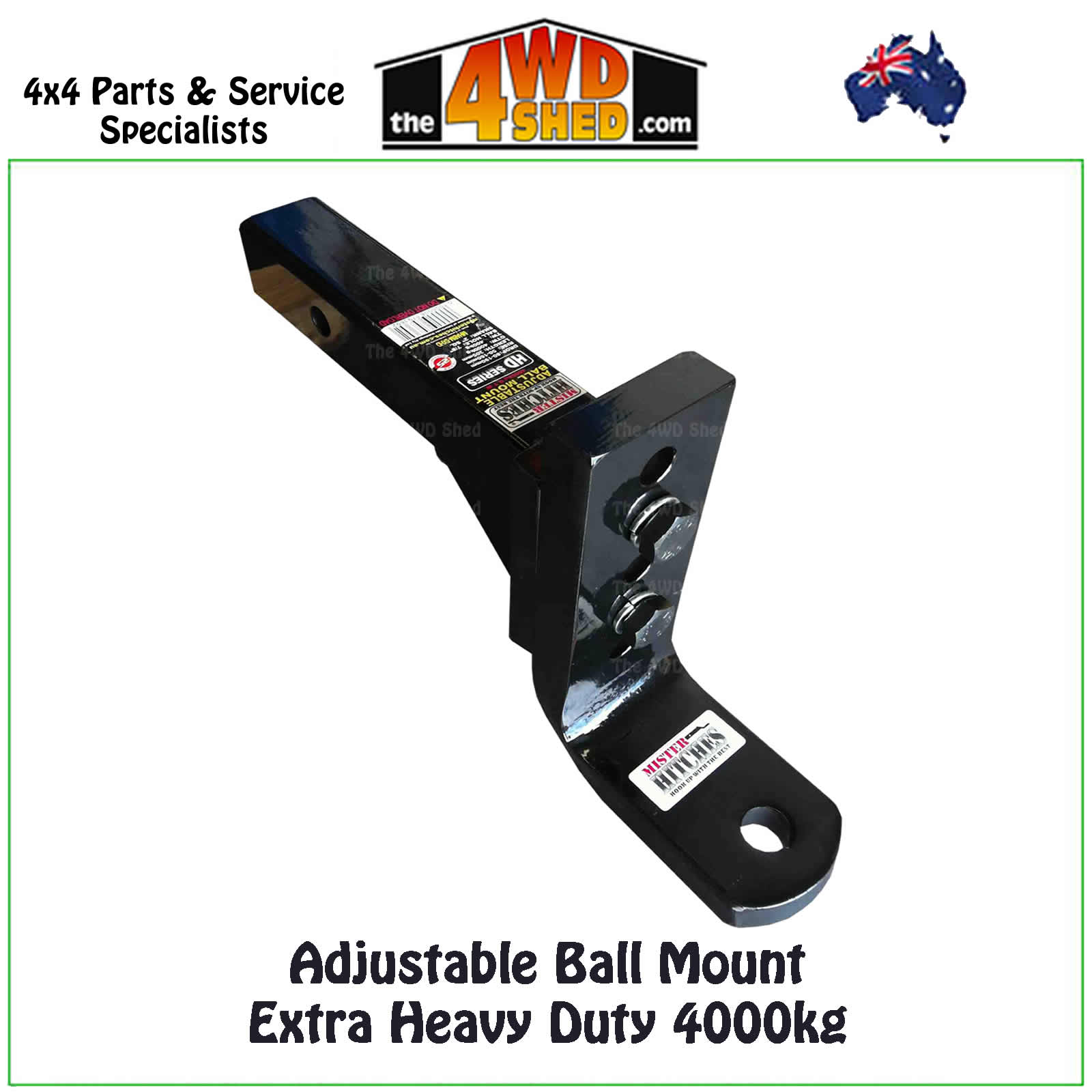

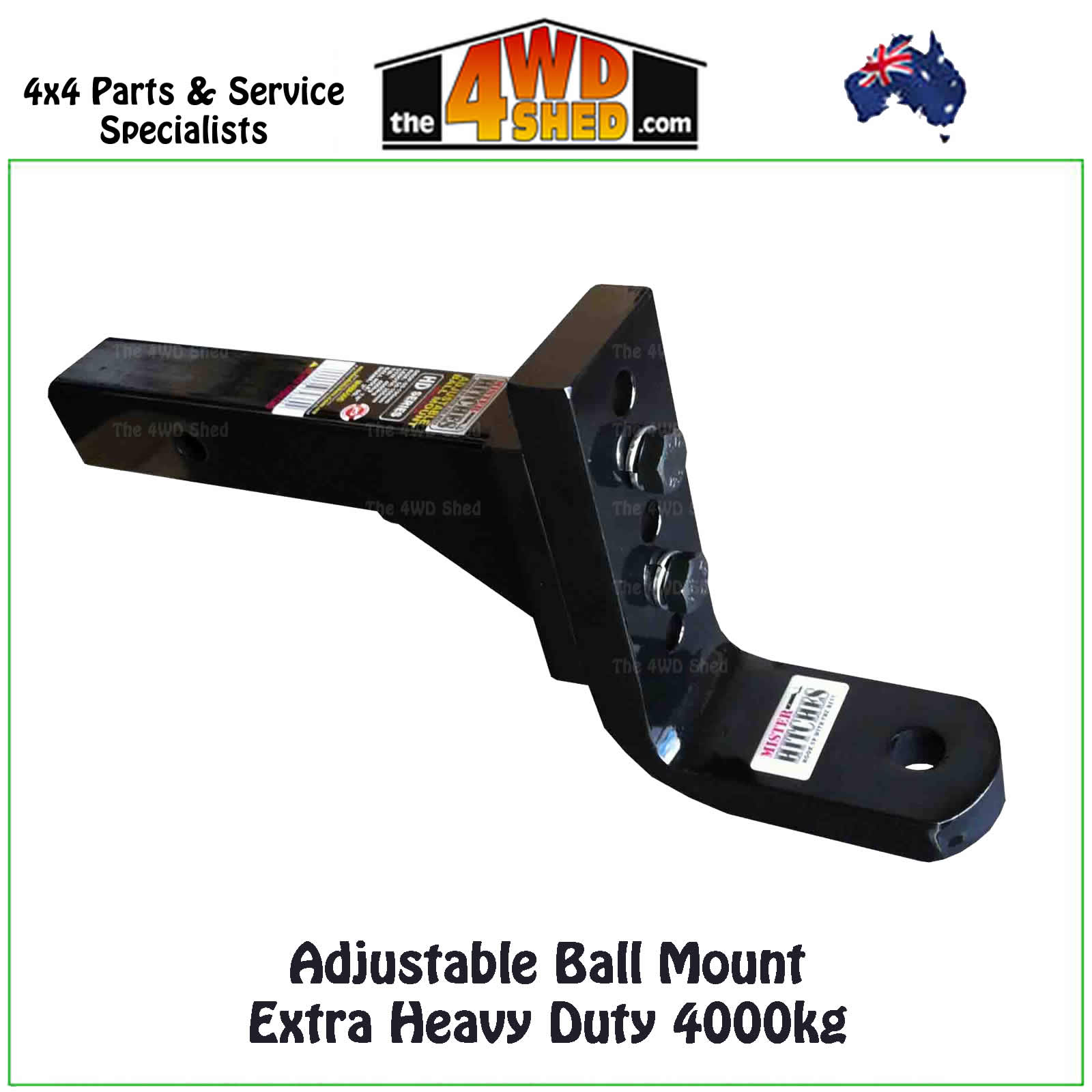

Mister Hitches Adjustable Ball Mount Extra Heavy Duty 4000kg 12 Stage

This is a listing for a new extra heavy duty adjustable ball mount tow hitch.

This popular hitch has now been improved to make it more versatile & stronger. 3 pin holes have been added to give greater length flexibility & suitability for a short shanked tow bar, eg Ford Ranger. This hitch has a 25mm x 75mm ball platform & is one of only a few ball mounts which is suitable for the Stone Stomper. The hitch is fully reversible which gives you 12 mounting adjustments.
Dual 10mm gussets a 6.2mm thick shank wall & H.T. 12.9 grade mounting hardware makes this one of the strongest & most versatile hitches on the market.

  • G.T.W.: 4000kg, T.W.: 400kg
  • 3 Pin holes to give lengths: 266/305/331mm
  • 12 Adjustable positions.
  • Drop: 80-186mm, Rise: 50-160mm
  • 6.2mm Thick walled steel shank, robotic welded for strength.
  • Dual 10mm Gussets.
  • High Tensile 12.9 grade bolts
  • Seaguard Matte Black Powedercoat finish gives superior corrosion protection.
  • Complies to the testing requirements of ADR & Australian standards where applicable.

Rated to tow up to 4000kg with max ball weight of 400kg, Roadsafe have turned up the wick with this new extra heavy duty towball mount which replaces MH-ABM-5HD

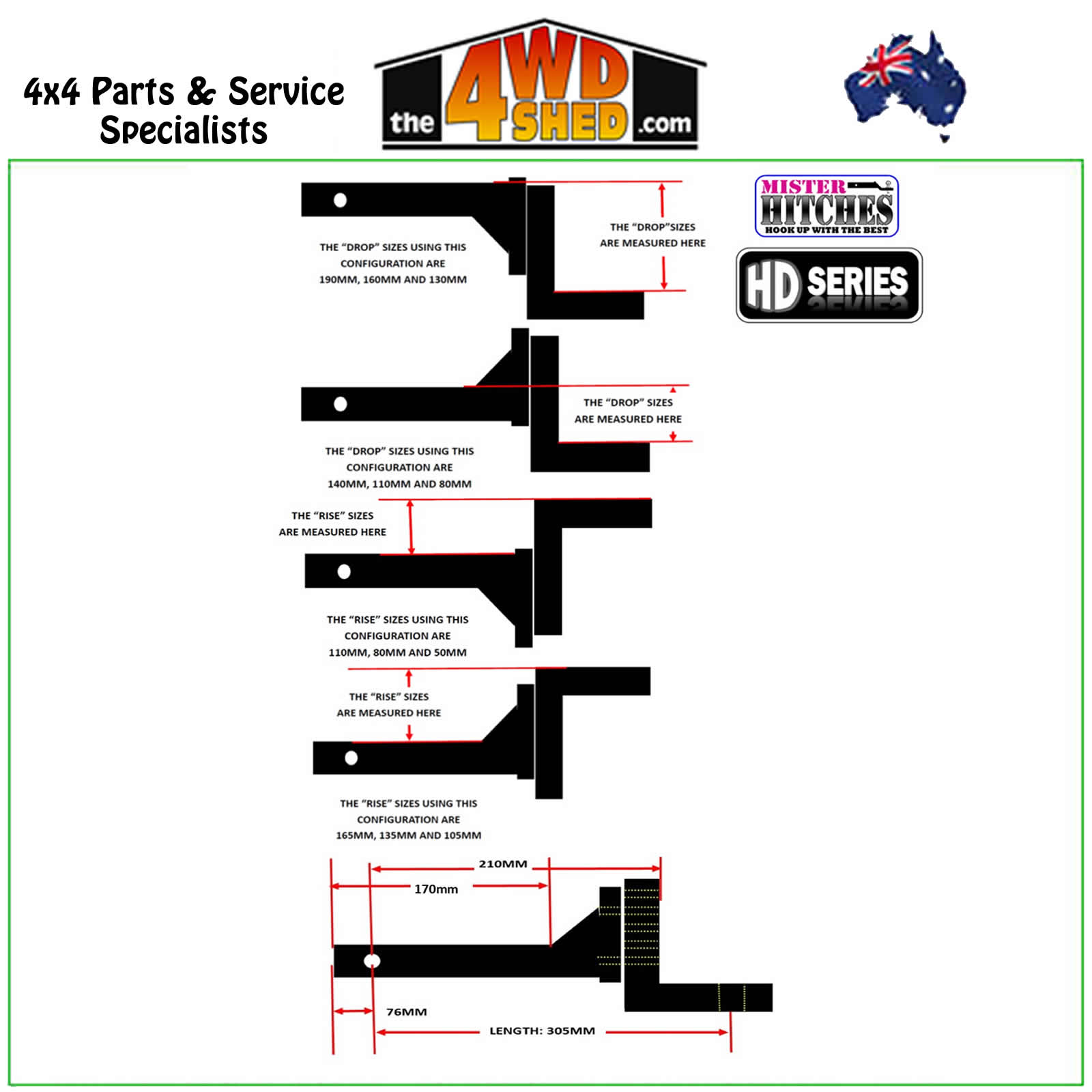

Both the hitch shank and the ball mount platform can be independently flipped and mounted upside down giving 4 position combinations

This combined with the 3 bolt adjustments gives a range of 12 height positions

Measured from top surface of square hitch, the 6 drop heights range from 75 to 185mm and the rise heights range from 50 to 160mm

  • 2 high tensile grade 12.9 bolts (16mm) with spring washers
  • Hitch shank is reinforced with 9mm dual gussets
  • 25mm thick x 75mm wide ball mount platform
  • Black powder coat finish
  • Tow ball hole 7/8 inch
  • Length from hitch pin hole to ball hole 305mm
  • Fits 2 inch square towbar receivers

Always please check your vehicles maximum towing capacity and comply to those figures

(MH-ABM-5XHD)

SKU MH-ABM-5XHD
Barcode # 0000006793692
Brand Mister Hitches
Shipping Weight 8.5000kg
