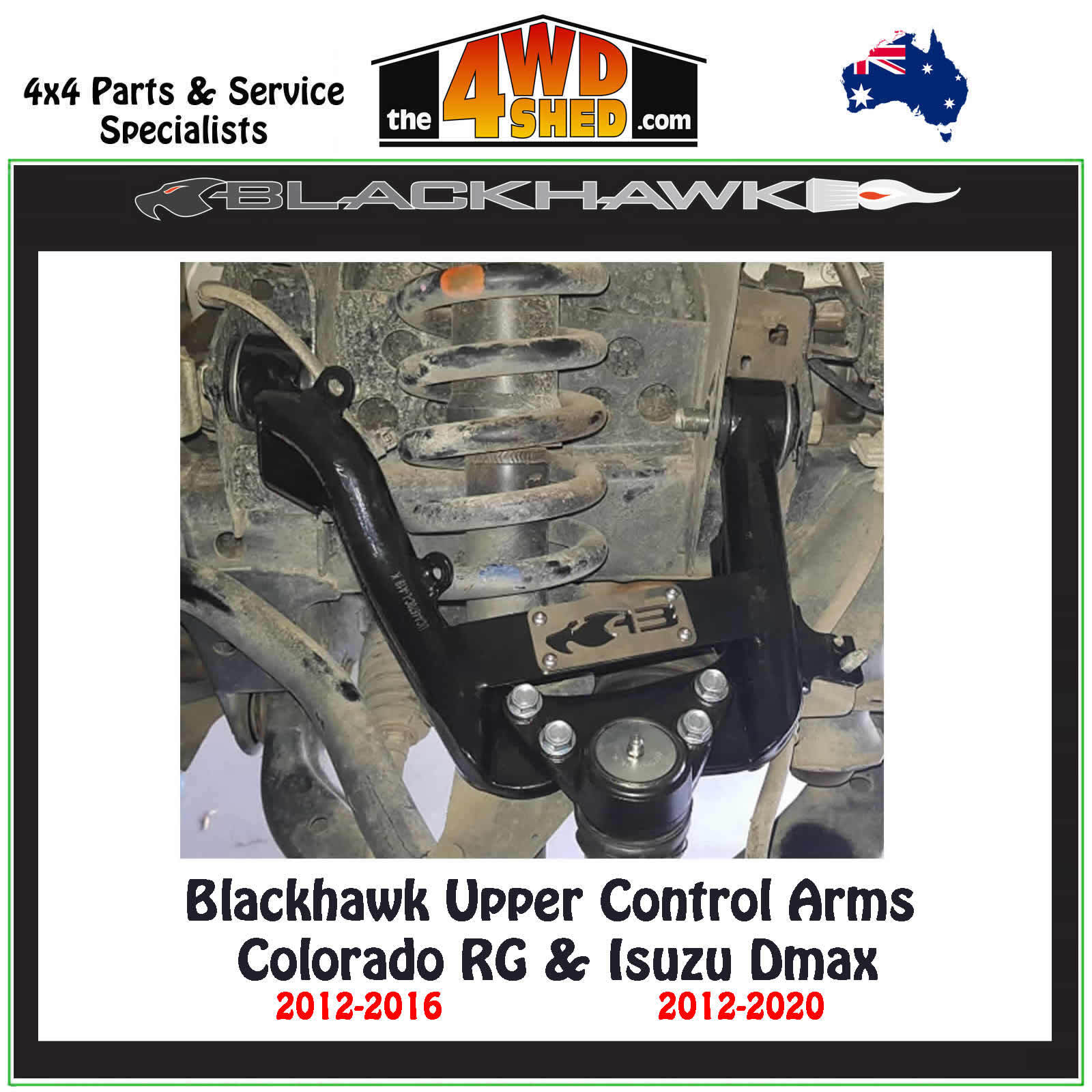

Blackhawk Upper Control Arms Holden Colorado RG 12-16 & Isuzu DMAX 12-20

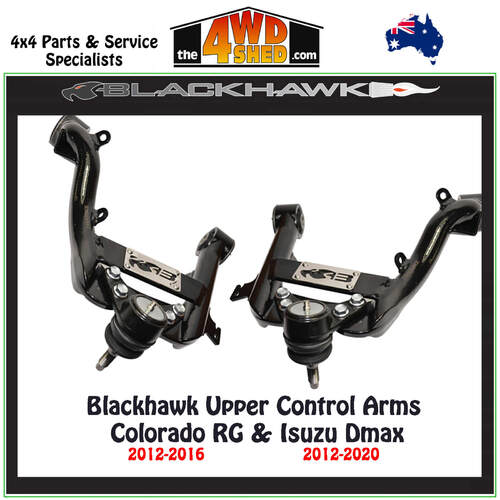

Blackhawk Upper Control Arms suit Holden Colorado RG 12-16 & Isuzu DMAX 2012-2019

*There is differences to the Isuzu DMAX 2020 that means these arms will not fit. You will need the UCA4727C

**Vehicles with 16" rims and wider aftermarket rims at the OE offset (+33) are not suitable

The new heavy duty Roadsafe "Blackhawk" range of Upper Control Arms have been designed with ease of fitment & ongoing serviceability in mind, & are a necessity for various IFS models that have been lifted 30mm+.

The Roadsafe "BLACKHAWK" arms have been designed to restore camber & caster lost on IFS vehicles once they have been lifted, by correcting the angle of the ball joint. Without restored camber & caster settings lifted IFS vehicles will eventually show excessive tyre wear & experience ride & steering issues.
With greater radius & tube sizing to suit per application, the design allows clearance of the coils, during articulation, with the outer radius also adjusted to allow for the fitment (in some cases) of 35" tyres without the issue of the of the tyres rubbing on the arms during full lock.

Manufactured in Heavy Duty 32mm OD (6mm wall thickness) STKM13A Carbon Steel Tube, for optimum strength without putting too much additional weight onboard.

We haven't gone with a complicated ball joint or bushing setup, they have been designed to take on the OEM spec componentry.

Blackhawk Upper Arms are designed with 3 degrees fixed caster & optimally suited to lifts of 30-70mm, finished in dual layer coating including black e-coat & gloss black powder coat for maximum durability, rust protection & discreet installation.

Designed to maximise clearance and travel, while giving 3 degrees of caster to suit 50-70mm lift, with bonded rubber bushes and to take the factory ball joint for maximum reliablity.

Blackhawk 4×4 have identified a requirement for a program supplying replacement Upper control arm’s (UCA) that are fitted to a wide range of late model IFS vehicles. As a result we have developed the Blackhawk program – a product that will bolt in with marked improvements over the OE design.

The evolution of the Blackhawk UCA’s…

When a vehicle has raised suspension and this can be anything from 30mm or above, it will disrupt the vehicles relationship with factory set geometry and create issues such as…

• Reduced caster correction causing vague steering and response
• Bump steer resulting in reduced handling with an out of control feeling
• Clearance issues to suspension & wheels/tyres larger wheels can hit suspension components
• Some standard vehicles can have an issue of the UCA hitting the coil on full droop
• Strength of OE equipment in offroad scenarios

Roadsafe 4WD have developed their UCA range of product drawing from over 30 years of experience in the manufacture & supply of chassis parts including but not limited to steering & suspension components.

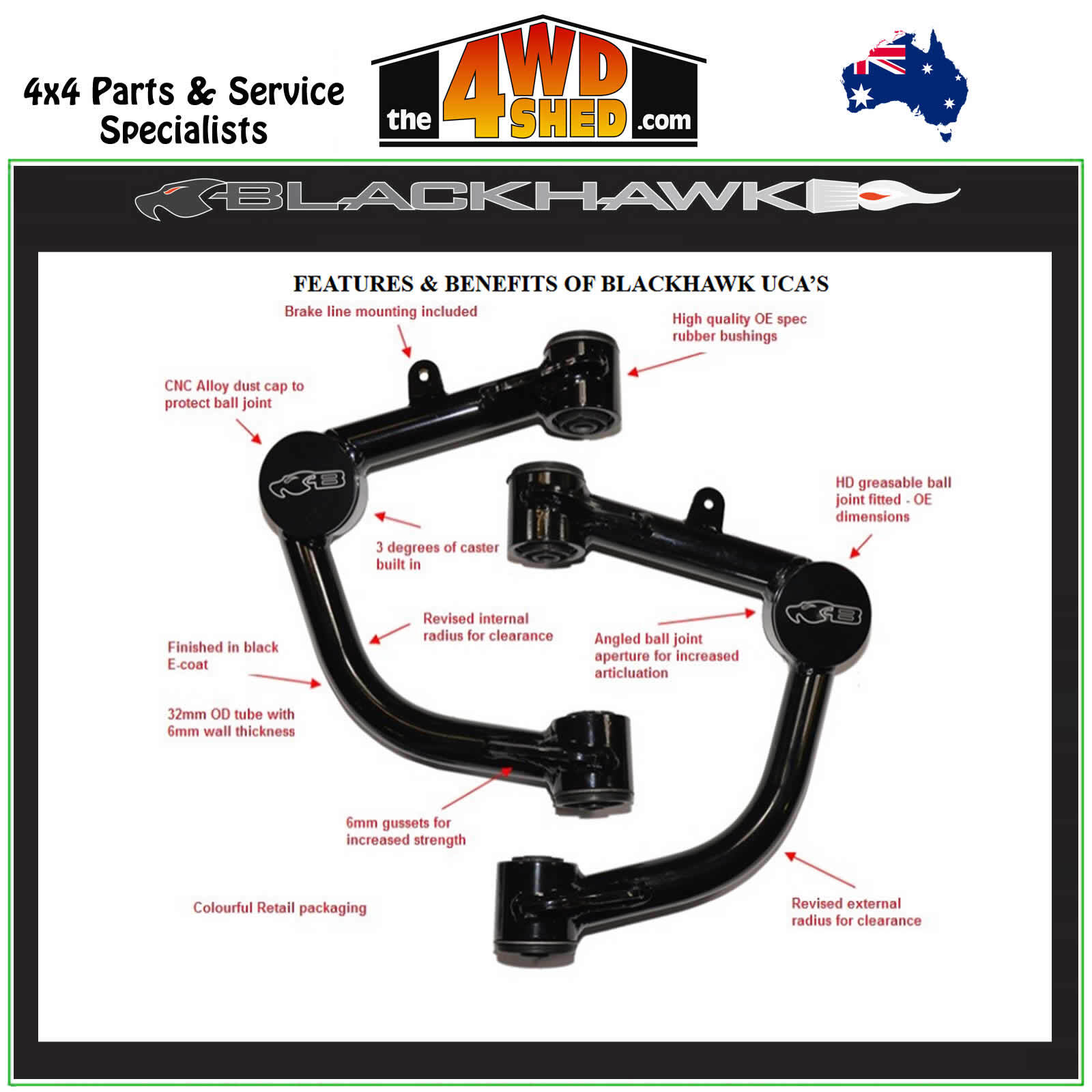

The Blackhawk UCA’s have been designed in conjunction with industry experts to ensure vehicle fitment is comprehensive. In this process we identified a large number of issues that can be present, resulting in a list of features we included to overcome these issues…

3 degrees of fixed Caster correction

We’ve identified this as a good amount of correction required for lifts ranging from 30-70mm, by providing a bulk fixed amount of caster, this offers the ability to utilise the factory adjustment to fine tune the caster required for your vehicles lift, with the UCA not being the limiting factor for increased droop relative to the other components.

Camber change to meet OE specs.

If your application requires increased camber, we can offer offset bushings to provide more camber.

Clearance to larger aftermarket wheels & tyres.

We often see larger than standard size tyres with wheel offsets having clearance issues to the OE UCA, our Blackhawk UCA’s minimise this as much as possible.

Clearance to suspension components & chassis.

A large number of OE UCA’s hit the coil or the chassis mounts on during the suspension travel limiting the amount of travel you can achieve, with revised bends and clearances identified the Blackhawk UCA’s will not contact the strut or the chassis limiting travel unless specifically designed to do so.

Fixed position balljoint

Blackhawk UCA’s do not use an adjustable balljoint, with a fixed location balljoint we are able to offer OE specification for the ball joint itself. The position of the balljoint housings have been rotated to ensure the balljoint is not the limiting factor with maximum down travel.

Roadsafe specifically chose a fixed ball joint for a number of reasons. In offroad applications the ball joint receives a large amount of “bump” loads, which over time can either knock an adjustable ball joint out of position leading to increased tyre wear due to a change in caster. Changing from a fixed balljoint mount reduces the structural integrity of the mount and the mounting platform of the balljoint, with any remote traveling we need to ensure strength and reliability is not compromised.

There will never be a need to adjust or re-adjust your caster once established with the Blackhawk arms as the balljoint cannot be knocked out of position.

Maintain OE specification ball joint & bushings.

Regardless of where you may go, if you need to replace a balljoint or bushing you can use genuine replacement parts or aftermarket OE specification replacement items, regardless of how remote you are at home or abroad.

Ball joint binding.

Often we see the ball joint limiting the amount of down travel because the OE ball stud hits the side of the ball joint housing, this creates a stress point on the ball stud creating an environment for potential terminal failure of the ball joint, it also limits the amount of down travel possible when used in conjunction with aftermarket suspension and longer shock lengths.

Securing ABS lines

We incorporate tabs and mounts where practical so the OE lines can be secured discreetly where possible, reducing the potential of sticks and other debris from damaging the sensitive lines.

Increased strength compared to the OE design.

The design of the Blackhawk arms have shown with the use of FEA to be much stiffer than the OE arms, providing the driver with increased handling and response when the Blackhawk arms are fitted when compared to the OE arms, this is illustrated by the amount of deflection the FEA results have provided, with 3 times less deflection in the Blackhawk UCA’s.

Does this rigidity negatively transfer to the vehicle.

No, because the Blackhawk arms use OE Rubber bushing, any NVH (Noise, Vibration and harshness) is absorbed in the rubber bushings before it makes it way to the chassis, you may find an increase in wear in the bushings which is directly related to how you drive the vehicle, the bushings are a consumable component of any vehicle, however you should expect years of trouble free service before the need to replace the bushings.

Heavy Duty Long life Balljoints.

Roadsafe 4wd specially redesigned the OE balljoint into a heavy duty application, due to the nature of the application the 4wding community require a serviceable component, so we have a balljoint that is manufactured in the “hard to hard” style with a locating nylon disc that the ball stud terminates against, grease is pumped into the assembly through the top keeping everything lubricated and keeping any potential contaminants out of the boot region. The ball studs and seat area of the housing are all heat treated forming a hardened surface with the purpose of long life and limited wear.

Dust Cap

Blackhawk arms that utilise a press in balljoint feature a machined alloy dust cap which is anodized black with engraved Blackhawk logo to deter corrosion etc, as a result creating a sealed housing to remove the balljoint from the elements such as water, dust & mud ensuring they are in the best possible environment.

Finish.

All arms are sand blasted upon completion and E coated black for a durable discreet finish, E coating is the same process the vehicles manufacturer used for the original equipment you are replacing.

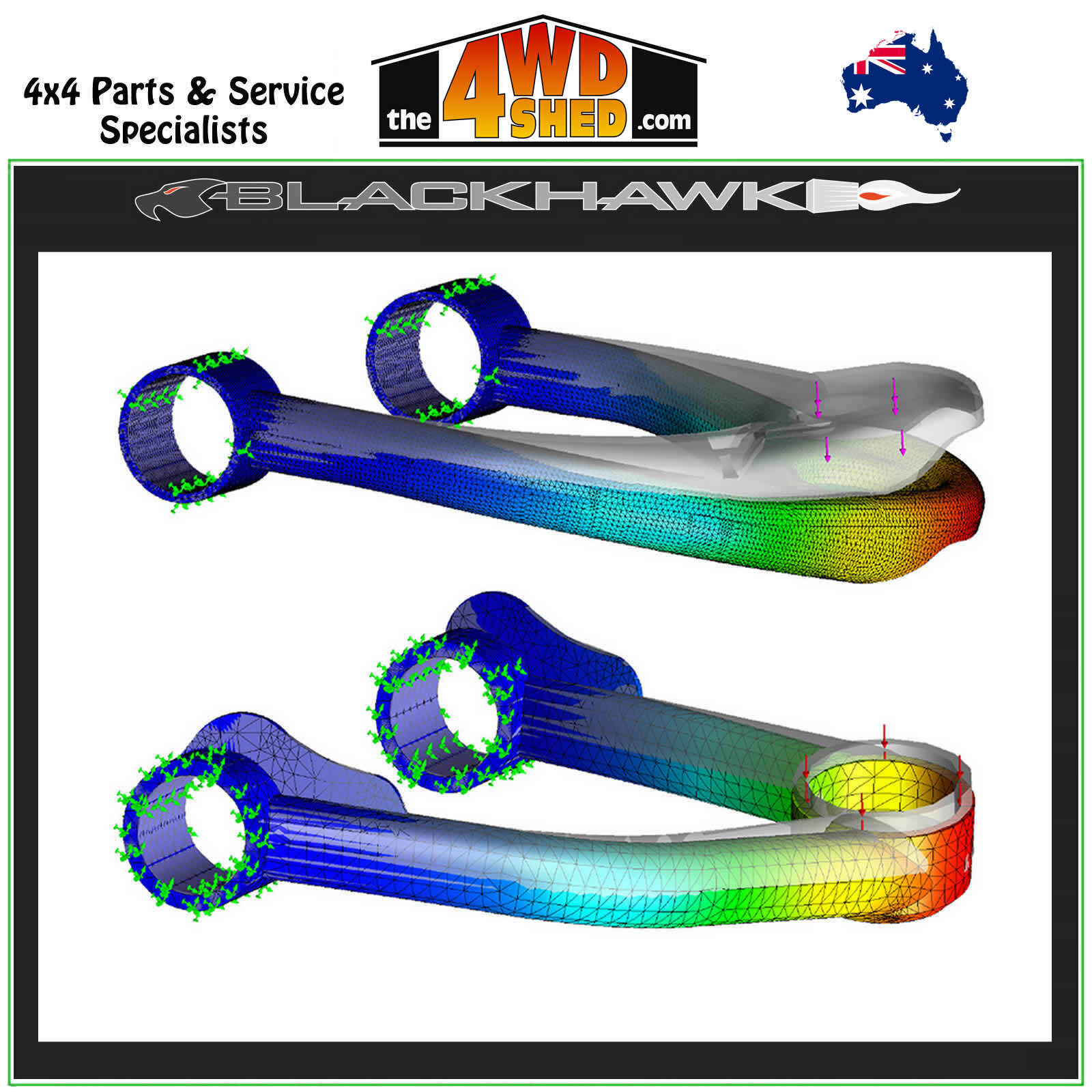

OEM & Blackhawk Upper control arm samples have been computer modeled and subsequently FEA tested with static and bump/lateral load tests, these results have been reviewed and certified by VASS Engineers locally who unequivocally confirm the design and materials chosen to manufacture the Blackhawk arms by long term suspension manufacturer Roadsafe Automotive products, and that they are of sound design and furthermore exceed the original equipment by design in strength and functionality.

A key feature identified by the FEA testing was the amount of deflection seen between the OE component and the Blackhawk UCA, with the Blackhawk arms being 3 times stiffer than the original equipment, resulting in significant increased handling and feel of your vehicle as the suspension cycles.

The manufacturing process is controlled by Roadsafe with a range of Quality Assurance procedures in place, some of these include…

• Welding specifications, Material & procedure
• Material selection
• Manufacturing jigs inspected for conformity regularly
• Random post manufacturing QC checks
• ISO/TS16949:2009
• IATF number 0224504 – Manufacture of steering and suspension parts

Based on years of experience in manufacturing a large volume of suspension components, Roadsafe is able to ensure the manufacturing process is of standard delivering a high quality component to market.

The 4WD Shed is an Authorised Stockist of Blackhawk.

Only suitably qualified and accredited mechanics, with specialist 4WD Suspension knowledge should attempt fitment of these upper control arms. Ensure vehicle has a wheel alignment immediately after installation. Failure to do so may result in poor drivability and/or uneven tyre wear.

The Heavy Duty Ball joints fitted to Blackhawk 4x4 Ultimate UCA’s have been manufactured in the Hard-to-Hard style and require regular greasing, PLEASE ENSURE YOU GREASE THE BALL JOINTS PRIOR TO FITMENT & AT REGULAR SERVICE INTERVALS.

Part Number	Vehicle	Ball Joint	Bushing	Cap
UCA4727C	HOLDEN COLORADO RG DMAX 2012-20	BJ4727HD	S0531R	N/A

ADR Compliance

Blackhawk arms have been designed and manufactured to be ADR Compliant; this is a confusing term within the industry as there is not an ADR (Australian Design Rule) to comply with specifically for this product group.

So what does “ADR compliant” mean?

Roadsafe have ensured the Blackhawk UCA’s mount to the vehicle in the standard fitment position, by not moving or changing any of the mounting points at the chassis rail, by utilising rubber bushings at the chassis we have also followed the OE specifications on the vehicle.

Our new HD Balljoint is manufactured as a press fit, circlip retained (where applicable) ball joint in a fixed position, meaning it mounts in the same fashion as the OE component following your vehicle manufacturers general build practice – we have developed a product that complies with the ADR ruling as stated in the NCOP that it is manufactured to meet or exceed the factory item, with built in features & benefits to suit raised suspension.

Some of our customers would like to consult with a VASS approved engineer in order to have the ADR compliant Blackhawk UCA’s and their fitment to your vehicle certified, in order to receive the appropriate documentation that your vehicle is ADR approved for road use with the Blackhawk UCA’s.

To our knowledge, no other company currently offer’s this documentation to ensure you have a smooth transaction with your vehicle.

    Roadsafe Blackhawk VASS Letter
    Roadsafe Blackhawk UCA Arm Comparative Report
    Roadsafe Blackhawk UCA Quality Assurance Letter

Fitment Note

If a vehicle steering or suspension component is supplied/installed whereby the design includes a GREASE NIPPLE it is imperative that the joints are lubricated at relevant service intervals or when exposed to contaminants. Lack of lubrication will result in metal to metal contact, fretting, fatigue cracking and eventual failure.

Lack of lubrication restricts the ball studs in their movement due to the increased friction in the assembly from metal to metal contact, resulting in greater lateral loads on the ball stud. There are some that believe that the initial greasing of the component is enough to carry it through its lifetime. This is not the case.  It is imperative that ongoing lubrication at relevant service intervals is maintained throughout the components lifetime in the vehicle.

This is especially relevant for 4WD components whereby contaminants might enter the boot or internal  assembly  during  offroading.  When this occurs, it is necessary to flush out the contaminants via greasing.  This will ensure that contaminants are either 'pushed' out of the housing or diluted, and will reduce the potential for excessive wear due to internal contaminants. Both lack of lubrication and internal wear due to contamination are visually identifiable on return items.

It is a regular occurrence to get return items due to lack of lubrication, incorrect lubricant used or internal contamination. These items are not covered by Warranty, so it is in your interest to ensure that all Greasable Joints are adequately lubricated upon installation, and at relevant service intervals or when exposed to contaminants. Please use a professional if you are unsure on how to correctly grease your Roadsafe product.

The Grease Nipple can be located in various locations on the steering component depending upon clearances required for greasing in-situ. Care must be taken when greasing. Nipples are not a warranty item if broken by heavy hands or too much grease being applied causing breakage.

Part Number	Vehicle	Ball Joint	Bushing	Cap
UCA4727C	Holden Colorado RG 2012-2016	BJ4727HD	S0531R	N/A
UCA4727C	Isuzu Dmax 2012-2019	BJ4727HD	S0531R	N/A
