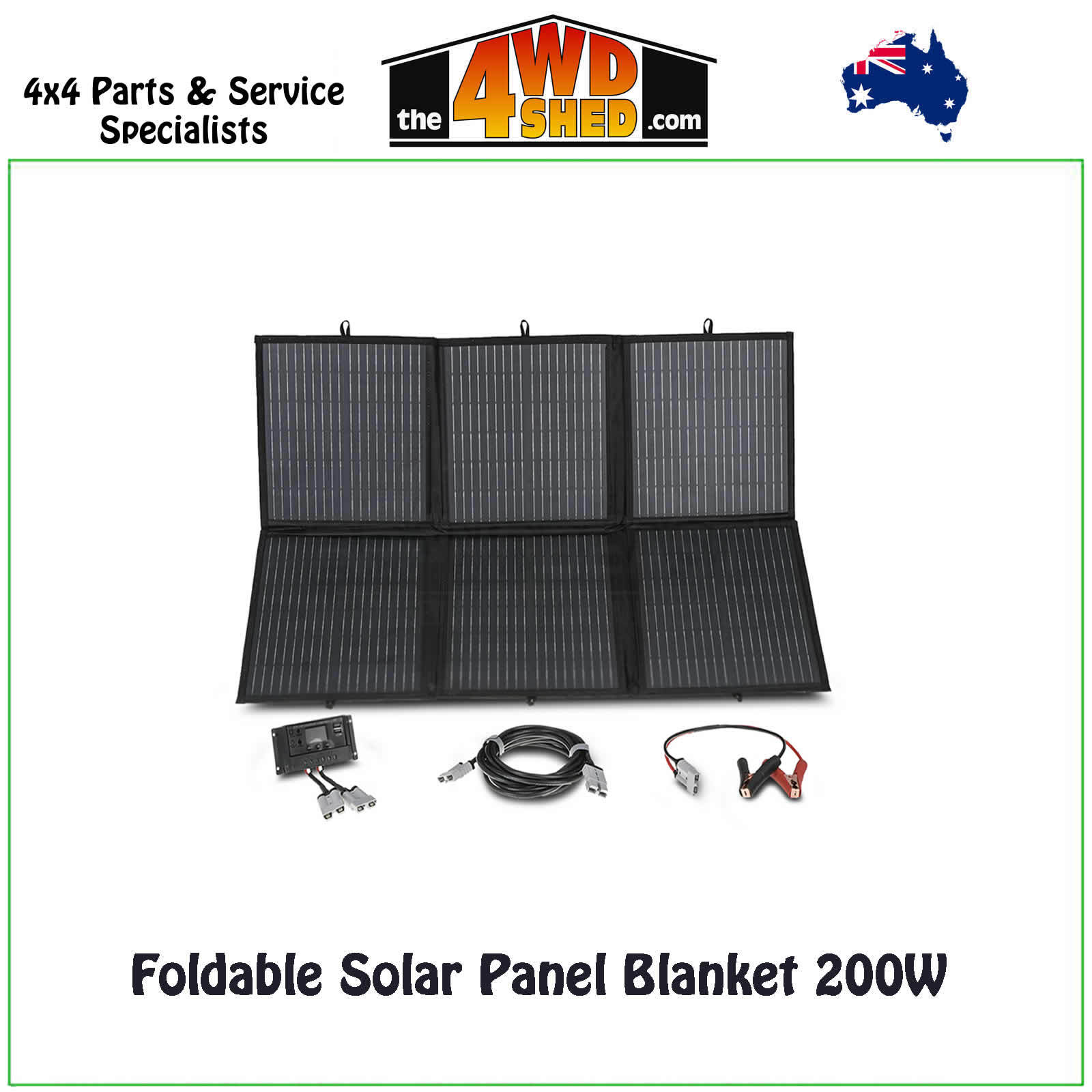

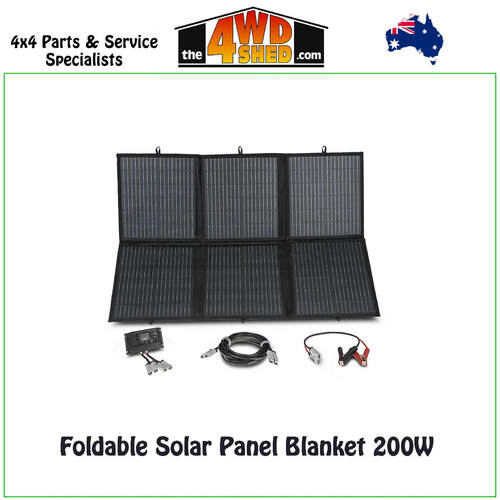

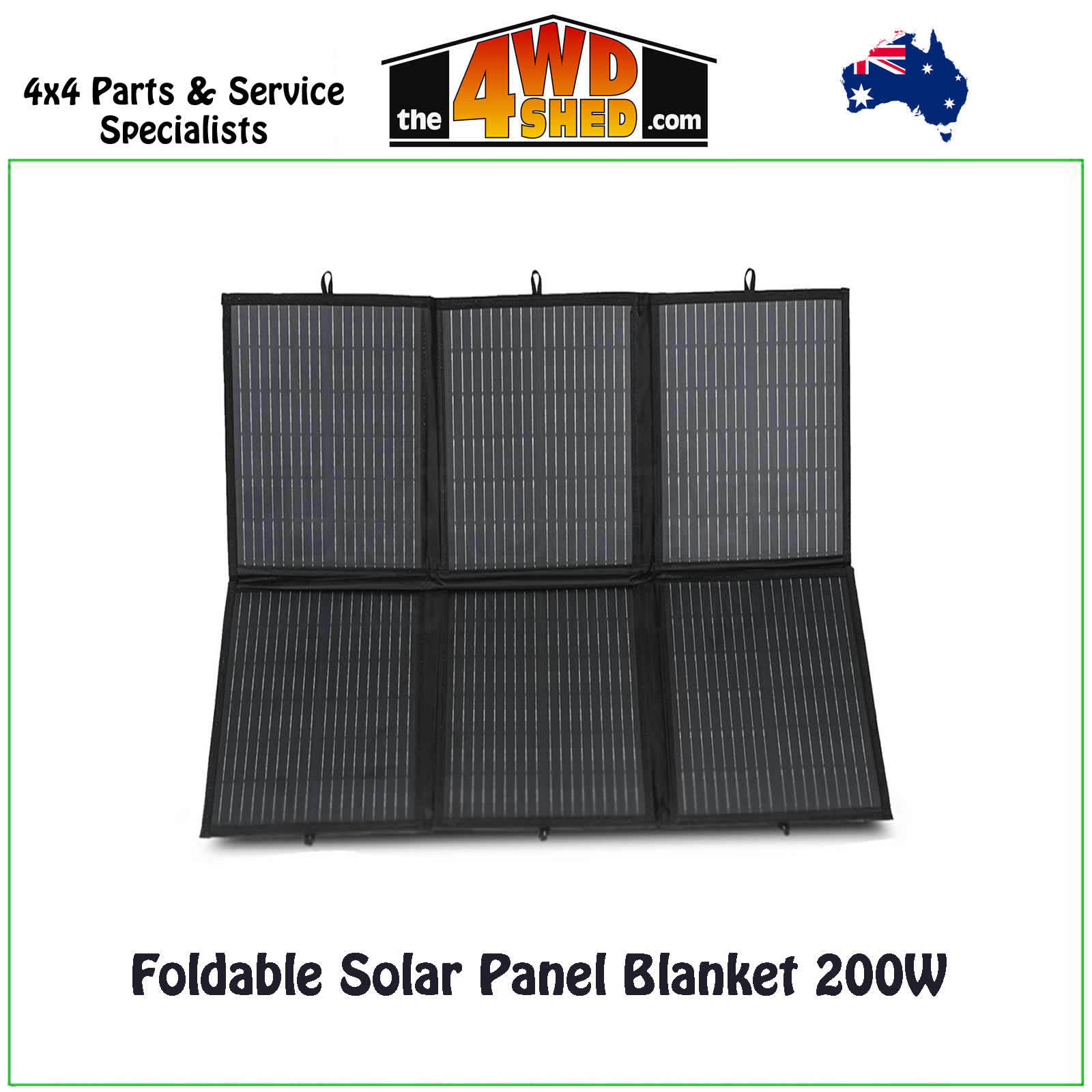

Foldable Solar Panel Blanket 200W

Drivetech 4x4 Foldable Solar Panel Blanket 200W

High quality, lightweight solar panels and solar blankets designed for camping and 4WD off-roading.

Backed by a 12 month guarantee and crafted with high quality, lightweight and durable materials, you can be sure it will last the distance.

Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s.

Features

• Monocrystalline
• PWM Regulator
• Open Measurements 1110 X 1105 X 5mm

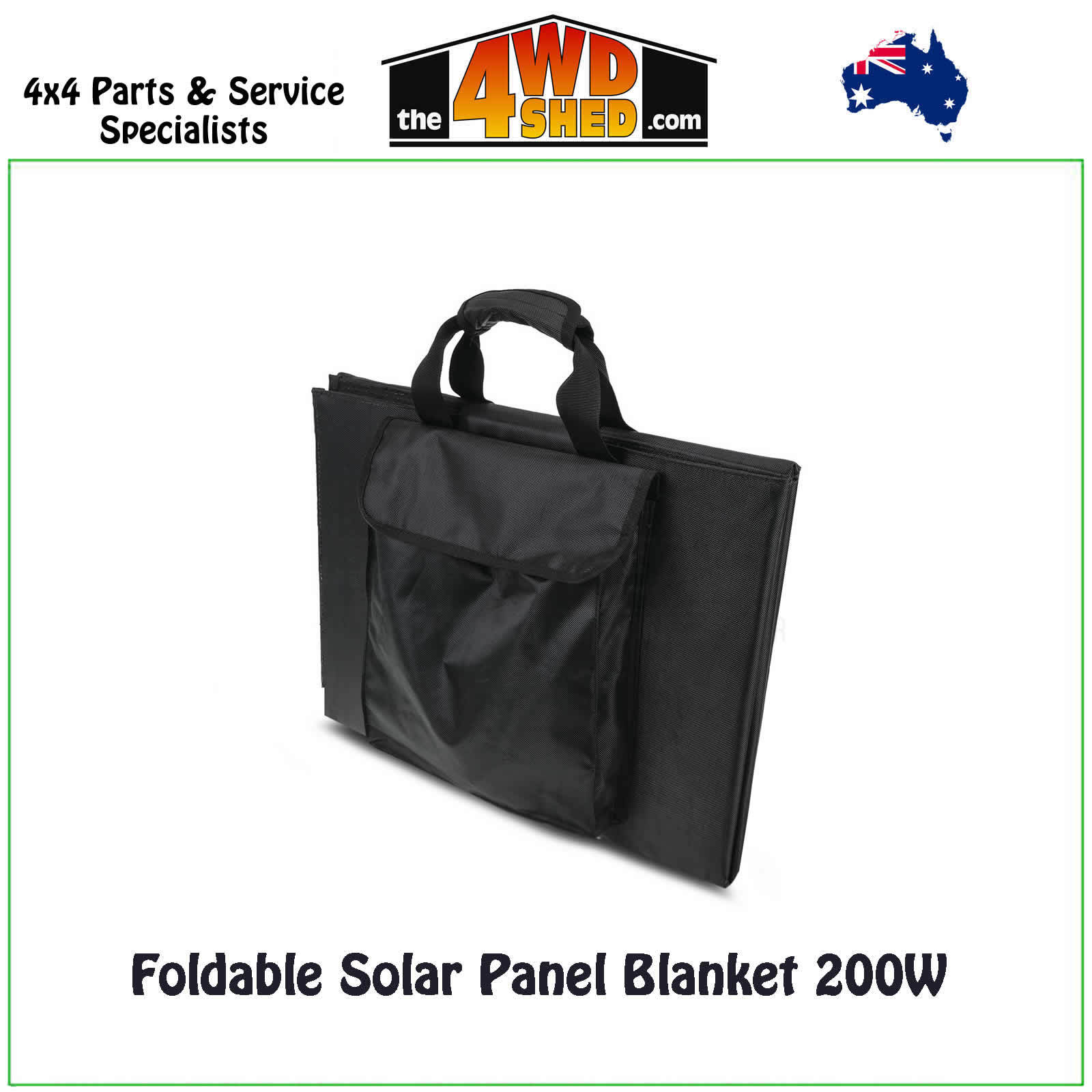

• Closed Measurements 530 X 385 X 105mm
• Open Circuit Voltage 22.1V
• Short Circuit Current 11.53A
• Portable Compact & Lightweight

Specifications

• Part Number DTSB200
• Rated Maximum Power (PM) 200W
• Voltage at Pmax VMP 18.70V
• Current at Pmax IMP 10.86A
• Open-Circuit Voltage VOC 22.51V
• Short-Circuit Current ISC 11.53A
• Maximum Series Fuse Rating 20A
• Dimensions (Open) 1105x1100x5mm (HxWxD)
• Dimensions (Closed) 530x385x105mm (HxWxD)
• Solar Cell Type Monocrystalline
• Tolerance ± 3%
• Normal Operating Cell Temp (NOCT) 47 ± 2°C
• Maximum System Voltage 1000VDC
• Operating Temperature Solar Blanket -40°C to +85°C
• Connections 50A Power Connectors
• Regulator Type PWM (pulse width modulation)
• Regulator Current Rating 20A
• Maximum Regulator Voltage Input 50V
• Float Charge 13.7V - Default, Adjustable
• Discharge Stop 10.7V - Default, Adjustable
• Discharge Reconnect 12.6V - Default, Adjustable
• USB Output 5V 3A
• Kit Weight Including Panel and Accessories 5.95kg

The 4WD Shed is an Authorised Stockist of Drivetech 4x4
